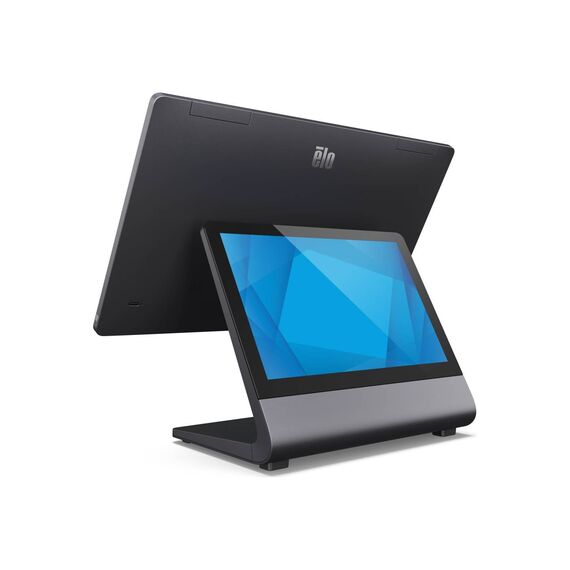

Elo EloPOS Z30 — Intel-Powered All-in-One POS Terminal with Integrated Customer Display

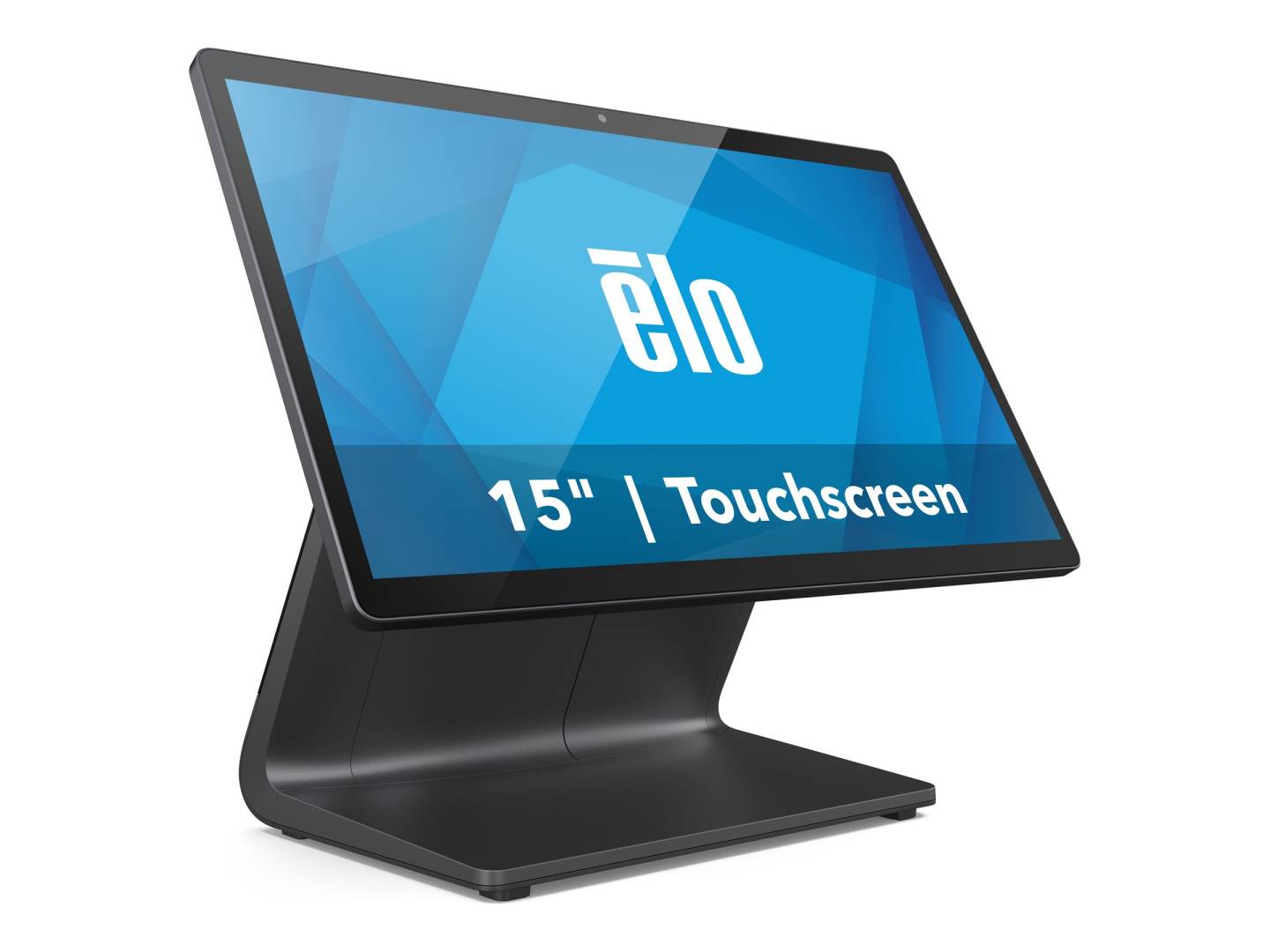

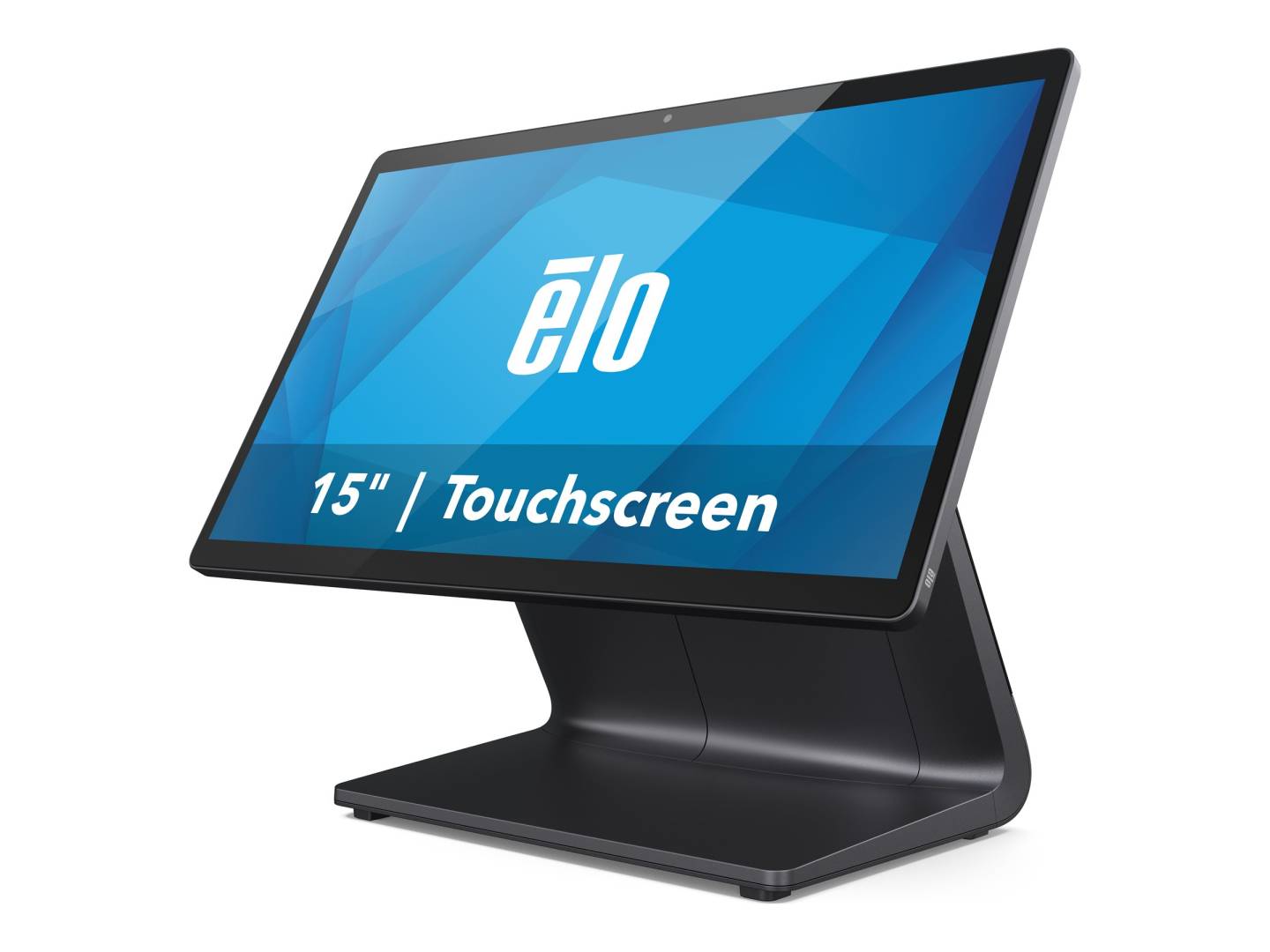

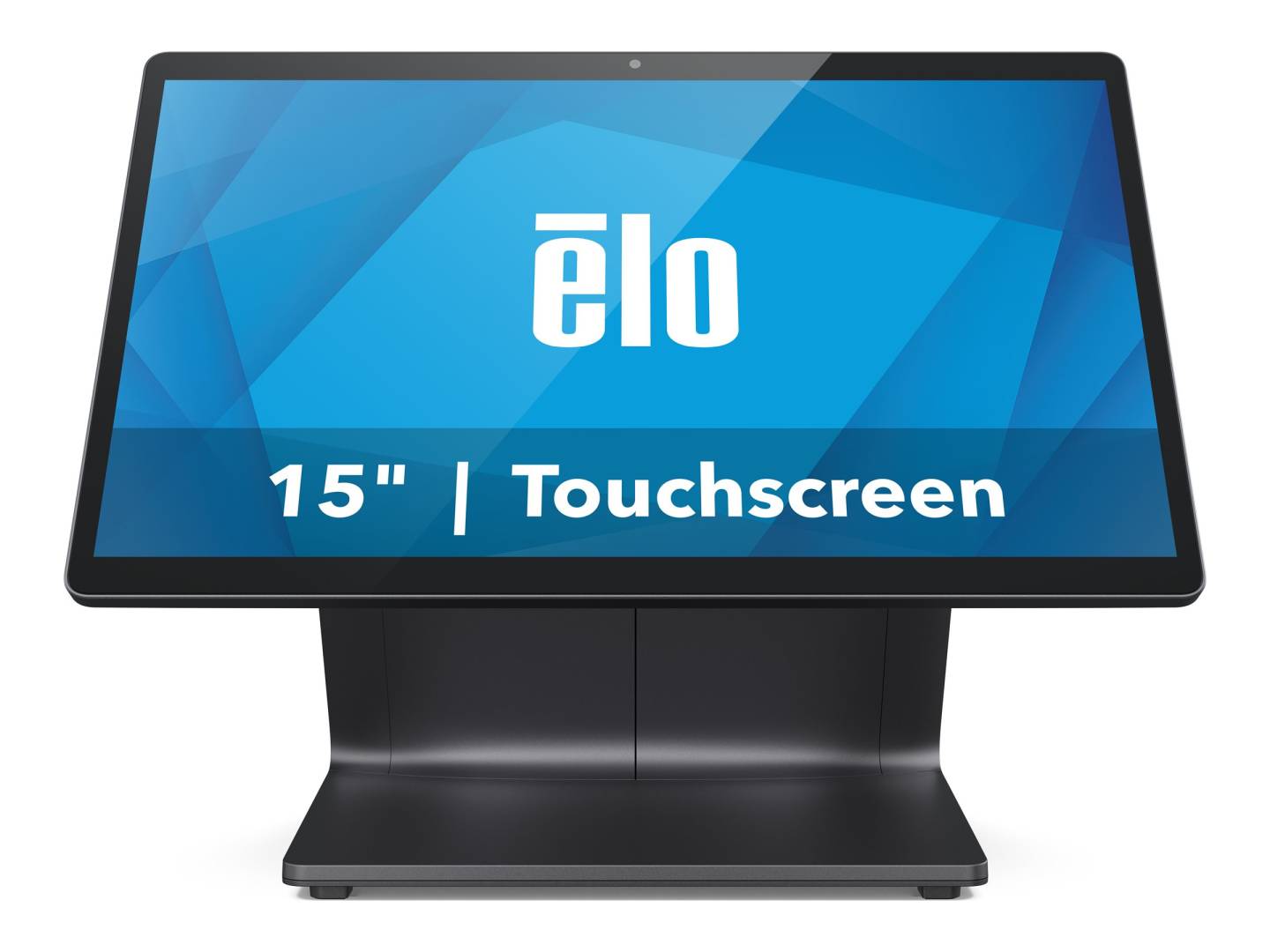

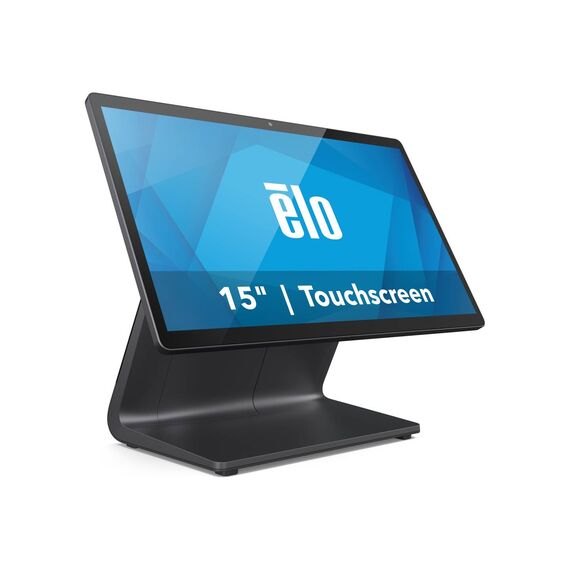

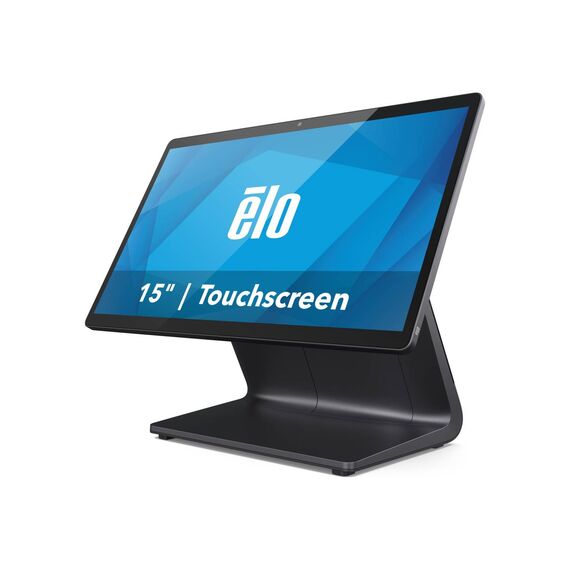

The Elo EloPOS Z30 (E984463) is a purpose-built point-of-sale terminal that combines a 15.6-inch Full HD PCAP touchscreen with an integrated 10.1-inch Customer-Facing Display (CFD) in a single, slim unit. Powered by the Intel Pentium J6426 (Elkhart Lake) processor with 8 GB DDR4 RAM and 128 GB NVMe SSD, it delivers reliable POS performance for retail, hospitality and food service. Built on Elo's unified architecture with integrated cable routing, Wi-Fi 6E, Gigabit Ethernet and a full set of POS-specific I/O including cash drawer kickout — all in one of the sleekest form factors available in the POS market.
Technical Specifications
| Specification | Detail |
|---|---|
| Processor | Intel Pentium J6426 (Elkhart Lake), up to 3.0 GHz |
| Memory | 8 GB DDR4 SDRAM |
| Storage | 128 GB SSD M.2 NVMe PCIe |
| Operating System | No OS — compatible with Windows 10/11, ChromeOS Flex, Linux |
| Main Display | 15.6" FHD (1920 × 1080), IPS, 255 cd/m², 1000:1 contrast, 170°/170° viewing angle, 25ms response |
| Touch Technology | Projected Capacitive (PCAP), 10-touch, Clear glass |
| Customer-Facing Display | Integrated 10.1" CFD — PCAP touch, single USB-C cable for touch + video + power |
| WLAN | Wi-Fi 6E (802.11ax) |
| Ethernet | Gigabit Ethernet (RJ45) |
| Bluetooth | Bluetooth 5.2 |
| Camera | 8 MP integrated webcam |
| USB Ports | 4× USB 3.0 (Type-A) + 1× USB-C |
| Cash Drawer | RJ12 24V cash drawer kickout |
| Video Output | DisplayPort (for secondary display) |
| Mounting | VESA 75 × 75 mm — countertop stable without securing; optional screw-mount to counter |
| Color | Dark Gray; Worldwide SKU |
Key Design Features

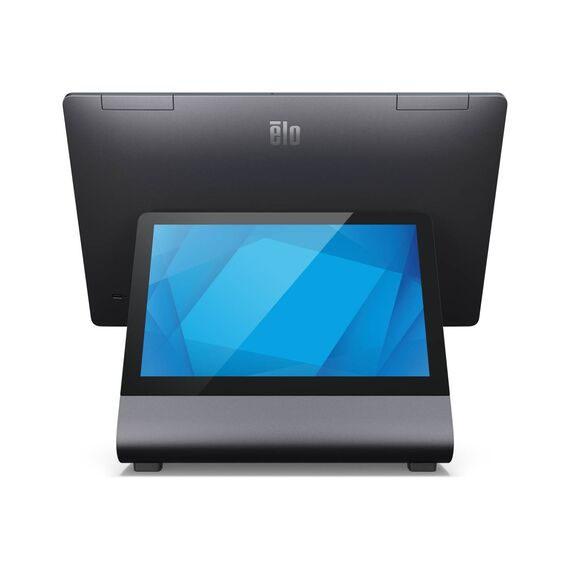

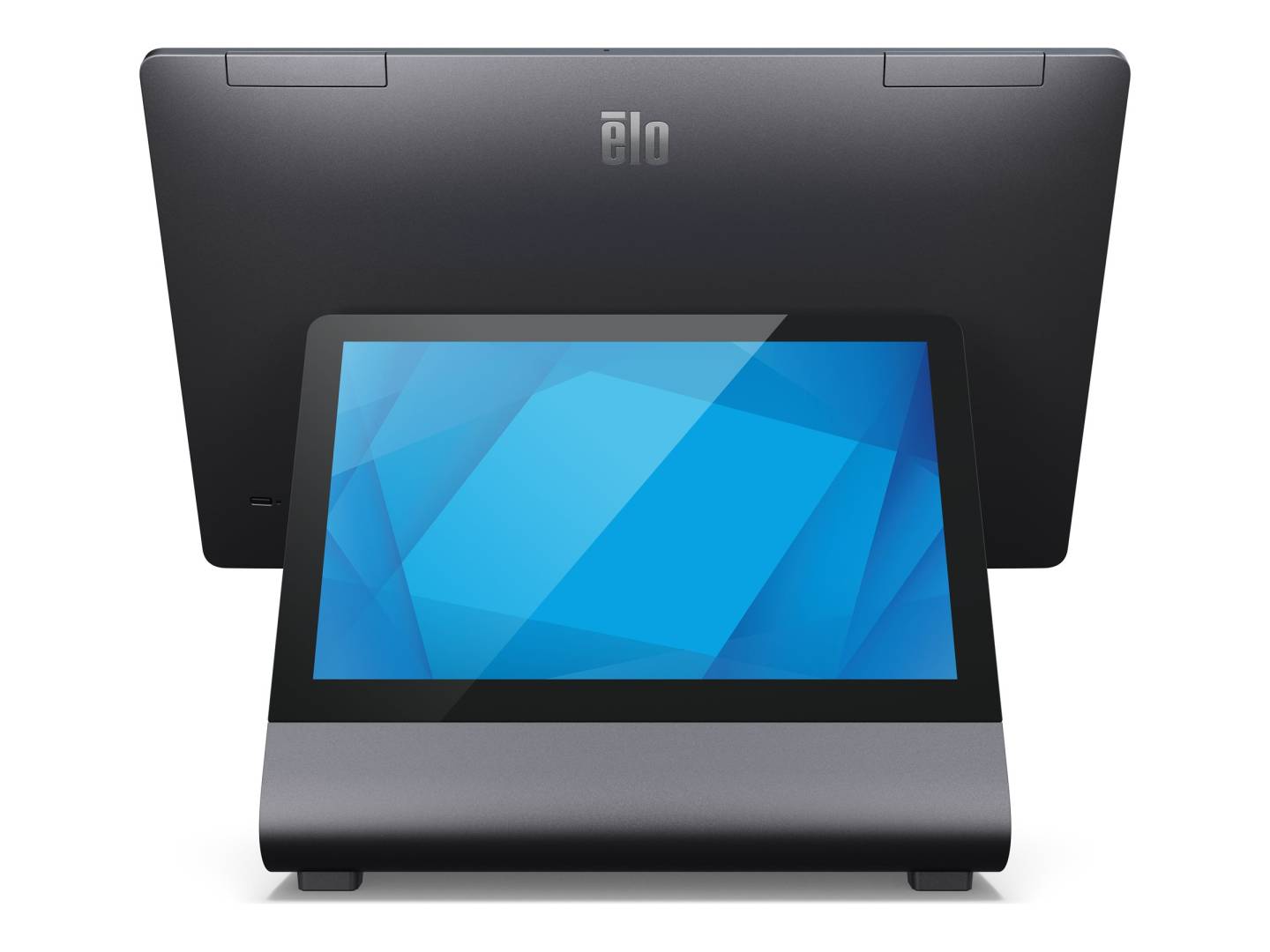

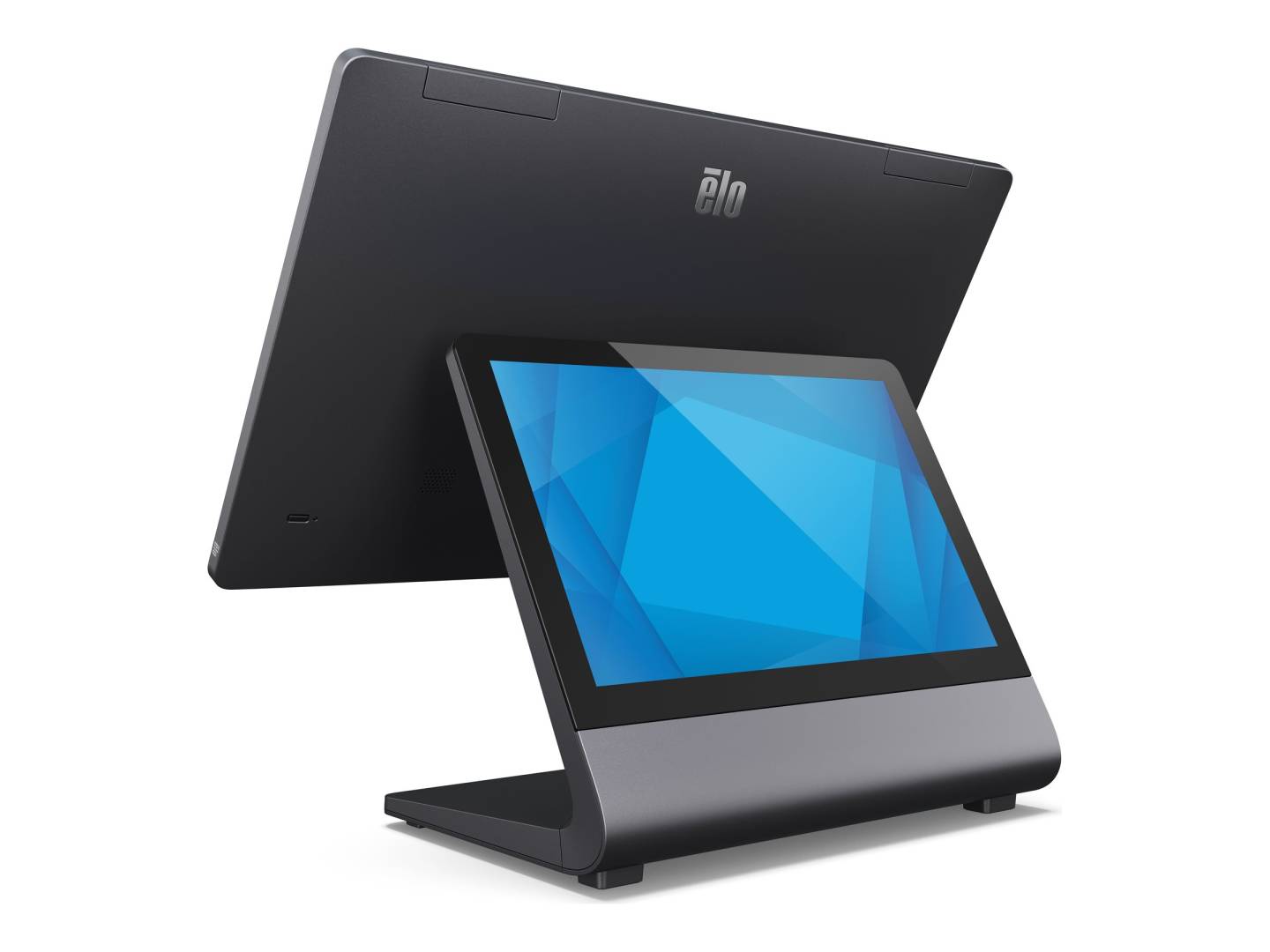

Integrated CFD in a single unit: The 10.1-inch customer-facing display is built into the Z30 and connects to a secondary Elo display via a single USB-C cable that carries touch, video and power simultaneously — no power brick or HDMI cable required at the secondary display. Integrated cable routing: All peripheral cables (scanner, payment terminal, cash drawer, printer) route through the base and out of sight, keeping the counter clean without cable management accessories. Countertop stability: The base is weighted to remain stable without screwing down, but includes M4 mounting screws for permanent installation when required. Elo Unified Architecture: The EloPOS Z30 shares mechanical accessories, peripherals and management tools (EloView) with other Elo I-Series and EloPOS products.
SINGULAR RECOMMENDS
For who
Retail stores, restaurants, QSRs, hospitality and service businesses that need a complete all-in-one POS terminal with both a staff-facing 15.6-inch touchscreen and an integrated customer-facing display for transaction review, loyalty programmes and upselling — in a single compact unit with no OS pre-installed for custom deployment with their own software stack.
The real reason to buy it
The integrated 10.1-inch CFD is the standout differentiator: most POS terminals require a separate customer display with its own power supply, mounting arm and video cable. The EloPOS Z30 integrates both displays in one unit and connects a secondary CFD (if needed) with a single USB-C cable. Combined with integrated cable routing that eliminates counter clutter, Wi-Fi 6E for fast, reliable connectivity and a full POS I/O set (cash drawer, USB 3.0 × 4, Ethernet), this is one of the cleanest, most complete POS form factors available. The No OS configuration allows IT to deploy their own validated Windows or ChromeOS Flex image without removing a pre-installed consumer OS.
Know before you buy
This SKU ships without an operating system — Windows 10/11, ChromeOS Flex or Linux must be provided and installed separately. Elo-validated OS images are available via EloView. A power cable is included; country-specific cable variant for EU/US. Compatible with the Elo I-Series 3 Slate for use as a secondary display via single USB-C connection. EloView remote management and OS 360 managed updates are available as optional services.
