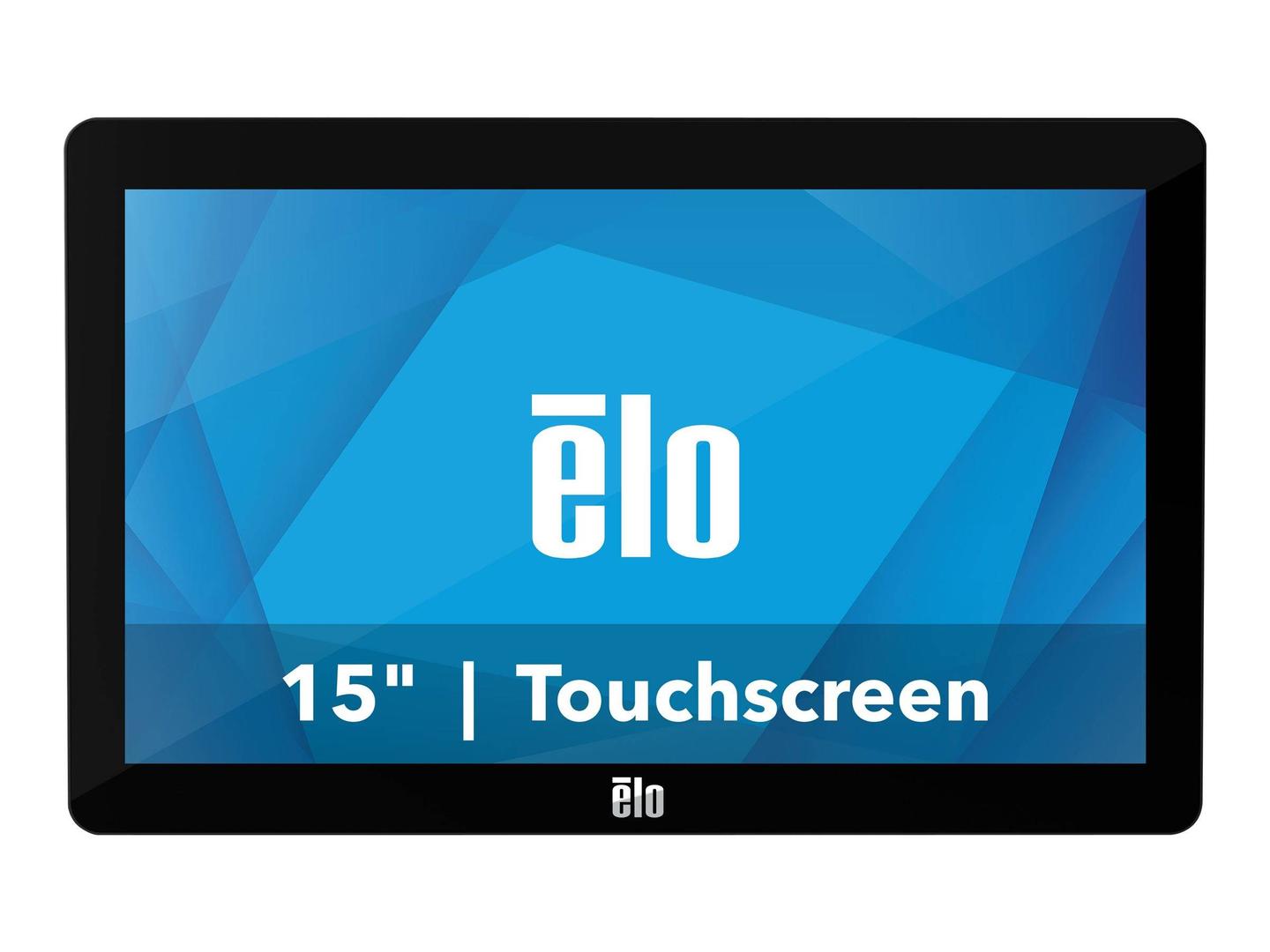

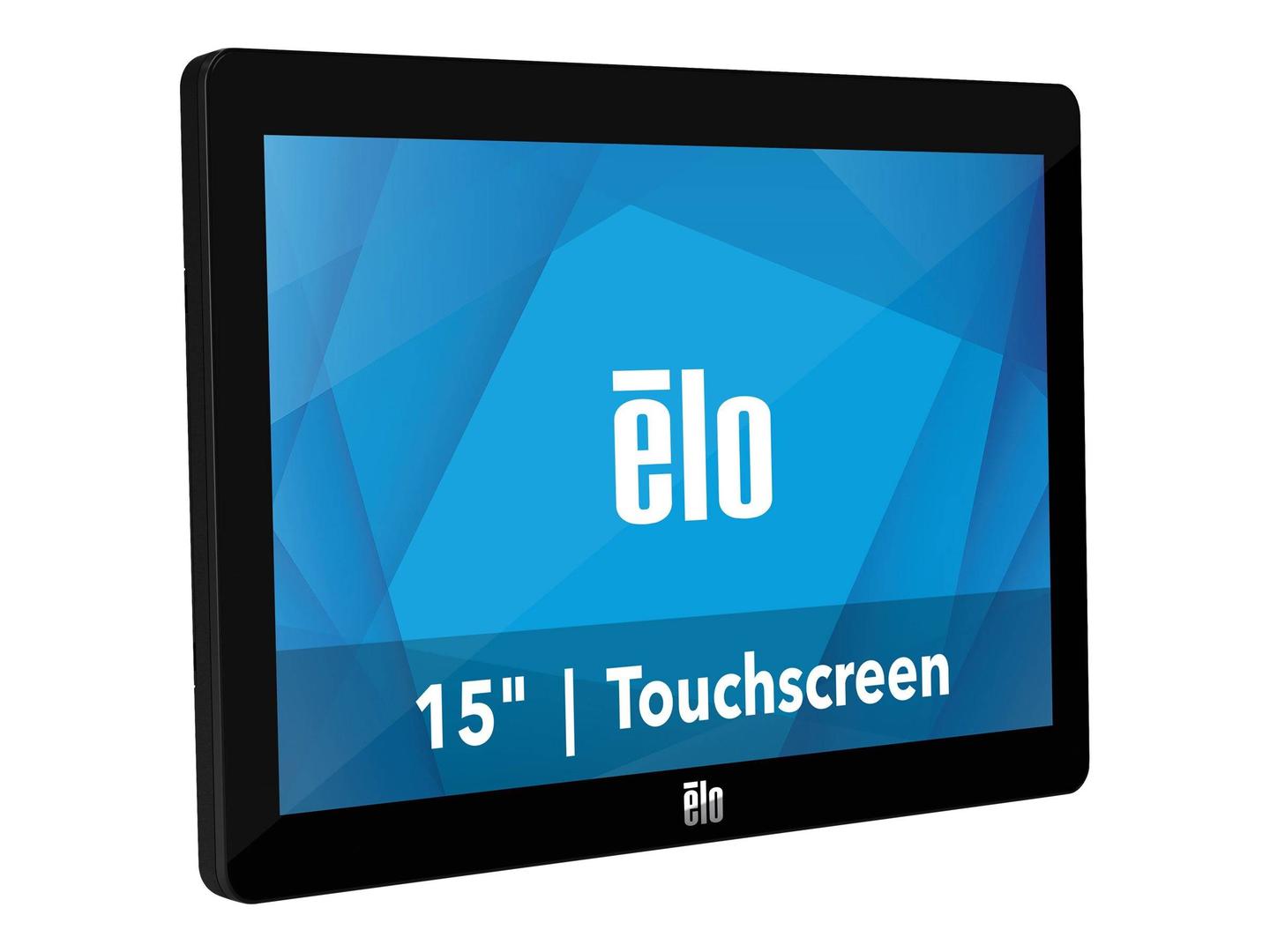

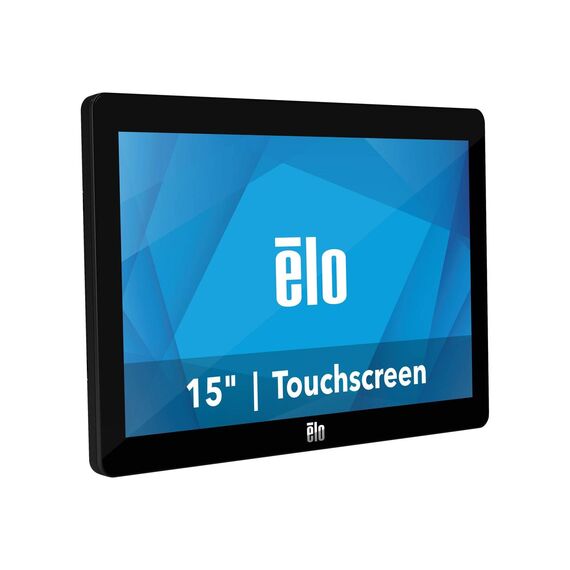

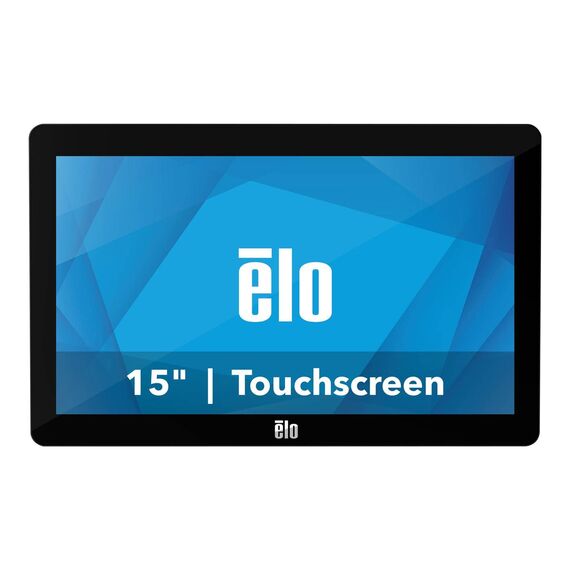

Elo 1502L / No Stand / M-Series / LED monitor / 15.6" / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 300 cd/m² / 700:1 / 35 ms / HDMI, VGA / speakers / black | E125496
Please sign in so that we can notify you about a reply
Special Features
- Sleek and modern widescreen design with "built for touch" reliability
- Energy savings using LED technology
- 10 touch projected capacitive (PCAP) touchscreen
- Full HD Edge-to-edge glass display with anti-glare for retail interiors
- Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 15.6" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Contrast Ratio | 700:1 |
| Colour Support | 16.7 million colours |
| Response Time | 35 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 31.5 - 82 kHz |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +80 / -80 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Edge-to-edge glass, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 38.7 cm x 3.24 cm x 24.44 cm - without stand |
| Weight | 1.64 kg |
| Audio | Audio |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | Mini-VGA ¦ HDMI ¦ USB (Type C) ¦ Audio line-in ¦ 3 x Micro-USB |
| Mechanical | Mechanical |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Miscellaneous | Miscellaneous |
| Features | Security lock slot (cable lock sold separately), VESA interface support |
| Included Accessories | 3 screws, 2 screws, cable clamp, 2 tie wraps |
| Cables Included | 1 x HDMI cable ¦ 1 x USB-A to USB-C adapter |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, E-Standby, IPX1, RCM, BIS |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 12 Watt |
| Power Consumption Sleep | 2 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 17.5 cm |
| Shipping Depth | 45.1 cm |
| Shipping Height | 32 cm |
| Shipping Weight | 3.39 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E125496
More Details
Product Code
CA07491
EAN Code
0843173124063
Manufacturer
Elo
