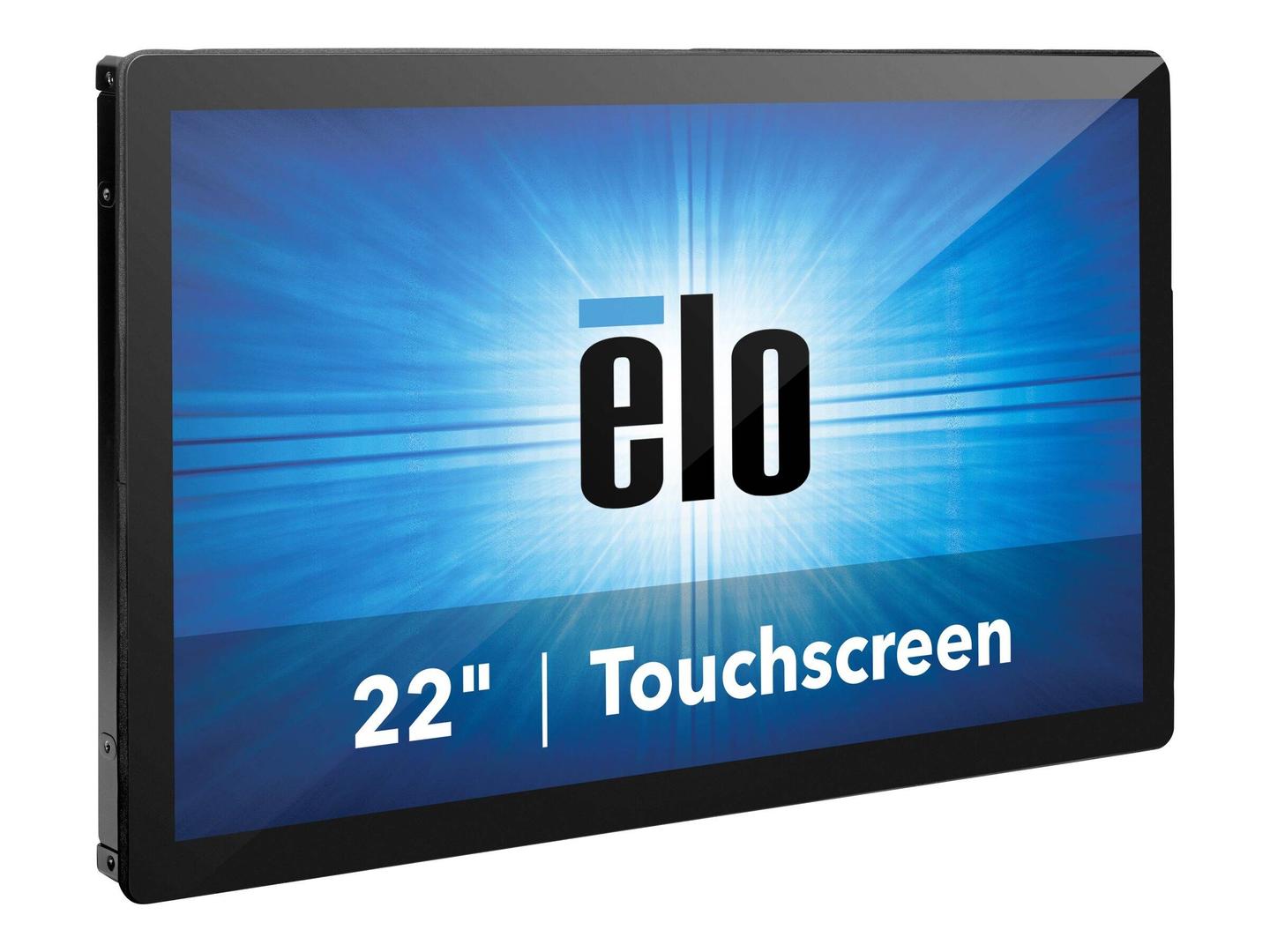

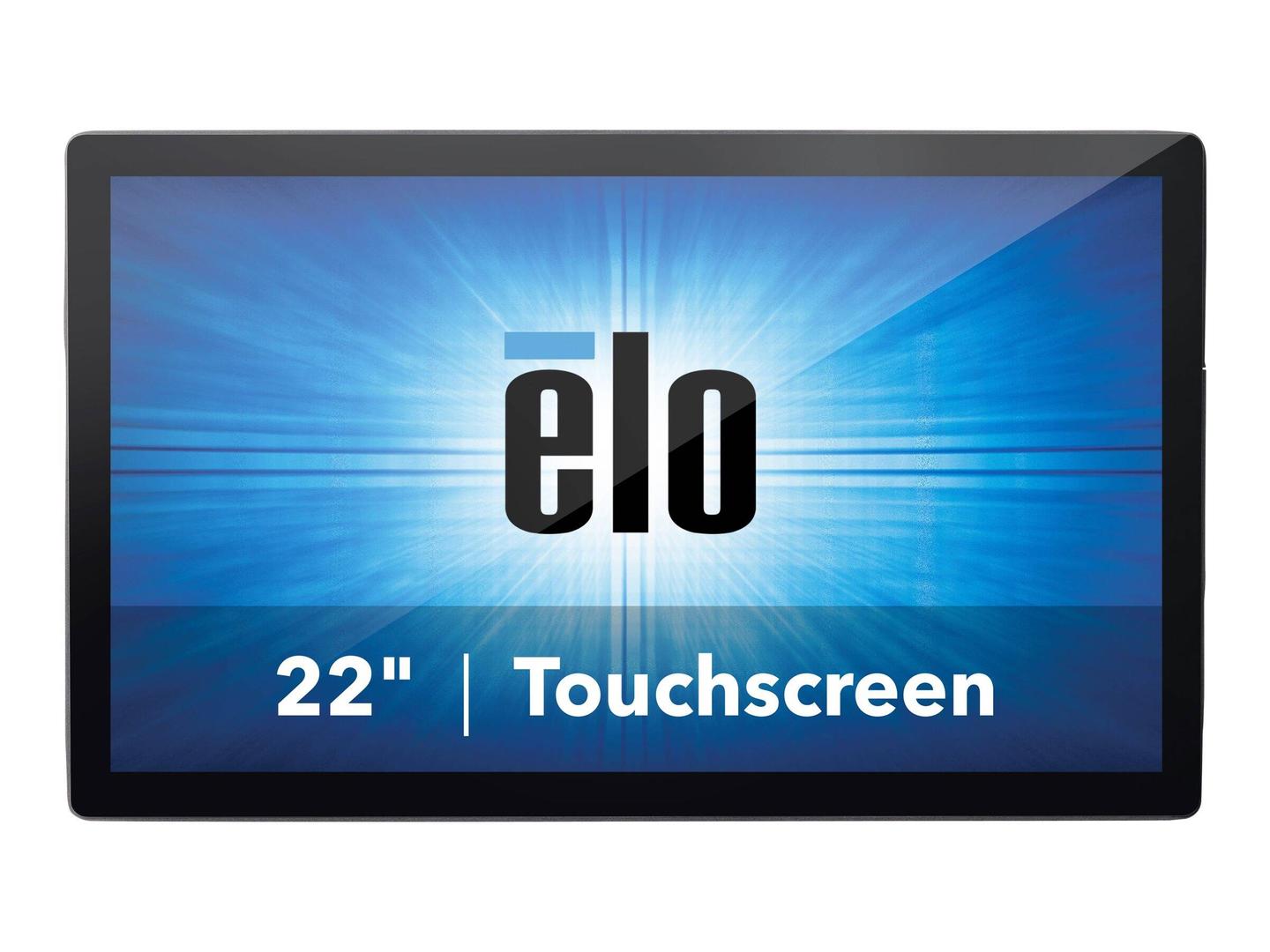

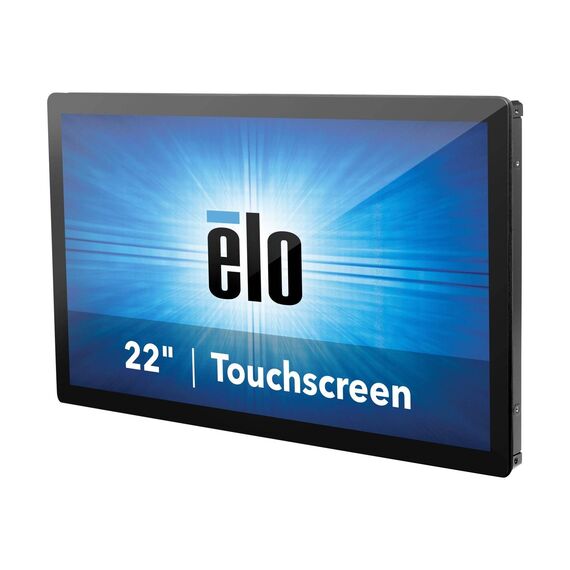

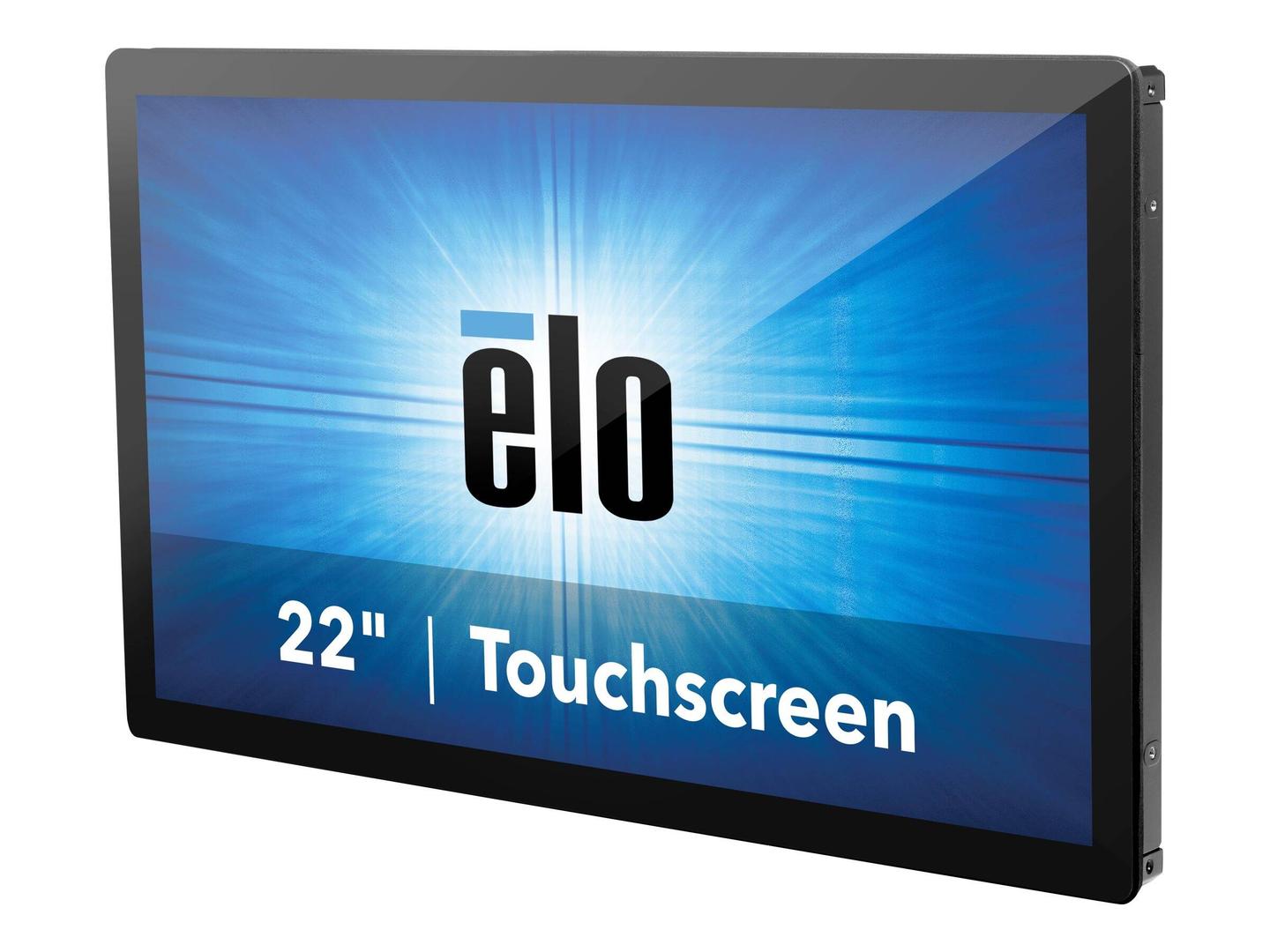

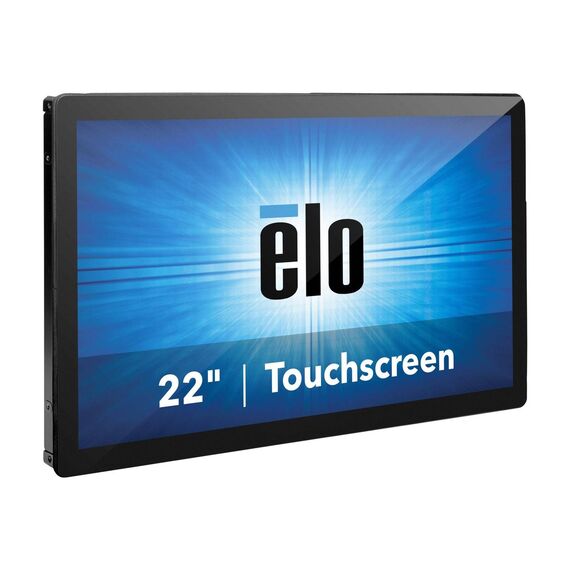

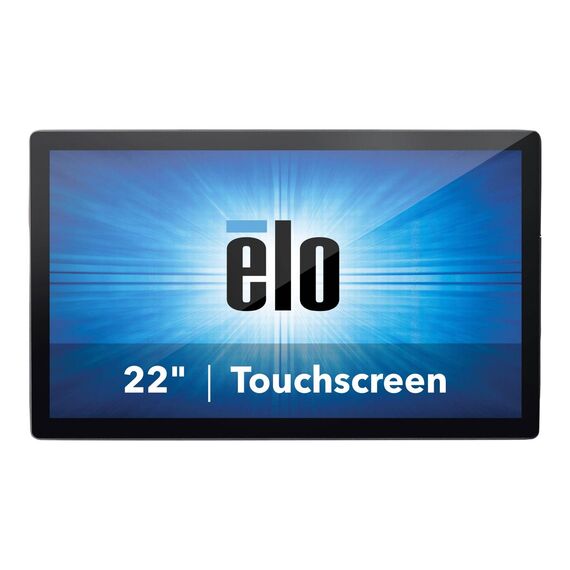

Elo 2295L - LED monitor - 22" (21.5" viewable) - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 400 cd/m² - 1000:1 - 14 ms - HDMI, VGA, DisplayPort - black | E146083
Please sign in so that we can notify you about a reply
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 400 cd/m² |
| Brightness w/touchscreen | 360 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 14 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Edge-to-edge glass, OSD lock, Full HD wide-viewing angle (WVA), Projected Capacitive Touch (P-CAP) technology, landscape mode, portrait mode, Face Up mode, TouchPro technology |
| Colour | Black |
| Dimensions (WxDxH) | 51.6 cm x 4.69 cm x 31.1 cm |
| Weight | 5.41 kg |
| Input | |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | |

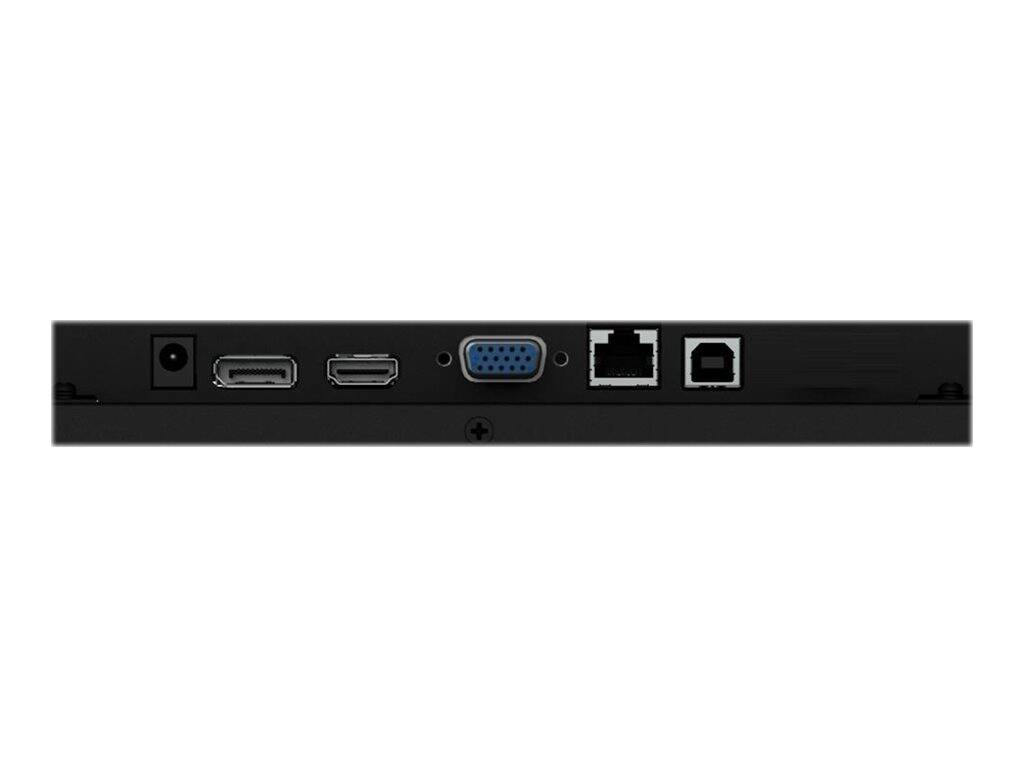

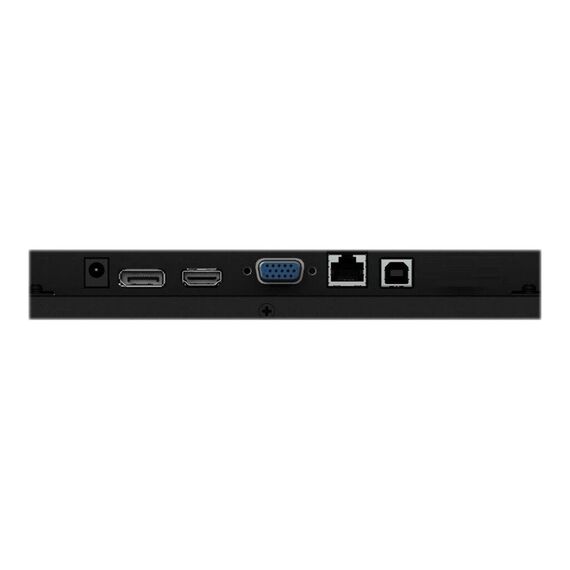

| Interfaces | HDMI ¦ VGA ¦ DisplayPort ¦ USB 2.0 (Type B) ¦ Management (RJ-45) |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Included Accessories | Remote control |
| Cables Included | 1 x HDMI cable ¦ 1 x VGA cable ¦ 1 x USB cable |
| Mounting Kit | Included |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, IK07, DisplayPort 1.1a, Mexico CoC, Class B |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 25 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 62 cm |
| Shipping Depth | 19 cm |
| Shipping Height | 42.3 cm |
| Shipping Weight | 8.6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E146083
Resolution
1920 x XXXX
More Details
Product Code
0V01031
EAN Code
0843173100050
Manufacturer
Elo
