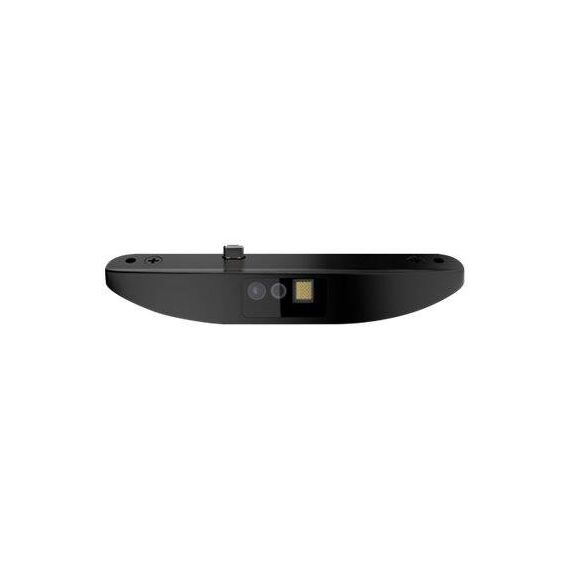

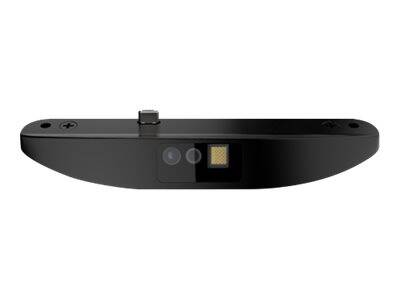

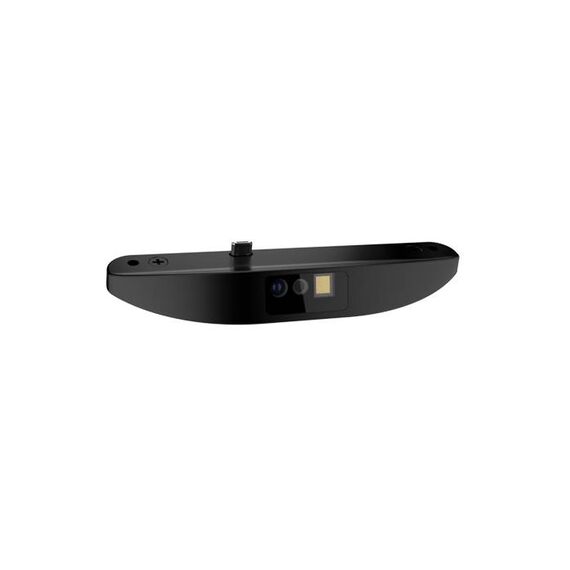

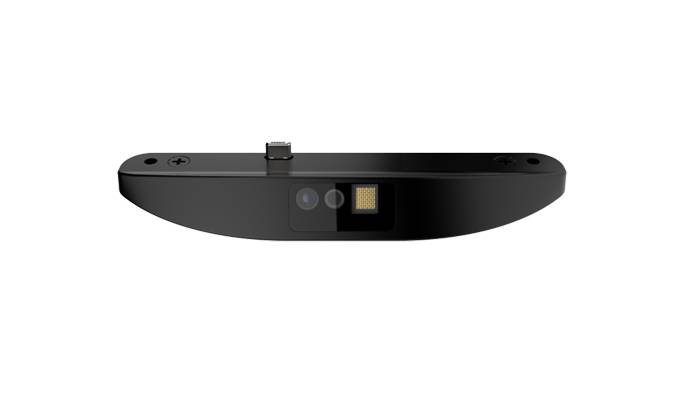

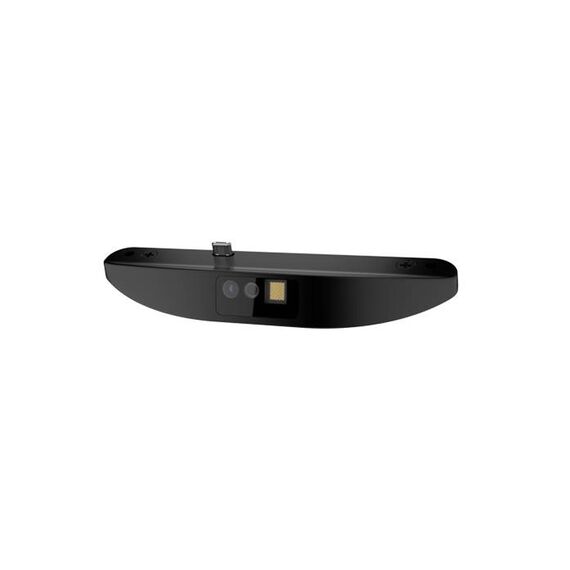

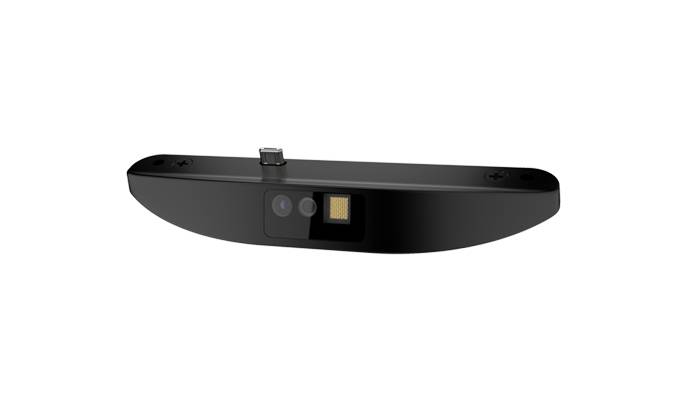

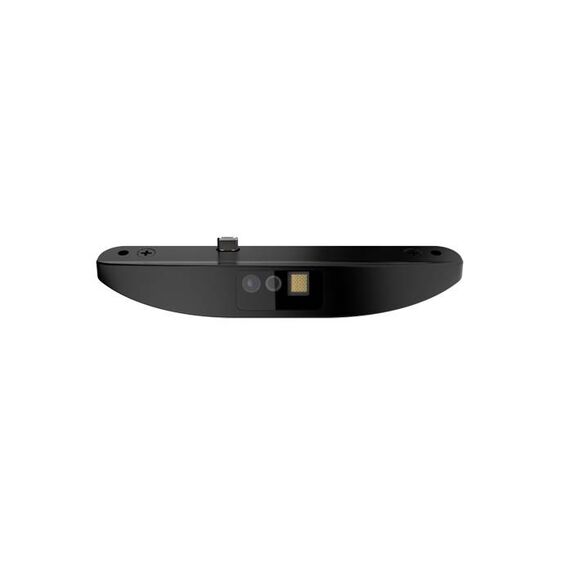

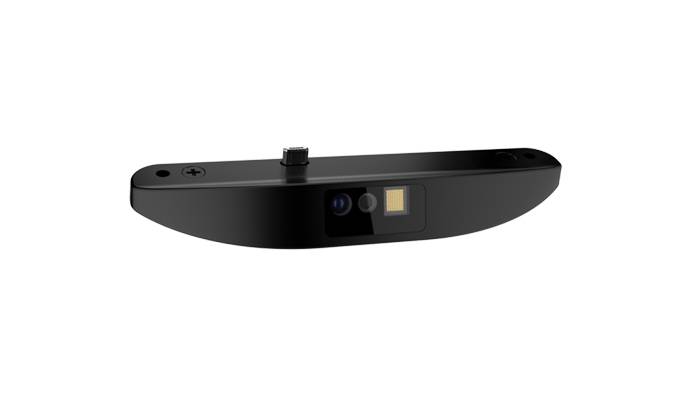

Elo Edge Connect SE4107 2D Barcode Scanner Module for Compatible Elo Displays, Black

Brand:
Elo
Elo Edge Connect SE4107 Black 2D Barcode Scanner Module E245047
Elo Edge Connect SE4107 2D Barcode Scanner Module for Compatible Elo Displays, Black
€246.64 inc. VAT
Buy
E245047
€207.26
€246.64 inc. VAT
Ships from EU stock: 94 item(s)
+ −
Add to wish list Ask a question
Product Code
CC80907
EAN Code
0843173149653
Manufacturer
Elo

Quick Specs

Format
Elo Edge Connect module
Engine
SE4107 · 1D / 2D
Sensor
1280 × 960 pixels
Ideal scan distance
3.05–49.5 cm · barcode dependent
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Make a compatible Elo display a scanning station

SE41071D + 2DEdge ConnectBlack

The E245047 is the slim black SE4107 module for supported Elo Edge Connect devices. It adds hands-free barcode input to a compatible display or Elo computer for checkout, ticketing and visitor workflows.

Before you order:
Check the exact Elo host model and its available Edge Connect port before ordering. A display or POS computer is not included.

What's in the Box

  • Black SE4107 scanner module
  • 2 mounting screws
  • Quick Installation Guide

What Will Not Work

  • It is not a complete POS, payment terminal or universally compatible handheld USB scanner.
  • Barcode capture does not supply product prices or payment processing; compatible host software must handle that workflow.

Key Features


Integrated into the display
The compact Edge Connect format keeps the scanner attached to the compatible host instead of occupying counter space as a separate handheld reader.

1D labels and 2D codes
The area imager reads common linear barcodes plus QR, Data Matrix and PDF417. Enabled symbologies and host software determine how the decoded data is used.

Understand the SE4107 choice
This is the Value SE4107 version with 1280 × 960 imaging and an ideal 3.05–49.5 cm range. The SE4720 alternative is a different engine; do not transfer its range or housing specifications to this module.

Technical Specifications

Identity & integration
Manufacturer part number E245047
EAN 0843173149653
Engine / colour SE4107 / black
Connection USB via compatible Elo Edge Connect port
Compatible computers Elo I-Series Android, I-Series Windows, EloPOS
Compatible touch monitors 1002L, 1302L, 1502L, 1902L, 1903LM, 2002L, 2202L, 2203LM, 2402L, 2403LM, 2702L, 2703LM
Compatible signage 3202L, 3203L, 4202L, 4303L, 4602L, 5053L, 5502L, 5503L, 5553L, 6553L
Host modes SNAPI standard with Imaging Interface / Presentation; HID, CDC, OPOS IBM Handheld / IBM Tabletop
Scanning
Sensor 1280 × 960 pixels
Illumination / aiming White LED / green LED
Field of view 44.5° horizontal × 33.5° vertical
Ideal reading distance 3.05–49.5 cm; depends on barcode quality, size and environment
Code support Major 1D symbologies; PDF417, MicroPDF417, Data Matrix, QR, MicroQR, Aztec, MacroPDF
Additional configurable codes MaxiCode, Grid Matrix, DotCode and postal codes may require enabling
Postal support US PostNet / Planet, UK, Australian, Japanese, Dutch KIX, Mailmark
Feedback Beeper
Physical & environment
Dimensions 118.5 × 26.6 × 19.1 mm
Weight 22 g
Operating temperature 10–40 °C
Storage temperature 0–50 °C
Operating humidity 20–80% RH, non-condensing
Storage humidity 10–90% RH, non-condensing
Included Scanner module, 2 mounting screws, Quick Installation Guide
Manufacturer standard warranty 2 years; manufacturer terms apply

Frequently Asked Questions

Will it fit any Elo monitor?
Use the verified compatibility list and confirm the exact host and Edge Connect port. Do not assume every Elo monitor accepts it.
Is 49.5 cm guaranteed for every barcode?
No. The manufacturer states an ideal range of 3.05–49.5 cm; barcode size, print quality and environment affect actual reading.
Is a display included?
No. The package contains the scanner module, mounting screws and installation guide.
Singular Expert Insight
Choose this module when a supported Elo screen is already part of the installation. For a conventional counter without Edge Connect, a standalone presentation scanner is the more suitable format. Compare barcode scanner formats

Buyer’s Guide

✓

Buy it if

 You need integrated 1D/2D input on a listed compatible Elo device.
✕

Skip it if

 Your host lacks compatible Edge Connect mounting and USB integration.
→

Also consider

 A standalone presentation scanner for a general checkout counter, or the separately specified SE4720 module when its performance is required.
Verify host model, mounting location, interface mode and application support before rollout.
