Elo M-Series 1502L / LED monitor / 15.6" / touchscreen / 1366 x 768 HD 720p / 220 cd/m / 600:1 / 10 ms / HDMI, VGA / speakers / black | E318746
Elo M-Series 1502L / LED monitor / 15.6" / touchscreen / 1366 x 768 HD 720p / 220 cd/m / 600:1 / 10 ms / HDMI, VGA / speakers / black | E318746
|

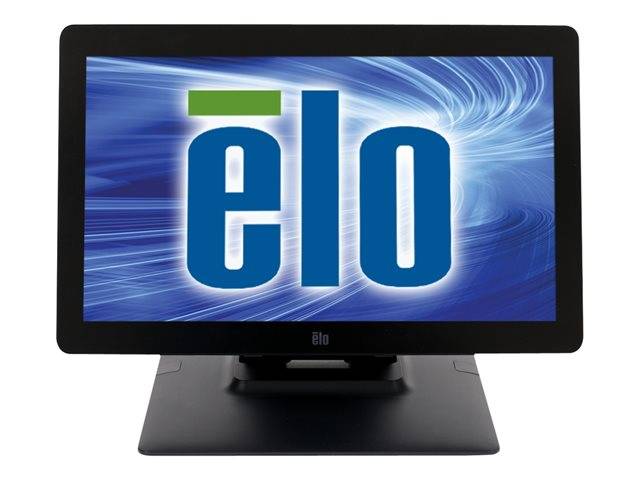

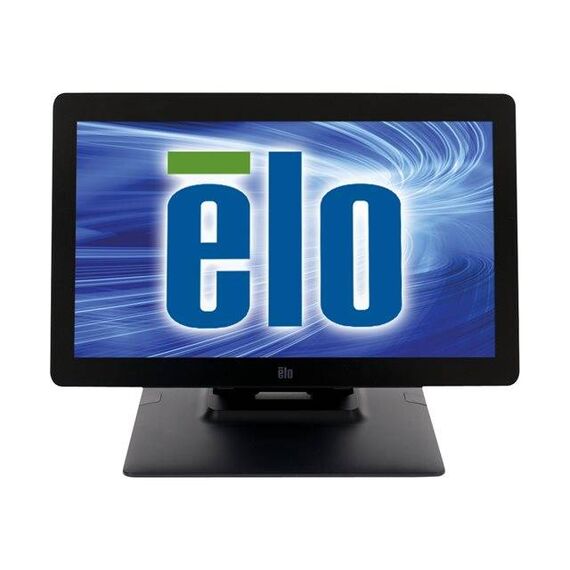

Description The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features Full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920 x 1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns. Elo M-Series 1502L / LED monitor | E318746Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 18 kWh |
| Power Consumption (On mode) | 12 W |
| Diagonal Size | 15.6" |
| Aspect Ratio | 16:9 |
| Native Resolution | HD 720p 1366 x 768 at 60 Hz |
| Brightness | 220 cd/m² |
| Brightness w/touchscreen | 187 cd/m² |
| Contrast Ratio | 600:1 |
| Colour Support | 262,000 colours |
| Response Time | 10 ms |
| Vertical Refresh Rate | 60 Hz |
| Horizontal Refresh Rate | 31.5 - 60 kHz |
| Horizontal Viewing Angle | 90 |
| Vertical Viewing Angle | 65 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| Controls & Adjustments | Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology, IntelliTouch Pro |
| Colour | Black |
| Dimensions (WxDxH) | 38.7 cm x 3.29 cm x 24.44 cm - without stand |
| Weight | 3 kg |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | Mini-VGA ¦ HDMI ¦ USB |
| Flat Panel Mount Interface | 75 x 75 mm |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x HDMI cable ¦ 1 x mini-VGA-VGA cable ¦ 1 x USB cable ¦ 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, cUL, IC, FCC |
| Voltage Required | AC 100/240 V (50/60 Hz) |
| Power Consumption Operational | 10.2 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Power Consumption Sleep | 0.3 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
