Elo 1093L / 90-Series / LED monitor / 10.1" / open frame / touchscreen / 1280 x 800 / 350 cd/m / 800:1 / 25 ms / HDMI, VGA, DisplayPort / black | E321195
Description

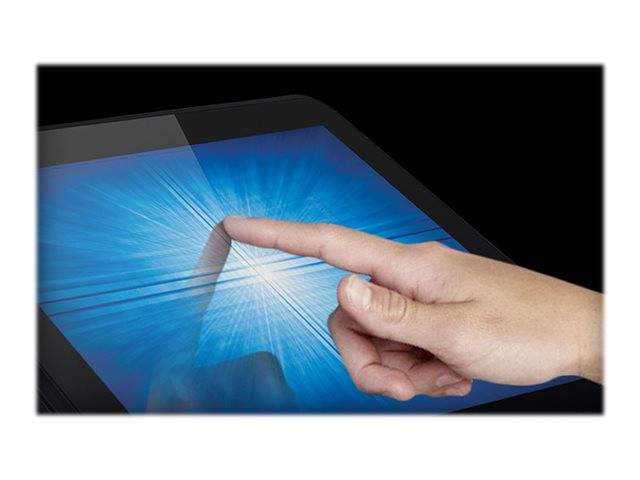

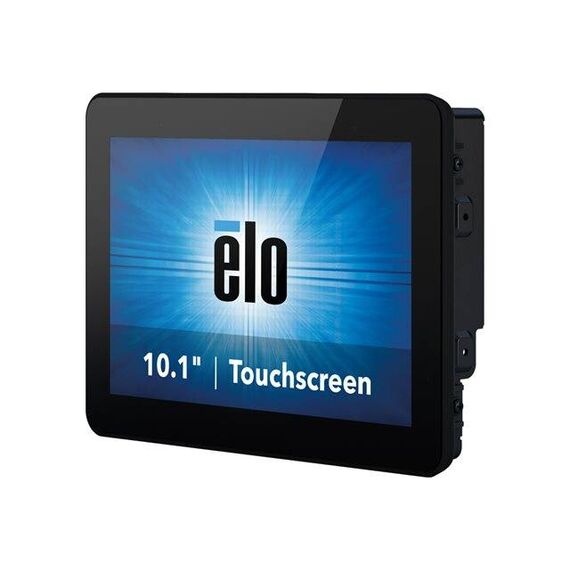

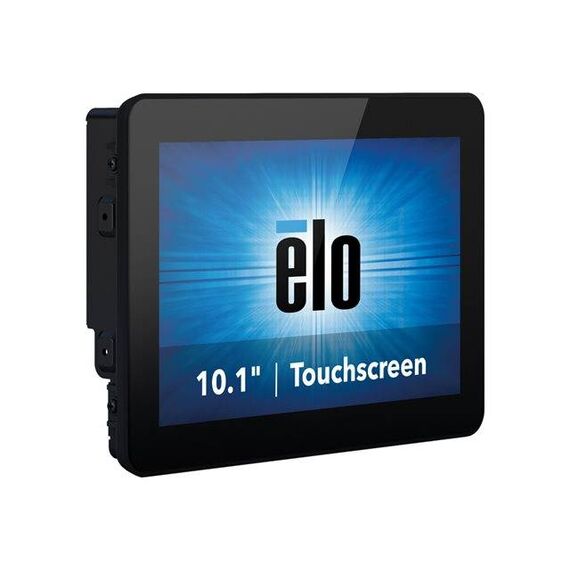

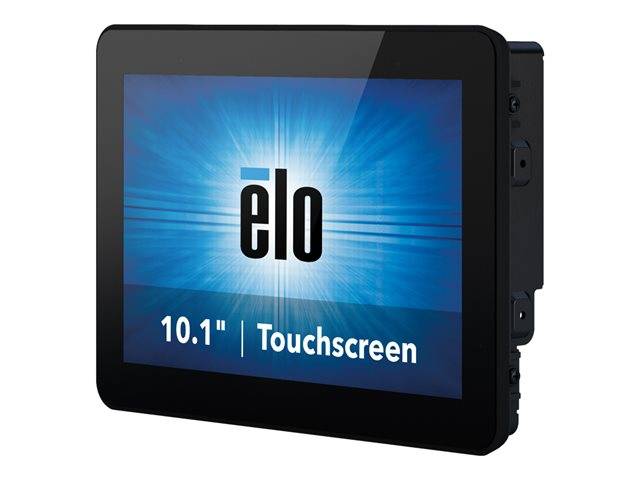

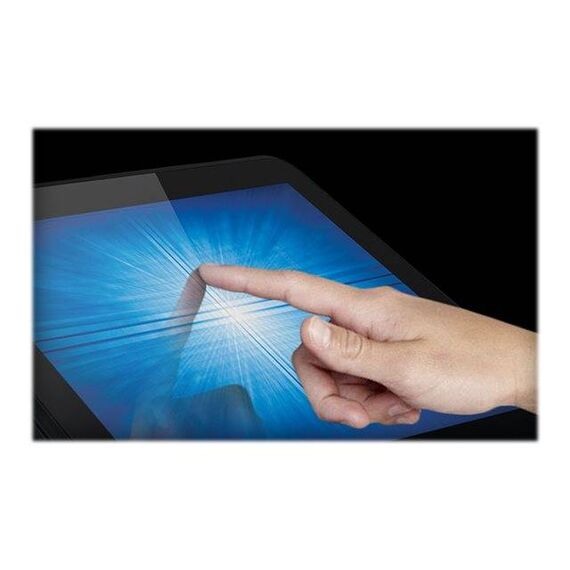

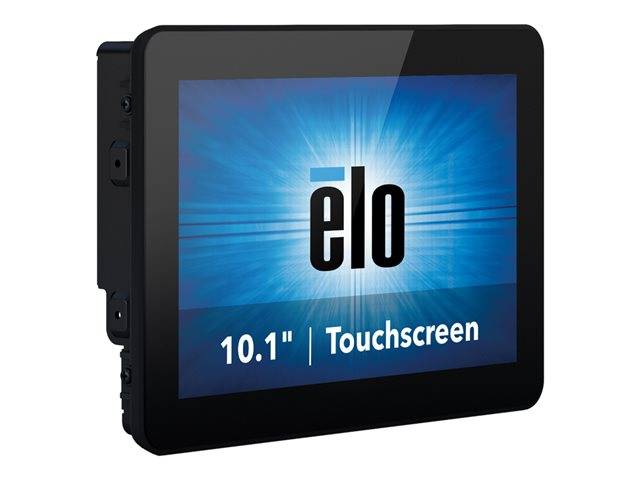

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo 1093L / 90-Series | E321195
Special Features
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- Touchscreen sealed against dirt, dust and liquids

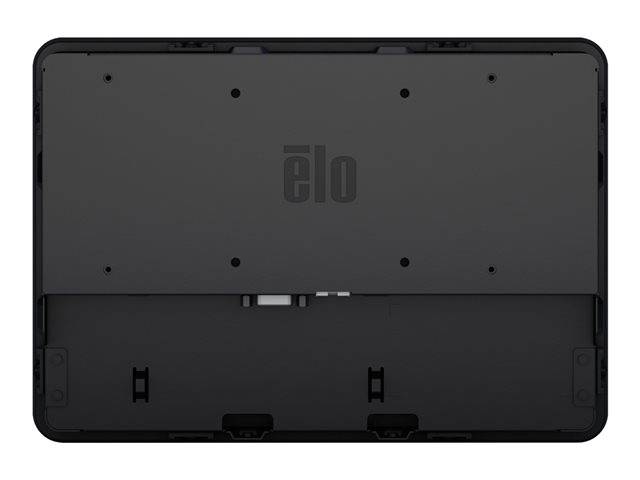

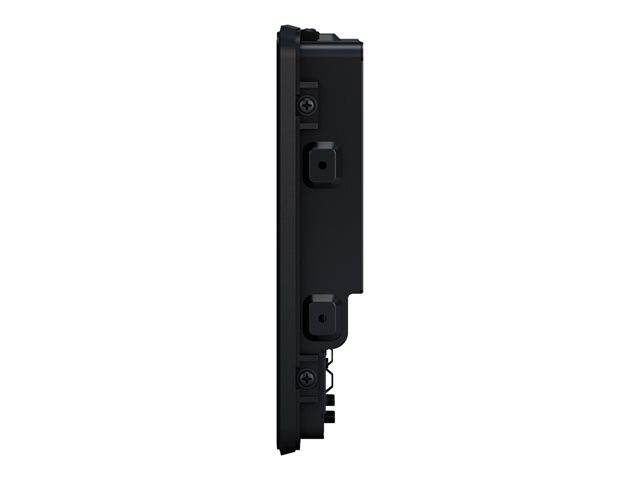

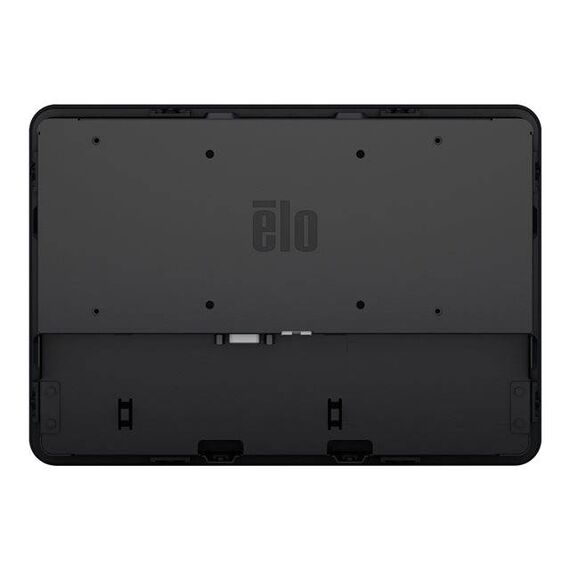

- Easy to integrate with mounting holes on all 4 sides and rear 75mm VESA mount
- Display Port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 10 kWh |
| Power Consumption (On mode) | 7 W |
| Diagonal Size | 10.1" |
| Aspect Ratio | 16:10 |
| Native Resolution | 1280 x 800 at 60 Hz |
| Brightness | 350 cd/m² |
| Brightness w/touchscreen | 315 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 262,000 colours |
| Response Time | 25 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 60 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +85 / -85 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 25.58 cm x 3.69 cm x 17.85 cm |
| Weight | 1.2 kg |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI |
| Flat Panel Mount Interface | 75 x 75 mm |
| Cables Included | 1 x VGA cable ¦ 1 x USB cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation | Worldwide |
| Power Consumption Operational | 6.1 Watt |
| Power Consumption Sleep | 0.7 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E321195
More Details
Product Code
0V00628
EAN Code
0815335025778
Manufacturer
Elo
