Elo 1590L / Rev B / LED monitor / 15" / open frame / touchscreen / 1024 x 768 / 250 cd/m / 700:1 / 16 ms / HDMI, VGA, DisplayPort / black | E326154
Description

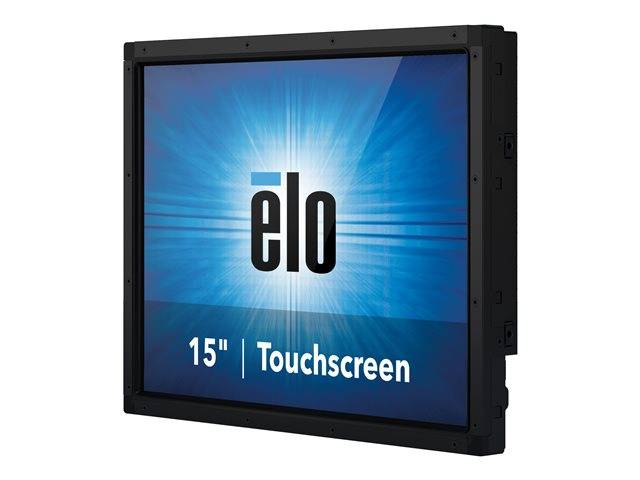

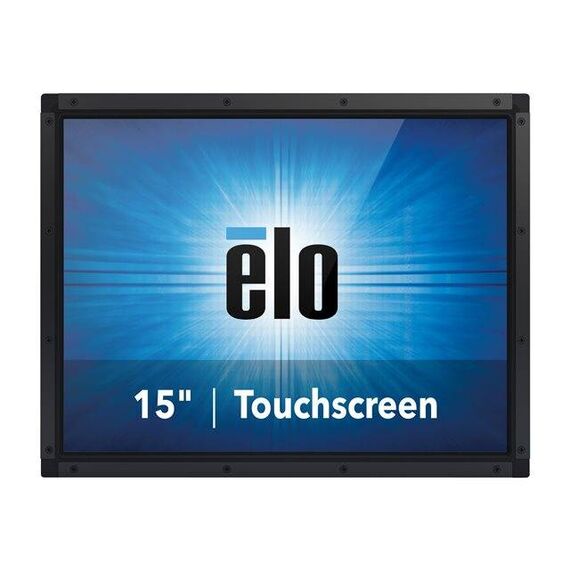

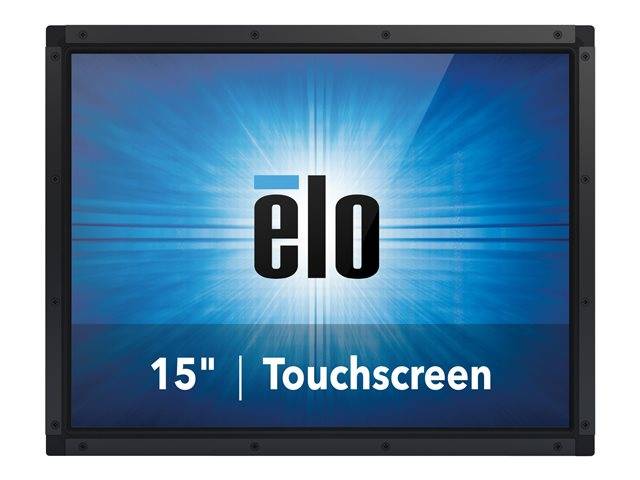

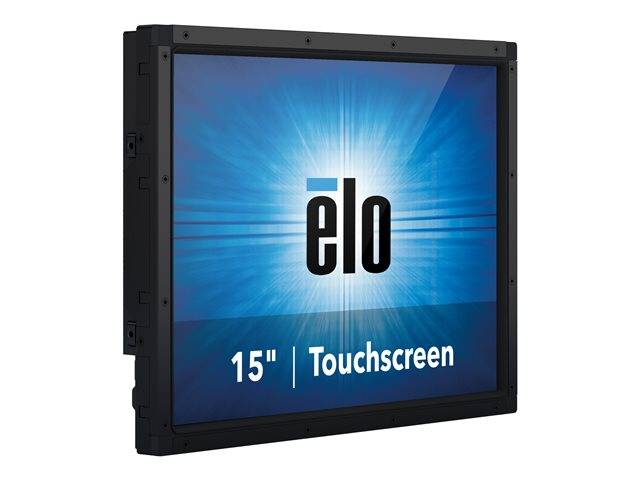

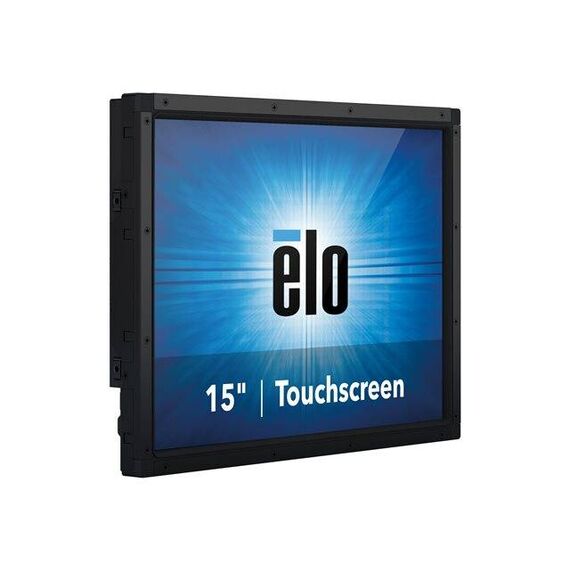

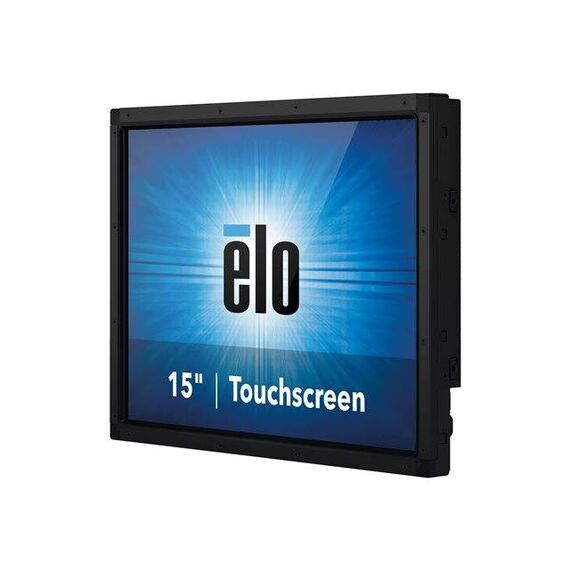

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo 1590L / Rev B | E326154
Special Features
- Slim design
- Efficient and durable
- Outstanding image clarity
- Accurate touch response
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class B |
| Energy Consumption per Year | 21 kWh |
| Power Consumption (On mode) | 14 W |
| Diagonal Size | 15" |
| Aspect Ratio | 4:3 |
| Native Resolution | 1024 x 768 at 75 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 200 cd/m² |
| Contrast Ratio | 700:1 |
| Colour Support | 16.2 million colours |
| Response Time | 16 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 60 kHz |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +70 / -70 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| Features | Remote OSD, AccuTouch Five-Wire Resistive |
| Colour | Black |
| Dimensions (WxDxH) | 33.64 cm x 4.19 cm x 26.44 cm |
| Weight | 2.9 kg |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Resistive |
| Interfaces | VGA ¦ DisplayPort ¦ USB (Type B) ¦ Management (RJ-45) ¦ HDMI ¦ Serial (DB-9) |

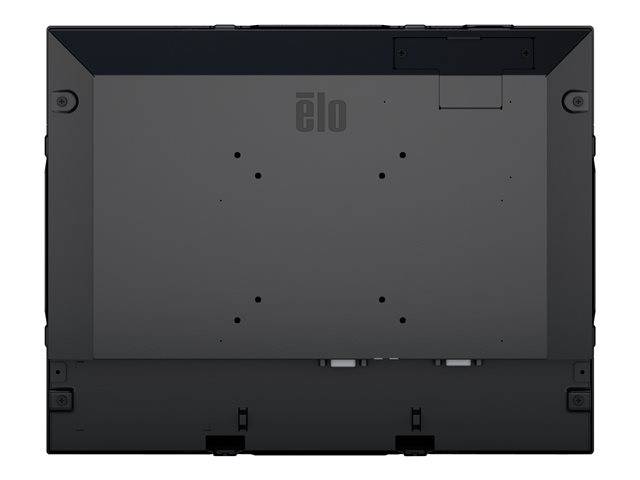

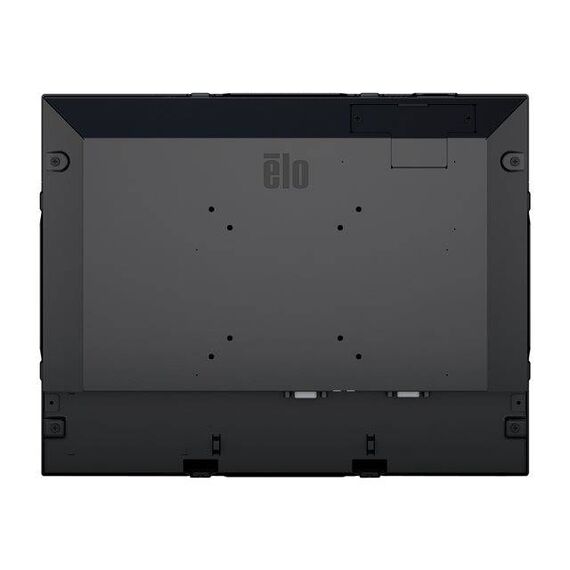

| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 12.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E326154
More Details
Product Code
0V00619
EAN Code
0815335025785
Manufacturer
Elo
