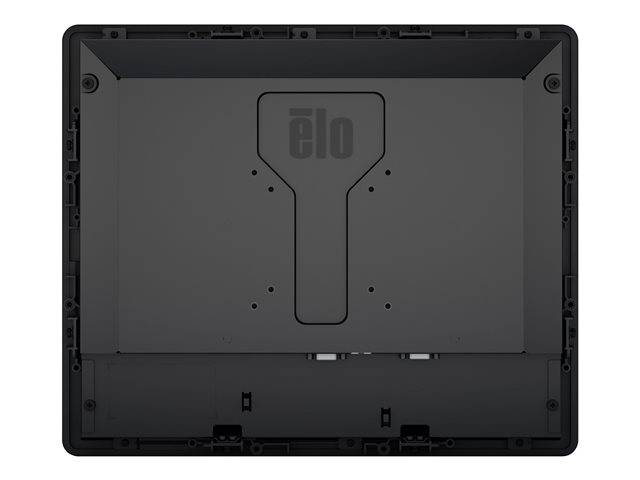

Elo Open-Frame Touchmonitors 1790L / LED monitor / 17" / open frame / touchscreen / 1280 x 1024 / 250 cd/m / 1000:1 / 5 ms / HDMI, VGA, DisplayPort / black | E330225
Brand: Elo
Elo Open-Frame Touchmonitors 1790L / LED monitor / 17" / open frame / touchscreen / 1280 x 1024 / 250 cd/m / 1000:1 / 5 ms / HDMI, VGA, DisplayPort / black | E330225
€735.12 inc. VAT
E330225
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Elo Open-Frame Touchmonitors 1790L / LED monitor / 17" / open frame / touchscreen / 1280 x 1024 / 250 cd/m / 1000:1 / 5 ms / HDMI, VGA, DisplayPort / black | E330225
|

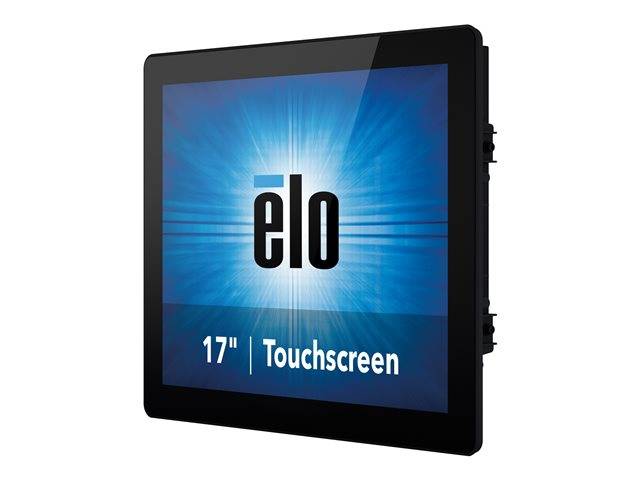

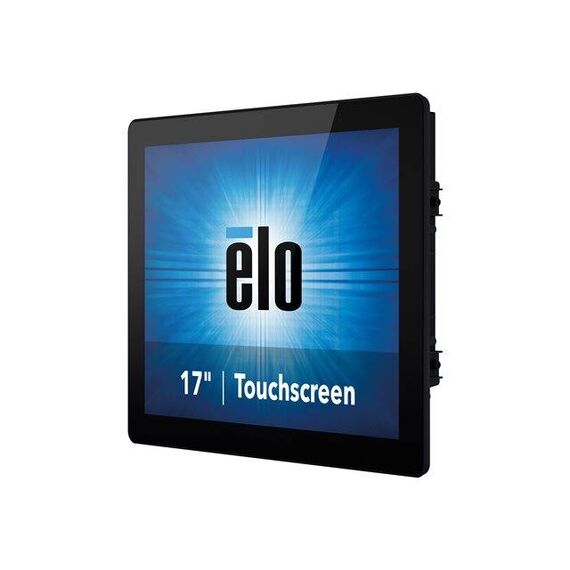

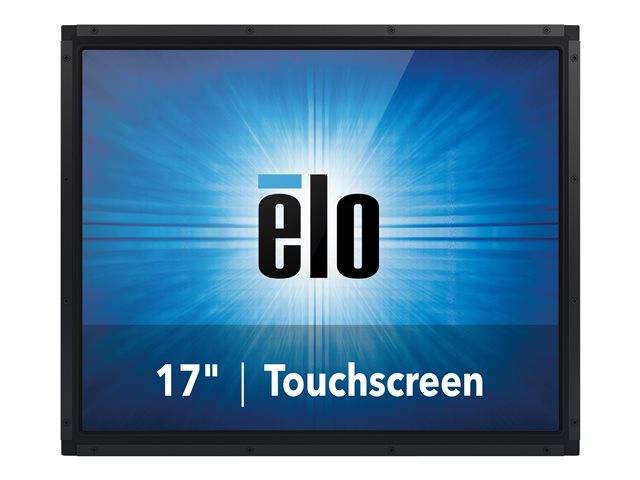

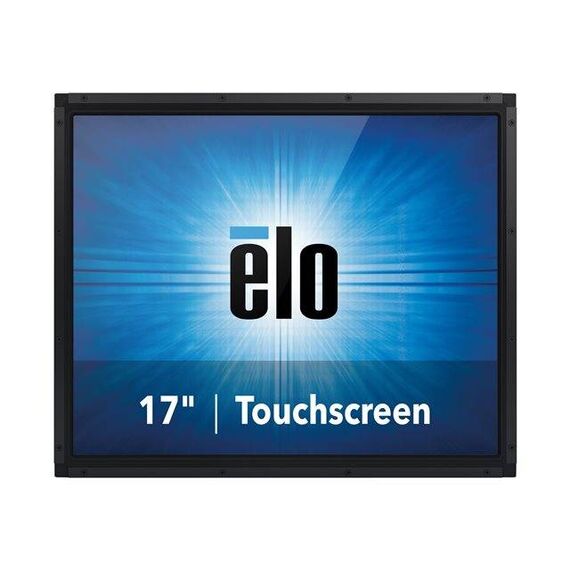

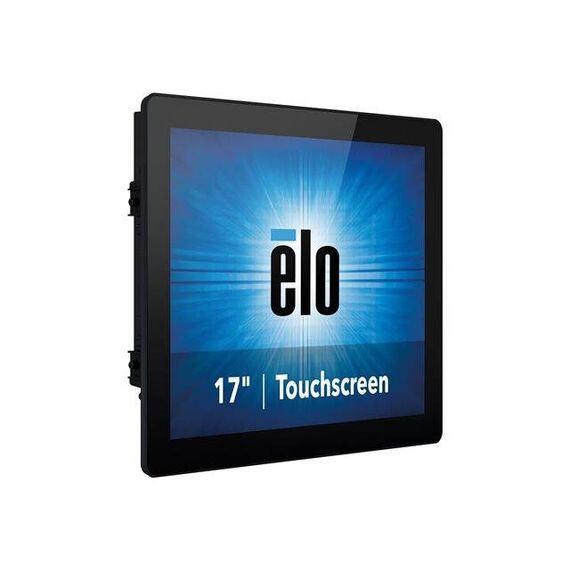

Description The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Elo Open-Frame Touchmonitors 1790L / LED monitor | E330225Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 5 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +80 / -80 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 39.22 cm x 4.28 cm x 32.75 cm |
| Weight | 3.6 kg |
| Type | Touch-screen, remote control - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | USB ¦ VGA ¦ DisplayPort ¦ HDMI |

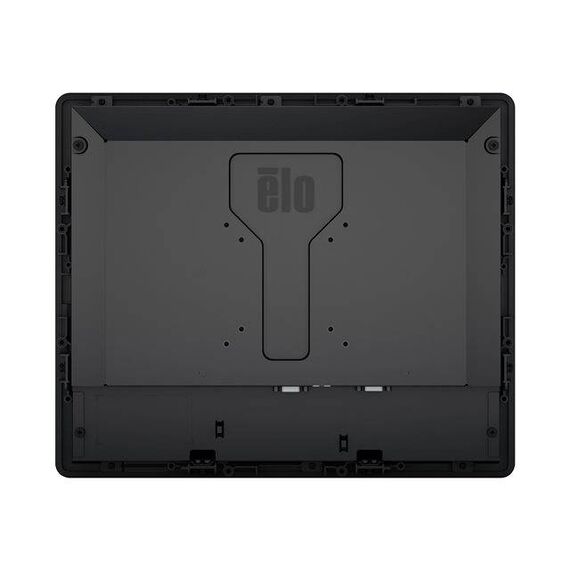

| Flat Panel Mount Interface | 100 x 100 mm, 75 x 75 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a, IMERC |
| Power Consumption Operational | 17.8 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E330225
More Details
Product Code
0V00639
EAN Code
0815335025969
Manufacturer
Elo
