Conceptronic EMRICK09G 2-Port USB 3.2 Gen 2 PCIe Card USB-C and USB-A 10Gbps
Brand:
Conceptronic
EMRICK09G
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

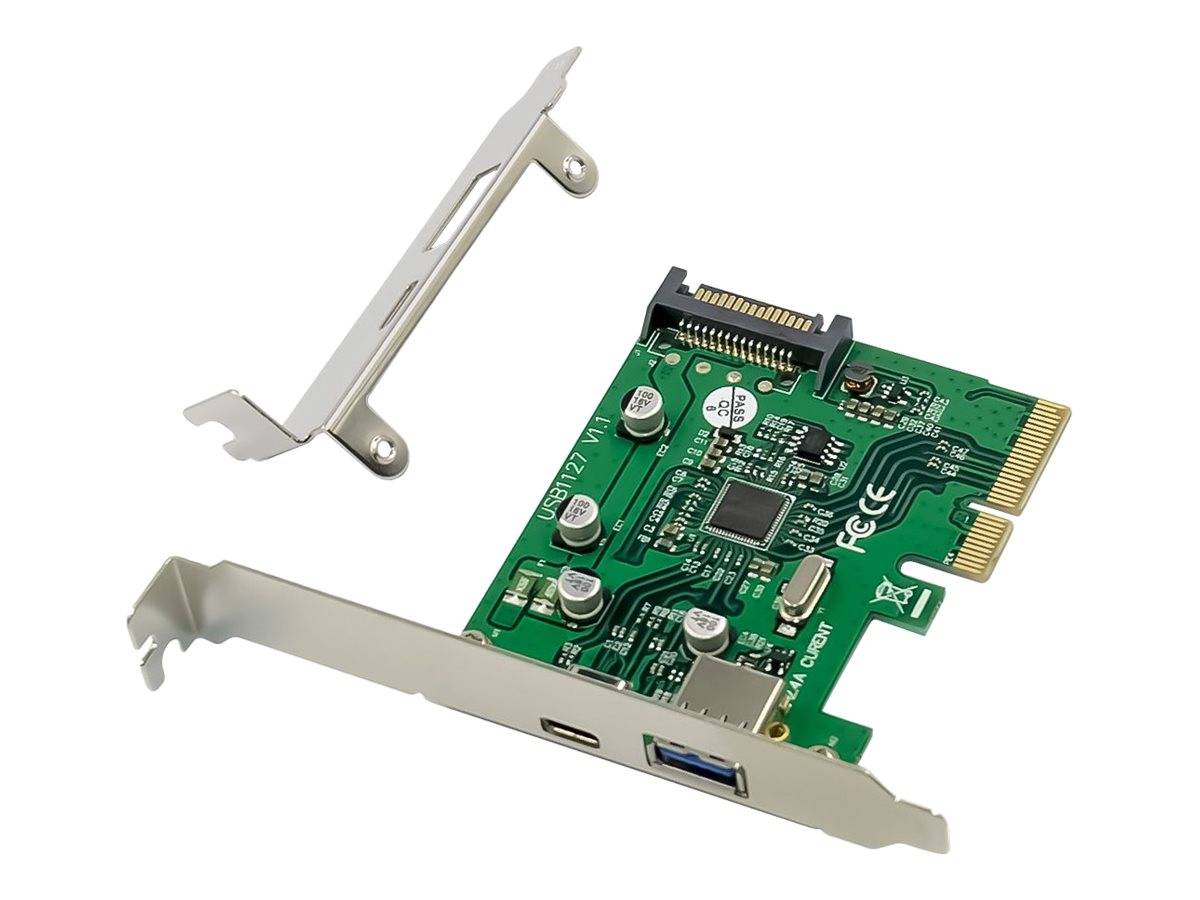

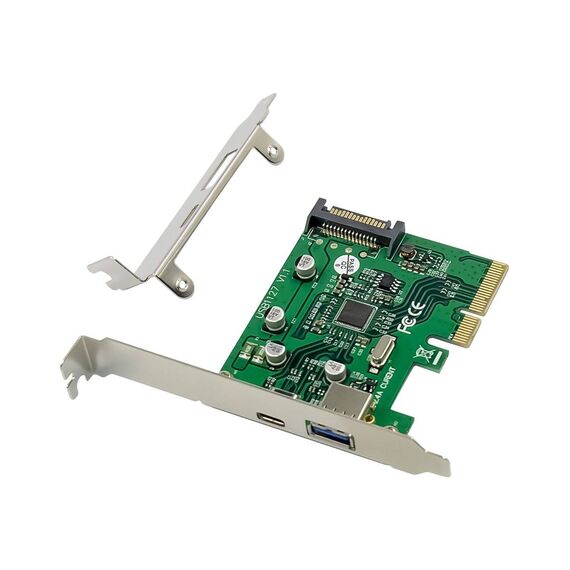

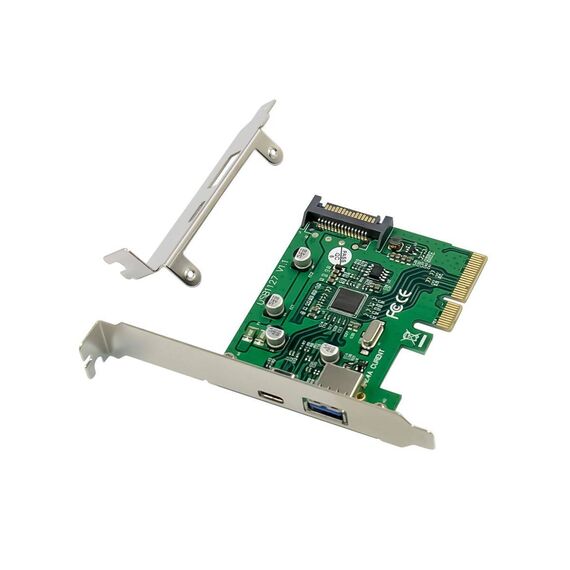

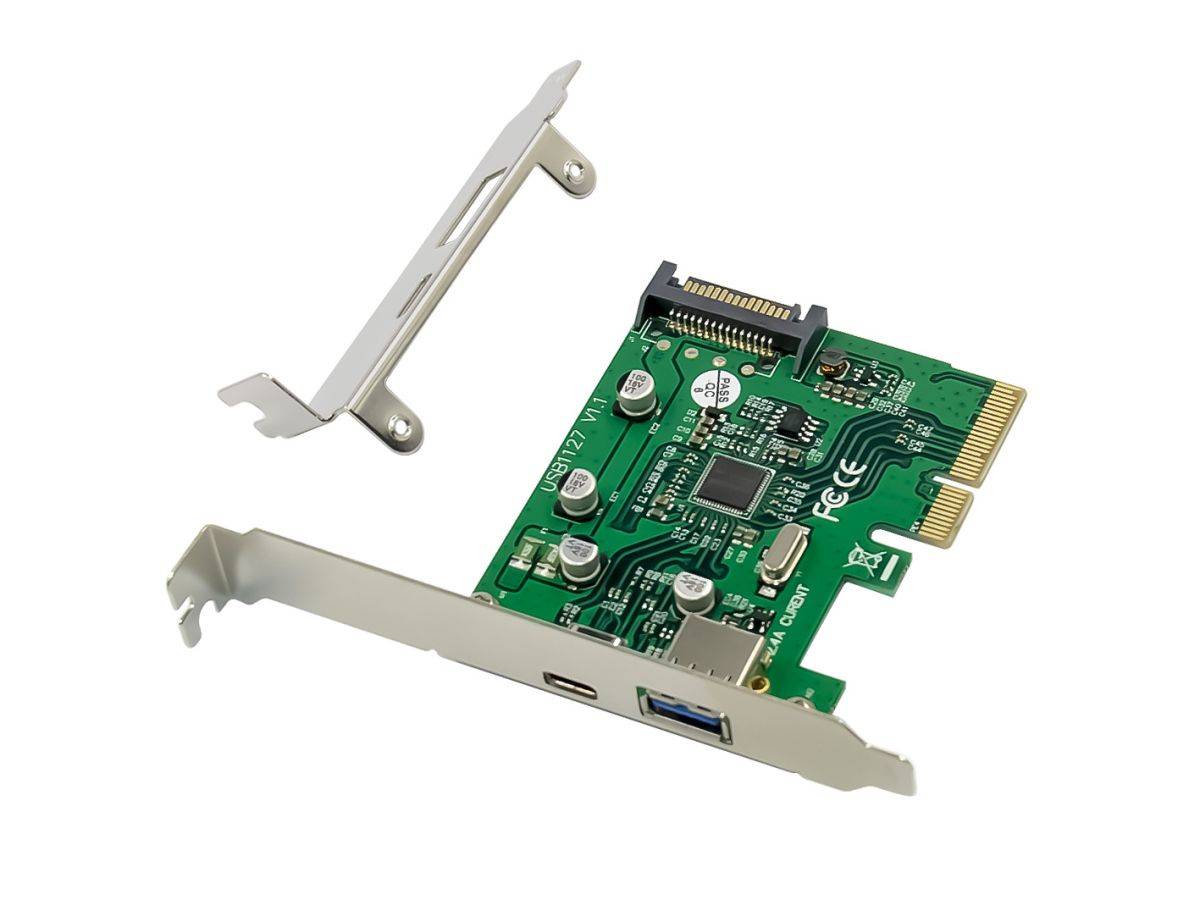

Conceptronic EMRICK09G — USB-C + USB-A 10Gbps PCIe Card
1 x USB-C1 x USB-AUSB 3.2 Gen 2Up to 10 Gbit/s
The Conceptronic EMRICK09G is a PCI Express expansion card that adds one USB-C port and one USB-A port to a compatible desktop computer. Both connections support USB 3.2 Gen 2 with interface transfer rates of up to 10 Gbit/s. The card also supports UASP and hot-swapping, while a 15-pin SATA power connector provides auxiliary power.
Compatibility — check before buying:
The EMRICK09G requires a PCIe x4-compatible slot and does not support PCIe x1 slots. Conceptronic lists PCIe x4/x8/x16 slots with PCIe 2.0 or 3.0 support. The card also requires a 15-pin SATA power connection. Conceptronic states that it is not compatible with PCIe lanes directly connected to Intel 12th or 13th generation CPUs, so motherboard slot routing should be checked on those platforms.
Best For
✓ Adding USB-C and USB-A to a desktop PC
✓ External SSDs and high-speed USB storage
✓ Mixed USB-C and traditional USB-A devices
✓ Standard and compatible low-profile desktop cases
Key Features
USB-C and USB-A on one card
The hybrid port layout combines one modern USB-C connection with one conventional USB-A connection, making the card useful for systems that need support for both connector types.
Up to 10 Gbit/s
Both ports support USB 3.2 Gen 2, with a maximum interface transfer rate of up to 10 Gbit/s. Actual file-transfer performance depends on the connected device and host system.
UASP and hot-swap support
UASP support improves protocol efficiency with compatible storage devices and operating systems, while hot-swapping allows supported USB devices to be connected and removed without shutting down the computer.
Low-profile bracket included
Conceptronic supplies a low-profile bracket in the package, giving the adapter additional installation flexibility in compatible compact desktop cases.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The EMRICK09G is the flexible option in this Conceptronic PCIe range when you want 10 Gbit/s performance but need both connector styles. One USB-C and one USB-A port avoids committing the system entirely to either old or new peripherals. The important limitation is its PCIe requirement: this is not an x1 card despite its compact size, so confirm that an x4, x8 or x16 slot is available. Also check motherboard slot routing on Intel 12th and 13th generation platforms because Conceptronic explicitly flags CPU-connected PCIe lanes as incompatible.
Buyer’s Guide
Buy it if
You need one USB-C and one USB-A 10 Gbit/s port and have a free PCIe x4, x8 or x16 slot plus SATA power.
Skip it if
Your only available expansion slot is PCIe x1, you need more than two USB ports, or you require data rates above 10 Gbit/s.
Check first
Verify the available PCIe slot, SATA power connection and motherboard lane routing, especially with Intel 12th or 13th generation CPUs.
Features - Conceptronic - EMRICK09G
More Details
Product Code
04:407707
EAN Code
4015867228005
Manufacturer
Conceptronic
