Equip 235213 1-Port Cat.6 Surface Mount Box, Unshielded, White
Cat.6 Class E1 x RJ45 UTPLSA punch-downAdhesive mount

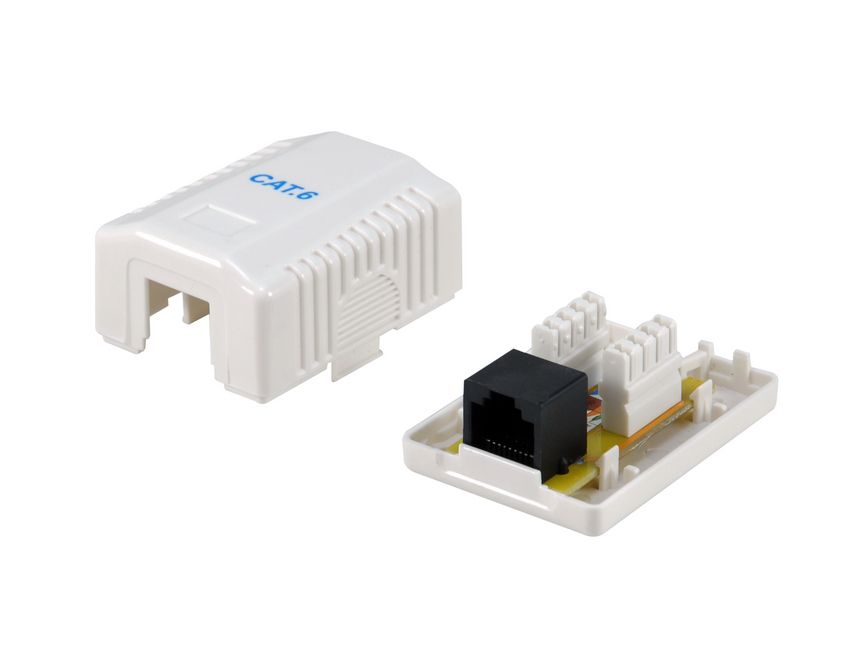

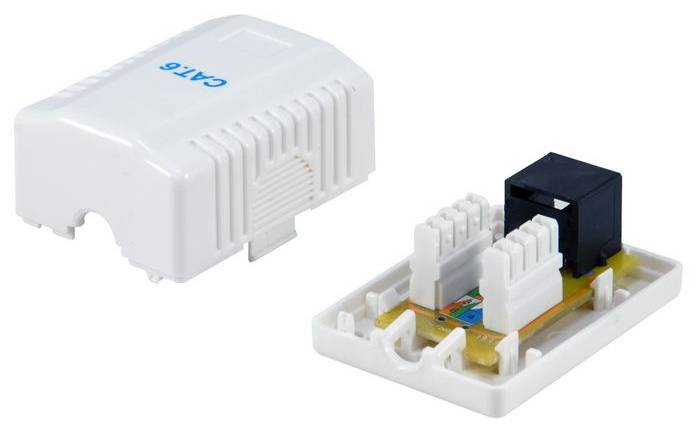

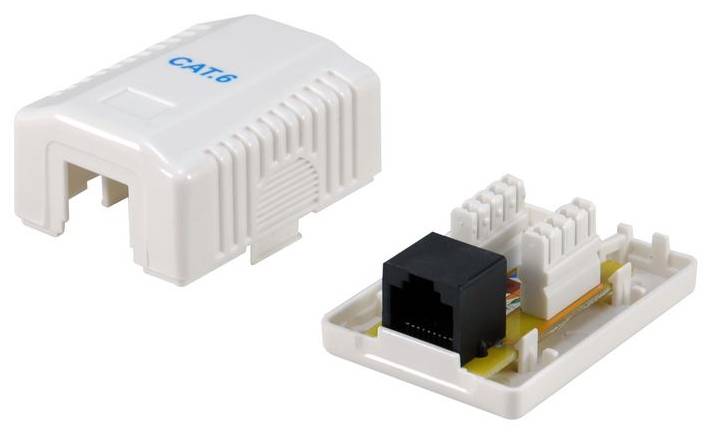

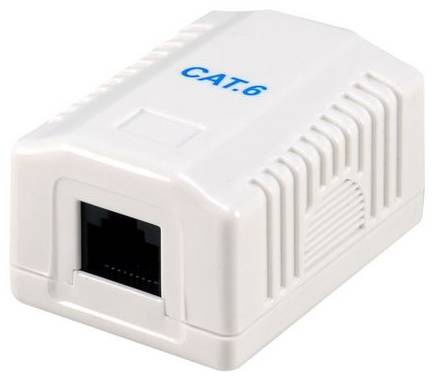

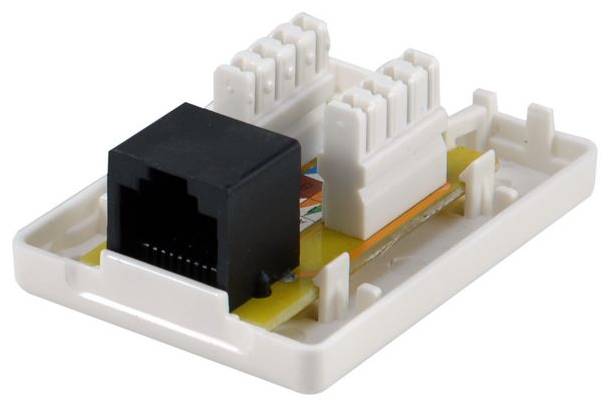

The Equip 235213 is a complete 1-port Cat.6 surface mount box: a small white ABS housing with an unshielded RJ45 socket and LSA-IDC punch-down terminals, for terminating a network cable anywhere on a wall, desk or skirting board. It suits home offices, small offices and quick extensions where one extra network point is needed.
The socket is built into the box, so you only punch down the Cat.6 installation cable and stick the box in place with the supplied adhesive tape, no drilling required. Equip specifies Class E performance to ISO/IEC 11801 and EN 50173, compliant with ANSI/TIA/EIA 568, with gold-plated contacts.
Before you order: This is an unshielded (UTP) outlet. For shielded F/UTP or S/FTP installations the shield cannot be terminated, so choose a shielded outlet instead.
What's in the Box
- 1 x Equip 235213 1-port Cat.6 surface mount box (RJ45 socket built in)
- Adhesive tape for mounting
What It Means in Practice
- One RJ45 network point in minutes: punch down the cable, stick the box on and plug in a patch cable.
- Class E means it is rated for Gigabit Ethernet over a Cat.6 permanent link.
- At 39 x 30 x 54 mm it disappears on a skirting board or under a desk.
What Will Not Work
- It will not terminate shielded cable correctly (no shield connection).
- It is not a coupler for two patch cables: the cable side is an LSA punch-down for solid installation cable.
- It provides one port only; for two ports see the Equip 125122 keystone box.
- You need an LSA punch-down tool, which is not included.
Key Features
Built-in RJ45
No separate keystone module needed.
LSA-IDC termination
Standard punch-down with gold-plated contacts.
Tool-free mounting
Adhesive tape fixing, no drilling or screws.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A single surface box is the simplest way to finish an installation cable properly instead of crimping a plug onto solid wire. From the box to the device use a short network patch cable.
✓ Buy it if you need one unshielded Cat.6 network point quickly and without drilling.
✕ Skip it if your installation is shielded or you need two ports.
→ Also consider Equip 125122 2-port keystone surface box.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 235213
Colour
white
More Details
Product Code
04:372024
EAN Code
4015867206911
Manufacturer
Equip
