equip 326523 10 Inch 12-Port Cat.6A Shielded Patch Panel 1U Class EA 500 MHz Dual IDC LSA and 110 Light Grey RAL 7035

Brand:
Equip

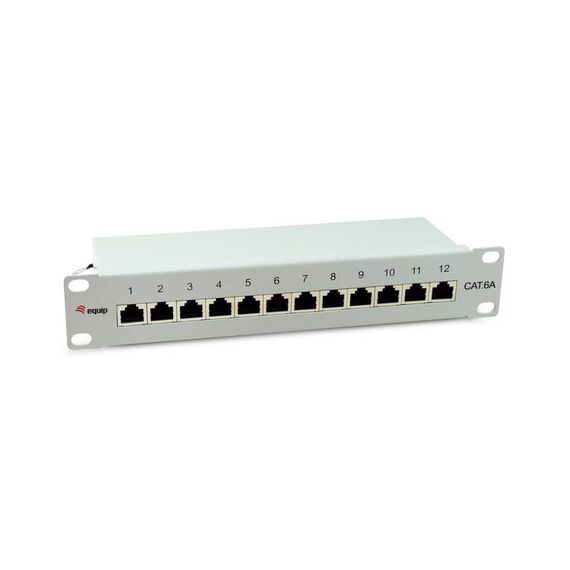

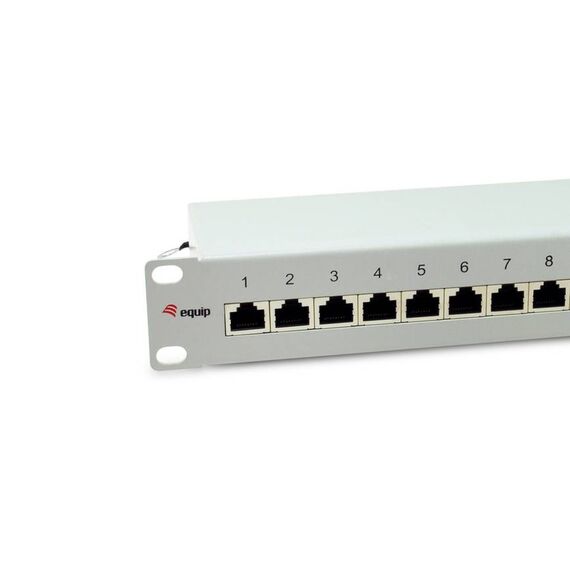

equip 326523 10" 12-Port Cat.6A Patch Panel 1U Grey
equip 326523 10 Inch 12-Port Cat.6A Shielded Patch Panel 1U Class EA 500 MHz Dual IDC LSA and 110 Light Grey RAL 7035
€57.05 inc. VAT
Buy
326523
€47.94
€57.05 inc. VAT
Ships from EU stock: 89 item(s)
+ −
Add to wish list Ask a question
Product Code
04:471813
EAN Code
4015867237519
Manufacturer
Equip

Quick Specs

Ports
12× RJ45 Cat.6A shielded
Performance
Class EA · 500 MHz · 10GBase-T
Mounting
10″ rack mount, 1U
Termination
Dual IDC (LSA and 110)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 326523 — 12-Port Cat.6A Shielded 10″ rack Patch Panel, Light Grey

Cat.6A shielded12 ports10″ rack, 1ULight Grey RAL 7035

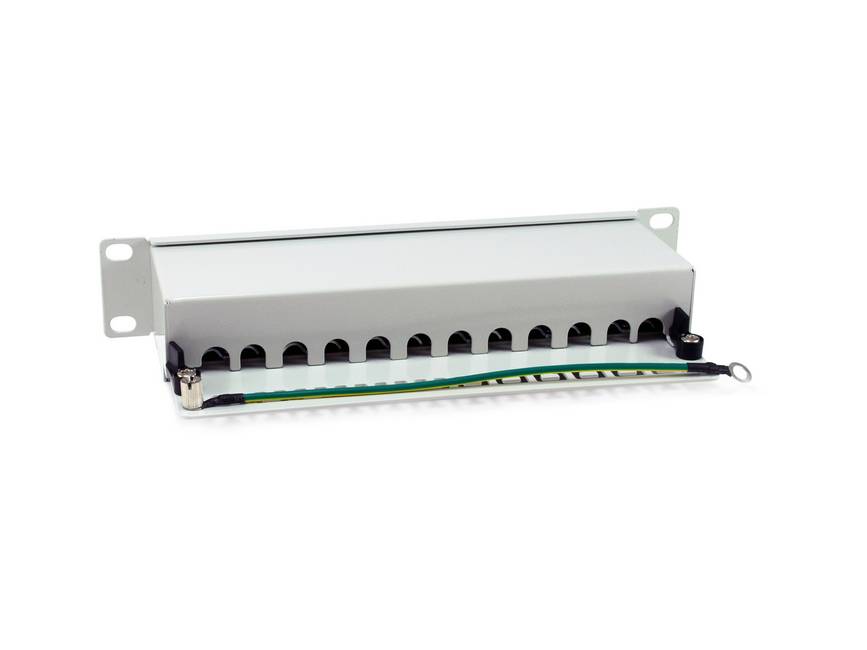

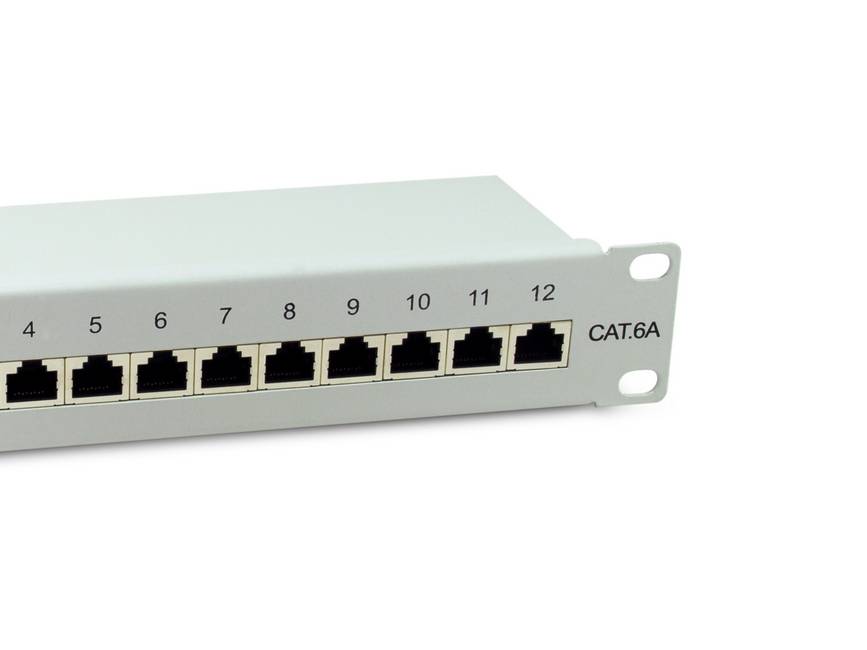

The equip 326523 is a 12-port Cat.6A shielded patch panel for 10″ rack racks, one unit high. Installation cable is terminated on the back on dual IDC blocks that accept both LSA and 110 punch-down tools, and each port presents a shielded RJ45 socket at the front for patch cables. equip specifies Class EA performance up to 500 MHz for 10GBase-T, compliance with ANSI/TIA/EIA 568, and T568A/T568B colour coding on every port. At 10 inches wide and one unit high it fits the small wall cabinets used in shops, branch offices and apartments, where a 19″ rack does not fit. The body is sturdy steel in light grey (RAL 7035), and the ports are numbered for clear labelling.

Compatibility — check before buying:
A termination panel, not a switch: the back takes solid installation cable (punch-down), the front takes RJ45 patch cables — you still need a switch. You also need a punch-down tool for LSA or 110 blocks; equip does not include one. Check the rack width: this is a 10″ rack panel; the 19″ 48-port panel covers the other case. Shielding only works end-to-end with shielded cable, shielded patch cords and a grounded installation. Not sure what fits your cabling? Tell us the cable type and the number of runs and we check it.

Best For

✓ 10″ wall cabinets
✓ Shops and branch offices
✓ Apartments and small buildings
✓ Satellite network closets
✓ Compact 10 Gbit installations
✓ Small PoE switch setups

Key Features


Cat.6A Class EA
Up to 500 MHz for 10GBase-T links, to ANSI/TIA/EIA 568.

Fully shielded ports
Shielded RJ45 ports reduce interference and signal leakage at high speed.

Dual IDC: LSA and 110
Terminate with whichever punch-down tool you use; T568A/B colour-coded.

1U, 12 ports
Steel panel in light grey RAL 7035, numbered ports for clear labelling.

Technical Specifications

Identification
Brand equip
Product 12-Port Cat.6A Shielded Patch Panel, 10″ rack, 1U, Class EA, Dual IDC, Light Grey
Part Number 326523
EAN / GTIN 4015867237519
Ports 12× RJ45 Cat.6A shielded
Colour Light Grey (RAL 7035)
Performance
Category Cat.6A
Class EA
Bandwidth Up to 500 MHz
Ethernet 10GBase-T
Standards ANSI/TIA/EIA 568
Ports & Termination
Ports 12× RJ45 (8P8C), shielded
Termination Dual IDC, LSA and 110 compatible
Wiring T568A / T568B colour-coded
Port Numbering Yes
Loaded Yes (not a blank panel)
Physical
Form Factor 10″ rack, 1U
Mounting 10″ rack mount, 1U
Material Steel
Colour Light Grey (RAL 7035)
Dimensions (W × D × H) 254 × 109.3 × 44.3 mm
Weight 0.89 kg
Compliance
Approvals CE, RoHS
In the Box
Included 1× 10″ 12-port patch panel
Not Included Punch-down tool, installation cable, patch cables, cage nuts and screws
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it support 10 Gigabit?
Yes. equip specifies Cat.6A Class EA up to 500 MHz for 10GBase-T. The installation cable, patch cords and switch must also be Cat.6A-capable.
Which punch-down tool do I need?
Either. The dual IDC blocks accept LSA and 110 tools. equip does not include a tool.
Can I use unshielded cable?
The ports accept it, but you lose the benefit of the shielding. For a shielded installation use shielded installation cable and patch cords.
Will it fit my cabinet?
It is a 10″ rack, 1U panel. Send us the cabinet model and we confirm the fit.
Singular Expert Insight
We suggest the 10″ 12-port panel for small wall cabinets in shops, branches and apartments — paired with a 10″ switch, a 1U cable management panel and short Cat.6A patch cables it gives a complete, tidy mini rack. Browse more patch panels and keystone parts, network cables or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You terminate shielded Cat.6A installation cable in a 10″ rack rack and want 12 ports in light grey.

Skip it if

Your cabinet is the other rack width, or your cabling is unshielded Cat.6.

Also consider

equip 326623 — the same 10″ 12-port panel in black.
