equip 650140 Heavy-Duty Gas Spring Monitor Wall Mount 17-49 Inch up to 20 kg VESA up to 200x200 482 mm Reach 360 Rotation White

Brand:
Equip
equip 650140 Heavy-Duty Monitor Wall Mount 17-49" White
equip 650140 Heavy-Duty Gas Spring Monitor Wall Mount 17-49 Inch up to 20 kg VESA up to 200x200 482 mm Reach 360 Rotation White
€161.11 inc. VAT
Buy
650140
€135.39
€161.11 inc. VAT
Ships from EU stock: 1628 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591472
EAN Code
4015867245279
Manufacturer
Equip

Quick Specs

Screen Size
17–49″, 1 display
Load
Up to 20 kg
VESA
75/100/100×200/200×100/200×200
Reach
482 mm arm extension
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

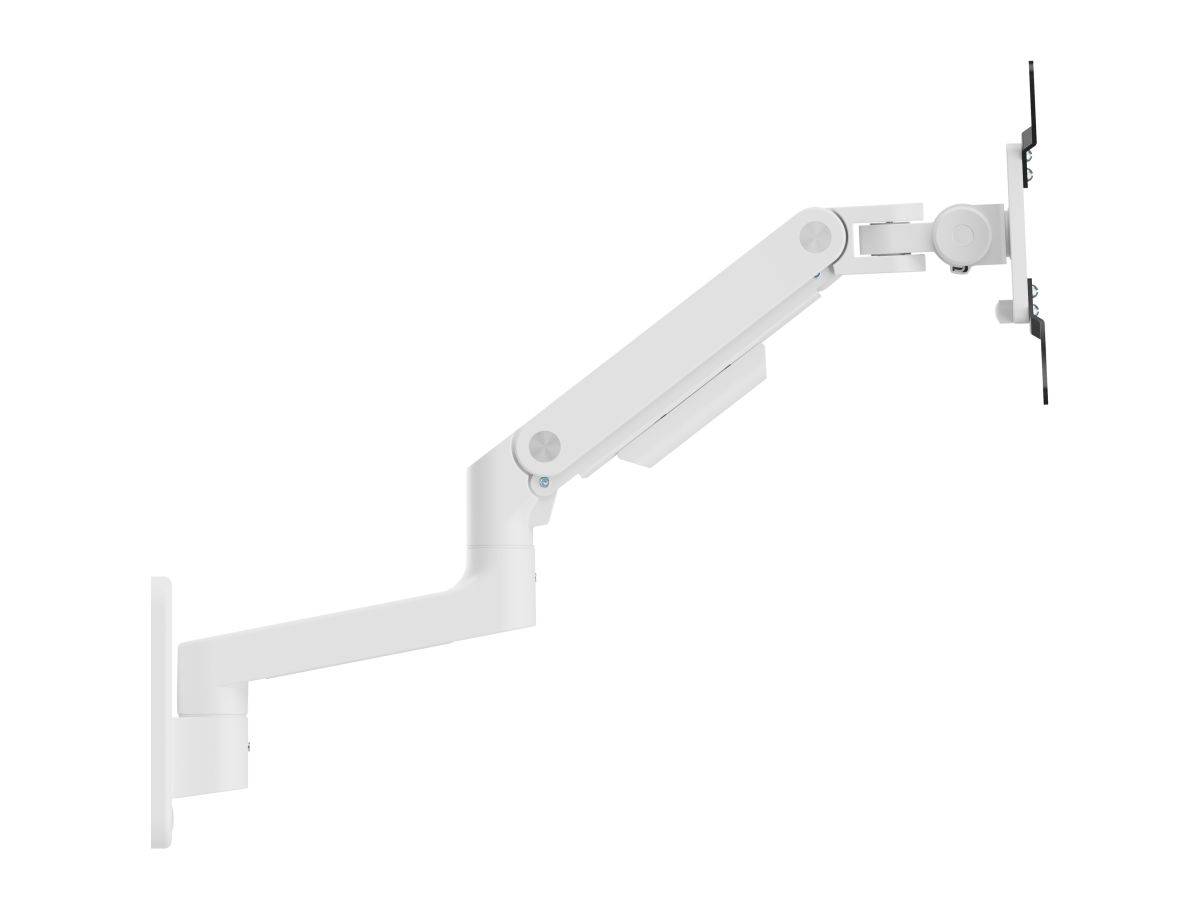

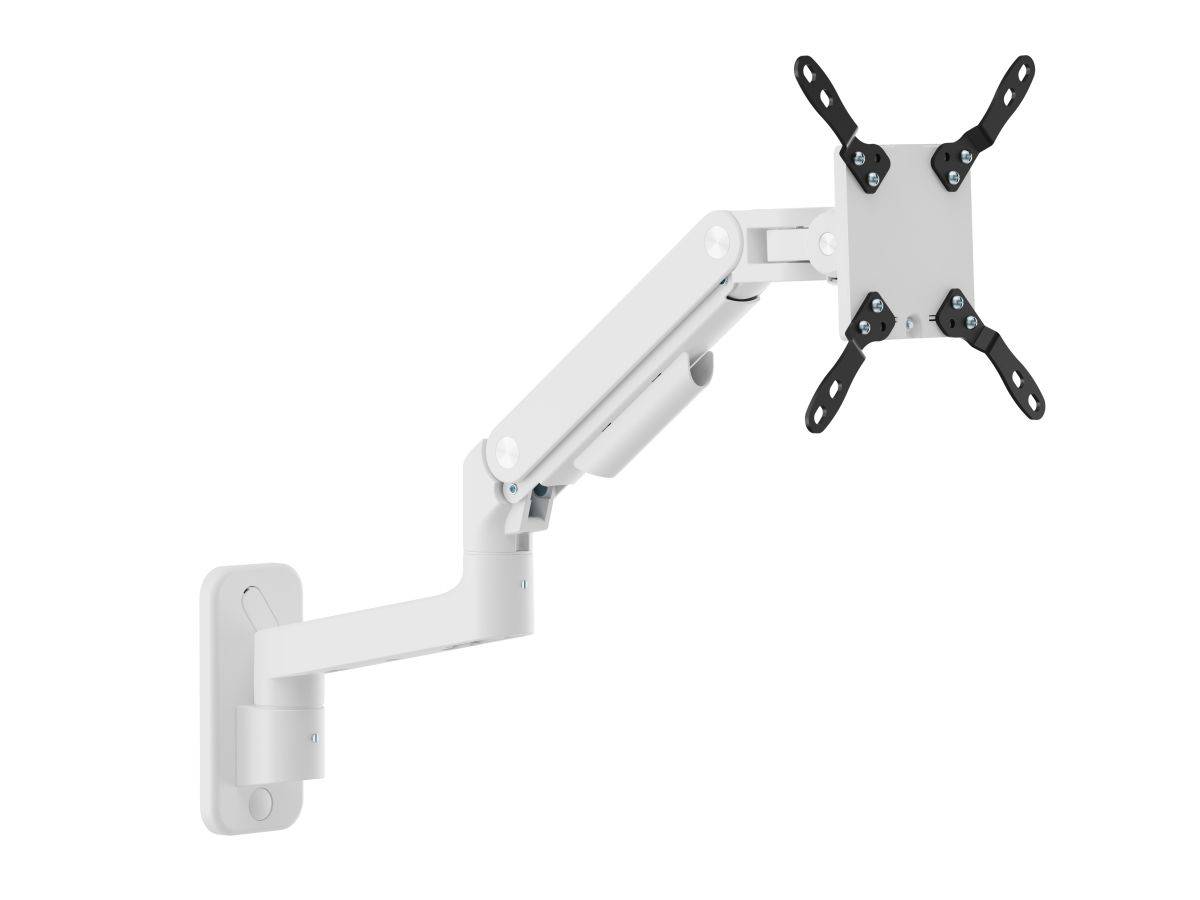

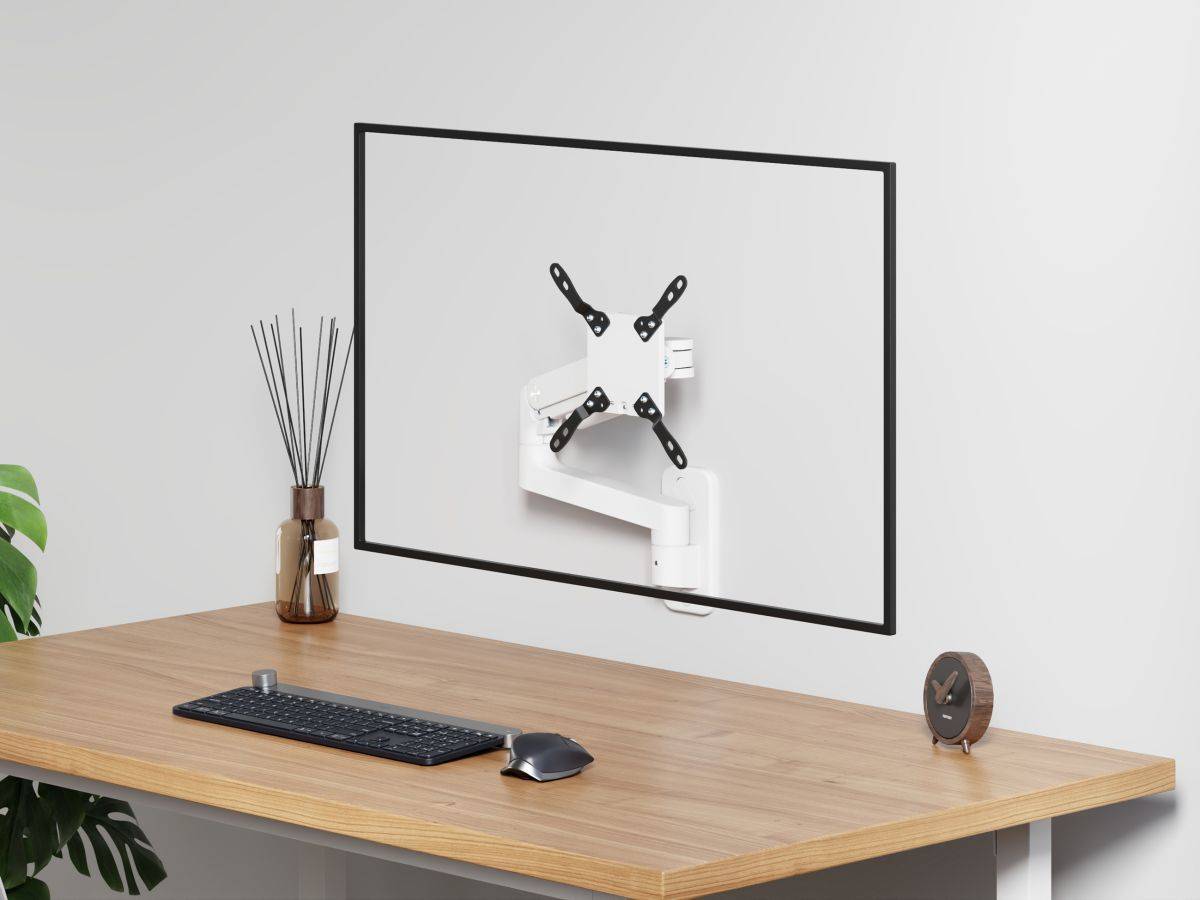

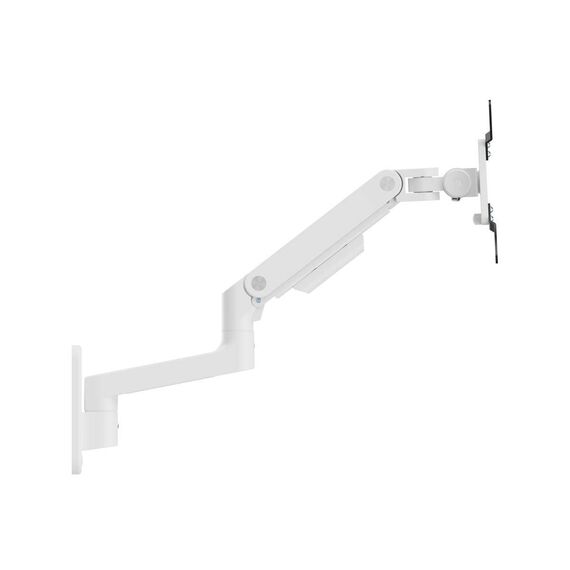

equip 650140 — 17″–49″ Heavy-Duty Gas-Spring Monitor Wall Mount, White

17–49″Up to 20 kgVESA up to 200×200Slide-in wall plate

The equip 650140 is a heavy-duty, gas-spring wall mount for one monitor from 17″ up to 49″, including ultrawide curved screens, in white. It takes up to 20 kg and supports VESA 75 × 75, 100 × 100, 100 × 200, 200 × 100 and 200 × 200, so it also fits larger displays that desk arms for VESA 100 cannot. The gas-spring arm reaches out to 482 mm and moves the screen smoothly up and down; it tilts from +50° to −20°, swivels ±90° and rotates ±180°. A built-in spring tension gauge shows how to match the arm to your monitor’s weight. The slide-in wall plate lets you attach and detach the arm quickly, a quick-installation VESA plate eases mounting, and integrated clips keep the cables tidy. equip says all mounting hardware is included. It measures 221 × 572 × 504 mm and weighs 3.85 kg.

Compatibility — check before buying:
Check the wall. A 20 kg screen on a 482 mm arm puts real load on the fixings: solid concrete or brick walls are fine with the right anchors, while plasterboard needs fixing into studs or special anchors. equip includes the mounting hardware but does not state which wall types it is for. Check VESA and weight: the monitor needs one of the listed VESA patterns and must not exceed 20 kg; a minimum weight is not published, so very light screens may need the tension set low. Send us your monitor model and we check VESA pattern, weight and size for you.

Best For

✓ Ultrawide and curved monitors
✓ Reception desks and counters
✓ Control rooms and workshops
✓ Freeing the whole desk
✓ Heavier screens up to 20 kg
✓ White walls and interiors

Key Features

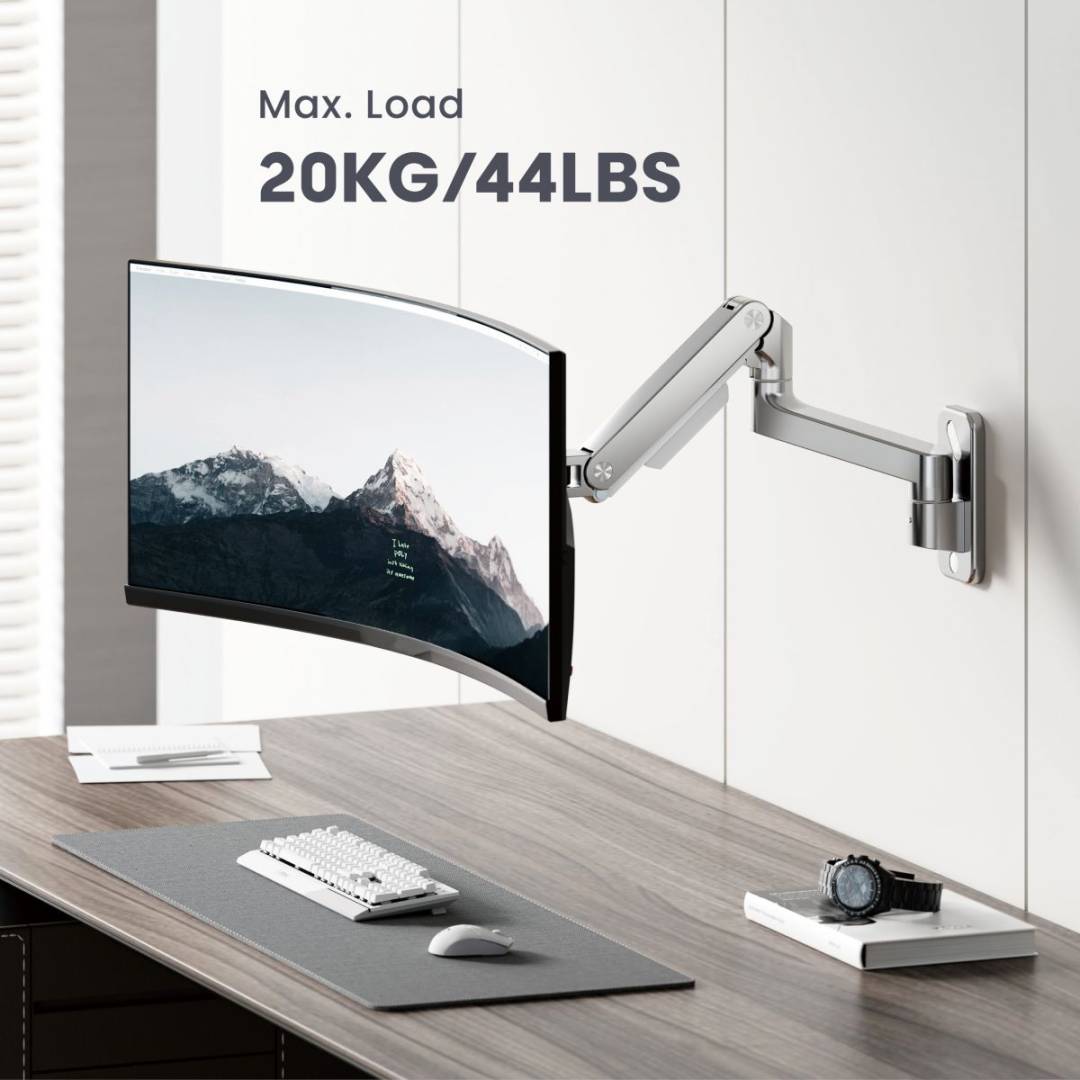

Up to 49″, 20 kg
Heavy-duty steel arm for screens from 17″ to 49″, including ultrawides.

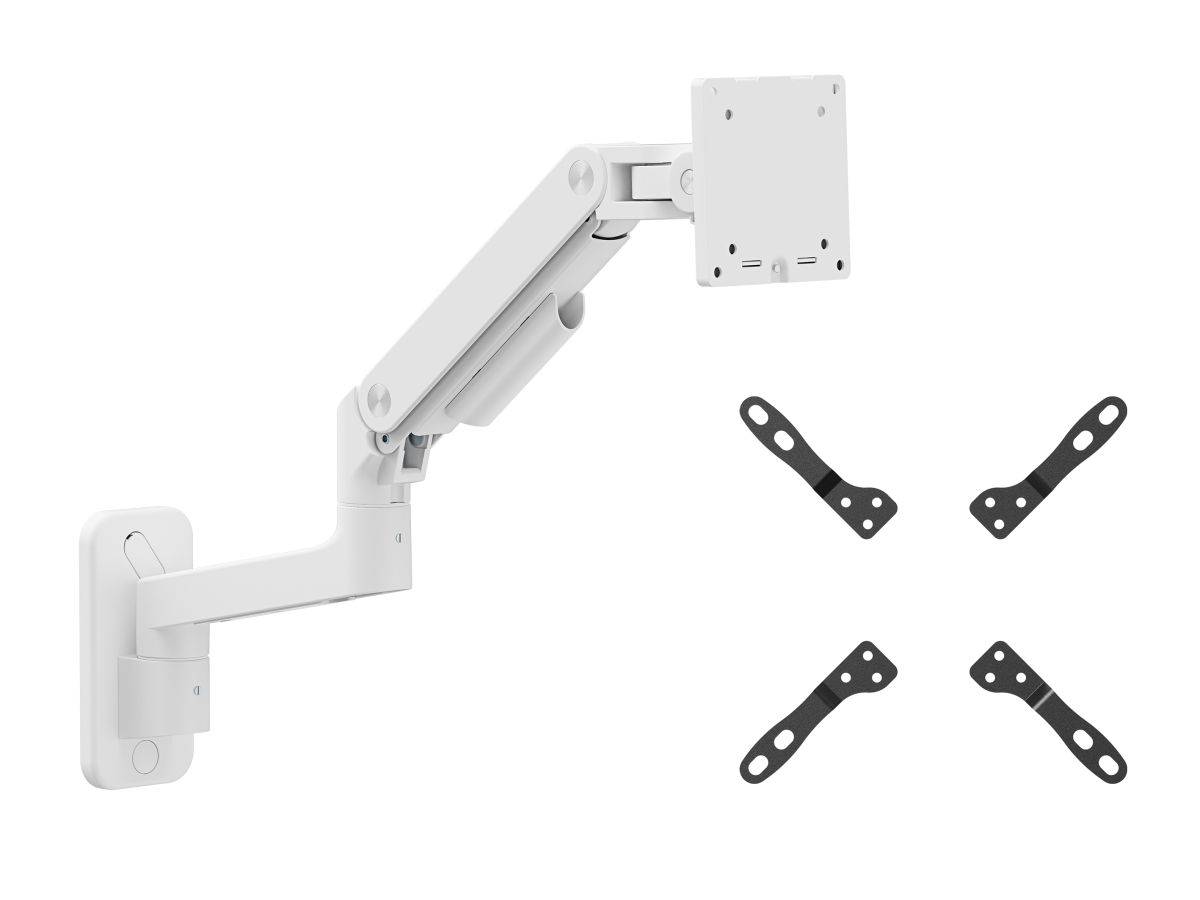

VESA up to 200 × 200
Fits 75, 100, 100×200, 200×100 and 200×200 patterns.

Gas spring with tension gauge
Smooth height changes; the gauge helps match the spring to your monitor.

Slide-in wall plate
Attach and detach the arm quickly; cable clips keep wiring tidy.

Technical Specifications

Identification
Brand equip
Product equip 17″–49″ Heavy-Duty Single Monitor Wall-Mounted Bracket
Part Number 650140
EAN / GTIN 4015867245279
Product Type Gas-spring monitor wall mount
Colour White
Display Support
Screen Size 17″–49″, flat or curved
Screens 1
Max. Load 20 kg
VESA 75 × 75, 100 × 100, 100 × 200, 200 × 100, 200 × 200
Quick-Release VESA Plate Yes

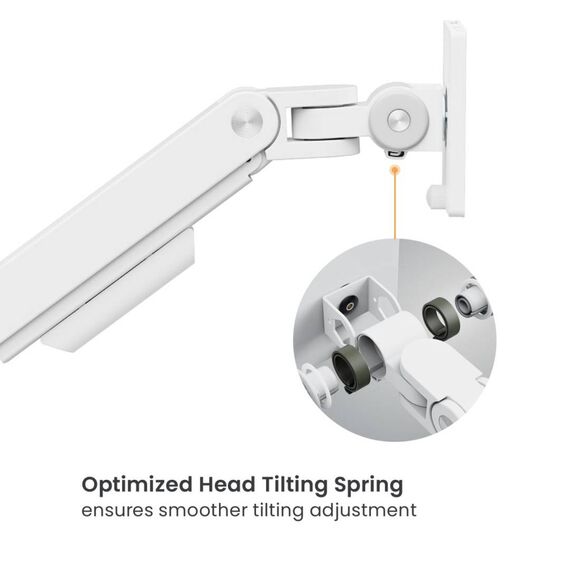

Adjustment
Height Gas spring, tension gauge
Arm Extension 482 mm
Tilt +50° to −20°
Swivel ±90°
Rotation ±180°
Construction
Installation Wall mount, slide-in wall plate
Cable Management Integrated clips
Material Plastic, stainless steel, aluminium
Colour White
Dimensions (W × D × H) 221 × 572 × 504 mm
Weight 3.85 kg
Compliance
Approvals RoHS, REACH
In the Box
Included Wall mount, manual, screw kits (equip: all mounting hardware included)
Not Included Special anchors for plasterboard or hollow walls (not listed)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this product on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will it hold a 49-inch ultrawide?
Yes, if the monitor weighs up to 20 kg and uses one of the listed VESA patterns (up to 200 × 200). Send us the model and we check.
What wall does it need?
A solid wall or studs strong enough for the screen on a 482 mm arm. For plasterboard, use suitable anchors or fix into studs.
Can I remove the arm easily?
Yes. The slide-in wall plate lets you attach and detach the arm quickly.
What colour is it?
White.
Singular Expert Insight
We suggest the 650140 when the desk must stay clear or when the monitor uses VESA 200 × 200 and desk arms for VESA 100 do not fit. Plan the wall fixing first — the arm is only as strong as the anchors behind it. Every order comes with Singular’s local support in Cyprus. See all our monitor arms and stands, or browse PC monitors.

Buyer’s Guide

Buy it if

You want to wall-mount one 17–49″ screen up to 20 kg with full gas-spring movement.

Skip it if

You cannot drill the wall, or the screen weighs more than 20 kg.

Also consider

equip 650175, a heavy-duty desk mount for 17–49″.
