equip 337111 19 Inch Fiber Optic Splice Box 1U without Front Panel up to 48 Fibers Steel Housing Single-Mode Multimode Black

Brand:
Equip
equip 337111 19" 1U Fiber Splice Box 48 Fibers Black
equip 337111 19 Inch Fiber Optic Splice Box 1U without Front Panel up to 48 Fibers Steel Housing Single-Mode Multimode Black
€58.71 inc. VAT
Buy
337111
€49.34
€58.71 inc. VAT
Ships from EU stock: 496 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591764
EAN Code
4015867244708
Manufacturer
Equip

Quick Specs

Capacity
Up to 48 fibers
Form Factor
1U · 19″, sliding
Front Panel
Not included (337100 / 337102)
Size
483 × 243 × 44 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 337111 — 19″ Fiber Optic Splice Box, 1U, without Front Panel, Black

Up to 48 fibersSliding steel housingModular front panel1U · 19″

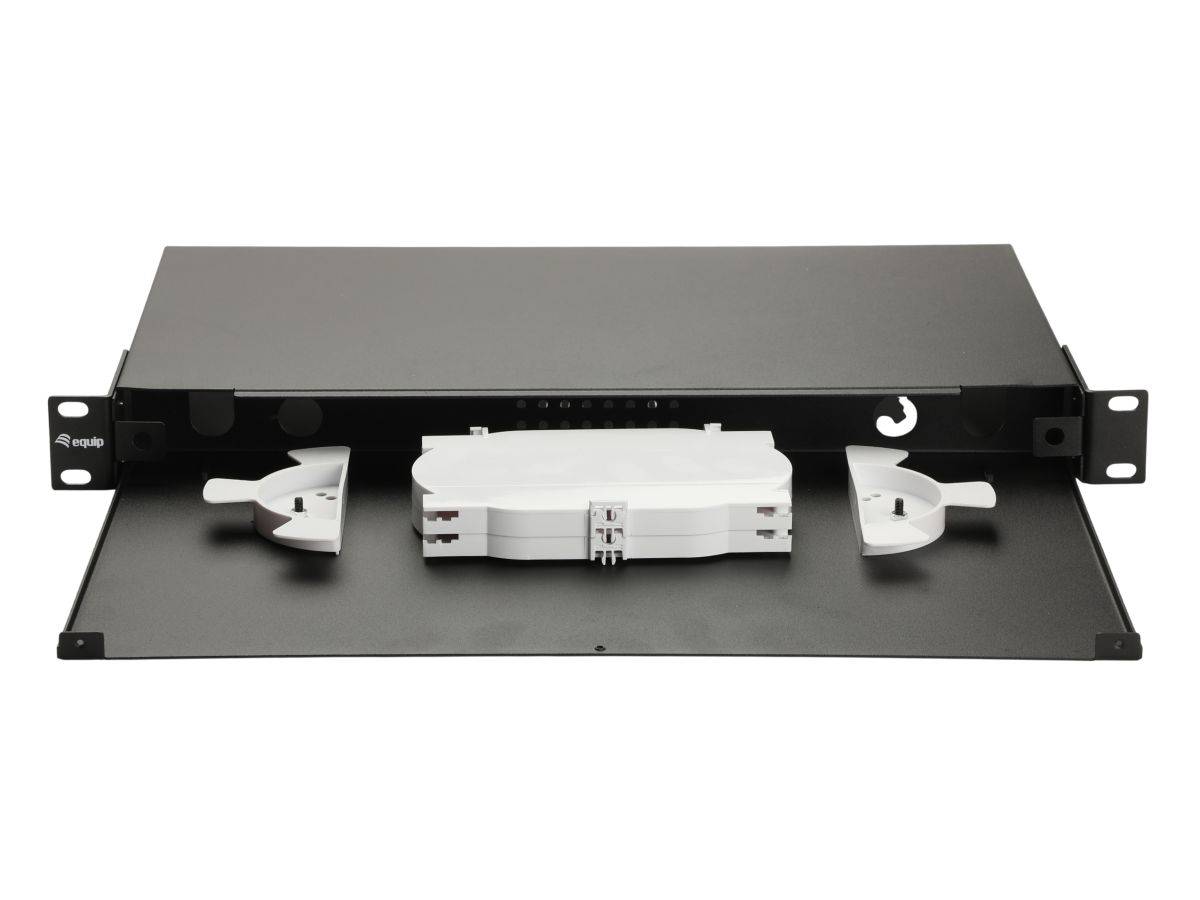

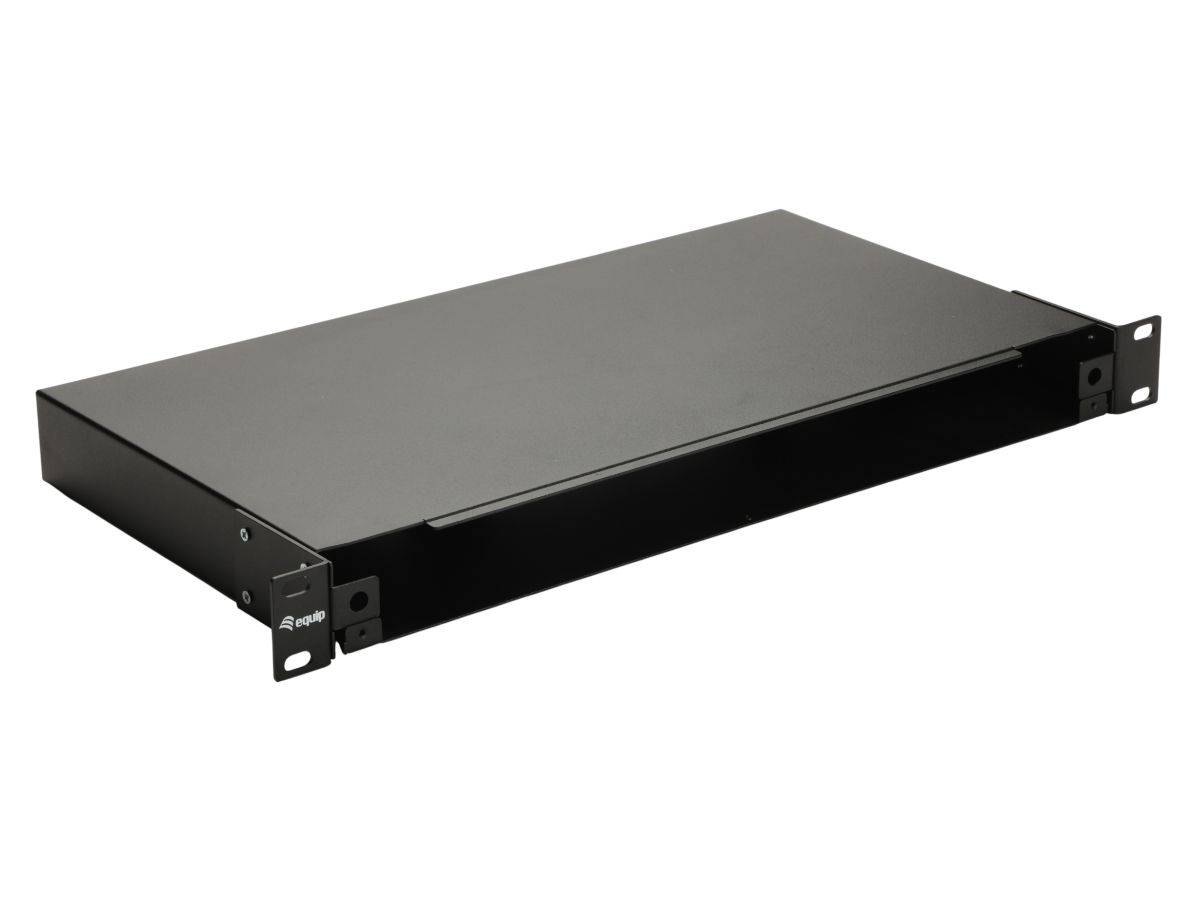

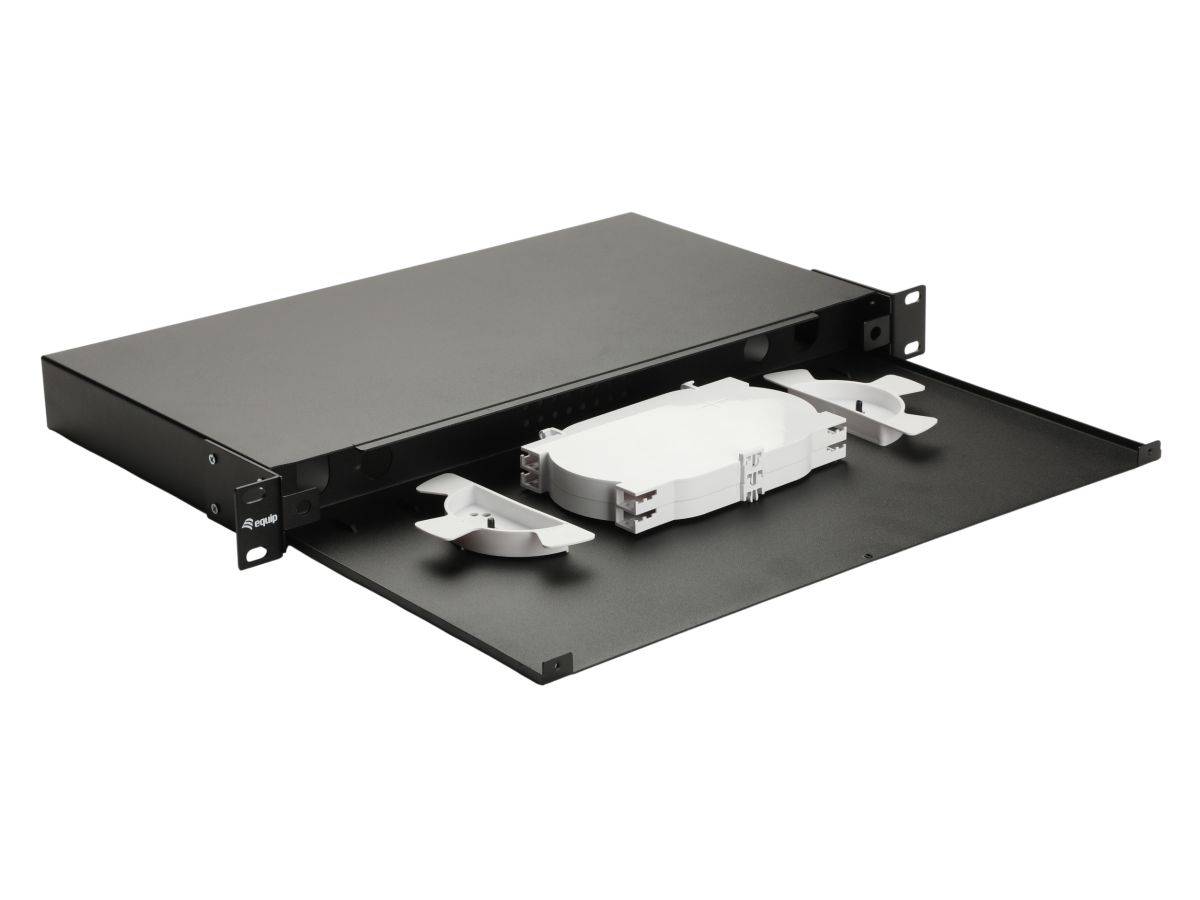

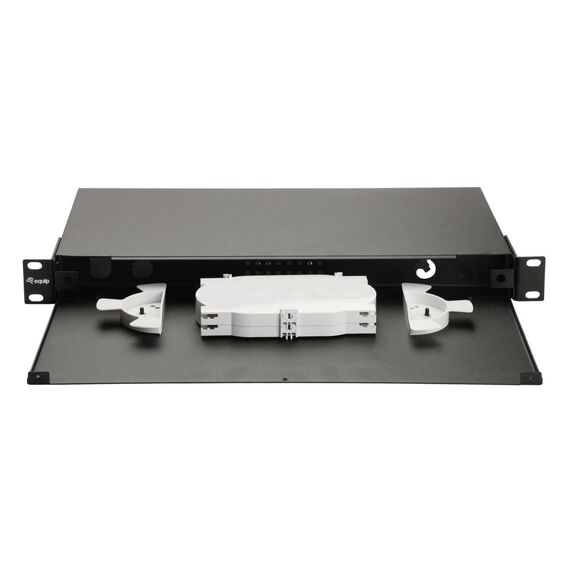

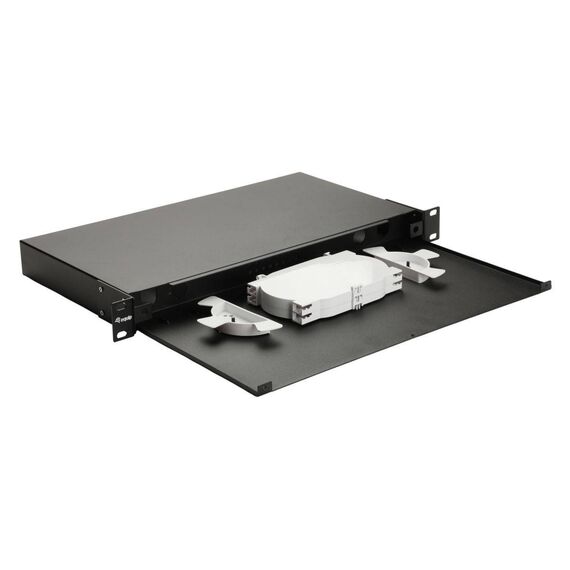

The equip 337111 is a modular 1U, 19″ fiber optic splice box in black (RAL 9005) for structured cabling. It is supplied without a front panel, so you configure it for the connectors you use: fit an equip 24-port front panel and the box handles up to 48 fibers, in single-mode or multimode. The steel housing slides out of the rack, which gives room for splicing, routing and storing fiber; inside there is a holder for splice cassettes and an extendible base chassis with punch-outs for fixing pigtails. A quick-mount design speeds up installation and later changes as the network grows. equip includes M6 screws, cable ties and cable glands. It measures 483 × 243 × 44 mm and weighs 3.8 kg. In practice it is the termination point where incoming fiber cables are spliced to pigtails and presented as patchable ports.

Compatibility — check before buying:
Order the front panel separately. The box ships without front panel, pigtails and adapters. equip lists the front panels 337100 (24 × LC-Duplex / SC-Simplex) and 337102 (24 × SC-Duplex) in black for it; choose one, then couplers and pigtails to match your fiber type. Splicing requires a fusion splicer and a trained installer. The box needs 1U and at least 243 mm of depth in a 19″ rack. This is the black version; the 337112 is the same box in grey, and its front panels are the grey 337101 / 337103. Tell us the fiber count, fiber type and connector, and we put together the complete kit.

Best For

✓ Fiber backbone termination
✓ Data centres and telecom rooms
✓ Campus and building links
✓ Single-mode or multimode cabling
✓ Splicing incoming cables to pigtails
✓ Racks that will grow over time

Key Features


Modular front
Supplied without front panel, so you choose LC-Duplex / SC-Simplex or SC-Duplex ports.

Up to 48 fibers
With a 24-port front panel the box terminates up to 48 fibers in 1U.

Sliding housing
The steel tray slides out for splicing, routing and storing fiber.

Cassette holder and punch-outs
A holder for splice cassettes and an extendible base with pigtail fixing punch-outs.

Technical Specifications

Identification
Brand equip
Product equip 19″ Fiber Optic Splice Box, 1U, without Front Panel, 48 Fibers, Black
Part Number 337111
EAN / GTIN 4015867244708
Product Type Fiber optic splice box, modular
Colour Black (RAL 9005)
Design
Form Factor 19″ rack mount, 1U, sliding steel housing
Capacity Up to 48 fibers
Fiber Type Single-mode and multimode
Configuration Modular, supplied without front panel, pigtails or adapters
Interior Splice cassette holder, extendible base chassis with pigtail fixing punch-outs
Colour Black (RAL 9005)
Compatibility
Front Panels equip 337100 (LC-Duplex / SC-Simplex), 337102 (SC-Duplex)
Dimensions
Dimensions (W × D × H) 483 × 243 × 44 mm
Weight 3.8 kg
Compliance
Approvals RoHS
In the Box

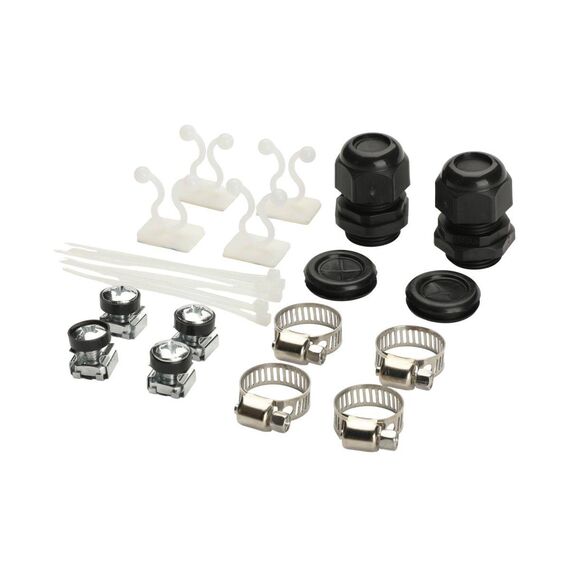

Included Splice box, M6 screws, cable ties, cable glands
Not Included Front panel, couplers/adapters, pigtails
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this product on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it include a front panel?
No. It is supplied without a front panel; equip lists the 337100 and 337102 panels for it.
How many fibers can it take?
Up to 48 fibers, depending on the front panel and couplers you fit.
Are pigtails and couplers included?
No. Order them to match your connector and fiber type (single-mode or multimode).
Is there a grey version?
Yes, the 337112 is the same splice box in grey.
Singular Expert Insight
We suggest the 337111 when you want to choose the connector type yourself: pair it with the 337100 for LC-Duplex or the 337102 for SC-Duplex, and add couplers and pigtails for your fiber type. Send us the plan and we prepare the full set. Every order comes with Singular’s local support in Cyprus. See our fiber optic products, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You need a configurable 1U fiber splice box for up to 48 fibers.

Skip it if

You want a ready-to-use splice box with couplers and pigtails already fitted.

Also consider

equip 337112, the same splice box in grey.
