equip 337103 24-Port Fiber Optic Front Panel for SC-Duplex Couplers 1U 19 Inch for Splice Box 337112 Steel Grey
Brand:
Equip
equip 337103 24-Port Fiber Optic Front Panel for SC-Duplex Couplers 1U 19 Inch for Splice Box 337112 Steel Grey
€9.87 inc. VAT
337103
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
equip 337103 — 24-Port Front Panel for SC-Duplex, 1U, Grey
24 portsSC-Duplex1U steelFor 337112

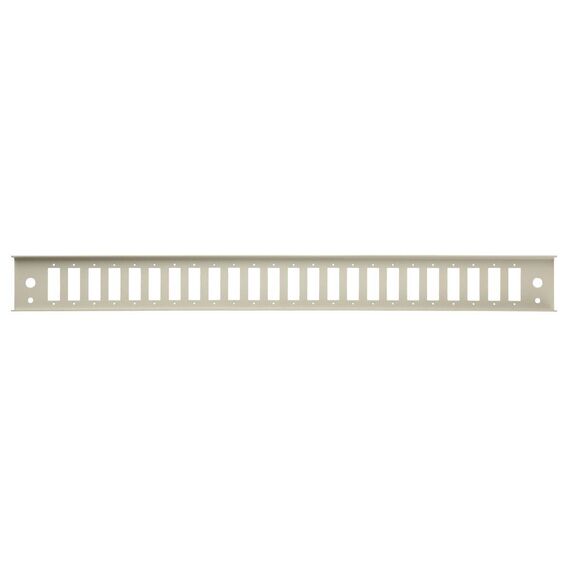

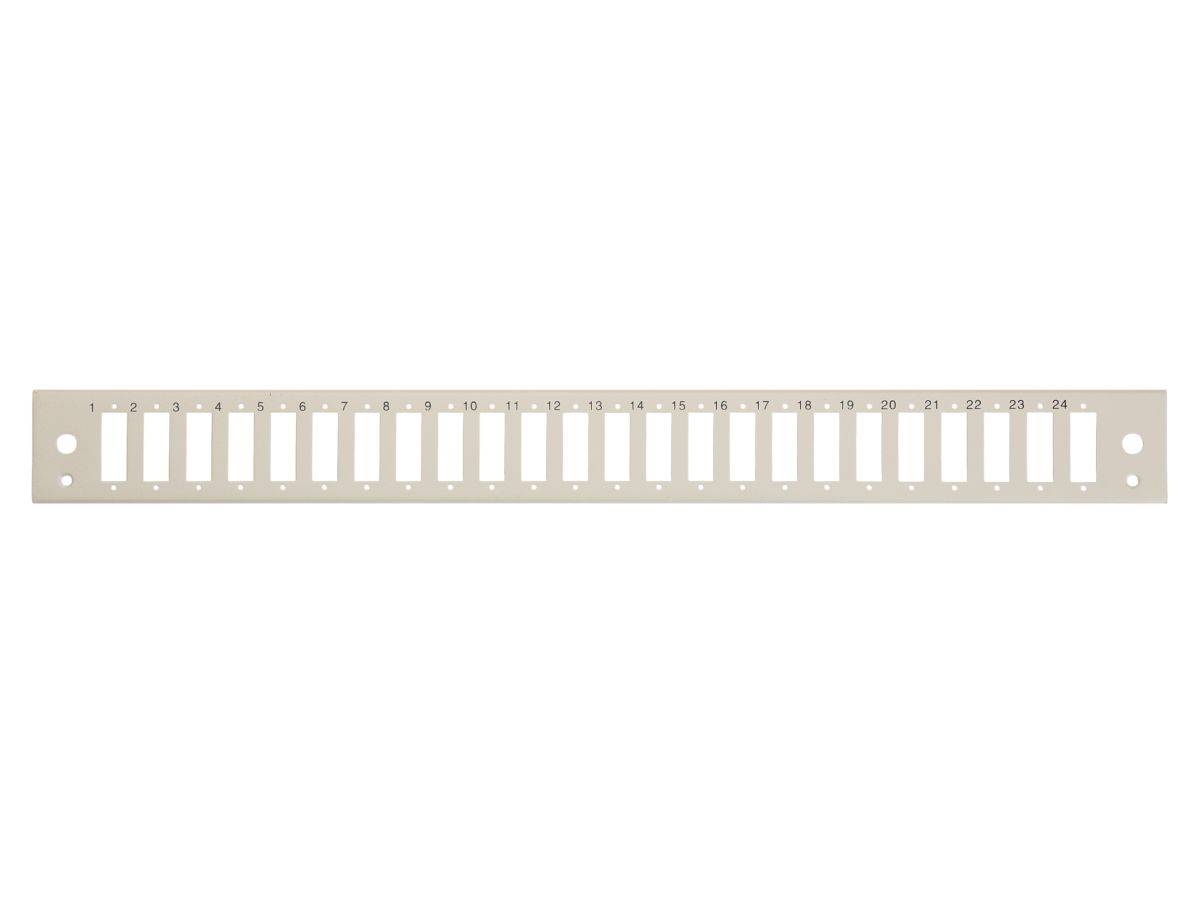

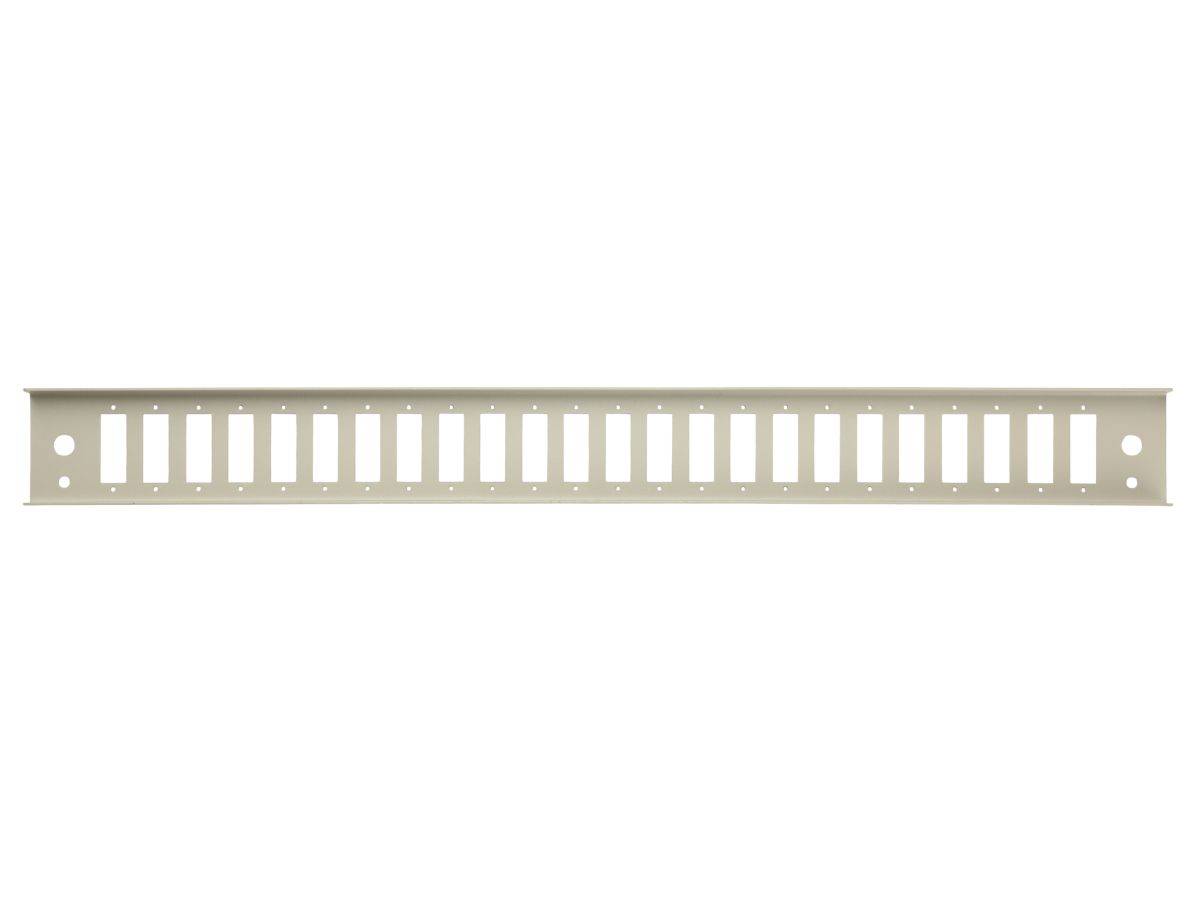

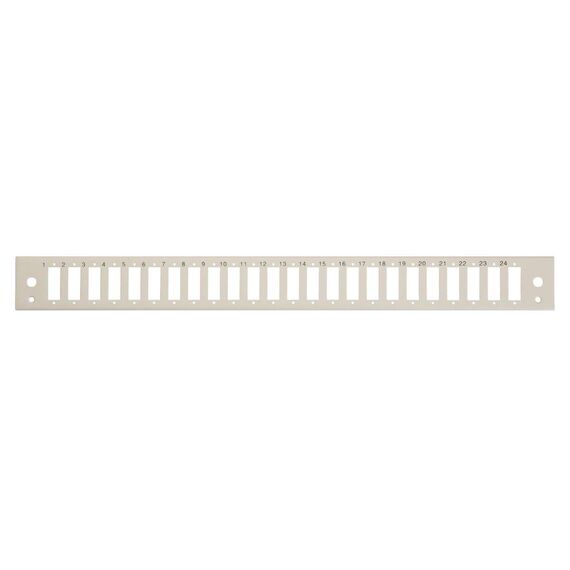

The equip 337103 is a 24-port, 1U front panel for a 19″ fiber optic splice box, finished in grey (RAL 7035). It is the part that closes the front of the box and carries the couplers: its 24 cut-outs take SC-Duplex couplers, for single-mode or multimode links. equip designed it for its modular splice box 337112, which is supplied without a front panel, so you choose the connector type when you build the box. Labelled ports keep the fibers organised for installation, troubleshooting and maintenance in data centres, telecom rooms and enterprise networks. The panel is made of steel, measures 433 × 11 × 44 mm and weighs 0.16 kg. In practice it turns the empty splice box into a working fiber patch point.
Compatibility — check before buying:

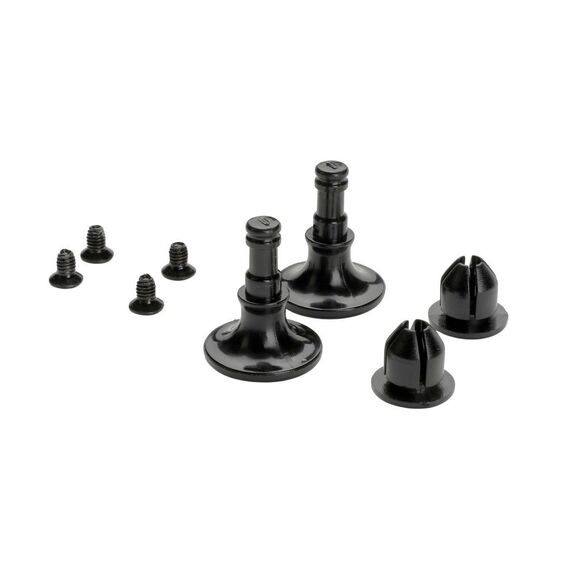

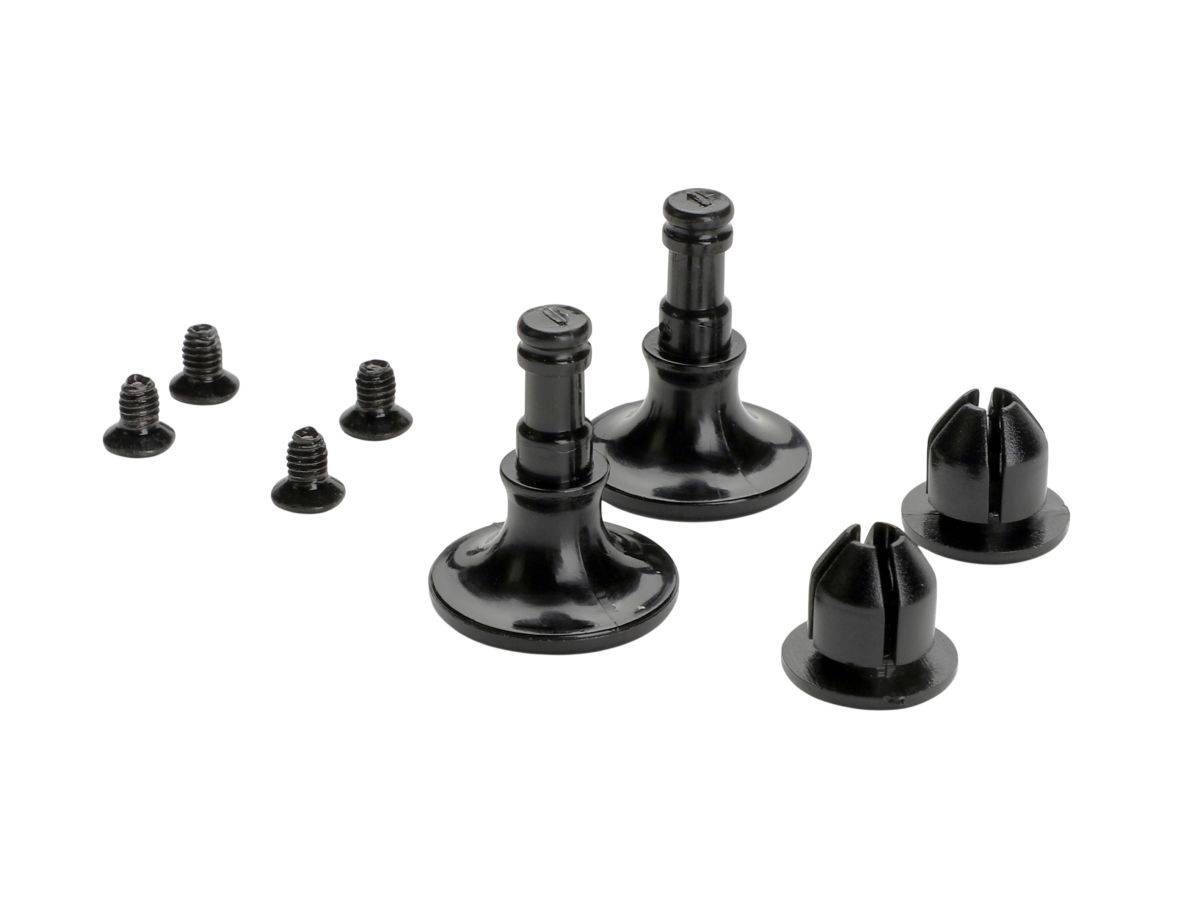

This is a front panel only. It fits the equip splice box 337112 (grey); equip lists screw kits in the box, but couplers (adapters), pigtails and the splice box itself are not included. Order couplers that match the cut-outs — SC-Duplex — and the fiber type (single-mode or multimode). Do not confuse it with the 337101, which has LC-Duplex / SC-Simplex cut-outs; the 337102 is this SC-Duplex panel in black. Tell us your fiber type and connector, and we put together the complete set.
Best For
✓ Building a 19″ fiber patch point
✓ Data centres and telecom rooms
✓ Single-mode or multimode links
✓ Campus and building backbones
✓ Configuring the 337112 splice box
✓ Labelled, serviceable fiber ports
Key Features
24 ports in 1U
Cut-outs for 24 SC-Duplex couplers.
Made for the 337112
Drops into the equip splice box 337112, which is supplied without a front panel.
Labelled ports
Clearly marked ports speed up installation, tracing and maintenance.
Sturdy steel
A steel panel finished in grey RAL 7035, matching the splice box.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 337103 when you build an equip 337112 splice box: choose the panel by connector type first, then order matching couplers and pigtails. Tell us the fiber type and number of fibers and we prepare the full kit. Every order comes with Singular’s local support in Cyprus. See our fiber optic products, or browse all racks and cabinets.
Buyer’s Guide
Buy it if
You are building an equip 337112 splice box with SC-Duplex couplers.
Skip it if
You need LC-Duplex ports, or a splice box from another brand.
Also consider
equip 337101, the grey 24-port panel for LC-Duplex / SC-Simplex couplers.
Features - Equip - 337103
Colour
grey
More Details
Product Code
04:591762
EAN Code
4015867244692
Manufacturer
Equip
