equip 326626 19 Inch 48-Port Cat.6A Shielded Patch Panel 1U Class EA 500 MHz Dual IDC LSA and 110 Black RAL 9005

Brand:
Equip

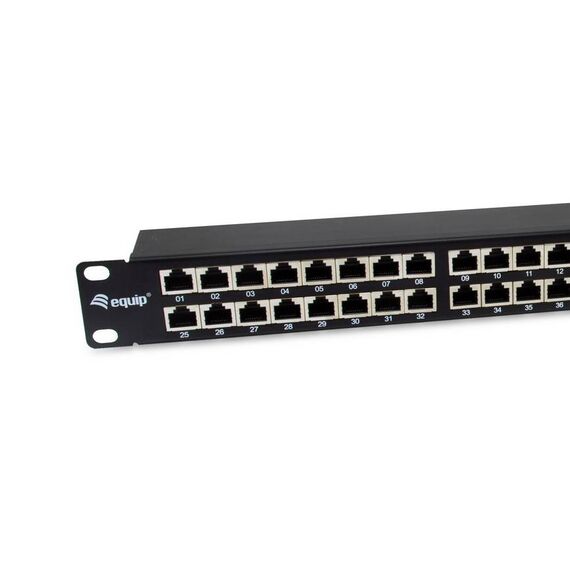

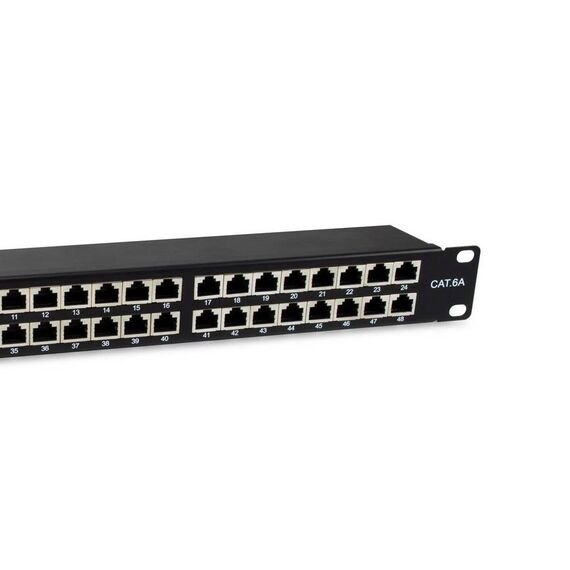

equip 326626 19" 48-Port Cat.6A Patch Panel 1U Black
equip 326626 19 Inch 48-Port Cat.6A Shielded Patch Panel 1U Class EA 500 MHz Dual IDC LSA and 110 Black RAL 9005
€166.45 inc. VAT
Buy
326626
€139.87
€166.45 inc. VAT
Ships from EU stock: 54 item(s)
+ −
Add to wish list Ask a question
Product Code
04:471816
EAN Code
4015867237588
Manufacturer
Equip

Quick Specs

Ports
48× RJ45 Cat.6A shielded
Performance
Class EA · 500 MHz · 10GBase-T
Mounting
19″ rack mount, 1U
Termination
Dual IDC (LSA and 110)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 326626 — 48-Port Cat.6A Shielded 19″ rack Patch Panel, Black

Cat.6A shielded48 ports19″ rack, 1UBlack RAL 9005

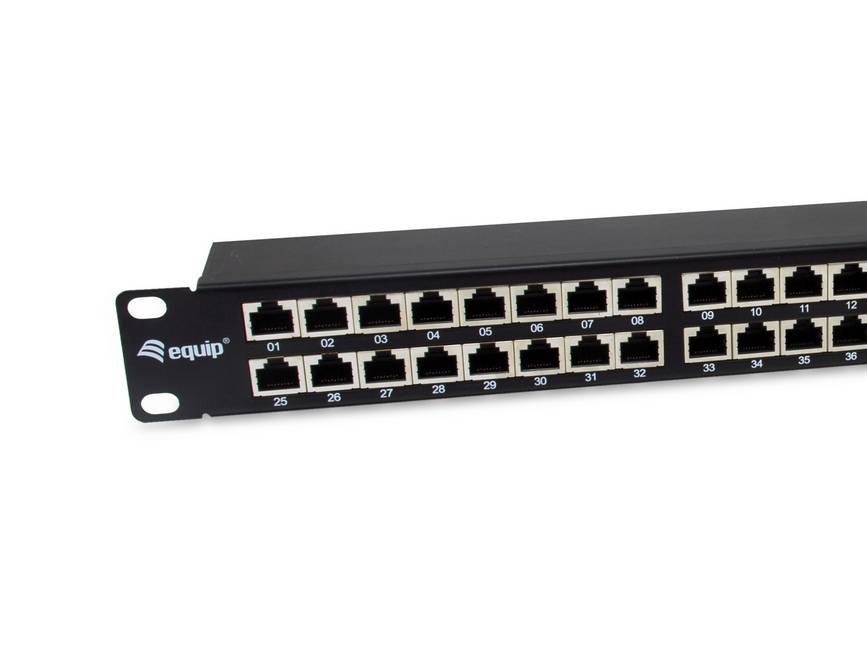

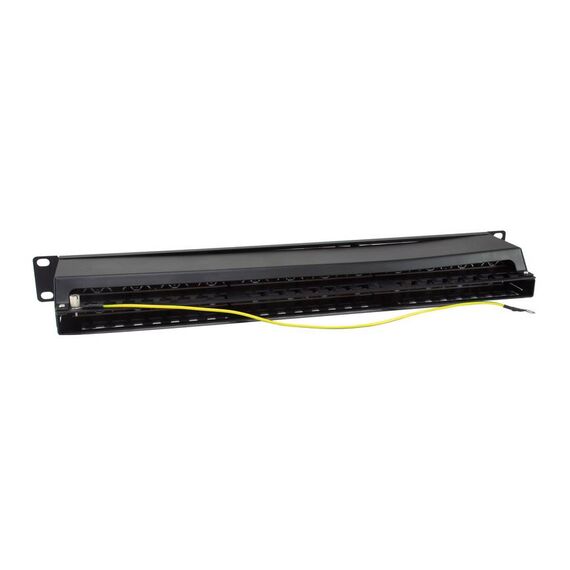

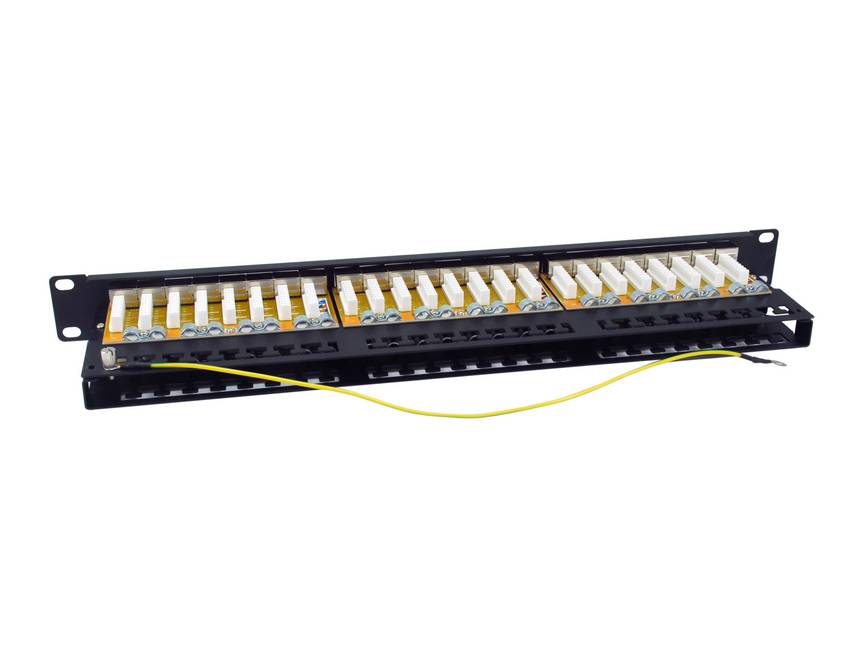

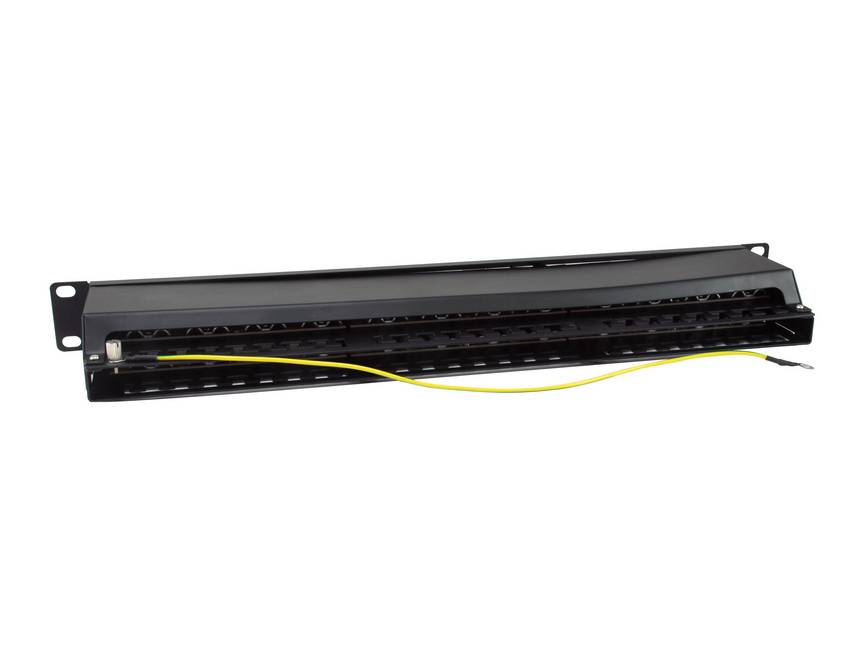

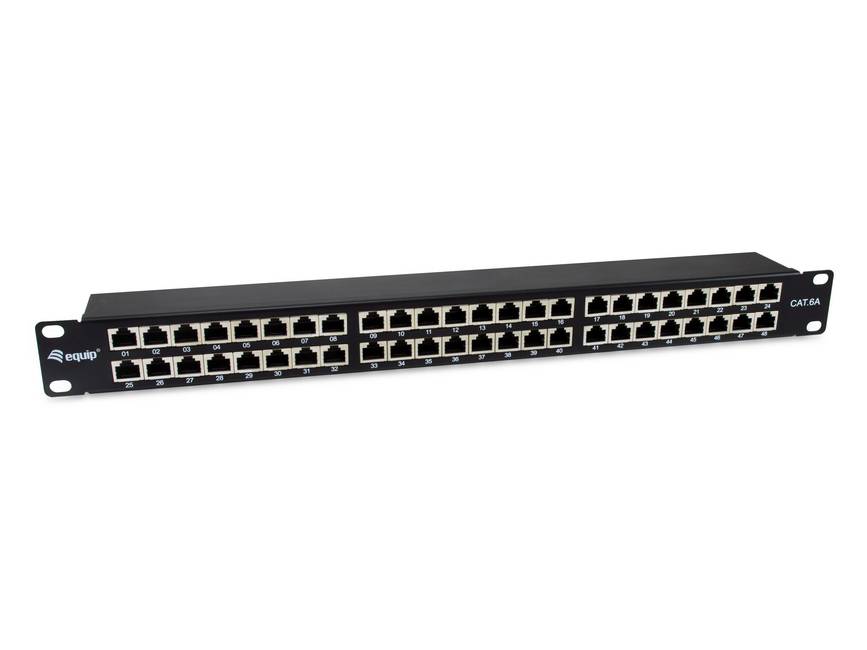

The equip 326626 is a 48-port Cat.6A shielded patch panel for 19″ rack racks, one unit high. Installation cable is terminated on the back on dual IDC blocks that accept both LSA and 110 punch-down tools, and each port presents a shielded RJ45 socket at the front for patch cables. equip specifies Class EA performance up to 500 MHz for 10GBase-T, compliance with ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568, and T568A/T568B colour coding on every port. Forty-eight ports in a single rack unit make it the high-density choice for server rooms and larger offices, where every rack unit counts. The body is sturdy steel in black (RAL 9005), and the ports are numbered for clear labelling.

Compatibility — check before buying:
A termination panel, not a switch: the back takes solid installation cable (punch-down), the front takes RJ45 patch cables — you still need a switch. You also need a punch-down tool for LSA or 110 blocks; equip does not include one. Check the rack width: this is a 19″ rack panel; the 10″ 12-port panel covers the other case. Shielding only works end-to-end with shielded cable, shielded patch cords and a grounded installation. Not sure what fits your cabling? Tell us the cable type and the number of runs and we check it.

Best For

✓ 19″ server and network racks
✓ Larger offices and floors
✓ High-density 48-port switches
✓ Data rooms with limited rack space
✓ 10 Gbit structured cabling
✓ Shielded installations

Key Features


Cat.6A Class EA
Up to 500 MHz for 10GBase-T links, to ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568.

Fully shielded ports
Shielded RJ45 ports reduce interference and signal leakage at high speed.

Dual IDC: LSA and 110
Terminate with whichever punch-down tool you use; T568A/B colour-coded.

1U, 48 ports
Steel panel in black RAL 9005, numbered ports for clear labelling.

Technical Specifications

Identification
Brand equip
Product 48-Port Cat.6A Shielded Patch Panel, 19″ rack, 1U, Class EA, Dual IDC, Black
Part Number 326626
EAN / GTIN 4015867237588
Ports 48× RJ45 Cat.6A shielded
Colour Black (RAL 9005)
Performance
Category Cat.6A
Class EA
Bandwidth Up to 500 MHz
Ethernet 10GBase-T
Standards ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
Ports & Termination
Ports 48× RJ45 (8P8C), shielded
Termination Dual IDC, LSA and 110 compatible
Wiring T568A / T568B colour-coded
Port Numbering Yes
Loaded Yes (not a blank panel)
Physical
Form Factor 19″ rack, 1U
Mounting 19″ rack mount, 1U
Material Steel
Colour Black (RAL 9005)
Dimensions (W × D × H) 482.6 × 110.5 × 44.45 mm
Weight 1.73 kg
Compliance
Approvals RoHS
In the Box
Included 1× 19″ 48-port patch panel
Not Included Punch-down tool, installation cable, patch cables, cage nuts and screws
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it support 10 Gigabit?
Yes. equip specifies Cat.6A Class EA up to 500 MHz for 10GBase-T. The installation cable, patch cords and switch must also be Cat.6A-capable.
Which punch-down tool do I need?
Either. The dual IDC blocks accept LSA and 110 tools. equip does not include a tool.
Can I use unshielded cable?
The ports accept it, but you lose the benefit of the shielding. For a shielded installation use shielded installation cable and patch cords.
Will it fit my cabinet?
It is a 19″ rack, 1U panel. Send us the cabinet model and we confirm the fit.
Singular Expert Insight
We suggest the 48-port 1U panel for 19″ racks with a 48-port switch — one panel above one switch, 1:1 patching with short Cat.6A cables, and a cable management panel in between for a clean front. Browse more patch panels and keystone parts, network cables or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You terminate shielded Cat.6A installation cable in a 19″ rack rack and want 48 ports in black.

Skip it if

Your cabinet is the other rack width, or your cabling is unshielded Cat.6.

Also consider

equip 326526 — the same 19″ 48-port panel in light grey.
