Equip 337212 24-Port Fiber Optic Splice Box LC Duplex OM3 Multimode 19 Inch 1U Rack Mount Pre-Equipped Black
Brand:
Equip
Equip 337212 24-Port Fiber Optic Splice Box LC Duplex OM3 Multimode 19 Inch 1U Rack Mount Pre-Equipped Black
€225.7 inc. VAT
337212
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
equip 337212 — 24-Port LC Duplex OM3 Fiber Optic Splice Box, 1U, Pre-Equipped
24 × LC DuplexOM3 multimode19″ 1U steelBlack (RAL 9005)

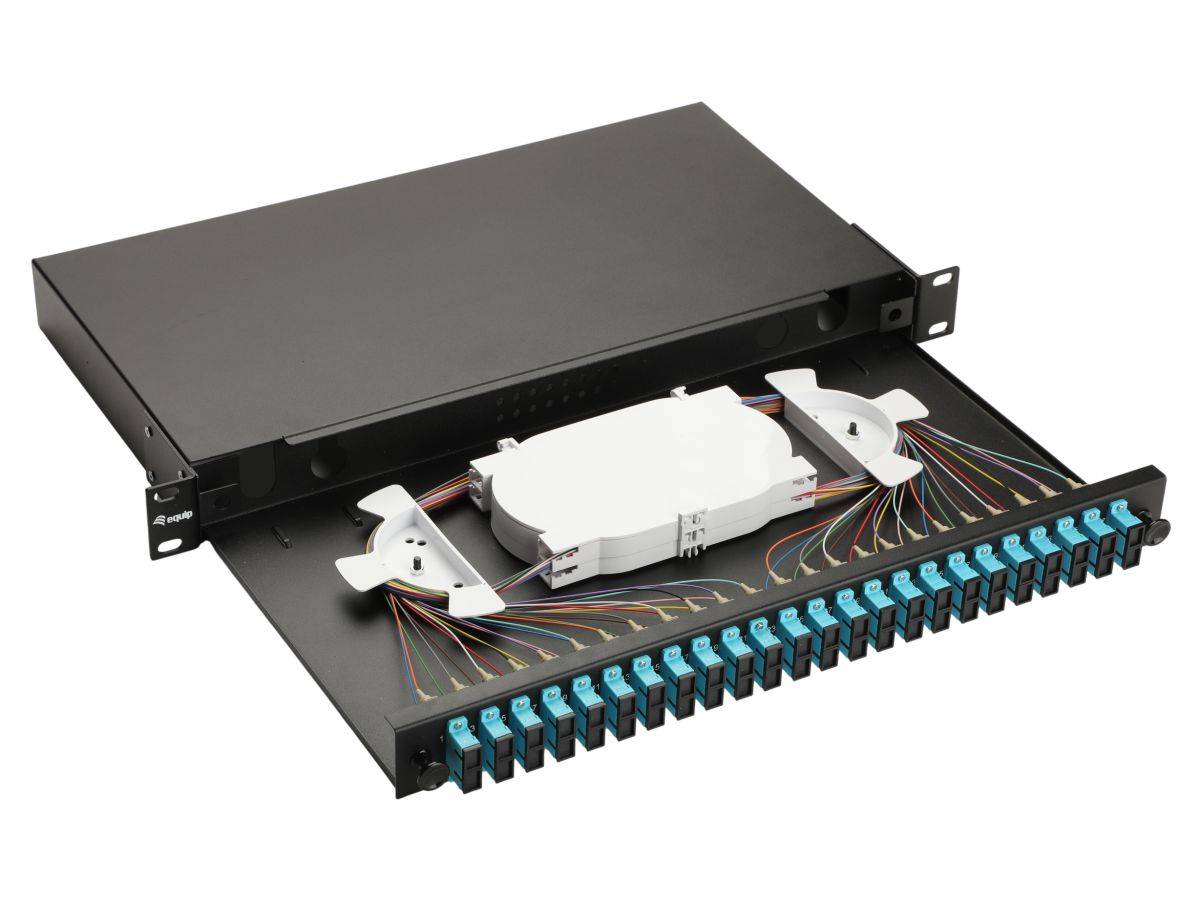

The equip 337212 is a 24-port fiber optic splice box for 19-inch racks: a 1U steel enclosure that arrives already equipped with LC/UPC duplex couplers (equip states the UPC polish on this model), coloured OM3 multimode pigtails and a splice cassette on a sliding tray, so incoming trunk fibres can be fusion-spliced and terminated in one unit. It is built for installers and IT teams finishing a fibre backbone in a comms room, server rack or data centre. In practice you splice the trunk to the pigtails inside the tray, close the cassette, and patch from the front couplers to your switches with standard LC duplex patch cords. The enclosure measures 483 × 243 × 44 mm, comes in black (RAL 9005) and ships with four sets of M6 screws and nuts for mounting.
Compatibility — check before buying:

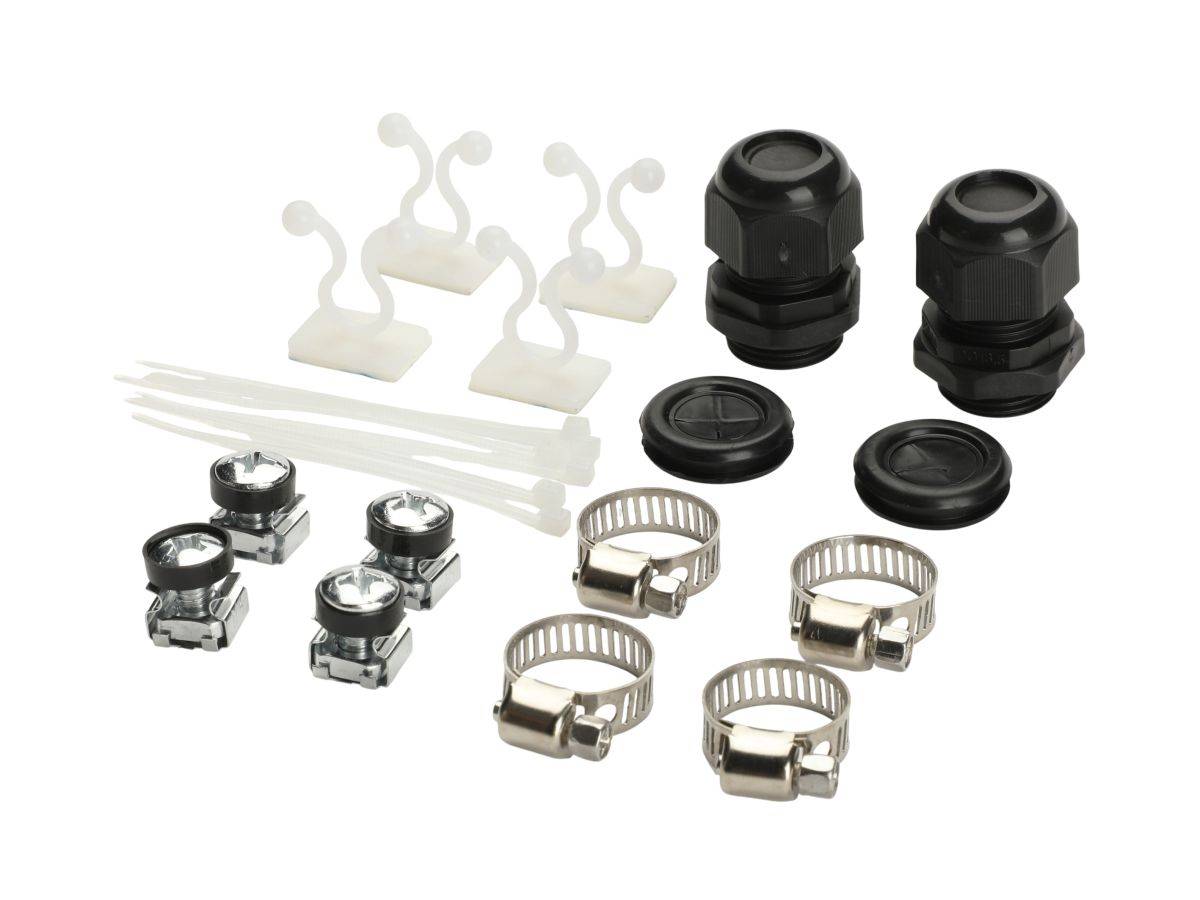

Fibre type must match your trunk. This is the OM3 multimode version. A OM3 box does not work with an OS2 single-mode trunk or with single-mode LR optics. OM3 and OM4 can be mixed on one link, but the link then performs to the lower grade. Connector must match your patch cords: the front is LC duplex — if your switch side uses SC, you need LC-to-SC hybrid patch cords or the SC version of this box (337312). A fusion splicer is needed to terminate the trunk; the box is not a pre-terminated plug-and-play cassette. In the box: the equipped splice box (sliding tray, splice cassette with cover, pigtails, couplers) and 4 sets of M6 screws and nuts. Not in the box: the trunk cable, patch cords, splice protection sleeves and any tools — equip does not list sleeves among the contents, so plan to supply your own. equip does not state the exact pigtail count, so if your design depends on a specific number of fibres, tell us the trunk fibre count and we will confirm before you order.
Best For
✓ Terminating a OM3 multimode backbone in a 19-inch rack
✓ Comms rooms where a fusion-splice finish is preferred over field connectors
✓ Higher-density links where 24 front ports in 1U save rack space
✓ Server rooms and data centres standardising on LC duplex patching
✓ Projects that need a matching black rack finish
✓ In-building backbone and data-centre multimode runs
Key Features
Pre-equipped, ready to splice
equip supplies the enclosure fully fitted: LC duplex couplers in the front, coloured OM3 pigtails behind them, and a splice cassette with cover on a sliding tray. You do not have to source and fit adapters and pigtails separately — you bring the trunk, splice it to the pigtails and close the cassette.
Sliding tray, front access
The splice tray slides forward out of the 1U housing, so you can splice, re-route or inspect fibres without dismantling the rack. The closed cassette then protects the splices.
LC duplex front panel
LC is the small-form-factor connector used by almost all current SFP and SFP+ transceivers, so LC patch cords go straight from this panel to a switch port. With 24 ports in a single rack unit, the panel keeps the patch field compact and neatly labelled next to your network gear.
Steel 1U housing

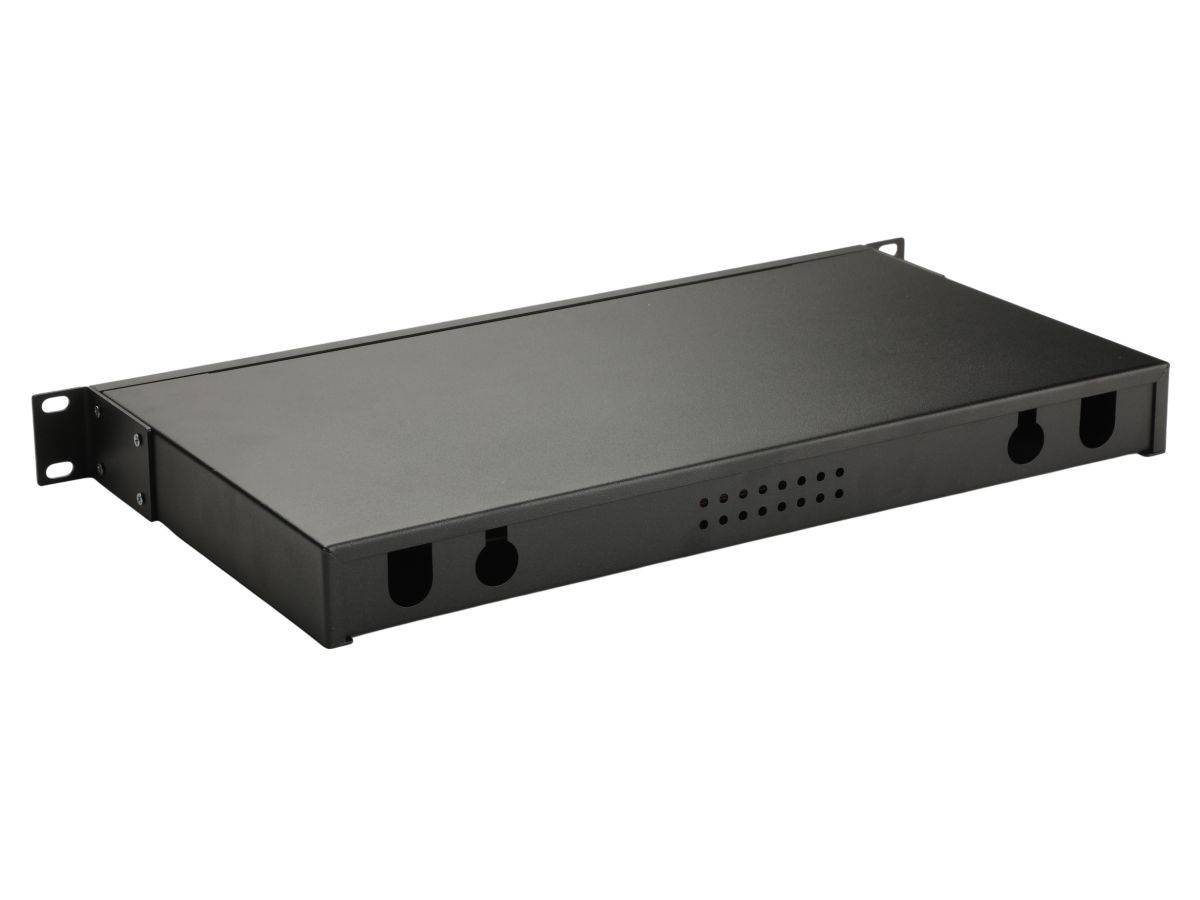

4.3 kg of steel enclosure at 483 × 243 × 44 mm, finished in Black (RAL 9005). It mounts in any standard 19-inch rack with the supplied M6 hardware and needs roughly 25 cm of usable depth plus room at the rear for the incoming trunk to bend gently.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the splice box by three things, in this order: fibre grade (OM3 here), connector (LC duplex here) and port count (24 here). The 24-port model packs more ports into the same 1U; if you only need a few links, the 12-port version is 337202. If your switches use multimode (SR/SX-type) transceivers, finish the link with LC duplex patch cords from our fiber optic range, and see network switches for the active side. Tell us your trunk fibre count and switch model and we will check the full bill of materials before you order.
Buyer’s Guide
Buy it if
You are terminating an OM3 multimode trunk in a 19-inch rack, you can fusion-splice, and your patching is LC duplex.
Skip it if
Your trunk is OS2 single-mode, you want a pre-terminated plug-and-play solution with no splicing, or your equipment uses SC connectors.
Also consider
337312 for the SC duplex version, 337202 for the 12-port version, and 337213 for the grey finish.
Features - Equip - 337212
Colour
black
More Details
Product Code
04:591932
EAN Code
4015867244876
Manufacturer
Equip
