equip 147932 4-Pole speakON Cable Connector Twist-Lock Speaker Plug Screw Terminals for 6-12mm Cable Amplifier to Loudspeaker
Brand:
Equip
equip 147932 4-Pole speakON Cable Connector Twist-Lock Speaker Plug Screw Terminals for 6-12mm Cable Amplifier to Loudspeaker
€10.28 inc. VAT
147932
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

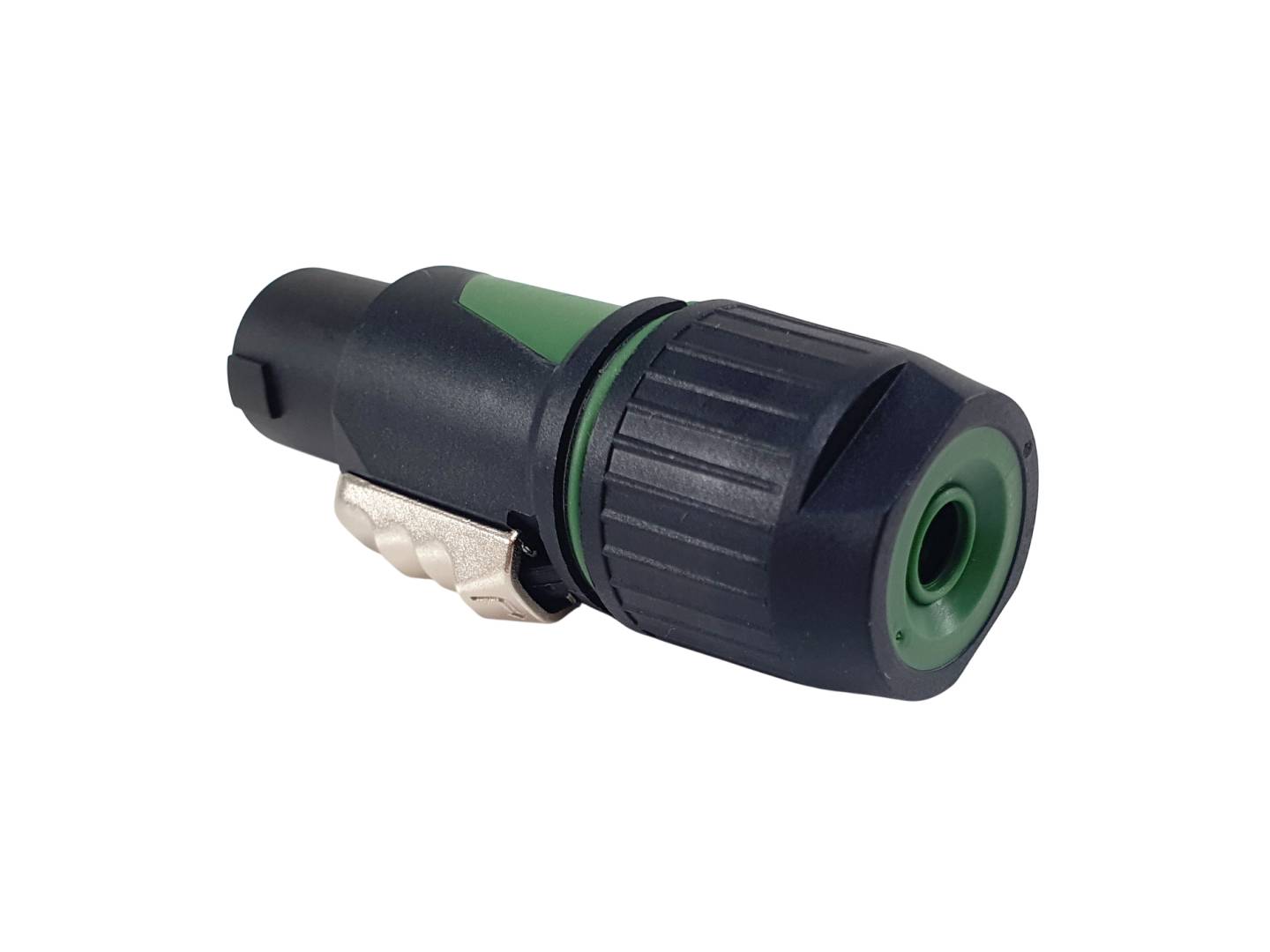

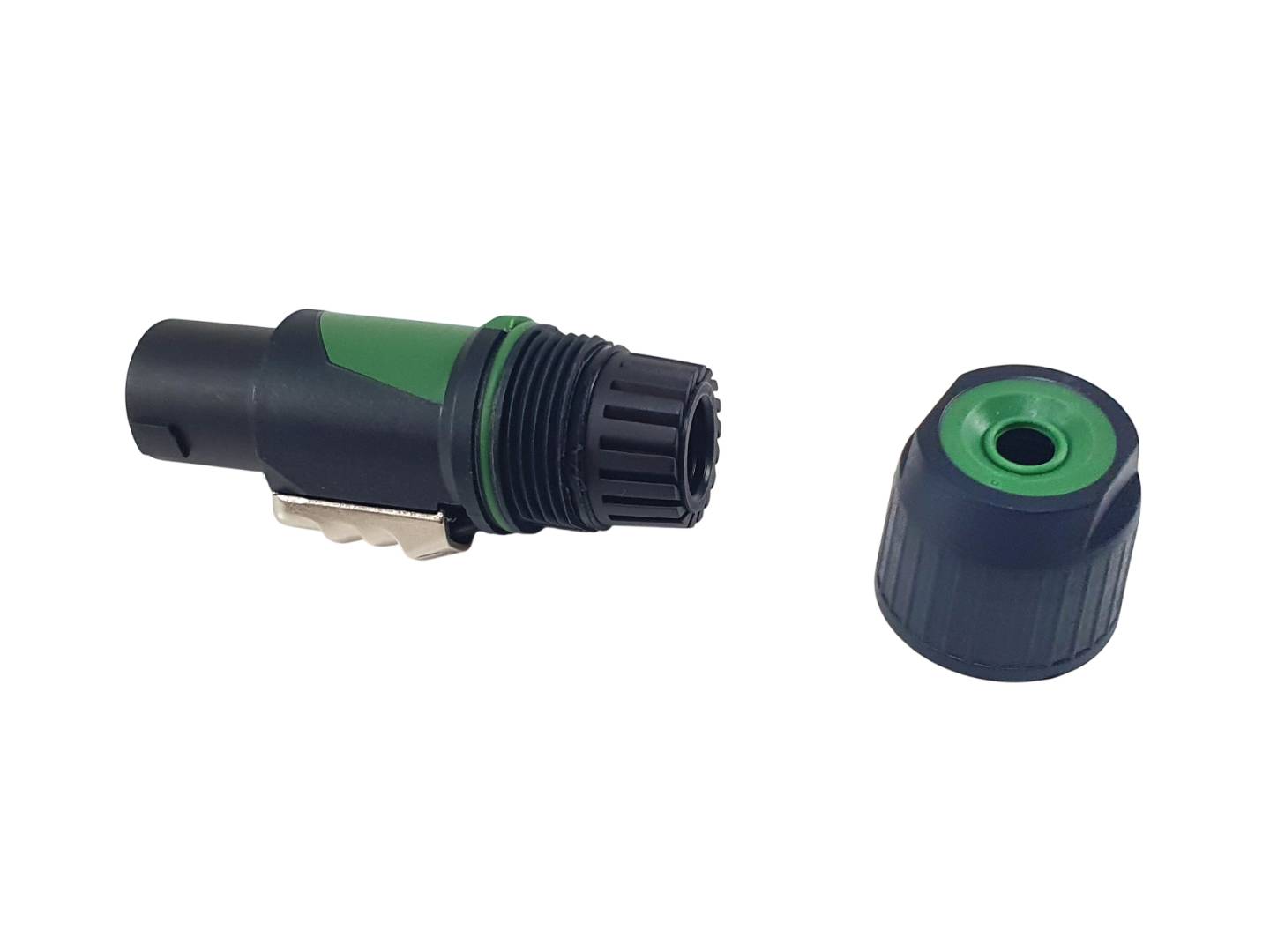

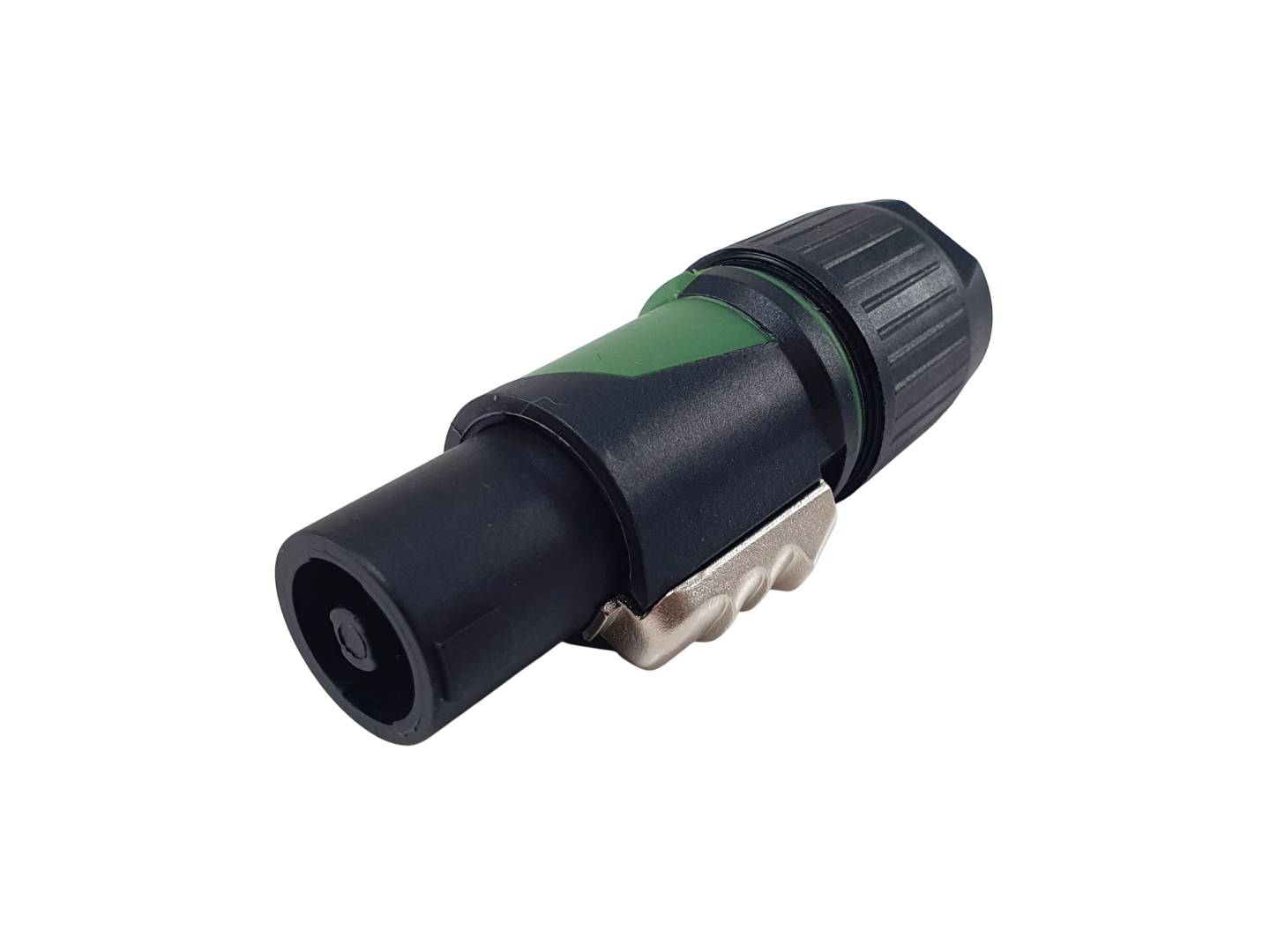

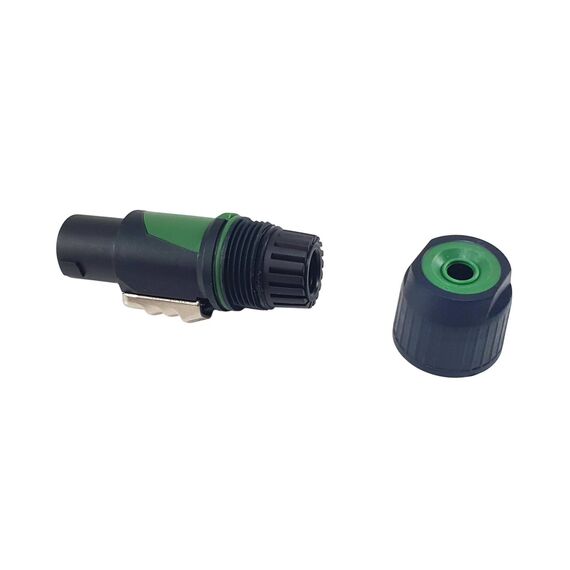

equip 147932 — 4-Pole speakON Cable Connector
speakON4-poleTwist-lockCable 6–12 mm
The equip 147932 is a 4-pole speakON cable connector for making loudspeaker cables between power amplifiers and passive speakers, PA systems and stage monitors. The twist-lock mechanism prevents the plug from being pulled out accidentally during a performance or transport, and the screw terminals make assembly quick without soldering. A chuck-type strain relief holds cables from 6 to 12 mm in diameter firmly in place. The 4-pole configuration gives flexible wiring options for high-power speaker routing, and the robust housing is made for touring, rental and fixed installations. It measures 22.5 × 22.5 × 79 mm and weighs 30 g.
Compatibility — check before buying:
For speaker-level signals only: speakON connects amplifier outputs to passive loudspeakers; it is not for microphone or line signals. It fits 4-pole speakON-type sockets on amplifiers and speakers; check that your equipment uses speakON (not binding posts or jack). Cable: 6–12 mm outer diameter for the strain relief; choose speaker cable with a conductor size suited to your amplifier power and cable length. Wire the poles to match the pin assignment of your amplifier and speaker. Send us your amplifier model and we confirm.
Best For
✓ Amplifier to passive speaker cables
✓ PA and live sound systems
✓ Stage monitors
✓ Club and event installations
✓ Rental and touring cables
✓ Installed venue audio
Key Features
4-pole speakON
Four poles for high-power speaker routing and flexible wiring.
Twist-lock
Stays connected during performances and transport.
Screw terminals
Fast, solder-free assembly on site.
Strain relief 6–12 mm
Chuck-type clamp for secure mechanical retention.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 147932 for making speaker cables to exact lengths — one at each end of a two- or four-core speaker cable. For microphones and line signals use the XLR connectors 147930 and 147931. Browse our cable accessories, speakers or microphones. Local support in Cyprus comes with every order.
Buyer’s Guide
Buy it if
You build speaker cables between amplifiers and passive speakers with speakON sockets.
Skip it if
Your amplifier or speakers use binding posts, jack or XLR connections.
Also consider
equip 147930 / 147931 — 3-pole XLR connectors for microphone and line cables.
Features - Equip - 147932
Colour
black
More Details
Product Code
04:559796
EAN Code
4015867243084
Manufacturer
Equip
