Equip 19-inch 1U Rack PDU with 6 IEC C19 Outlets, IEC C20 Input Plug and On/Off Switch, 16A 3500W, Aluminium, Silver
Brand:
Equip
Equip 19-inch 1U Rack PDU with 6 IEC C19 Outlets, IEC C20 Input Plug and On/Off Switch, 16A 3500W, Aluminium, Silver
€43.91 inc. VAT
333319
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

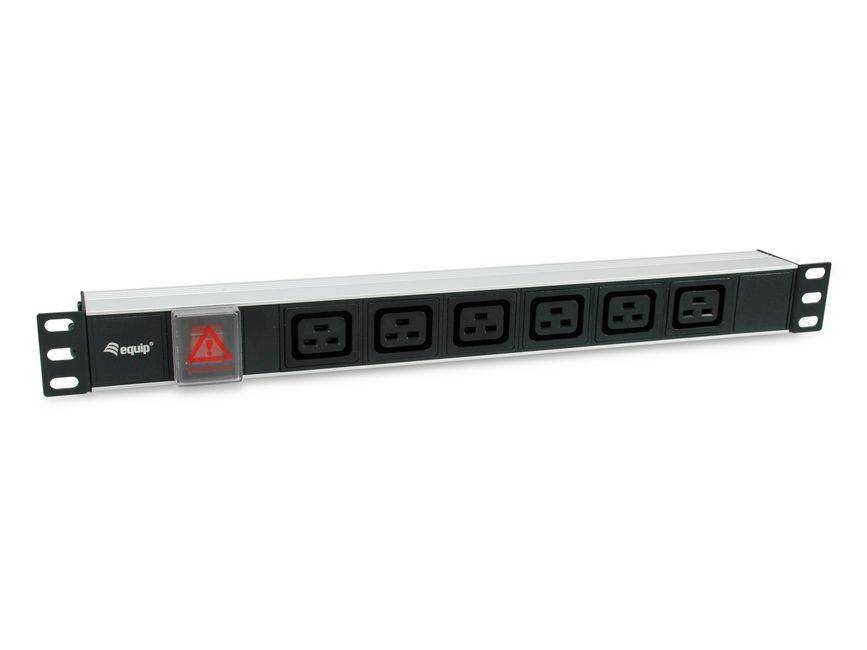

Equip 333319 — 1U Rack PDU with 6 × IEC C19 Outlets and C20 Input
6 × IEC C19C20 input plugOn/Off switch16 A · 3500 W
The Equip 333319 is a 19-inch, 1U rack PDU with six IEC C19 high-current outlets and an IEC C20 input plug, made for server and storage cabinets where equipment uses C19/C20 power connections — typically larger servers, blade chassis, high-wattage storage arrays and UPS-fed racks.

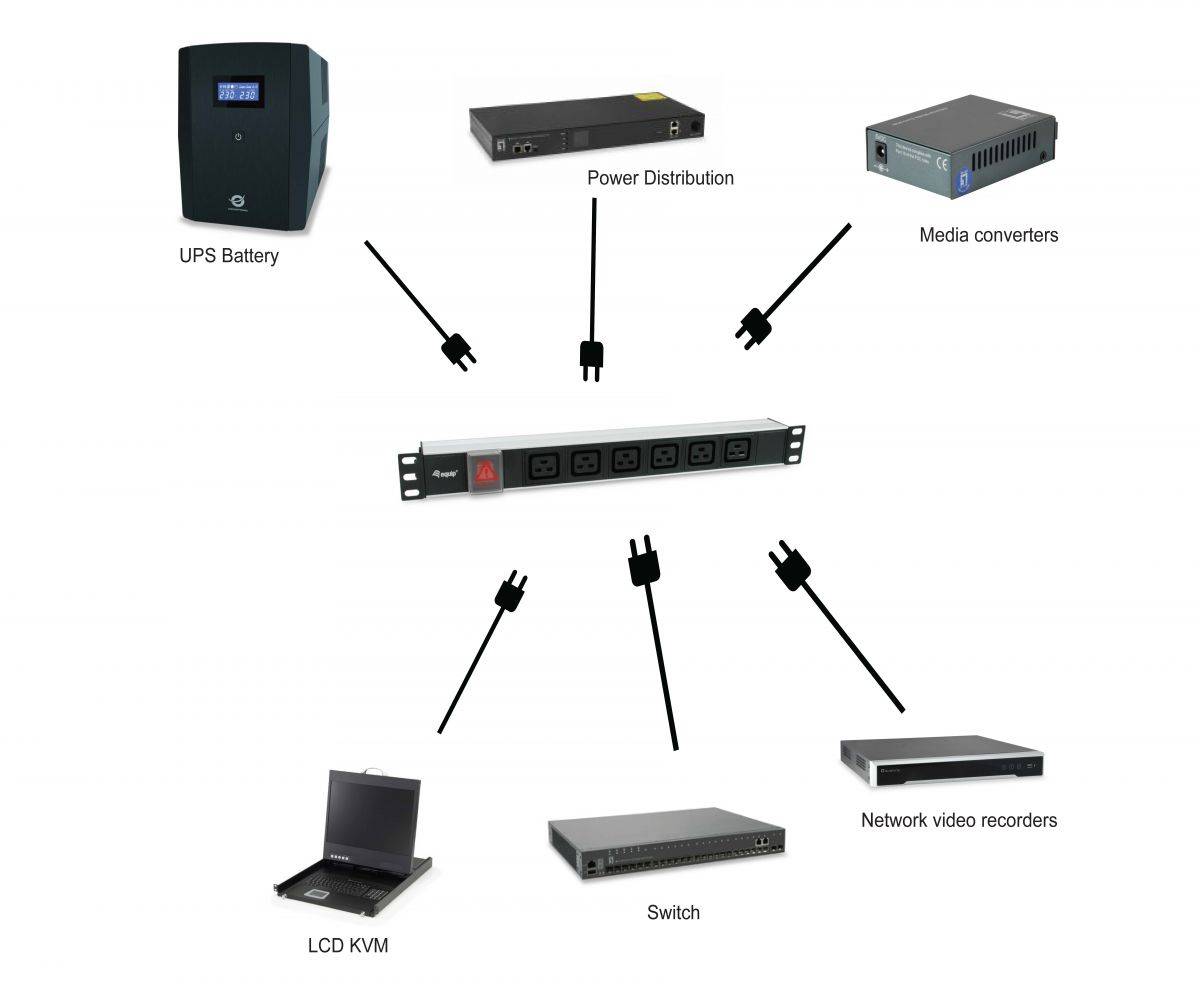

Because it is fed by a C20 plug rather than a wall plug, it is designed to hang off a C19 socket on a UPS or an upstream PDU, distributing that 16 A feed to up to six high-power devices in a single rack unit, with a master switch to cut power to the whole strip.
Before you order: The input is an IEC C20 plug — it does not go into a Schuko wall socket. You need a C19 outlet on a UPS or PDU to feed it. The outlets are C19, so devices with a standard C14 inlet need a C20-to-C13 cord; the 3500 W / 16 A is the total for all six outlets.
What's in the Box
- 1 × Equip 333319 6-outlet C19 rack PDU with fixed 1.8 m cable and C20 plug

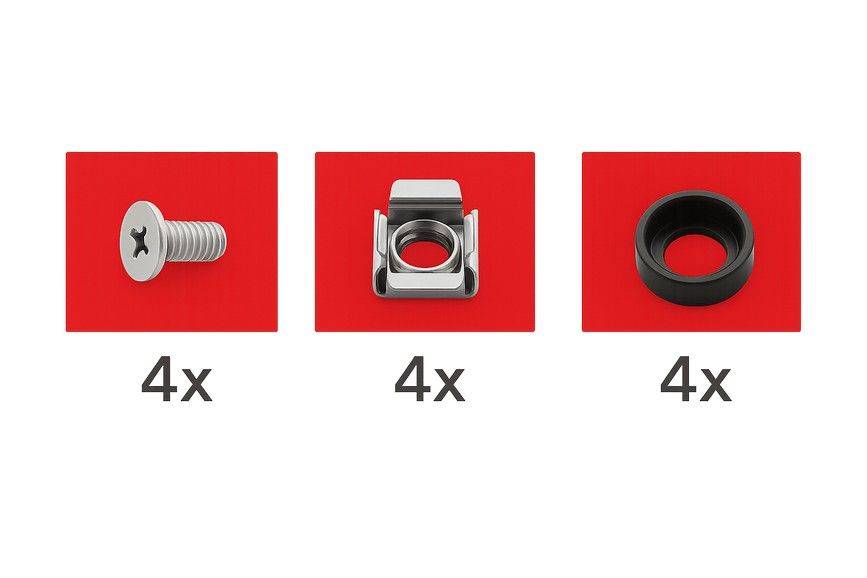

- Screw kit for rack mounting
- Quick installation guide
What It Means in Practice
- Lets one 16 A C19 output on a UPS feed six high-power devices without daisy-chaining power strips.
- C19/C20 connectors are rated for higher current than C13/C14, which is why servers and storage with large power supplies use them.
- The aluminium 1U body mounts horizontally at the back or front of a 19-inch rack.
- The on/off switch powers the whole strip down at once for maintenance.
What Will Not Work
- It will not plug into a wall socket — there is no Schuko or UK plug, only an IEC C20 plug.
- Ordinary IEC C13 cords (the kind used by most switches and PCs) do not fit C19 outlets; you need C20-to-C13 or C20-to-C14 cables.
- No surge protection, metering, remote switching or per-outlet breakers are published for this unit.
- It does not add capacity: six devices together must stay within 16 A / 3500 W.
Key Features
Six IEC C19 outlets
High-current C19 sockets for servers, storage and other equipment with C20 inlets or C20-terminated cords.

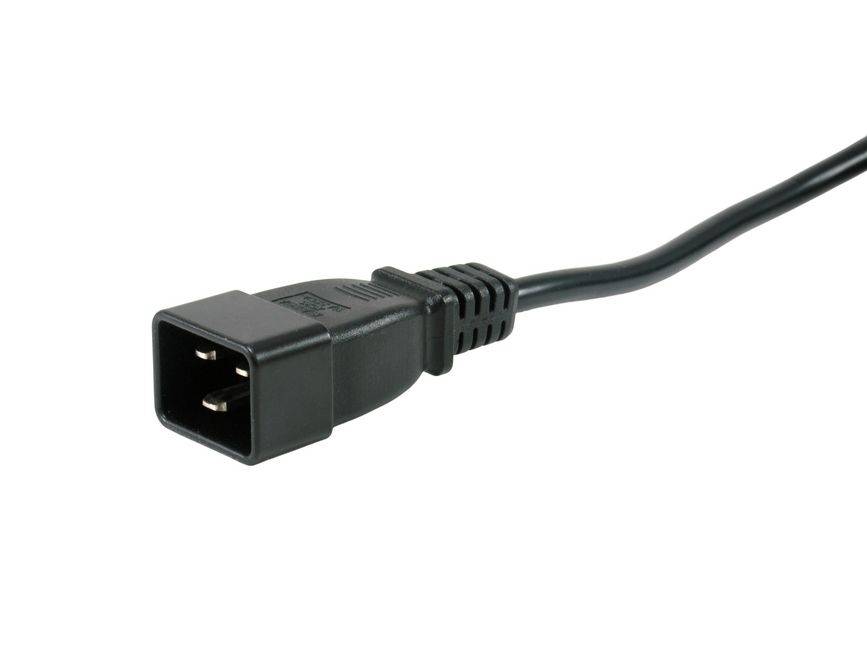

IEC C20 input plug
Designed to be fed from a C19 outlet on a UPS or upstream PDU in the same cabinet.

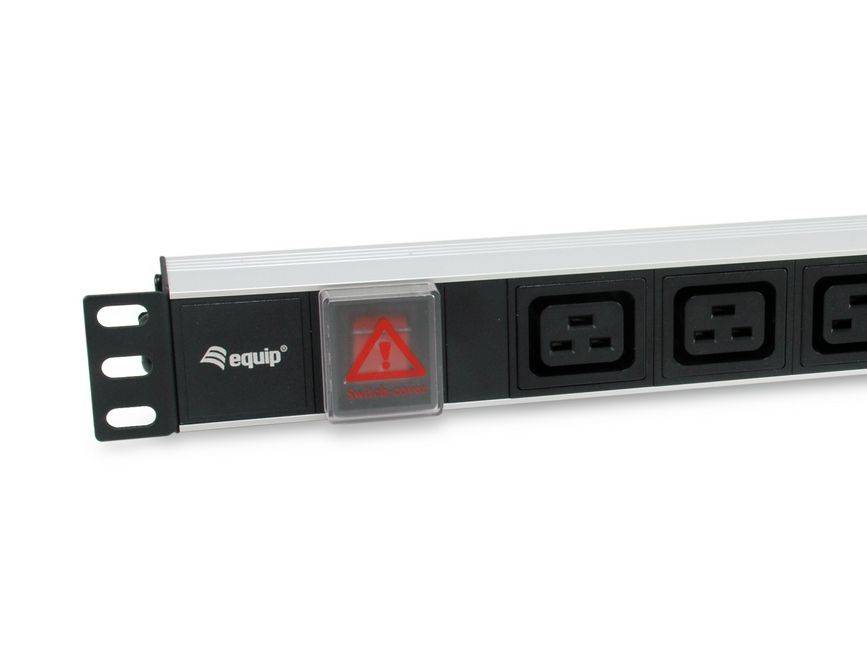

Master on/off switch
Integrated switch to power the full strip on or off.
Aluminium 1U shell
Horizontal 19-inch installation in one rack unit with a rigid aluminium housing.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
C19 PDUs make sense when your servers or storage already use C19/C20 cords, or when a UPS with a C19 output is the single feed for the rack. If your gear uses ordinary C13 cords, a C13 PDU is cheaper and simpler. For the rest of the cabinet, browse our rack accessories.
✓ Buy it if your rack is fed from a UPS or PDU with a C19 outlet and your servers use C19/C20 power connections.
✕ Skip it if you need to plug into a wall socket, your devices use standard C13 cords, or you need surge protection.
→ Also consider Equip 333309 with seven Schuko outlets, surge protection and a wall plug, or a C13-outlet PDU such as Lanberg PDU-10I-0200-IEC-BK.
Send us your UPS model and the power cords your servers use, and we will confirm whether a C19 PDU is the right fit before you order.
Features - Equip - 333319
Colour
silver
More Details
Product Code
04:528033
EAN Code
4015867241301
Manufacturer
Equip
