Equip 333312 — 1U Rack PDU, 6 Schuko Outlets with Circuit Breaker
6 × Schuko2P circuit breaker16 A · 3500 W1U aluminium

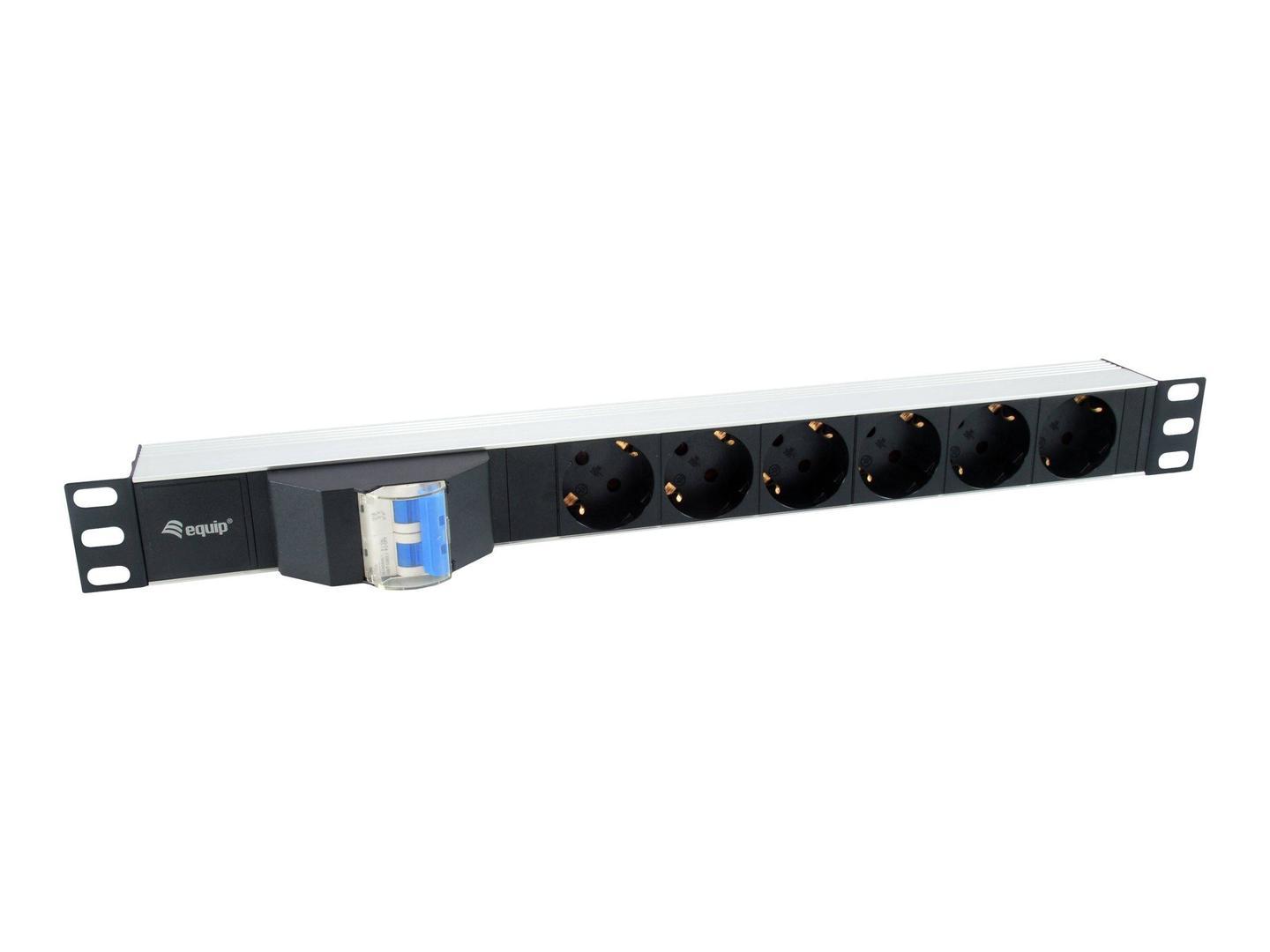

The Equip 333312 is a 19-inch, 1U rack PDU with six Schuko outlets and an integrated 2-pole class C circuit breaker, intended for network and server cabinets where an overload should trip the strip itself rather than the breaker in your building distribution board.
It mounts horizontally in one rack unit and plugs into a wall socket or a UPS with a Schuko output through a 1.8 m H05VV-F cable with a 90° angled plug. When the breaker trips you reset it at the rack, without walking to the electrical panel.
Before you order: The outlets are Schuko (CEE 7/3). The breaker protects against overload, not against voltage spikes — this unit does not have surge protection. Total load for all six outlets is 16 A / 3500 W.
What's in the Box
- 1 × Equip 333312 6-outlet rack PDU with fixed 1.8 m cable
- Quick installation guide
What It Means in Practice
- An overload on the strip trips its own breaker, so other circuits on the same building line keep running.
- Resetting is done at the rack — useful in comms rooms that are far from the electrical panel.
- Six Schuko sockets in 1U cover a typical small cabinet: switch, router, NAS, firewall and two power adapters.
- The angled plug sits flat against the wall behind a cabinet.
What Will Not Work
- It does not protect against lightning or mains surges — there is no surge protection. Choose Equip 333309 or 333315 if you need it.
- It is not a UPS and will not keep anything running in a power cut.
- IEC C13 cords do not fit; devices need Schuko cords or a C13-outlet PDU.
- No on/off switch, metering or remote control is published for this model.
Key Features
2-pole circuit breaker
Class C, two-pole breaker that disconnects both conductors when the strip is overloaded.

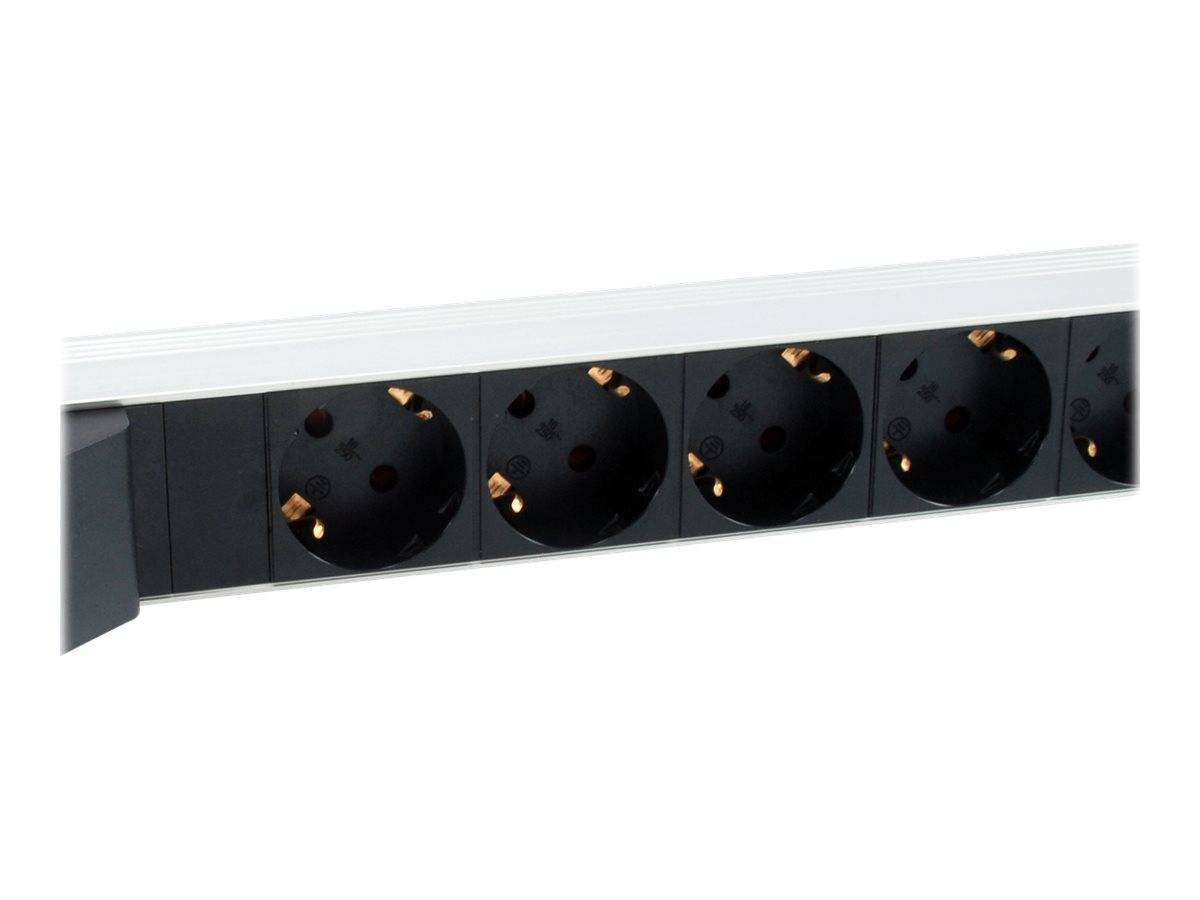

Six Schuko outlets
DIN 49440 sockets for standard European plugs and power supplies.
Aluminium 1U housing
Rigid aluminium shell for horizontal 19-inch installation.

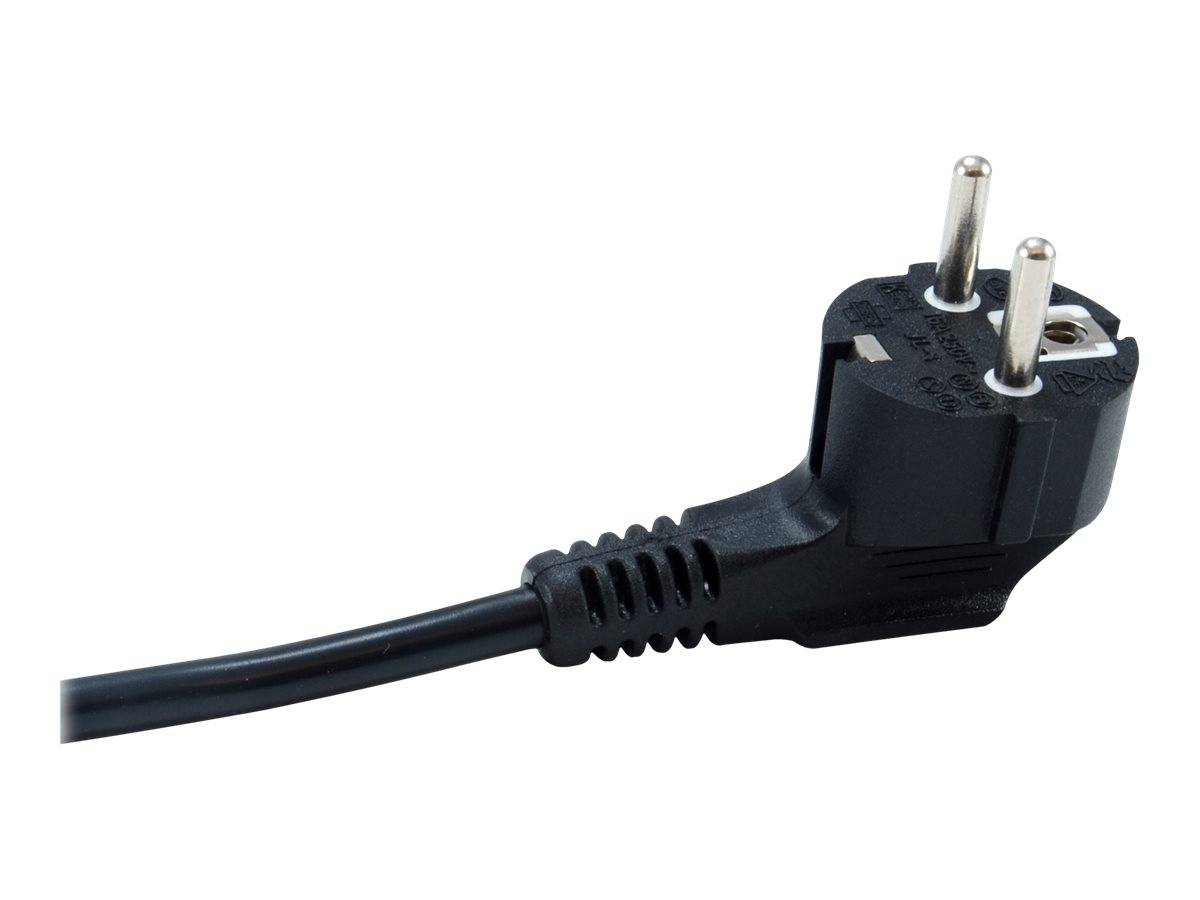

Angled Schuko plug
H05VV-F 3G 1.5 mm² cable, 1.8 m, with a 90° CEE 7/7 plug.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Choose this one when overload protection at the rack matters more than surge protection — for example in cabinets that already sit behind a UPS or a surge-protected circuit. Planning the rest of the cabinet? See our rack accessories.
✓ Buy it if you want a 1U Schuko PDU that trips and resets locally instead of tripping the building breaker.
✕ Skip it if you need surge protection, an on/off switch or USB charging.
→ Also consider Equip 333309 (7 Schuko, surge protection and switch) or Equip 333315 (7 Schuko, surge protection and 2 USB).
Tell us which devices you plan to connect and we will check the total load against the 16 A limit before you order.
Features - Equip - 333312
Colour
silver
More Details
Product Code
04:335384
EAN Code
4015867223109
Manufacturer
Equip
