Equip 769404 — USB 3.2 Gen 2 USB-C Keystone Coupler, 20 Gbps, 100 W PD, 4K/60Hz
USB-C female to femaleUp to 20 Gbps100 W Power Delivery pass-through4K/60Hz DP Alt Mode · tool-free

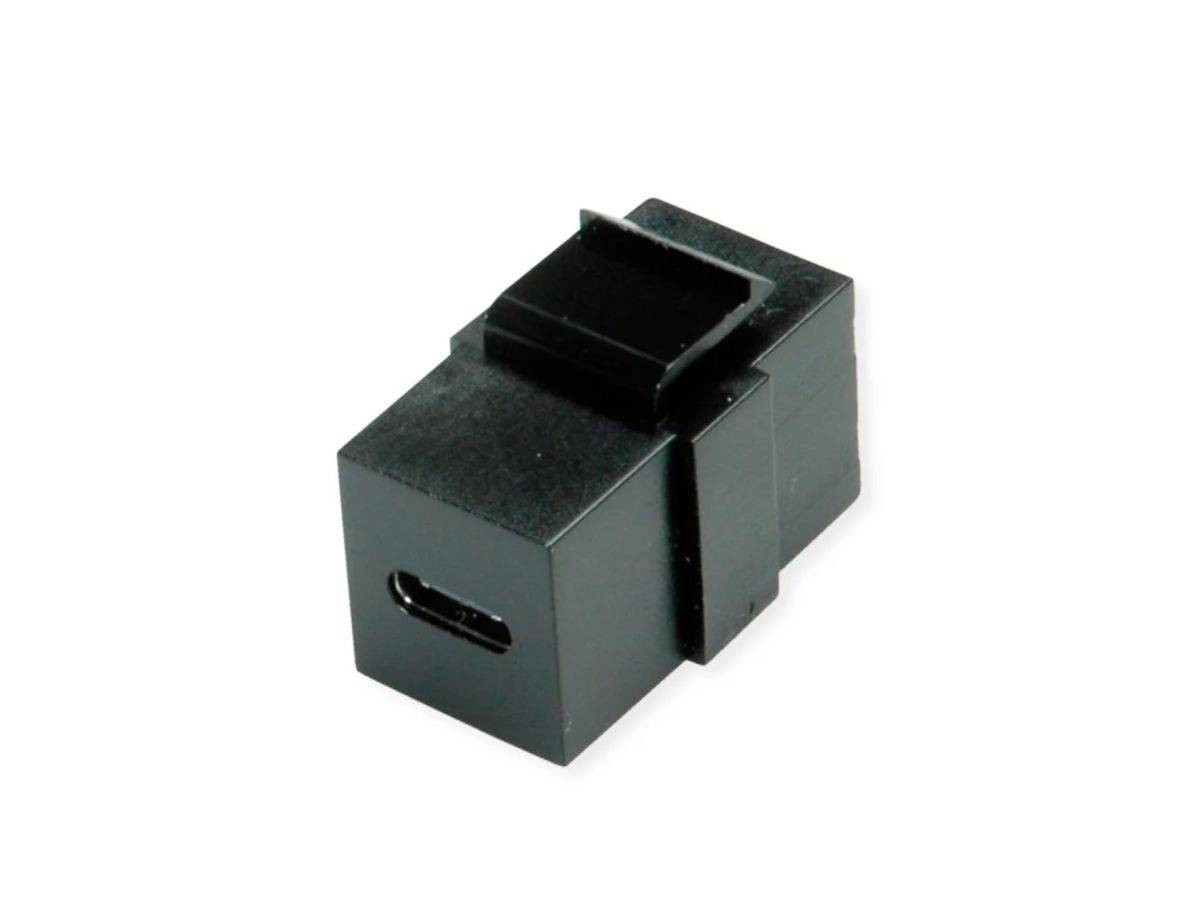

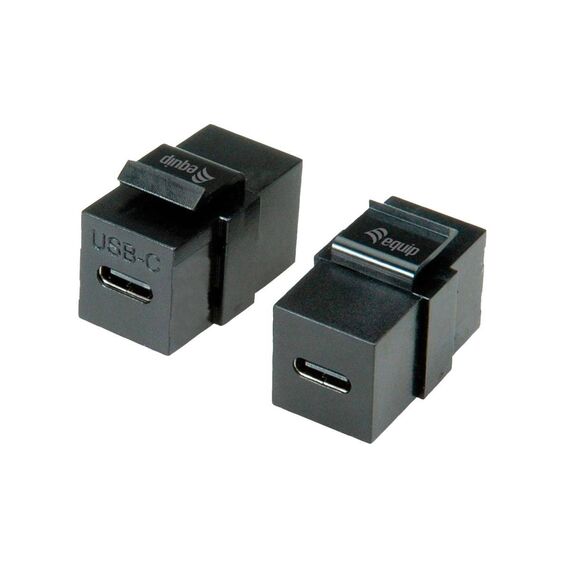

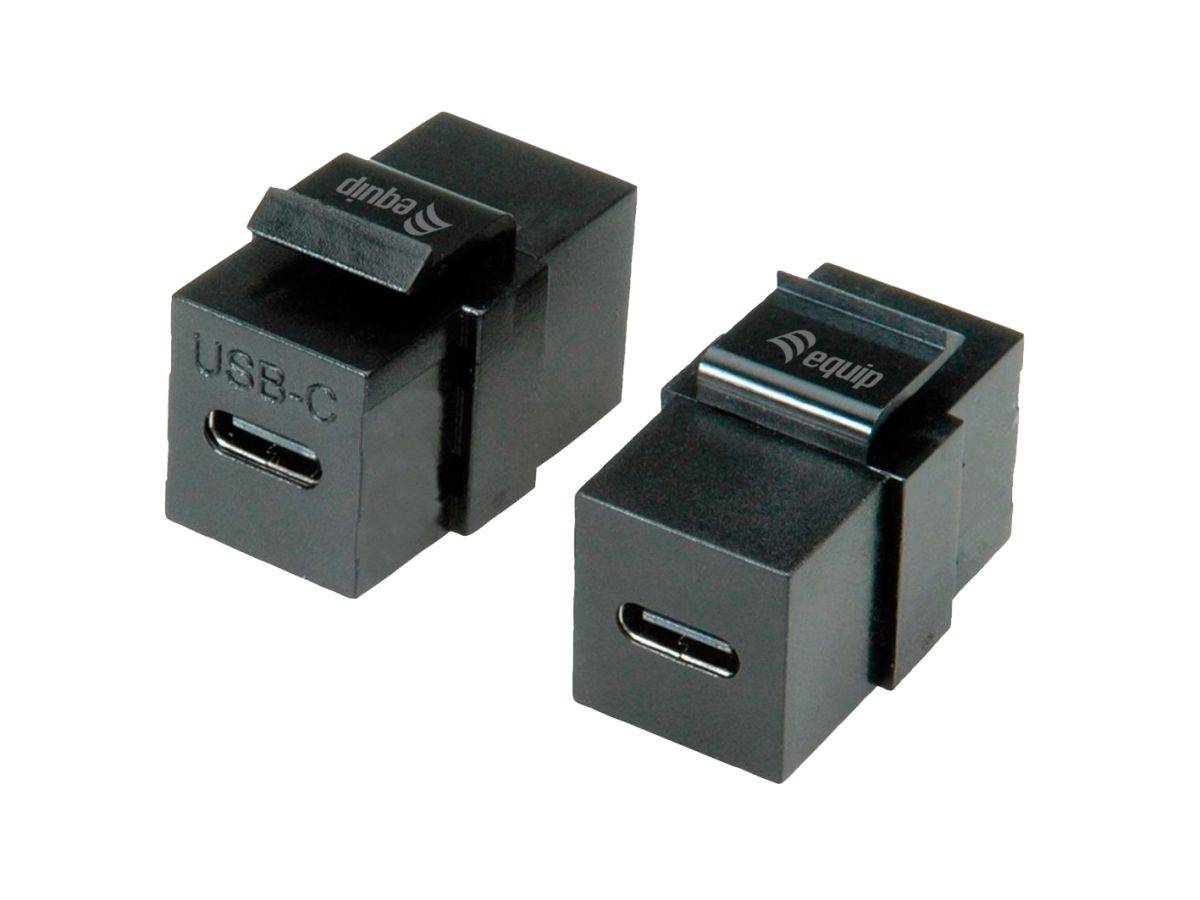

The Equip 769404 is a black USB-C female-to-female keystone coupler that lets installers bring a full-feature USB-C port to a wall plate, surface-mount box or patch panel: it passes USB 3.2 Gen 2 data at up to 20 Gbps, 100 W (20 V / 5 A) USB Power Delivery and 4K/60Hz video over DisplayPort Alt Mode or Thunderbolt-compatible hosts through a single keystone opening. The tool-free snap-in module measures 28.8 × 17.2 × 19.2 mm, weighs 7 g and fits standard keystone cut-outs. Part number 769404, EAN 4015867244166. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Passive coupler — it only joins two USB-C cables; the data rate, wattage and video you get are set by the host, the device and the cables on each side (use full-featured USB-C cables rated for the speed and wattage you need). Adding a coupler adds a connector pair to the link, so keep total cable length short for 20 Gbps and 4K/60. Video requires a host with DP Alt Mode or Thunderbolt. Equip lists the module as unshielded. Fits standard keystone wall plates, surface boxes and patch panels — check the cut-out size on non-standard faceplates.
Best For
✓ Meeting rooms and huddle spaces with a USB-C table or wall port
✓ Hot desks where the monitor and charger are wired into the wall
✓ Classrooms and lecterns
✓ Patch panels in AV racks
✓ Clean cable management in reception and retail counters
✓ Structured cabling installers standardising on keystone
Key Features
Data, power and video through one keystone
Carries USB 3.2 Gen 2 data at up to 20 Gbps, 100 W (20 V / 5 A) Power Delivery and 4K/60Hz DisplayPort Alt Mode video, so a single wall port can charge a laptop, drive a display and connect peripherals.
Tool-free keystone installation

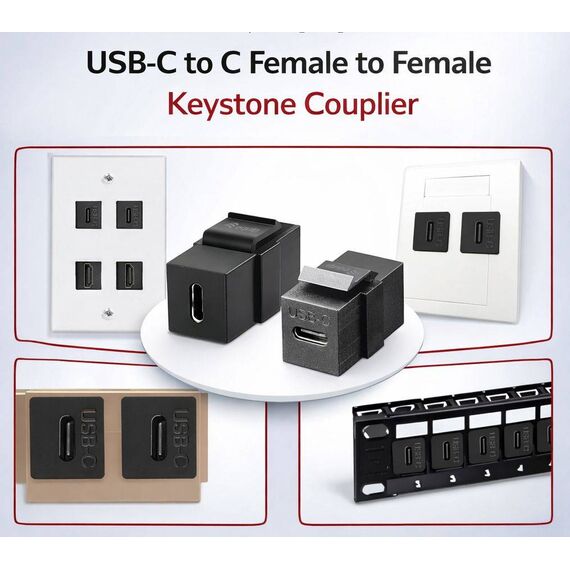

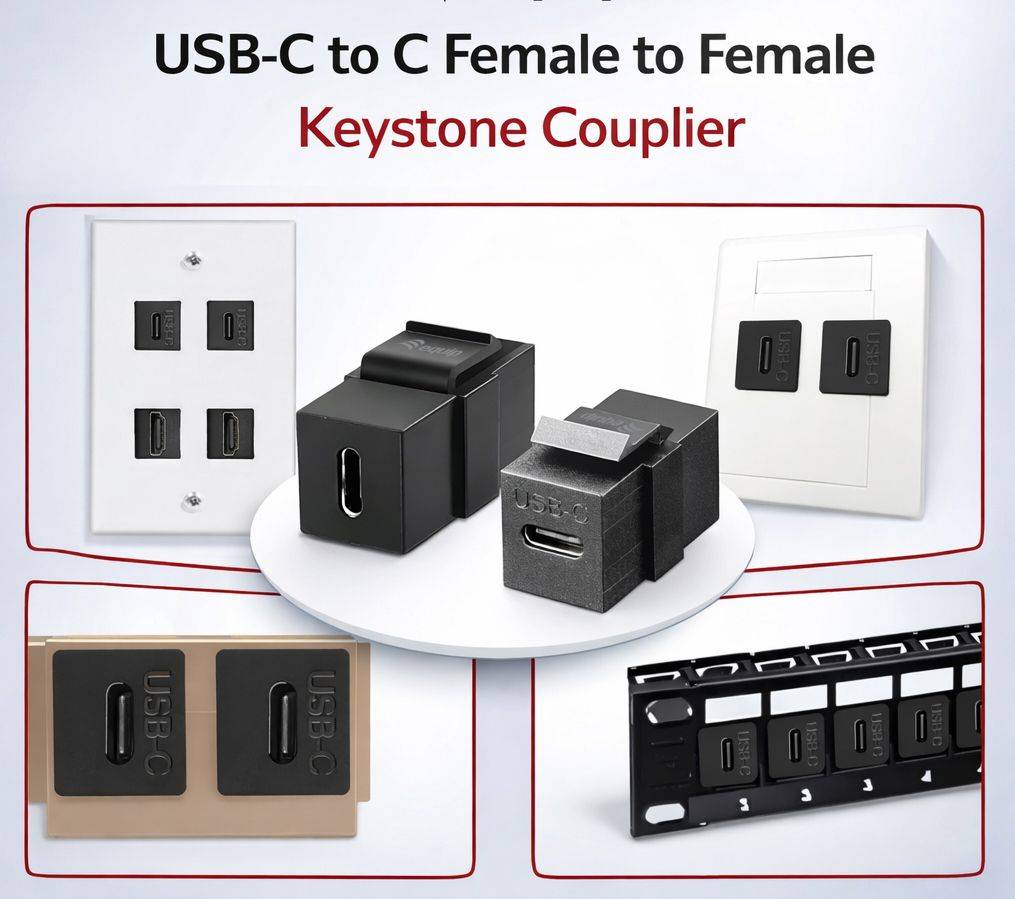

Snaps into any standard keystone opening in a wall plate, surface-mount box or patch panel without tools, keeping the USB-C connection tidy and protected behind the faceplate instead of dangling from a cable.

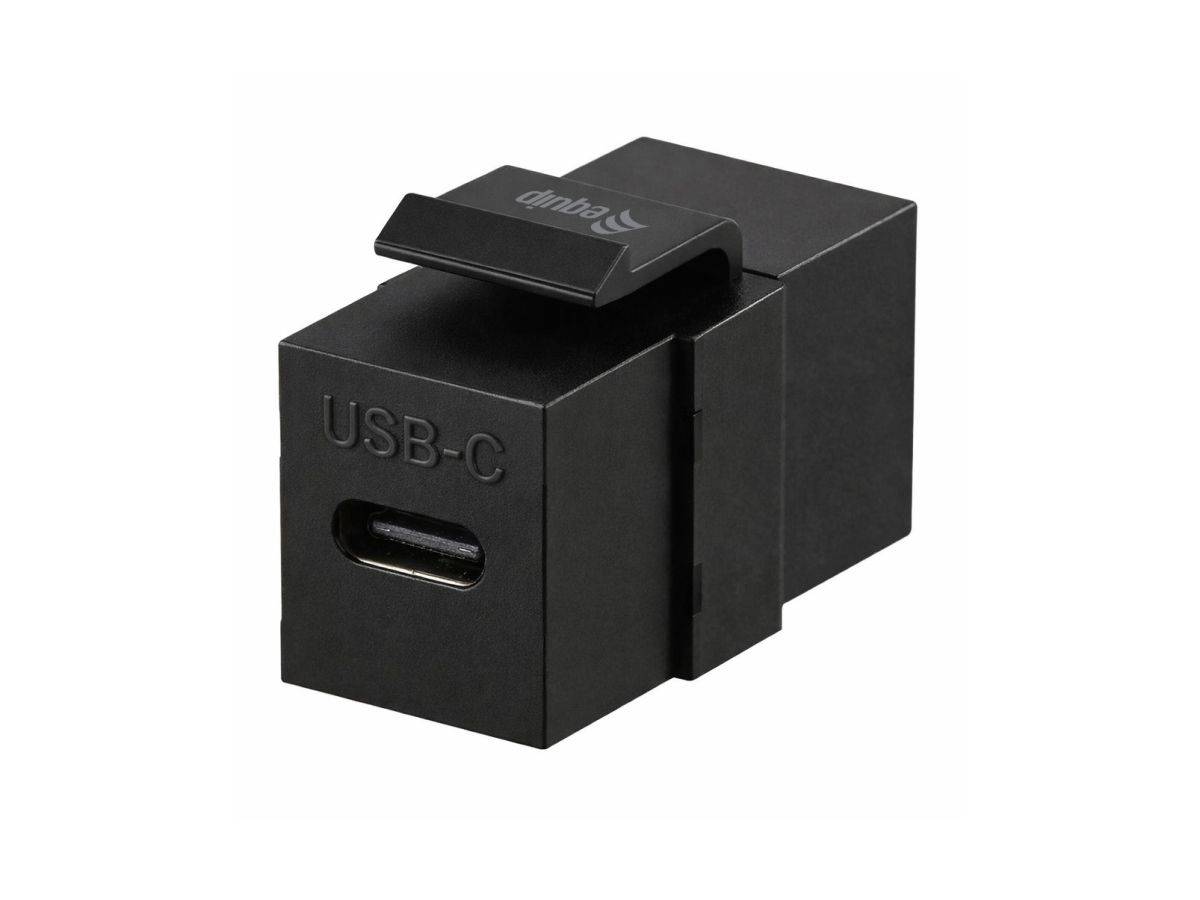

Compact black module
28.8 × 17.2 × 19.2 mm, 7 g, black plastic housing that blends into high-density panels and black faceplates. RoHS compliant.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
USB-C is increasingly the one cable on the meeting-room table, and the 769404 is how you get it into the wall without cutting a custom plate: a keystone module that passes 20 Gbps, 100 W and 4K/60 rather than the USB 2.0-only couplers that used to fill that slot. Treat it as a link in a chain — the cables on either side decide what actually arrives. Pair it with a USB-C monitor from our PC monitors range or a docking station behind the wall for a clean single-cable desk.
Buyer’s Guide
Buy it if
You are wiring USB-C into wall plates, table boxes or patch panels and want one keystone module that carries data, 100 W charging and 4K/60 video instead of a data-only coupler.
Skip it if
You need a shielded module for a noisy environment, 40 Gbps Thunderbolt/USB4 throughput, or a simple desk extension — a USB-C extension cable is cheaper there.
Also consider
Equip USB-C cables rated for 20 Gbps / 100 W for each side of the coupler, and an Equip keystone wall plate or surface-mount box to house it.
Features - Equip - 769404
Colour
black
More Details
Product Code
04:581662
EAN Code
4015867244166
Manufacturer
Equip
