Equip 121146 Cat.6A Unshielded RJ45 8P8C Plugs, 23–27 AWG Round Cable, 100-Pack
Brand:
Equip
121146
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Terminate round Cat.6A cables in bulk
RJ45 8P8CUnshielded23–27 AWG100-pack

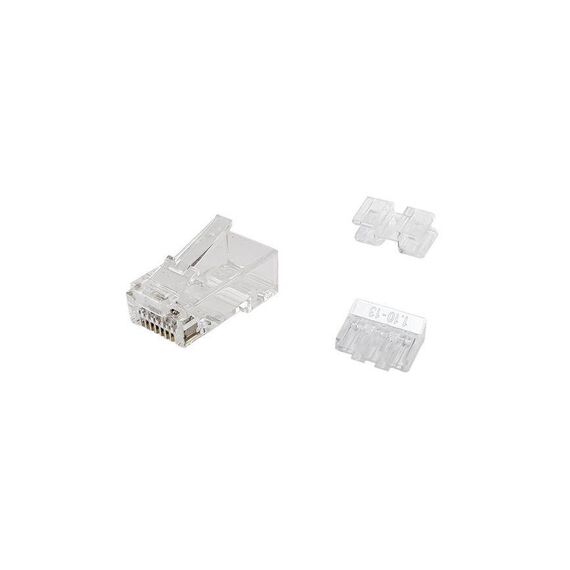

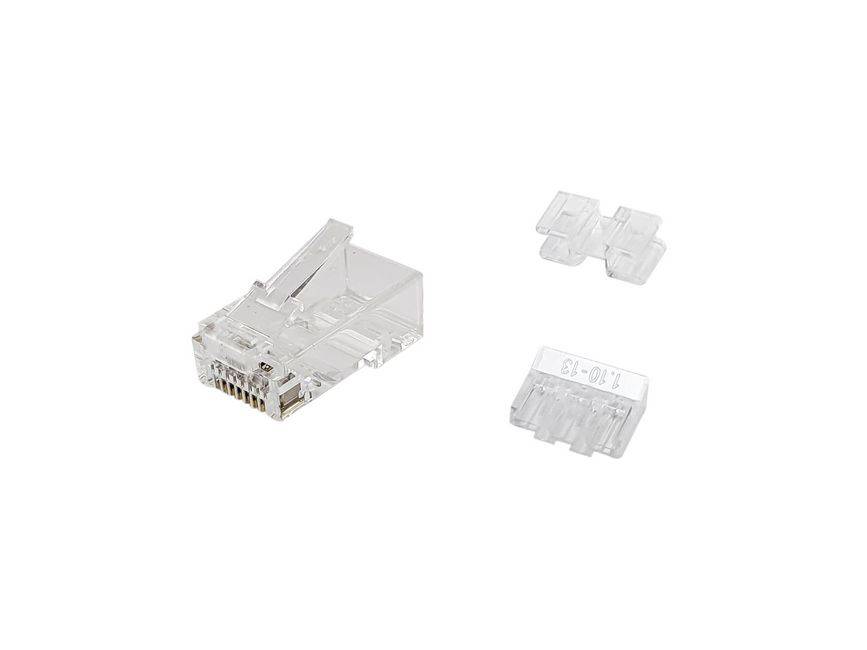

The Equip 121146 is an unshielded Cat.6A modular plug for assembling Ethernet cable ends. It combines an 8P8C RJ45 connection with gold-plated contacts and a transparent body. Each selling pack contains 100 plugs for repeated cable termination work.
Compatibility — check before buying:
Use round cable with 23–27 AWG conductors and a maximum wire OD of 1.1 mm. The wire OD limit is not the overall cable-jacket diameter. This is not a tool-free connector; shield continuity and solid/stranded suitability must be checked independently because the published data does not specify those conductor constructions.
Key Features
Cat.6A application
Specified for Cat.6A Ethernet applications up to 10 Gigabit Ethernet. Final performance still depends on the cable, termination and complete installed link.
Gold-plated contacts
The plated contacts provide the electrical interface at the RJ45 connection; the transparent body helps distinguish this unshielded variant.
Defined cable fit
The stated 23–27 AWG and 1.1 mm wire limits give installers concrete checks before selecting a termination component.
Technical Specifications
What's in the Box
100 Equip 121146 Cat.6A RJ45 plugs
Frequently Asked Questions
Singular Expert Insight
Check conductor gauge, individual wire diameter and the termination tool before buying a bulk pack. Terminate and test a sample with your actual cable first. For a shielded installation, compare suitable shielded plugs instead of assuming a Cat.6A label alone provides shield continuity. Compare RJ45 plugs and cable accessories
Buyer’s Guide
Buy it if
You need 100 unshielded RJ45 plugs for suitable round Cat.6A cable and have the required termination equipment.
Skip it if
You need shielded connectors, tool-free assembly or a plug with explicitly documented solid/stranded conductor compatibility.
Also consider
A shielded plug or matching keystone jack when the cable shielding and installation format call for a different termination.
Features - Equip - 121146
Colour
clear
Standard
CAT6a
More Details
Product Code
04:442559
EAN Code
4015867233856
Manufacturer
Equip
