equip 607660 Cat 6A U/FTP Flat Patch Cable RJ45 Male 1 m 500 MHz 10 Gbps PoE+ LSZH Halogen-Free Yellow

Brand:
Equip
Equip Cat.6A U/FTP Flat Patch Cable, 1.0m , Yellow
equip 607660 Cat 6A U/FTP Flat Patch Cable RJ45 Male 1 m 500 MHz 10 Gbps PoE+ LSZH Halogen-Free Yellow
€4.8 inc. VAT
Buy
607660
€4.03
€4.80 inc. VAT
Ships from EU stock: 215 item(s)
+ −
Add to wish list Ask a question
Product Code
04:357089
EAN Code
4015867224786
Manufacturer
Equip
Quick Specs
Standard
Cat 6A U/FTP flat
Length
1 m · Yellow
Performance
500 MHz · 10 Gbps
Jacket / PoE
LSZH · PoE/PoE+
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

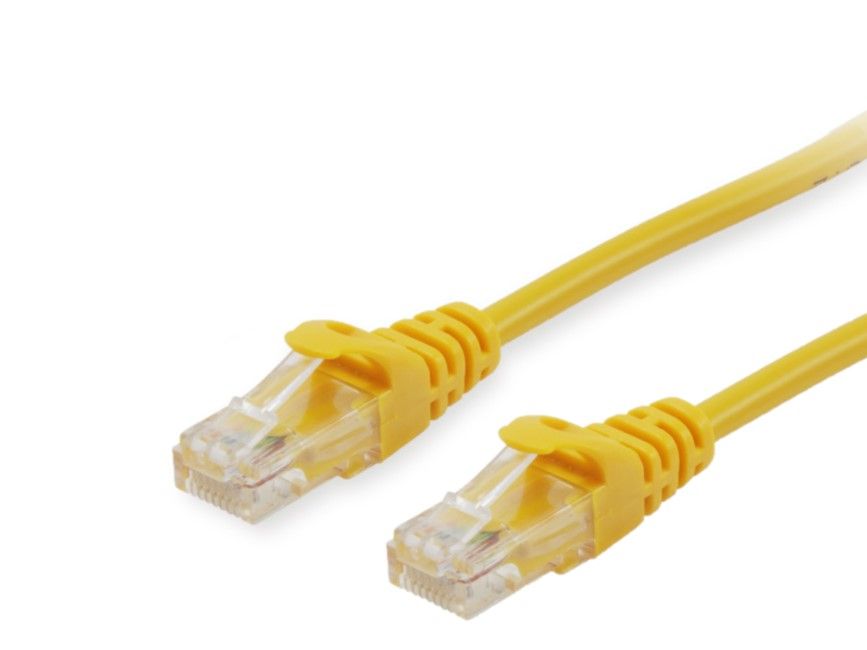

equip 607660 Cat 6A U/FTP Flat Patch Cable — 1 m, Yellow

Cat 6A U/FTP flat500 MHz · 10 GbpsPoE / PoE+LSZH jacket

The equip 607660 is a 1 m flat Cat 6A U/FTP RJ45 patch cable in yellow that carries 10 Gigabit Ethernet at 500 MHz where a round cable is awkward — under carpets, along desk edges, behind wall-mounted screens or through tight rack gaps. Part number 607660 (EAN 4015867224786) uses individually foiled pairs, stranded bare copper AWG 30/7 conductors, gold-plated contacts and a low-smoke, zero-halogen jacket. Typically in stock with fast delivery across Cyprus.

Compatibility note: Flat cables use thin AWG 30/7 conductors, so keep them for short patch runs like this 1 m lead rather than long horizontal links. equip rates the family for PoE and PoE+ (IEEE 802.3af/at) only — no 802.3bt rating is published. U/FTP means foil around each pair without an overall braid; plug into shielded jacks for best noise rejection. Do not crease or pinch the flat jacket sharply.

Key Features


Flat profile for tight spaces
The flat jacket lies flush under carpets, cable trays and doors, and bends around furniture where a round Cat 6A cable would stand proud.

Full Cat 6A performance
500 MHz bandwidth and 10 Gbps data rate with PoE/PoE+ support — the same headline performance as a round Cat 6A cord for NAS, switch and workstation links.

U/FTP pair shielding, LSZH
Each pair is foil-shielded to control crosstalk, conductors are stranded bare copper, and the LSZH jacket suits offices and public buildings.

Technical Specifications

Identification
Part Number 607660
EAN / GTIN 4015867224786
MPN 607660
Brand equip
Cable
Category Cat 6A — Class EA, up to 500 MHz
Shielding U/FTP — foil around each pair, no overall braid
Cable Shape Flat
Conductor Stranded bare copper, AWG 30/7
Jacket LSZH / LSOH — low smoke, zero halogen
Colour Yellow
Length 1.0 m
Performance
Bandwidth 500 MHz
Data Rate Up to 10 Gbps
PoE Support PoE / PoE+ (IEEE 802.3af / 802.3at)
Connectors & Compliance
Connectors 2 × RJ45 male (8P8C), gold-plated contacts
Standards ISO/IEC 11801, EN 50173, RoHS

Frequently Asked Questions

Does the equip 607660 support 10 Gigabit Ethernet?
Yes. It is a Cat 6A cable rated for 500 MHz and up to 10 Gbps, so it suits 10GBASE-T NICs, NAS units and multi-gig switch ports over short patch distances.
Is the equip 607660 suitable for PoE devices?
equip rates it for PoE and PoE+ (IEEE 802.3af/at), enough for most access points, phones and cameras. With thin AWG 30/7 conductors and no published 802.3bt rating, use a round Cat 6A cable for high-power PoE++ devices.
What is the difference between the equip 607660 and a round Cat 6A patch cable?
Both reach 10 Gbps at 500 MHz. The flat 607660 is easier to hide and route in tight spaces; a round S/FTP cable has thicker conductors and a braid, so it is better for longer runs, high-power PoE and electrically noisy areas.
Singular Expert Insight
Choose the equip 607660 when appearance and routing matter more than cable mass — linking a desk PC or docking station to a floor box, or patching network switches in a shallow cabinet. The flat family is also available at 2 m (6076x1), 3 m (6076x2) and 10 m (6076x6). For long, fixed or noisy runs, or PoE++ loads, prefer a round equip Cat 6A S/FTP PiMF cable.

Buyer's Guide

Buy it if
you need a 1 m 10 Gbps lead that lies flat under carpets, along desks or through narrow gaps, in yellow.
Skip it if
you need 802.3bt PoE++, long runs, or maximum noise immunity from an overall braid.
Also consider
a round equip Cat 6A S/FTP PiMF patch cable (AWG 26/7) for rack uplinks and high-power PoE.

Features - Equip - 607660

Colour
yellow
Length
1.0m
Standard
CAT6a
More Details
Product Code
04:357089
EAN Code
4015867224786
Manufacturer
Equip
