equip 119274 DisplayPort 2.1 Cable 5m DP Male to Male UHBR10 40 Gbps 16K 60Hz DSC HDR10+ HDCP 2.3 MST Gold-Plated Black

Brand:
Equip

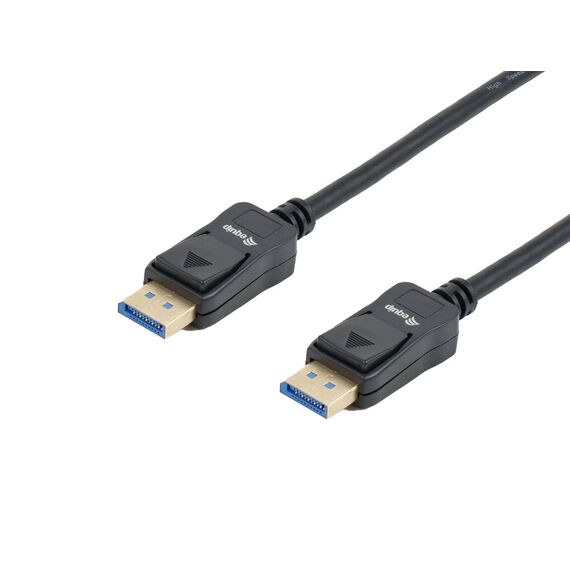

equip 119274 DisplayPort 2.1 Cable 40Gbps 5m Black
equip 119274 DisplayPort 2.1 Cable 5m DP Male to Male UHBR10 40 Gbps 16K 60Hz DSC HDR10+ HDCP 2.3 MST Gold-Plated Black
€21.97 inc. VAT
Buy
119274
€18.46
€21.97 inc. VAT
Ships from EU stock: 299 item(s)
+ −
Add to wish list Ask a question
Product Code
04:572752
EAN Code
4015867243190
Manufacturer
Equip

Quick Specs

Standard
DisplayPort 2.1 (UHBR10)
Bandwidth
Up to 40 Gbps
Resolution
Up to 16K @ 60 Hz with DSC
Length
5 m, DP M/M
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 119274 — DisplayPort 2.1 Cable, 40 Gbps, 5 m

DP 2.1 UHBR1040 GbpsHDR10+ · DSC5 m black

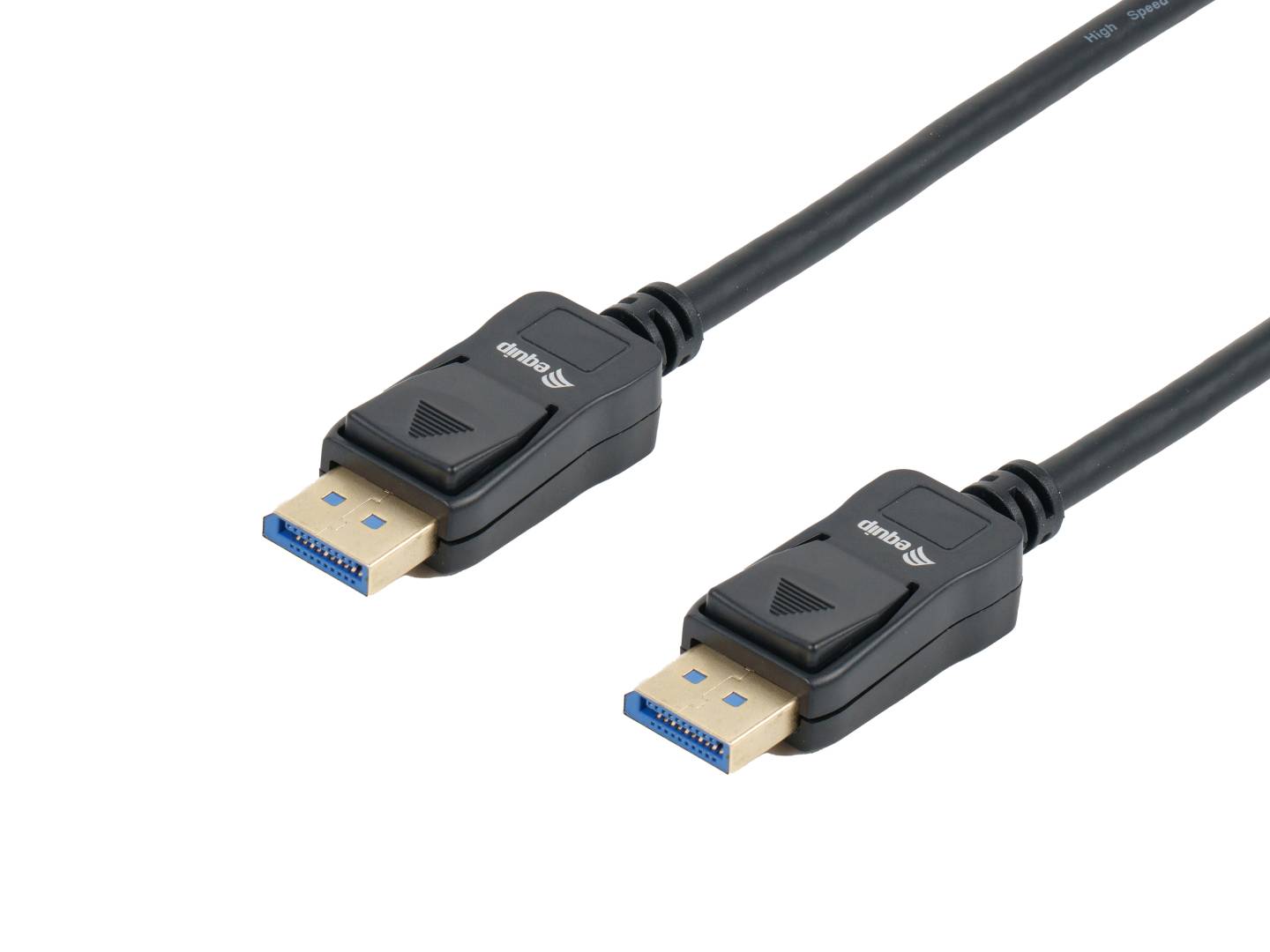

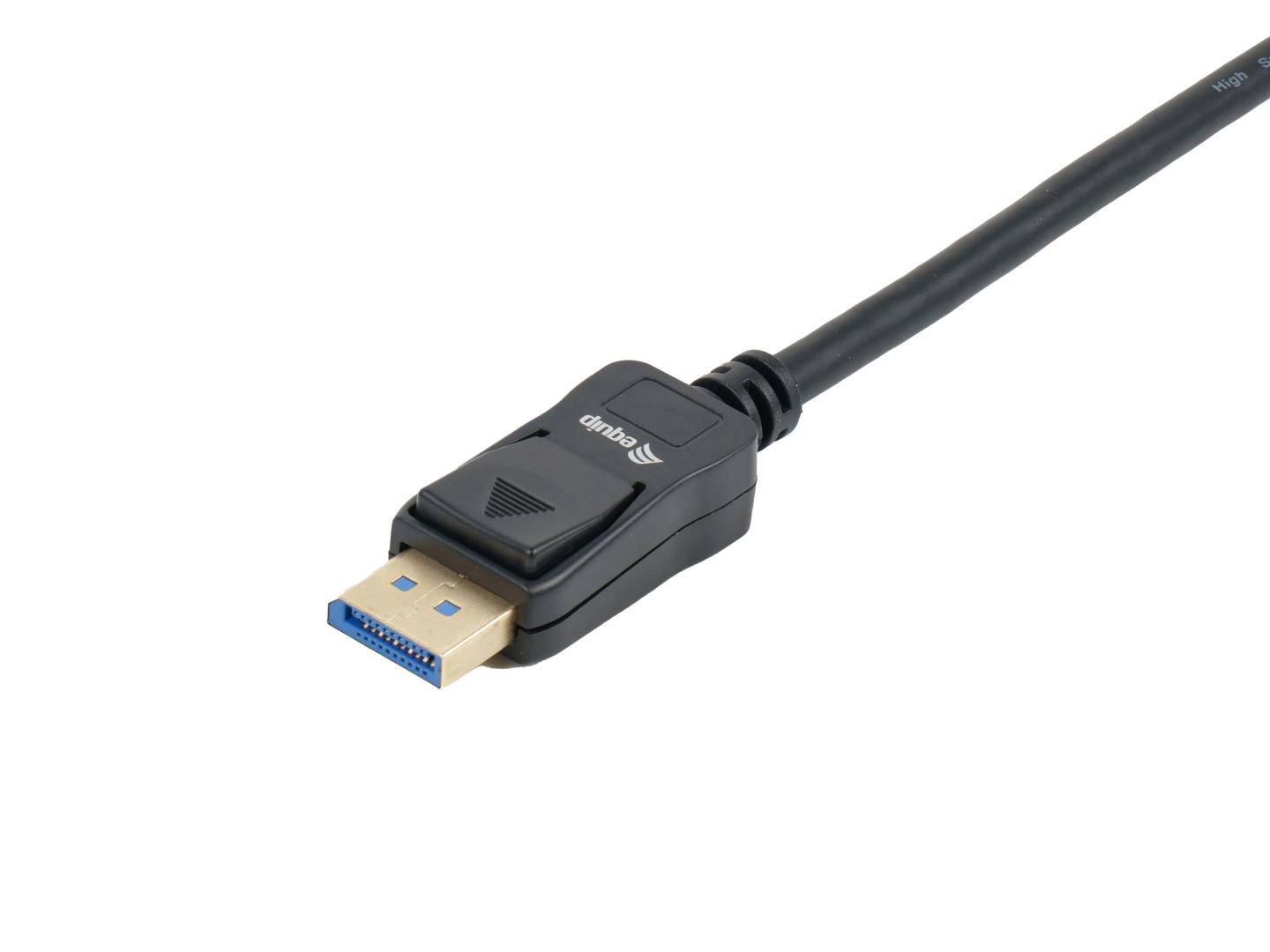

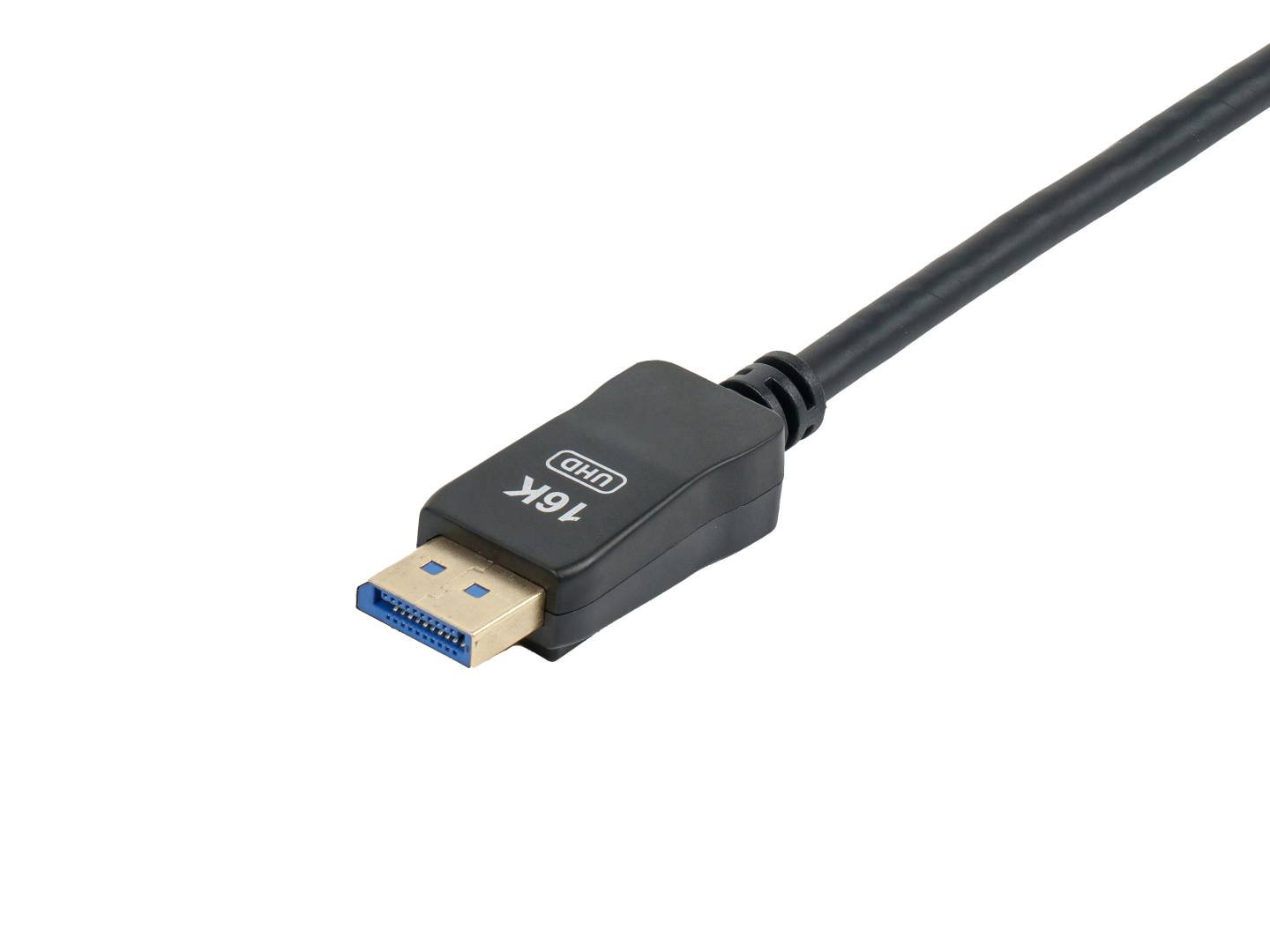

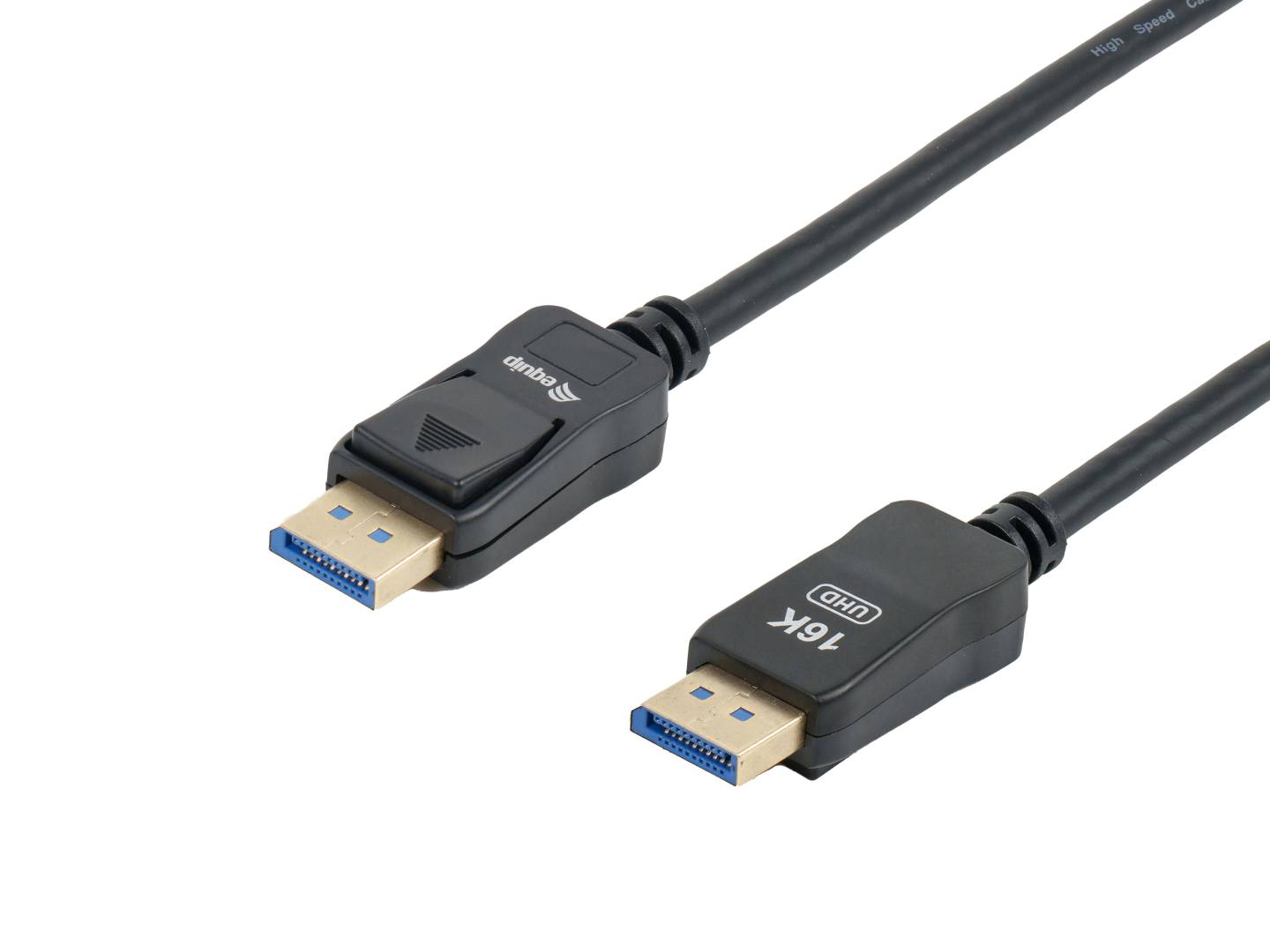

The equip 119274 is a 5 m DisplayPort 2.1 cable with a full-size DP plug on each end. equip specifies UHBR10 (10 Gbps per lane) for a total of up to 40 Gbps, and resolutions up to 16K at 60 Hz when the graphics card and display use Display Stream Compression (DSC). It supports HDR10 and HDR10+, Multi-Stream Transport (MST) for multi-monitor output where the devices support it, and HDCP 1.4/2.2/2.3 for protected content, and it is backwards compatible with DisplayPort 1.4, 1.3, 1.2 and 1.1. The cable has 28 AWG copper conductors, gold-plated connectors and a flexible PVC jacket. At 5 m it reaches from a PC under a desk or in a cabinet to a wall-mounted or distant display.

Compatibility — check before buying:
UHBR10, not UHBR20: this cable is specified for 40 Gbps. Displays and GPUs that need UHBR13.5 (54 Gbps) or UHBR20 (80 Gbps) modes will fall back to what the cable carries. The highest modes need a DisplayPort 2.1 GPU and display; with DP 1.4 devices it works at DP 1.4 speeds. Both ends are full-size DisplayPort — USB-C and Mini DisplayPort sources need a different cable. equip does not list latches for this model. Send us your GPU and monitor models and we confirm.

Best For

✓ DP 2.1 graphics cards and monitors
✓ High-refresh 4K gaming
✓ Workstations with distant displays
✓ Multi-monitor MST setups
✓ HDR content and editing
✓ Wall-mounted or projector-side screens

Key Features


DisplayPort 2.1, 40 Gbps
UHBR10 signalling for high-resolution, high-refresh displays.

Up to 16K @ 60 Hz with DSC
Headroom for 8K and ultra-wide screens where devices support DSC.

HDR10/HDR10+, HDCP 2.3
Wide-contrast content and protected streaming; MST supported.

5 m reach
28 AWG copper, gold-plated connectors and a flexible PVC jacket.

Technical Specifications

Identification
Brand equip
Product DisplayPort 2.1 Cable, DisplayPort Male to Male, 5.0 m, 16K/60Hz, 40 Gbps, UHBR10
Part Number 119274
EAN / GTIN 4015867243190
Length 5 m
Colour Black
Performance
Standard DisplayPort 2.1
Link Rate UHBR10 (10 Gbps per lane)
Bandwidth Up to 40 Gbps
Max. Resolution 16K @ 60 Hz (with DSC)
HDR HDR10, HDR10+
HDCP 1.4 / 2.2 / 2.3
Other DSC, MST
Backwards Compatible DisplayPort 1.4 / 1.3 / 1.2 / 1.1
Connectors
Connector 1 DisplayPort male
Connector 2 DisplayPort male
Plating Gold-plated
Cable
Length 5 m
Conductors 28 AWG copper
Jacket PVC, black
Weight 0.229 kg
Compliance
Approvals RoHS, REACH
In the Box
Included 1× DisplayPort 2.1 cable, 5 m
Not Included Adapters for USB-C, Mini DisplayPort or HDMI
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will I get 16K?
Only with a GPU and display that support it with DSC. For most users the benefit is high-refresh 4K and 8K headroom.
Does it support UHBR20 (80 Gbps)?
No. equip specifies UHBR10 and up to 40 Gbps for this cable.
Will it work with my DP 1.4 monitor?
Yes. It is backwards compatible; the link runs at the highest mode both devices support.
Can I connect a USB-C laptop?
Not directly. You need a USB-C to DisplayPort cable or adapter.
Singular Expert Insight
We suggest the 119274 when the display sits away from the PC — a 5 m run to a wall screen or a monitor across the desk from a tower in a cabinet — and you want DP 2.1 headroom. For short desk runs a 1–2 m cable is easier to route. Browse our DisplayPort cables. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You need a 5 m DisplayPort cable for a DP 2.1 or high-refresh display.

Skip it if

Your devices need UHBR20 (80 Gbps), or your source has only USB-C.

Also consider

A shorter DisplayPort cable for desk setups — ask us for DP 2.1 lengths.
