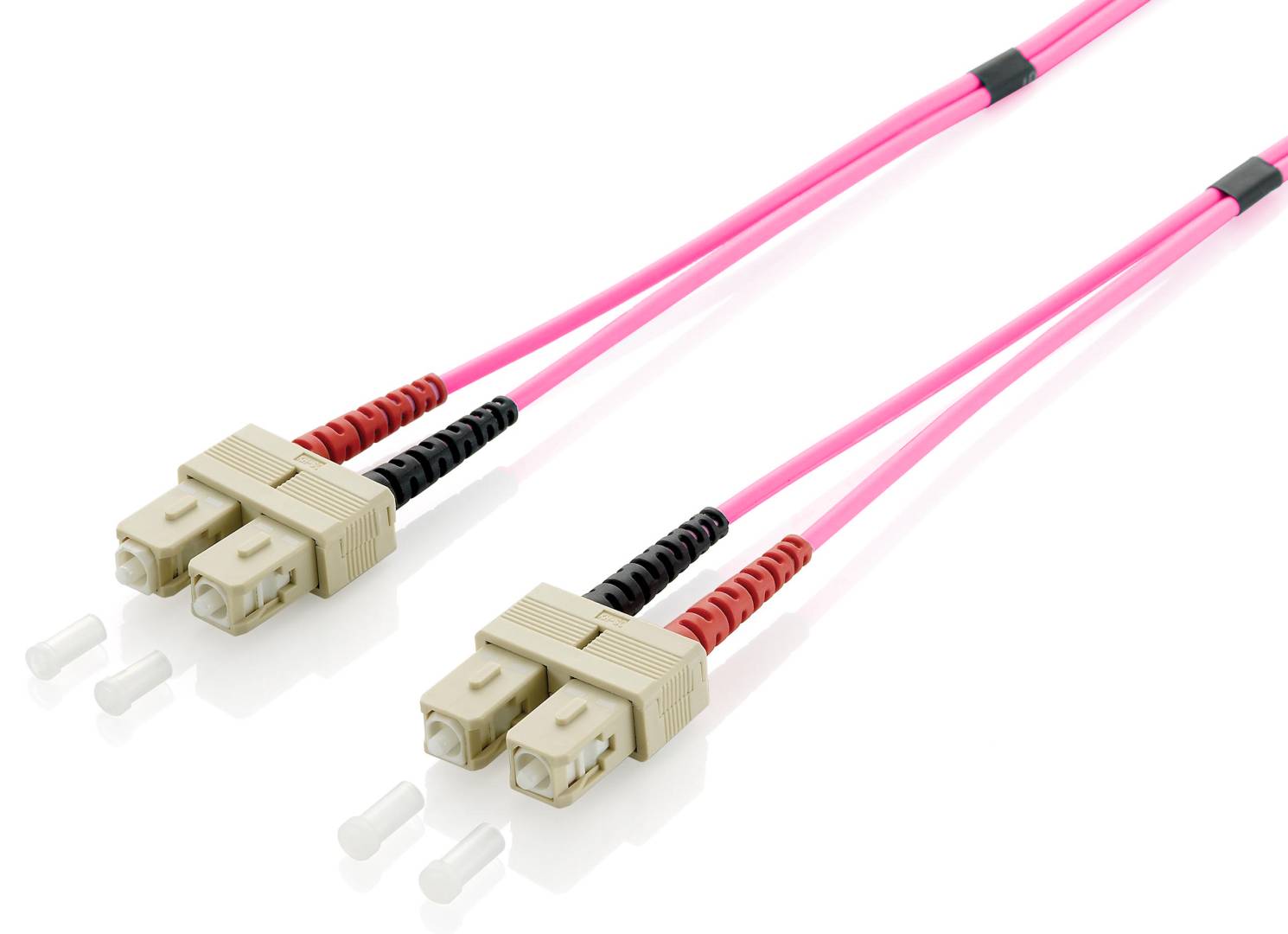

Equip 255527 — SC to SC OM4 Duplex Fiber Patch Cable, 15 m
OM4 multimodeSC – SC duplex15 mLSZH
The Equip 255527 is a 15 m SC to SC duplex fibre optic patch cable with OM4 multimode 50/125 µm fibre, for connecting switches, servers, optical transceivers and patch panels in data centres and enterprise networks.
Both fibres are terminated with ceramic-ferrule connectors for low insertion loss, and the violet LSZH jacket identifies the cable as OM4 at a glance and is suitable for indoor installation in occupied buildings.
Before you order: this is a multimode OM4 cable with SC and SC PC/UPC connectors. It works with SR (850 nm) multimode optics; it is not for single-mode (OS2) optics or APC connectors.
What's in the Box
- 1 × SC to SC duplex fibre optic patch cable, OM4 50/125 µm, 15 m
What It Means in Practice
- The SC connectors on both ends fit SC patch panels, media converters and SC-type optics directly.
- IEEE specifies OM4 for 10GBASE-SR up to 400 m and 40G/100G SR4 up to 150 m; 15 m is well inside those limits, so cable length is not the limiting factor here.
- Duplex means two fibres: one transmits, one receives. If a link stays dark, swap the two connectors on one end (A/B crossover) — the clip lets the pair be separated.
- Use the same OM grade end to end: mixing OM4 with older OM1/OM2 sections lowers the reach of the whole link.
What Will Not Work
- Single-mode optics (LR, ER, BiDi 1310/1550 nm SM) or OS2 cabling — they need yellow single-mode patch cords.
- LC/APC or SC/APC (angled, usually green) ports — PC and APC end faces must never be mated.
- Copper RJ45 ports or empty SFP cages — the switch port needs a multimode SFP/SFP+ transceiver fitted.
- Outdoor or direct-burial runs — this is an indoor LSZH patch cable.
Key Features
Duplex SC – SC
Two-fibre cable with SC and SC connectors for transmit/receive pairs.
OM4 50/125 µm
Laser-optimised multimode fibre for 10G and faster short-reach links.
Ceramic ferrules
Precise end-face alignment for low insertion loss and stable connections.
LSZH jacket
Low smoke zero halogen, violet jacket for indoor use.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For short-reach fibre between racks or from a patch panel to a switch, OM4 duplex is the safe default: it covers 10G today and leaves headroom for 40G/100G SR optics. Check the cage type on your switches with SFP/SFP+ ports and match the connector ends.
✓ Buy it if you need a 15 m OM4 multimode link with SC on one end and SC on the other.
✕ Skip it if your optics are single-mode (LR/ER) or the ports are APC — then you need an OS2 or APC cable.
→ Also consider other lengths of the same Equip OM4 series, or OM4 pigtail sets if you are terminating installed cable by splicing.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 255527
Colour
violet
Length
15m
More Details
Product Code
04:246386
EAN Code
4015867178768
Manufacturer
Equip
