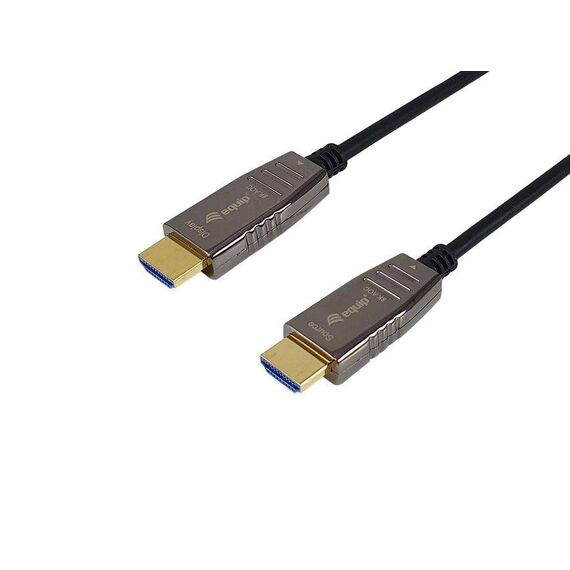

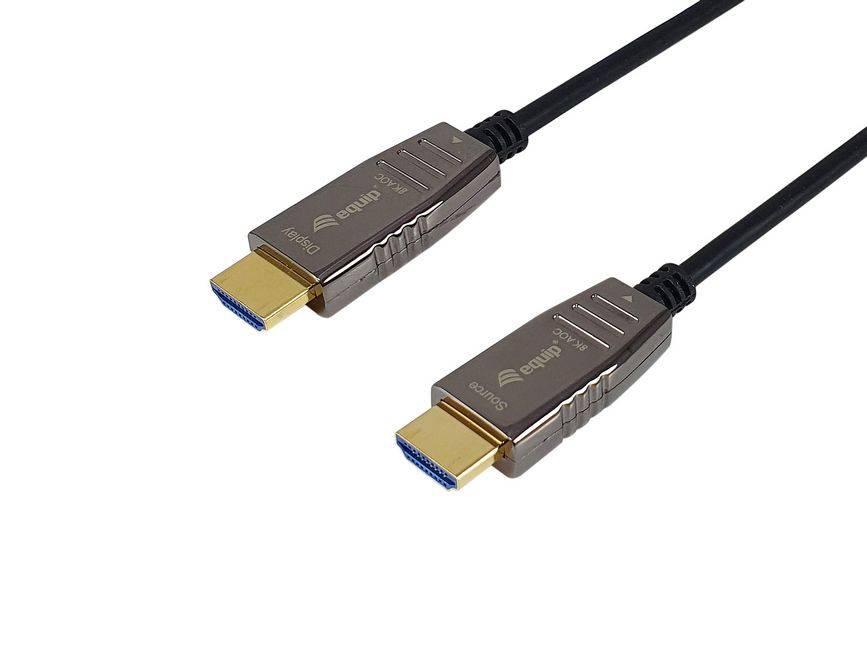

equip HDMI 2.1 Active Optical Cable, 50m, 8K/60Hz | 119455
The equip 119455 is Active Optical Cables (AOC) are fiber optic cables that use electrical-to-optical conversion circuitry to transmit signals over longer distances with less signal loss and electromagnetic interference compared to traditional copper cables.
HDMI 2.1 Active Optical Cable combines the advantages of both technologies to provide high-speed, high-bandwidth, and reliable connectivity for advanced audio and video applications. These cables use fiber optic technology to transmit signals over longer distances without any signal degradation or loss
Ideal for applications such as home theaters, conference rooms, classrooms, and digital signage installations where long-distance HDMI connectivity is required. These cables are also thinner, lighter, and more flexible than traditional copper cables, making them easier to install and manage.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Special Features
- HDMI male to male
- HDMI 2.1 compatible
- Supports HDMI Ethernet Channel (HEC)
- Supports video resolutions up to 8K/60Hz
- Bandwidth up to 48Gbps
- Supports 3D display, HDCP2.2 and HDR / EDID
- Supports video resolutions up to 8K/60Hz, 4K/120Hz
- Up to 1536kHz audio sampling rate
- Dynamic HDR (HDR Dynamic Metadata)
- Enhanced Audio Return Channel (eARC)
- Variable Refresh Rate (VRR)
- Quick Media Switching (QMS)
- Quick Frame Transport (QFT)
- Auto Low Latency Mode (ALLM)
- Display Stream Compression (DSC)
- Zinc alloy housing
- Gold-plated connectors for high transmission quality
Product Specification
| Cable Type | Ultra High Speed - HDMI cable with Ethernet Active Optical Cable (AOC), 8K60Hz support |
| Length | 50 m |
| Plated Connector | Gold |
| Features | HDMI Ethernet Channel (HEC), HDR support, Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick frame Transport (QFT), Enhanced Audio Return Channel (eARC), Auto Low Latency Mode (ALLM), Display Stream Compression (DSC), Dynamic HDR, 3D ready, 48Gbps support, EDID compatible, zinc alloy housing, 1536 kHz audio sampling rate |
| Colour | Black |
| Connectivity | Connectivity |
| Connector | 19 pin HDMI Type A - male |
| Connector (Second End) | 19 pin HDMI Type A - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | WEEE, REACH, RoHS 2011/65/EU, SVHC Free: 1907/2006/EC, IEC 61000-4-2:2008, IEC 61000-4-8:2009, EMC 2014/30/EU, HDCP 2.2, EN 55032:2012 Class A, IEC 61000-4-3:2006+A1:2007+A2:2010, Directive 2015/863, EN 55035:2017, UKCA |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 1.58 kg |
