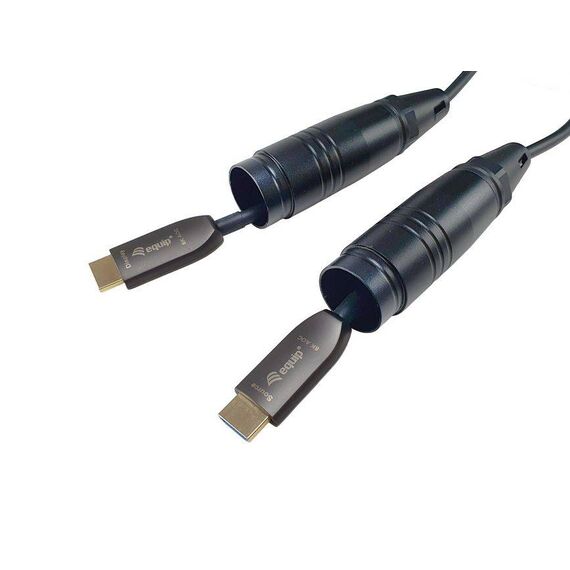

Equip 119425 HDMI 2.1 Active Optical Armored Cable 200 m Male to Male 48Gbps 8K 60Hz 4K 120Hz One-Way Black
Brand:
Equip
Equip 119425 HDMI 2.1 Active Optical Armored Cable 200 m Male to Male 48Gbps 8K 60Hz 4K 120Hz One-Way Black
€1019.69 inc. VAT
119425
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
equip 119425 — HDMI 2.1 Active Optical Armored Cable, 200 m, 8K 60Hz, 48Gbps
200 m on a reel48Gbps HDMI 2.1Steel-spiral armourOne-way cable
The equip 119425 is a 200 m HDMI 2.1 active optical cable (AOC) with steel-spiral armour, made for AV installations where the source and the display are far apart: conference centres, auditoriums, broadcast and event venues, stadium screens and industrial sites. The signal travels as light over multimode fibre inside the cable, so equip rates it for the full 48Gbps HDMI 2.1 bandwidth over 200 m without a separate repeater or extender. It supports 8K 60Hz with DSC, 4K 120Hz and up to 1080p 240Hz, along with Dynamic HDR, VRR, ALLM, QMS and QFT. The armoured jacket and zinc-alloy connector housings are built for being pulled through ducts and walked over, and the cable ships on a reel for handling. Weight is 8 kg.
Compatibility — check before buying:

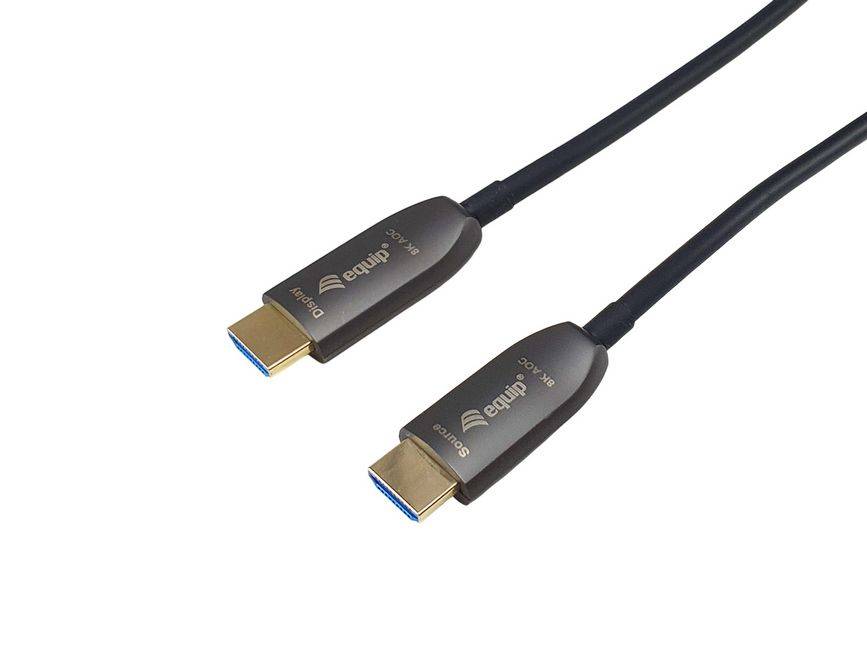

This cable works in one direction only. One end must connect to the source (player, PC, matrix or camera) and the other to the display or projector — check the markings before pulling it through a duct, because a cable installed the wrong way round will not pass a picture. Plan the pull around the connectors: equip lists the cable dimensions as 49 × 19 mm at the head, and HDMI connectors are fitted at the factory, so conduit, wall boxes and cable entries must pass that size. 8K 60Hz relies on DSC on both source and display. equip lists eARC and 1536 kHz audio among the features; in a one-way optical cable the return path can depend on the equipment, so if your design uses eARC from the display back to an AV receiver, tell us the models and we will check. equip does not state whether the cable needs external power at either end. In the box: the cable on its reel. Not included: HDMI couplers, wall plates or pulling accessories. For a shorter run choose 119424 (150 m).
Best For
✓ Conference centres and auditoriums with long projector runs
✓ Broadcast studios, event venues and stadium screens
✓ Digital signage over long distances in one continuous cable
✓ Industrial or high-traffic areas where the cable may be stepped on
✓ Runs near power cabling where copper HDMI picks up interference
✓ Integrators who want a single cable instead of an HDMI extender kit
Key Features
48Gbps over 200 m
Active optical technology carries the full HDMI 2.1 48Gbps bandwidth as light over multimode fibre, so equip rates the 200 m run with no repeater in between and no electromagnetic interference from nearby power or lighting cables.
8K 60Hz and 4K 120Hz
Supports 8K at 60Hz with DSC, 4K at 120Hz and up to 1080p at 240Hz, plus Dynamic HDR, VRR, ALLM, QMS and QFT — suitable for high-resolution projection, LED walls and high-refresh displays.
Armoured for installation

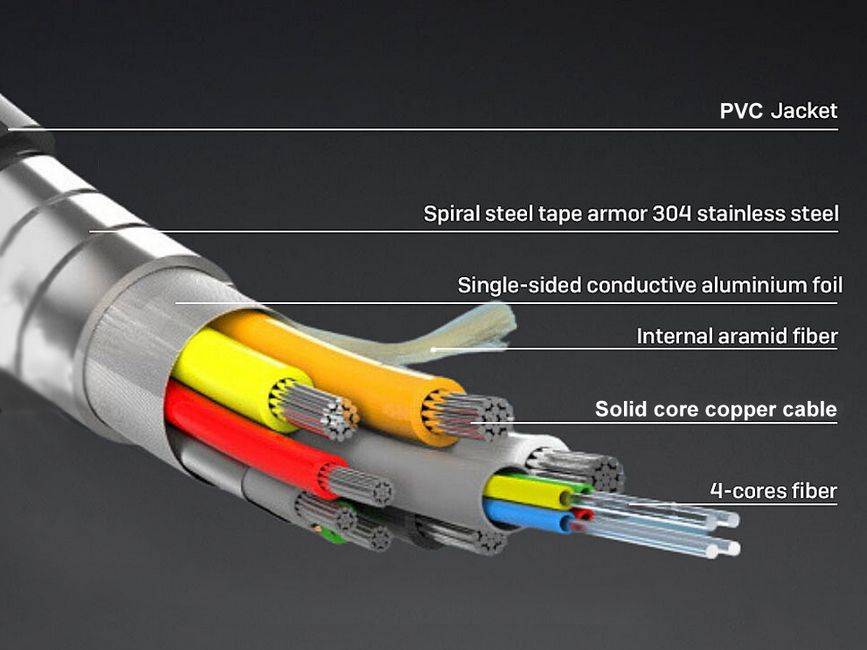

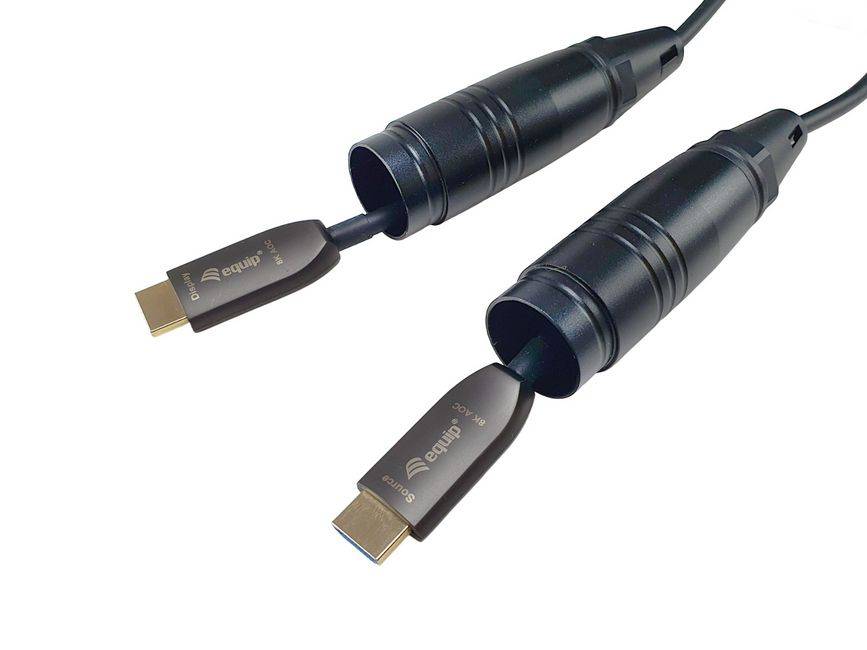

A steel-spiral armoured layer under the PVC jacket protects the fibre against crushing and kinking, and the gold-plated connectors sit in zinc-alloy housings. That matters when the cable is pulled through trunking or laid across floors.

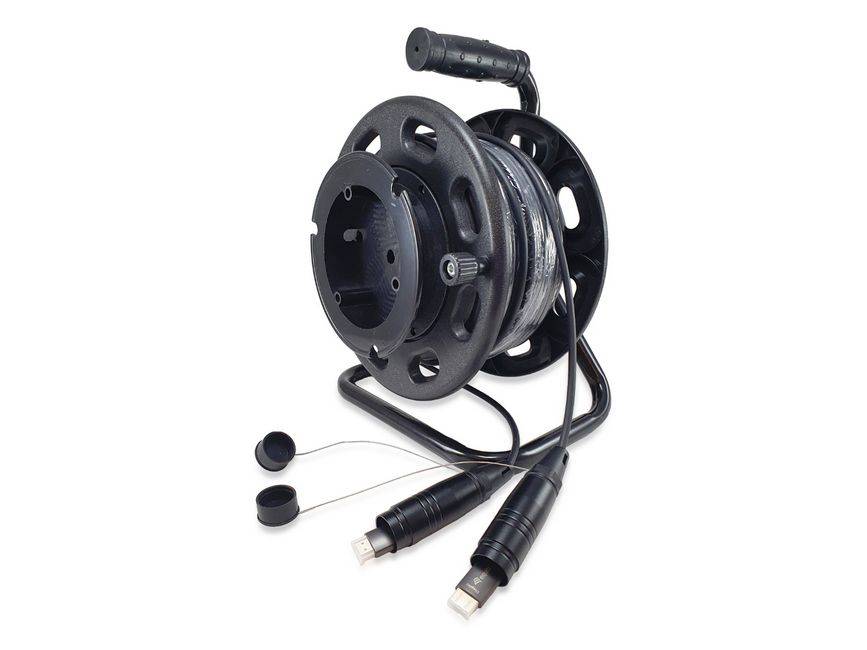

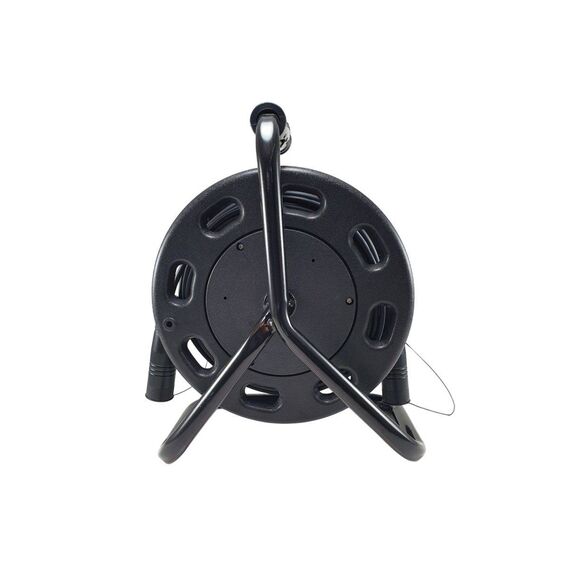

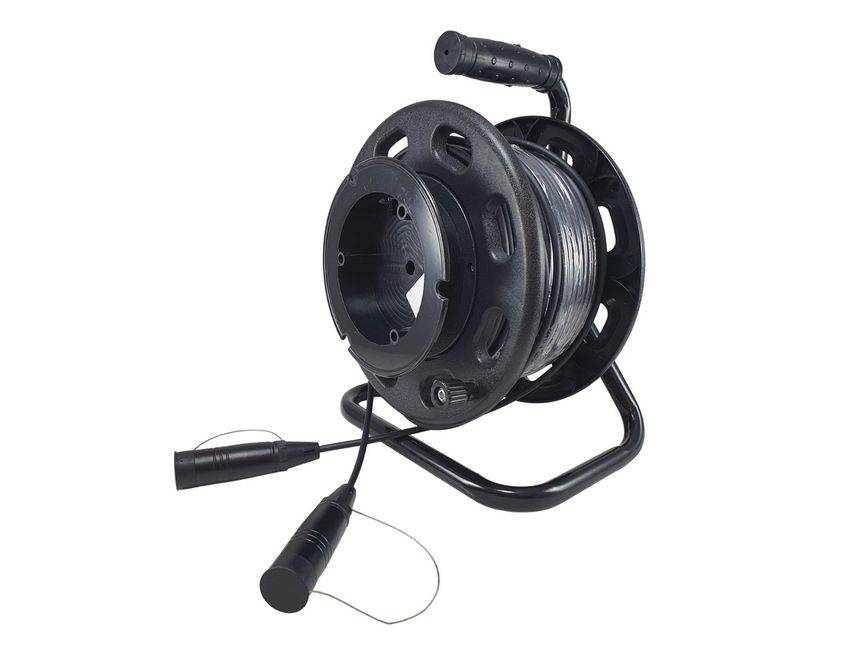

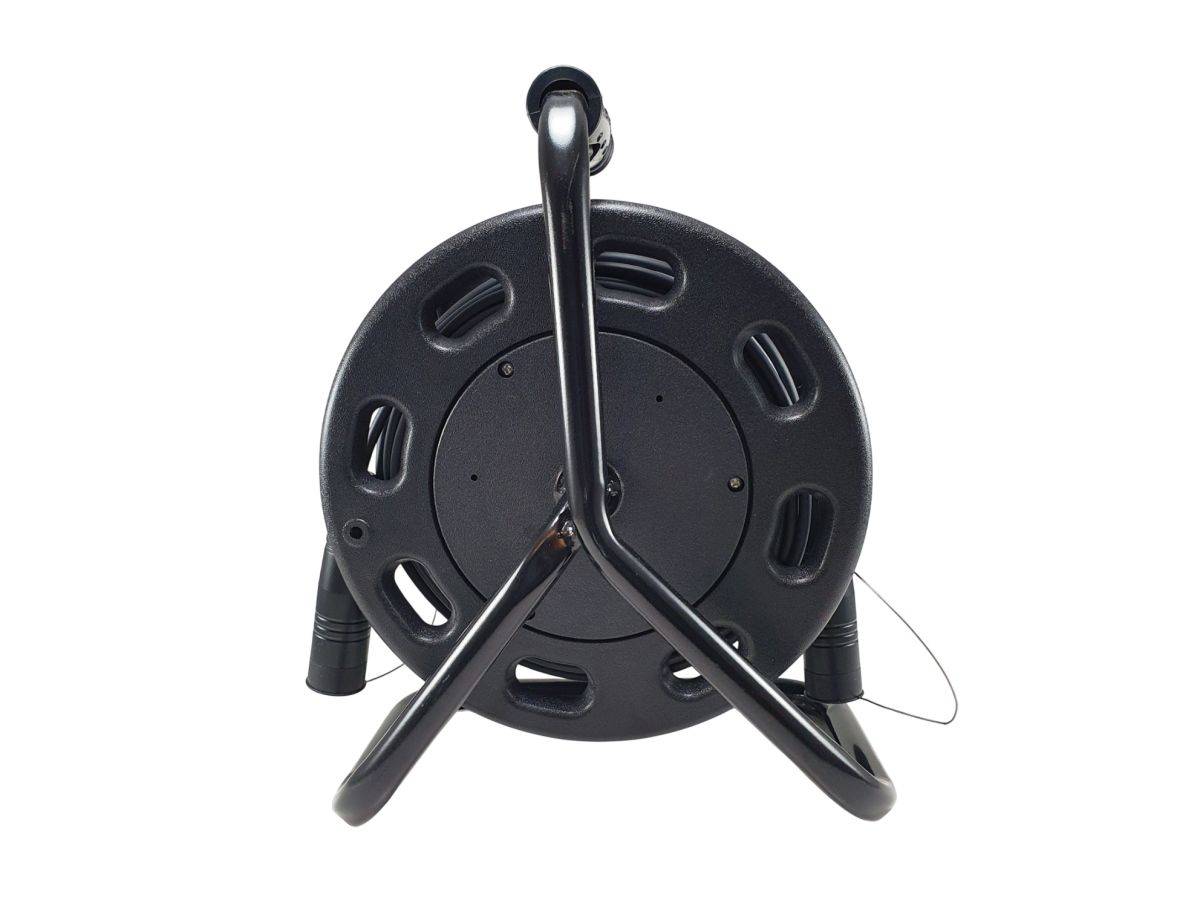

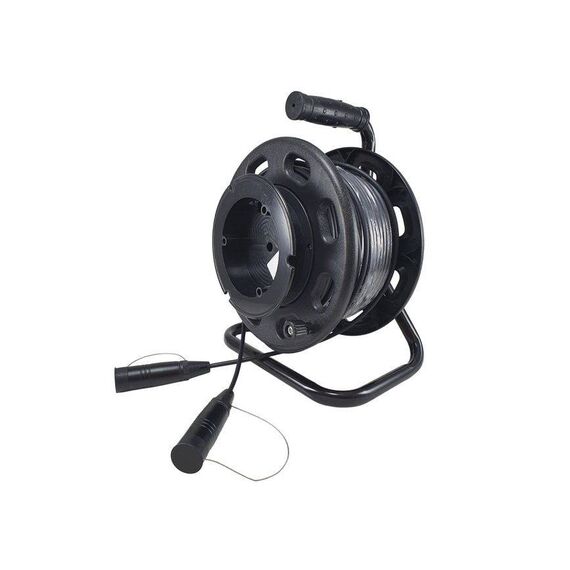

Supplied on a reel
200 m of cable weighing 8 kg is delivered on a reel, which makes it easier to unroll and pull on site without twisting the fibre.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For runs of 200 m there are two approaches: an HDMI extender kit with network cabling, or a single active optical cable. The 119425 keeps the installation simple — one cable, no transmitter and receiver boxes — while carrying the full HDMI 2.1 bandwidth. The two things to get right are direction and the connector passing through the route. For shorter room-scale connections see our HDMI cables, and for large-screen projects our commercial displays. Send us the route length and equipment list and we will confirm the setup.
Buyer’s Guide
Buy it if
You need one continuous HDMI 2.1 run of up to 200 m between a source and a display, with rugged armour for installation.
Skip it if
Your run is short enough for a passive HDMI cable, you need a two-way link, or your route cannot pass a factory-fitted connector.
Also consider
119424 for the 150 m version, or an HDMI-over-network extender if you need to re-route or re-terminate the cable later.
Features - Equip - 119425
Colour
black
More Details
Product Code
04:528032
EAN Code
4015867241240
Manufacturer
Equip
