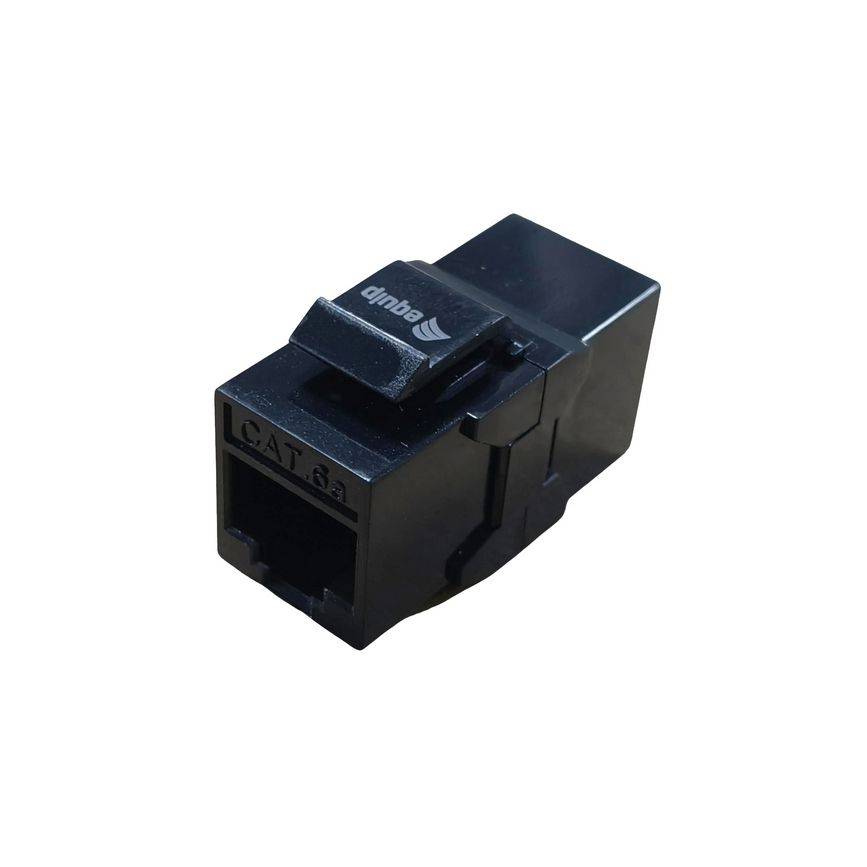

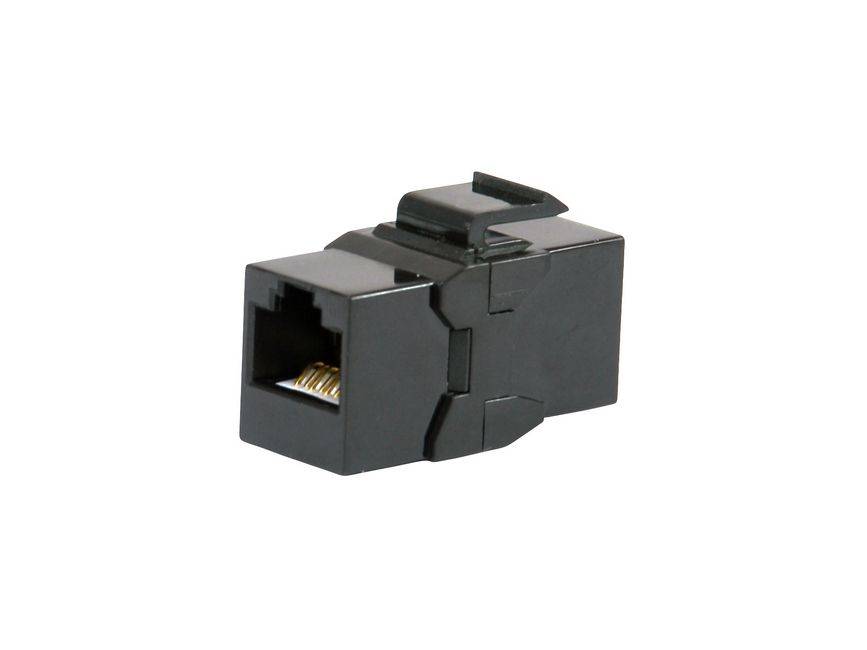

Equip 125580 Cat.6A Unshielded RJ45 Female-to-Female Keystone Couplers, 500 MHz, 10 Gbit, PoE++, Black, 8-Pack

Brand:
Equip
Equip 125580 Cat6A Unshielded RJ45 Keystone Coupler, Black, 8-Pack
Equip 125580 Cat.6A Unshielded RJ45 Female-to-Female Keystone Couplers, 500 MHz, 10 Gbit, PoE++, Black, 8-Pack
€16.47 inc. VAT
Buy
125580
€13.84
€16.47 inc. VAT
Ships from EU stock: 170 item(s)
+ −
Add to wish list Ask a question
Product Code
04:520985
EAN Code
4015867240892
Manufacturer
Equip

Quick Specs

Connections
RJ45 female / female
Network rating
Cat.6A / 500 MHz / 10 Gbit
Construction
Unshielded snap-in keystone
Pack
8 couplers / black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Join RJ45 cables in a keystone opening

Cat.6ARJ45 F/FUnshielded8-pack

The Equip 125580 pack provides eight snap-in keystone couplers for joining two terminated RJ45 network cables. Female sockets on both sides let you make the connection without punching down bare conductors, while the keystone format fits suitable wall outlets and patch panels.

Compatibility — check before buying:
This is an unshielded female-to-female coupler. Check the keystone opening and rear cable clearance; network performance depends on the complete cable channel and connected equipment.

Key Features


Two ready-terminated connections
Two RJ45 8P8C female ports use straight 1:1 pin mapping to join terminated cables.

Cat.6A and PoE applications
Equip specifies 500 MHz, 10 Gbit and support for PoE, PoE+ and PoE++.

Eight snap-in modules
The eight-piece pack suits installations with several coupler positions in compatible keystone accessories.

Technical Specifications

Identification
Model 125580
Manufacturer SKU 12558007101
EAN 4015867240892
Colour / quantity Black / 8 pcs per pack
Connectivity
Coupler type Keystone inline coupler; snap-in mounting
Ports 2 × RJ45 female (8P8C)
Pin configuration 1:1
Category / shielding Cat.6A / unshielded
Bandwidth / data rate 500 MHz / 10 Gbit; 10GBASE-T
PoE support PoE, PoE+, PoE++
Contacts Gold-flashed phosphor bronze
Standards / compliance ISO/IEC 11801; EN 50173; EIA/TIA 568-C; CE; RoHS
Construction / physical
Housing / insert PC plastic / ABS
PCB FR-4, 1.6 mm
Dimensions (W × D × H) 17 × 34 × 20 mm
Net weight per coupler 6 g
RJ45 jack life At least 750 mating cycles
Electrical reference ratings
Voltage / current rating 125 VAC RMS / 1.5 A
Contact resistance 100 mΩ maximum
Insulation resistance 1000 MΩ minimum at 500 VDC
Dielectric strength 750 VAC RMS, 60 Hz, 1 minute

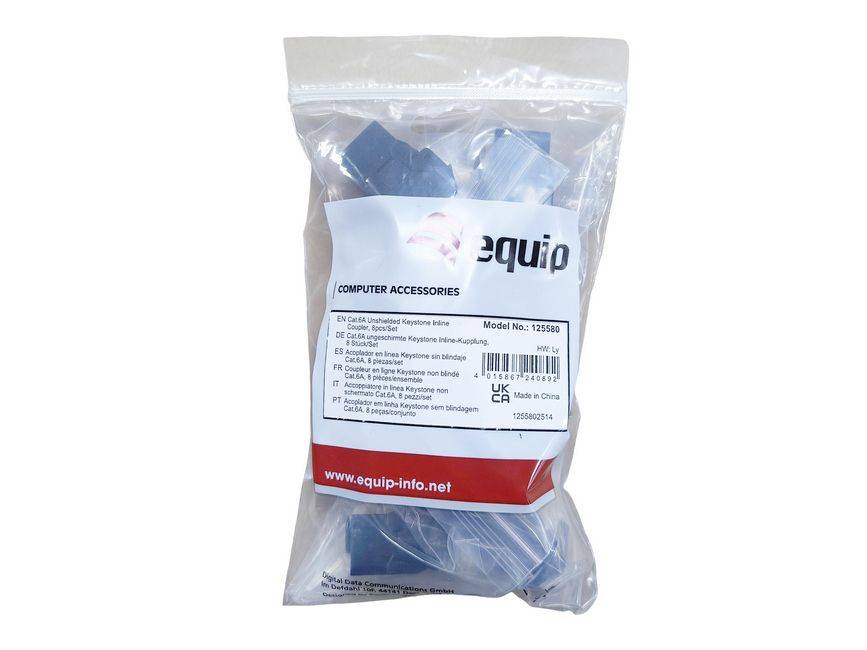

What's in the Box

8 × Cat.6A unshielded keystone inline couplers

Frequently Asked Questions

Do I need an LSA punch-down tool?
No bare-wire punch-down is required for the coupler connection: both ends accept RJ45 male cable plugs.
Is this the shielded version?
No. Model 125580 is unshielded. Choose a separately verified shielded coupler if your cabling design requires shielding continuity.
Are cables or a patch panel included?

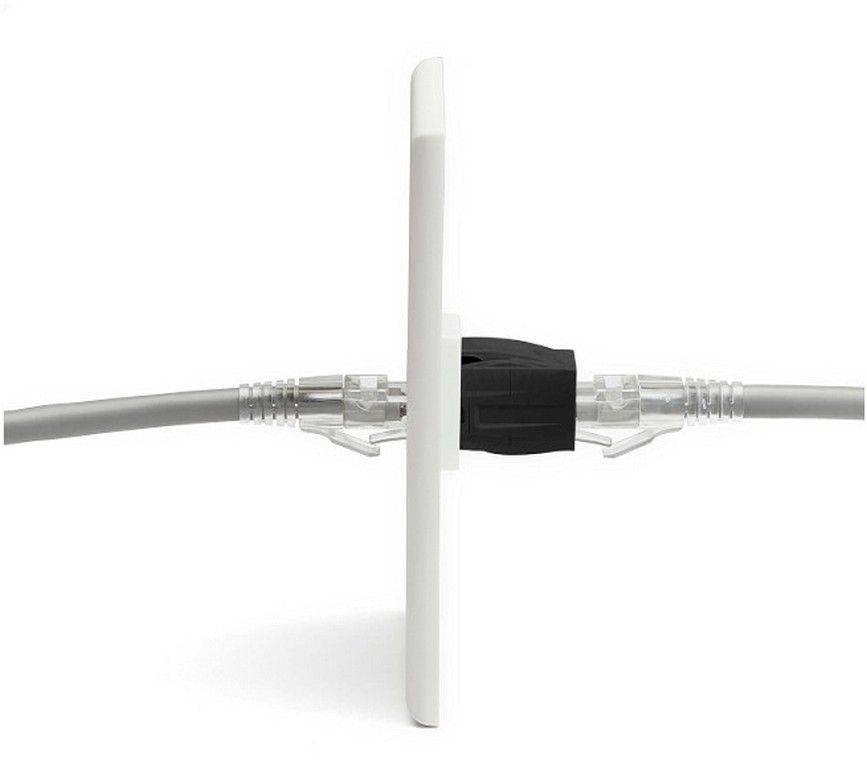

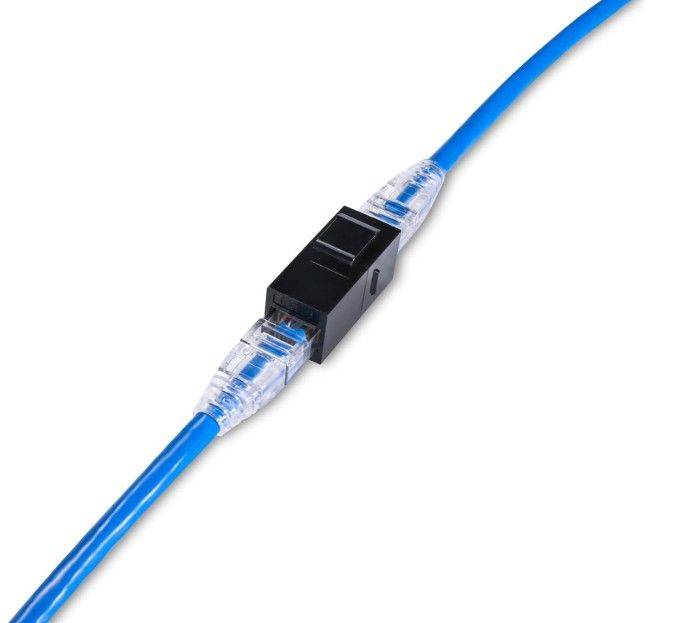

The verified package contains eight couplers. The installation photographs show usage examples; cables, wall plates and patch panels are separate items.
Singular Expert Insight
Choose this pack when your cable ends already have RJ45 plugs. If you are terminating permanent bare-wire runs, compare a punch-down keystone jack instead. Check whether your design requires an unshielded or shielded connection before ordering. Compare keystone and cable accessories

Buyer’s Guide

Buy it if

You need eight unshielded RJ45 F/F snap-in couplers for a Cat.6A installation.

Skip it if

You need bare-wire termination or a shielded coupler.

Also consider

A punch-down jack for fixed cable runs, or a shielded coupler for the appropriate cabling design.
