Equip 769212 Cat6 Unshielded Slim LSA Keystone Jacks, 22–26 AWG, T568A/T568B, 250 MHz, 1 Gbps, PoE++, Black, 8-Pack
Brand:
Equip
Equip 769212 Cat6 Unshielded Slim LSA Keystone Jacks, 22–26 AWG, T568A/T568B, 250 MHz, 1 Gbps, PoE++, Black, 8-Pack
€26.17 inc. VAT
769212
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Slim Cat6 LSA termination for dense outlet layouts
Slim profileCat6 UTP8-pack

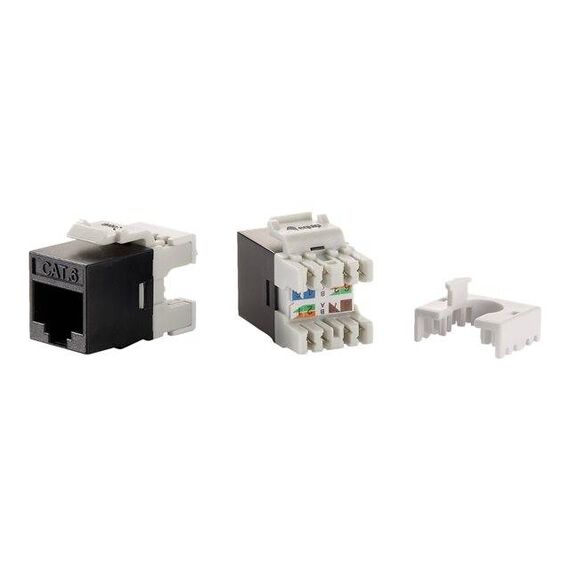

Equip 769212 provides eight black Cat6 unshielded keystone jacks with a slim profile for side-by-side faceplate and dense patch-panel installations. Each jack uses LSA/IDC termination for 22–26 AWG wire with T568A/T568B colour coding. The exact model specifies 250 MHz, 1 Gbps and support for PoE, PoE+ and PoE++.
Compatibility — check before buying:
Slim does not guarantee fit in every panel. Check the 14.5 x 20.5 x 31.6 mm dimensions, the keystone opening, adjacent-port clearance and conductor gauge. This is unshielded and not tool-free; use appropriate LSA termination equipment.
Key Features
Slim housing
The 14.5 mm width supports the manufacturer’s dense-layout positioning, with final fit checked against the actual panel.
Colour-coded IDC
T568A/T568B guides and the 22–26 AWG range define the cable termination rather than joining two finished leads.
Verified Cat6 and PoE support
250 MHz, 1 Gbps and PoE/PoE+/PoE++ are exact-model specifications; the whole cabling link still needs suitable equipment and workmanship.
Technical Specifications
What's in the Box
8 x Equip 769212 slim Cat6 UTP LSA keystone jacks.
Frequently Asked Questions
Singular Expert Insight
Use the model-specific width and rear clearance to plan adjacent ports. Test one termination and its mechanical fit before committing an entire eight-position layout. Compare the standard-profile Equip 769210
Buyer’s Guide
Buy it if
You need eight slim black Cat6 UTP jacks and have verified panel fit and compatible 22–26 AWG wire.
Skip it if
You need shielding, tool-free termination or a different verified physical footprint.
Also consider
The standard-profile 769210, a verified tool-free keystone or a shielded model appropriate to the installation.
Features - Equip - 769212
Colour
black
Interface
- Ethernet
Standard
CAT6
Port Speed
- 1 Gbps
More Details
Product Code
04:243326
EAN Code
4015867176559
Manufacturer
Equip
