equip Premium Cat5e Shielded Inline Coupler, RJ45 Female to RJ45 Female, 1:1, Metal Housing, Silver
Brand:
Equip
equip Premium Cat5e Shielded Inline Coupler, RJ45 Female to RJ45 Female, 1:1, Metal Housing, Silver
€6.31 inc. VAT
221159
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

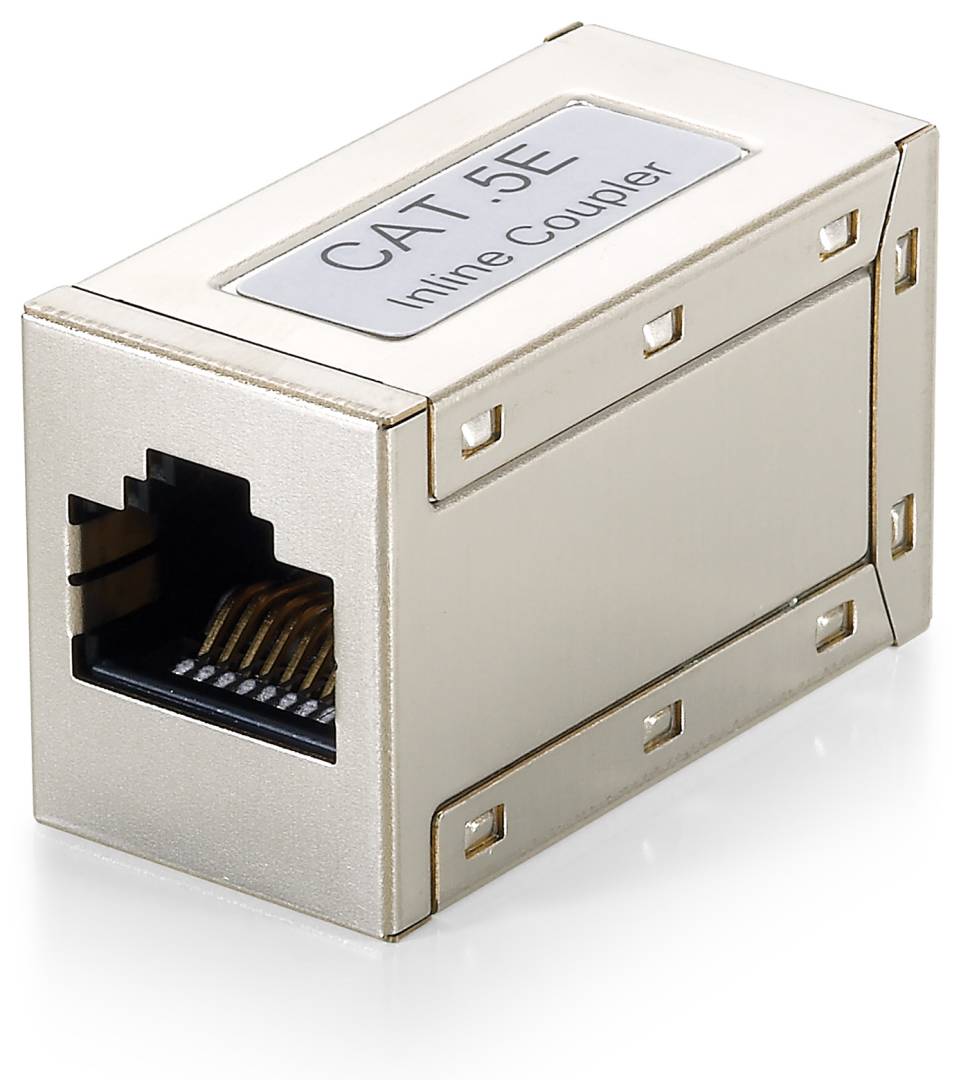

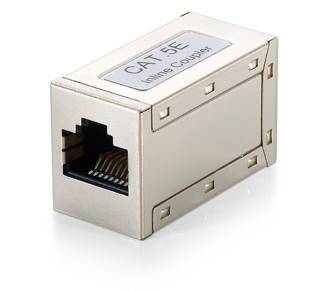

equip 221159 Premium Cat5e Shielded Inline Coupler — RJ45 F/F
Cat5eShieldedRJ45 F/F, 1:1100 MHz
The equip 221159 is a premium Cat5e shielded inline coupler with two RJ45 female jacks, used to join two finished patch cables into one longer link when a single cable does not reach.
The housing is fully shielded metal and the contacts are gold-flashed; wiring is 1:1 straight-through, so the coupler is transparent to the link — what goes in one side comes out the other. equip rates it at 100 MHz, the Cat5e bandwidth, for Fast Ethernet and Gigabit Ethernet.
What's in the Box
- 1 × equip 221159 Cat5e shielded inline coupler, RJ45 female / RJ45 female
What It Means in Practice
- Extend a patch cable that is a little too short without re-cabling — plug one cable in each side.
- Because it is shielded, it keeps the shield continuous when both patch cables are shielded (F/UTP, S/FTP).
- Each coupler adds a connection point; for the best result keep to one coupler per link.
- Works the same with unshielded patch cables — the shield simply stays unused.
What Will Not Work
- It does not terminate installation cable — it accepts RJ45 plugs only (no LSA/punch-down).
- It is not a keystone and does not snap into a patch panel or wall plate.
- It is not a splitter: one coupler joins one cable to one cable; it cannot share a port between two devices.
- 10 Gbit/s links — this is a Cat5e component; use a Cat6A coupler for 10GBase-T.
Key Features
Fully shielded
Metal housing protects against electromagnetic interference.
Gold-flashed contacts
Reliable contact on both RJ45 jacks.
1:1 pinning
Straight-through wiring — no crossover, no polarity issues.
Compact
18 × 22 × 36 mm, 19 g.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A coupler is the quickest fix when a patch cable is a few metres short. If the extension becomes permanent, one patch cable of the right length is cleaner and removes a connection point.
✓ Buy it if you need to join two RJ45 patch cables, shielded or not, at Cat5e/Gigabit speed.
✕ Skip it if you need 10 Gbit/s (Cat6A) or want to terminate raw installation cable.
→ Also consider a longer patch cable in one piece, or a Cat6A coupler for 10GBase-T links.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 221159
Colour
silver
More Details
Product Code
04:135984
EAN Code
4015867154113
Manufacturer
Equip
