Equip 235212 Premium 2-Port Cat.6 RJ45 Surface Mount Box, Unshielded, LSA-IDC, White RAL 9010

Brand:
Equip
Equip 235212 White Two Port Cat6 Unshielded Surface Mount Box
Equip 235212 Premium 2-Port Cat.6 RJ45 Surface Mount Box, Unshielded, LSA-IDC, White RAL 9010
€8.13 inc. VAT
Buy
235212
€6.83
€8.13 inc. VAT
Ships from EU stock: 395 item(s)
+ −
Add to wish list Ask a question
Product Code
04:87096
EAN Code
4015867163931
Manufacturer
Equip

Quick Specs

Ports
2 × RJ45 Cat.6
Shielding
Unshielded / UTP
Termination
LSA-IDC
Colour
White RAL 9010
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

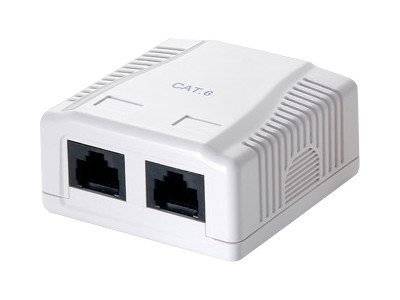

Two Cat.6 network outlets in one surface box

2 × RJ45Cat.6 / Class EUnshielded

The Equip 235212 Premium surface mount box provides two unshielded Cat.6 RJ45 outlets with LSA-IDC punchdown terminals. Its white RAL 9010 ABS housing includes adhesive tape for surface mounting, making it useful where an outlet is required above the wall surface.

Key Features


Two independent outlets
Two RJ45 ports provide separate cable termination points. This passive outlet does not split one network connection into two.

Class E termination
The unshielded Cat.6 design follows ISO/IEC 11801, EN 50173 and ANSI/TIA/EIA 568, with gold-plated contacts.

Adhesive surface mounting
The included tape supports fixing the housing without drilling. Cable conductors still terminate on the LSA-IDC punchdown terminals.

Technical Specifications

Identity
Brand / model Equip 235212
EAN 4015867163931
Network connection
Ports 2 × RJ45 Cat.6
Performance class Class E
Shielding Unshielded / UTP
Termination LSA-IDC punchdown
Contact finish Gold-plated
Standards ISO/IEC 11801; EN 50173; ANSI/TIA/EIA 568
Physical / installation
Mounting Surface mount with adhesive tape
Material ABS
Colour White RAL 9010
Dimensions (W × D × H) 59 × 30 × 61 mm
Net weight 62 g
Compliance RoHS
Included 2-port surface mount box; adhesive tape

What's in the Box

2-port Cat.6 surface mount box
Adhesive tape

Frequently Asked Questions

Is this a shielded network outlet?
No. The 235212 is an unshielded UTP Cat.6 surface mount box.
Does tool-free mounting mean tool-free wiring?
No. Adhesive tape fixes the box, while the cable connection uses LSA-IDC punchdown terminals.
Singular Expert Insight
Plan a separate cable run for each outlet and check the installation cable before termination. Tell us the cable type and intended installation so we can check the requirements. Check your outlet installation requirements

Buyer’s Guide

Buy it if

You need two unshielded Cat.6 outlets in a compact white surface-mounted housing.

Skip it if

You need a shielded outlet, Cat.6A performance or an active network switch.

Also consider

Check the cable route and available mounting area before installing.
