equip 125452 Outdoor 1-Port Keystone Surface Mount Box IP66 Grey with Rubber Gasket and Latching Semi-Transparent Cover

Brand:
Equip
equip 125452 Outdoor 1-Port Keystone Box IP66 Grey

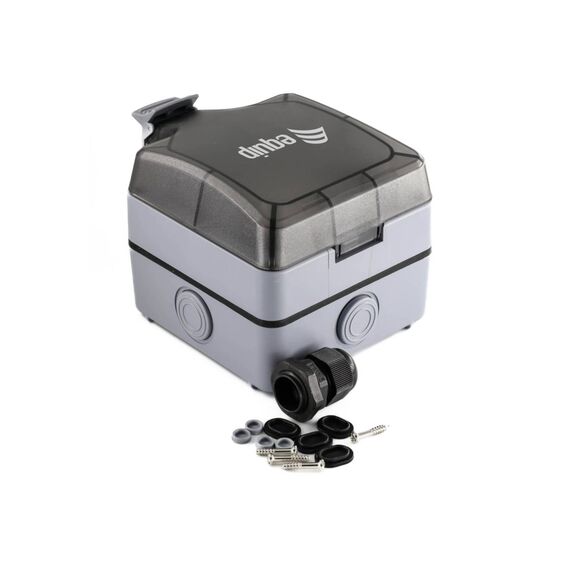

equip 125452 Outdoor 1-Port Keystone Surface Mount Box IP66 Grey with Rubber Gasket and Latching Semi-Transparent Cover
€21.37 inc. VAT
Buy
125452
€17.96
€21.37 inc. VAT
Ships from EU stock: 352 item(s)
+ −
Add to wish list Ask a question
Product Code
04:581710
EAN Code
4015867244197
Manufacturer
Equip

Quick Specs

Ports
1 keystone opening
Protection
IP66
Sealing
Rubber gasket, latching cover
Keystones
Not included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 125452 — Outdoor 1-Port Keystone Surface Mount Box, IP66

IP661 keystone portRubber gasketGrey

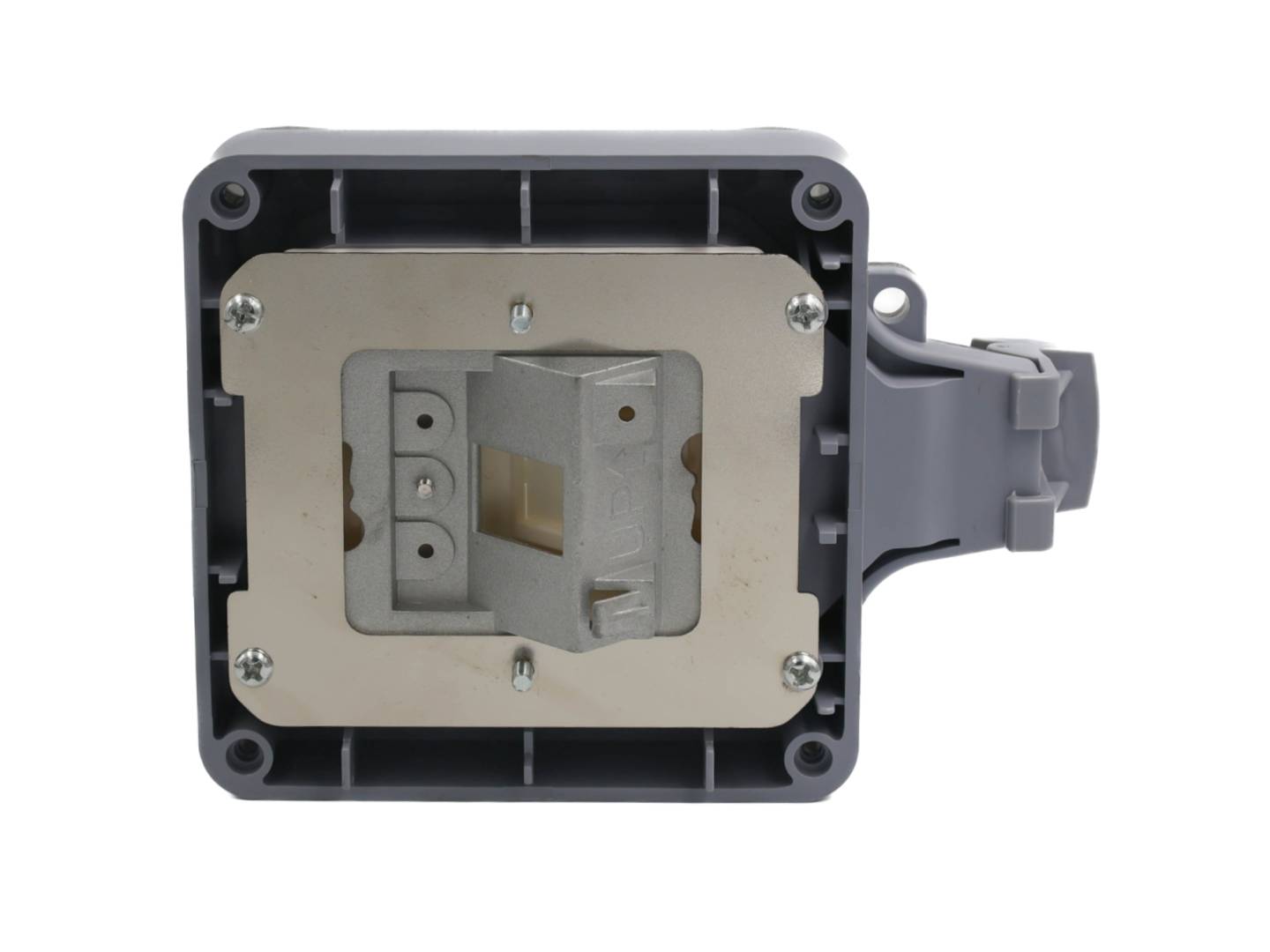

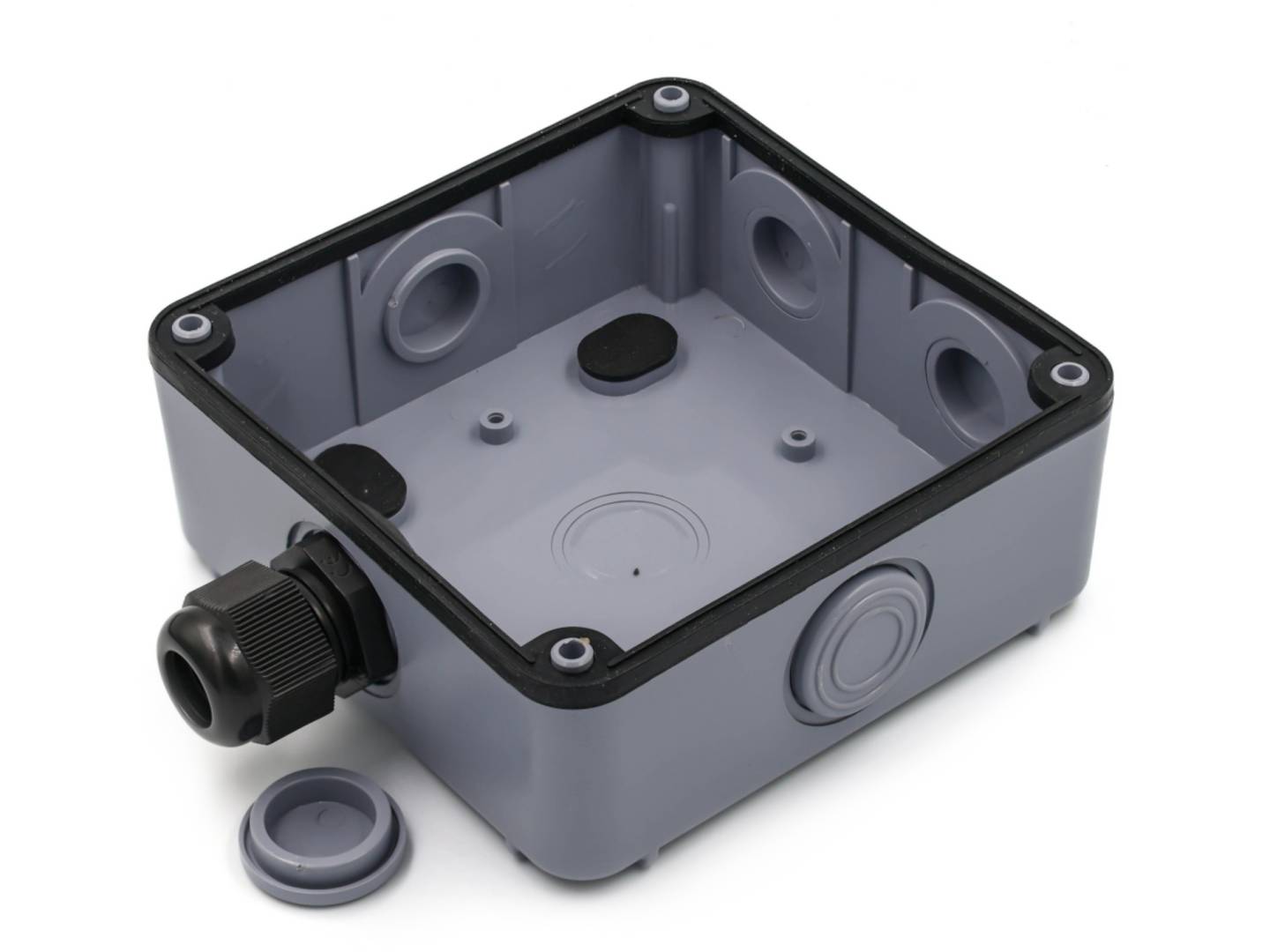

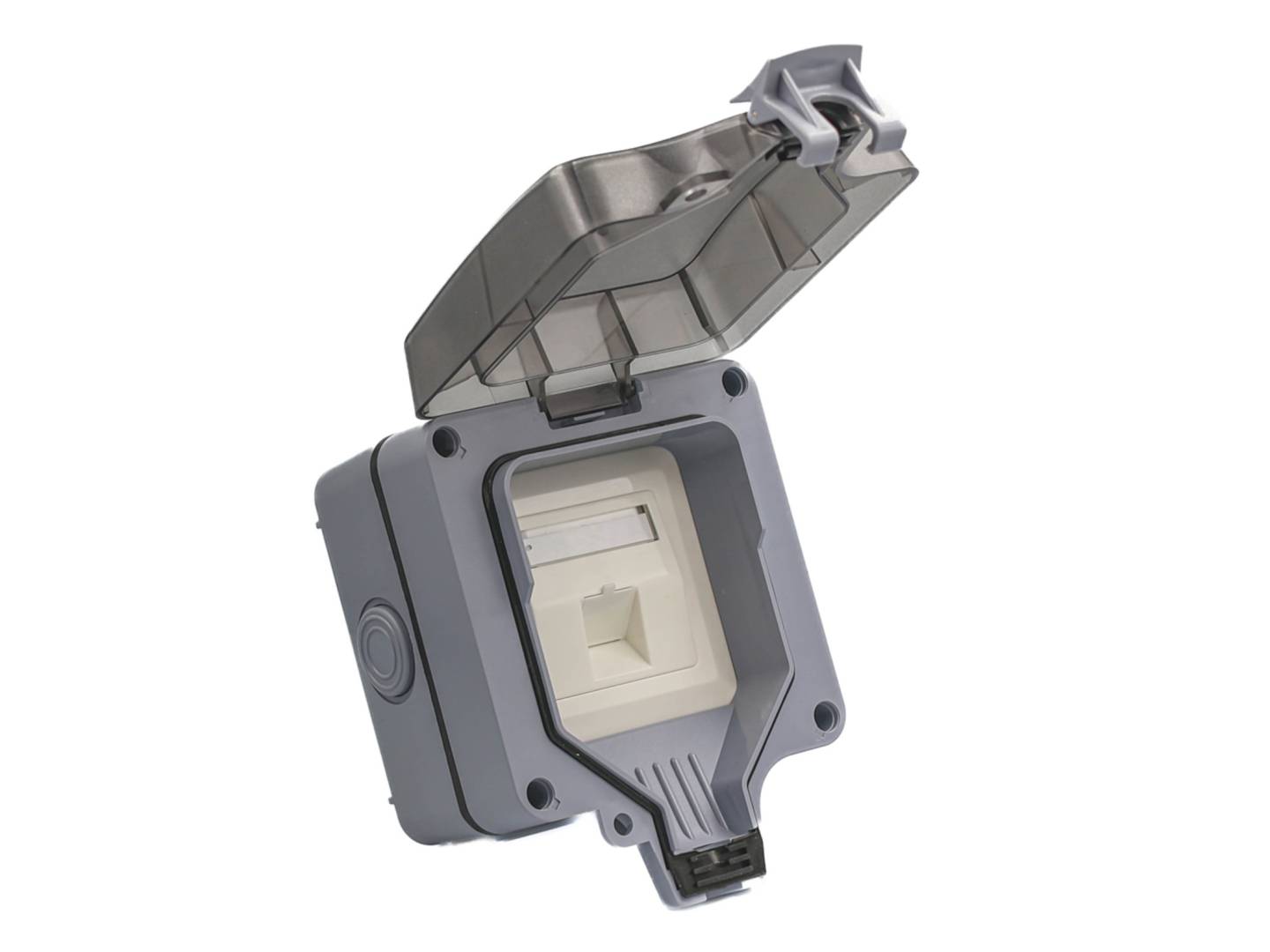

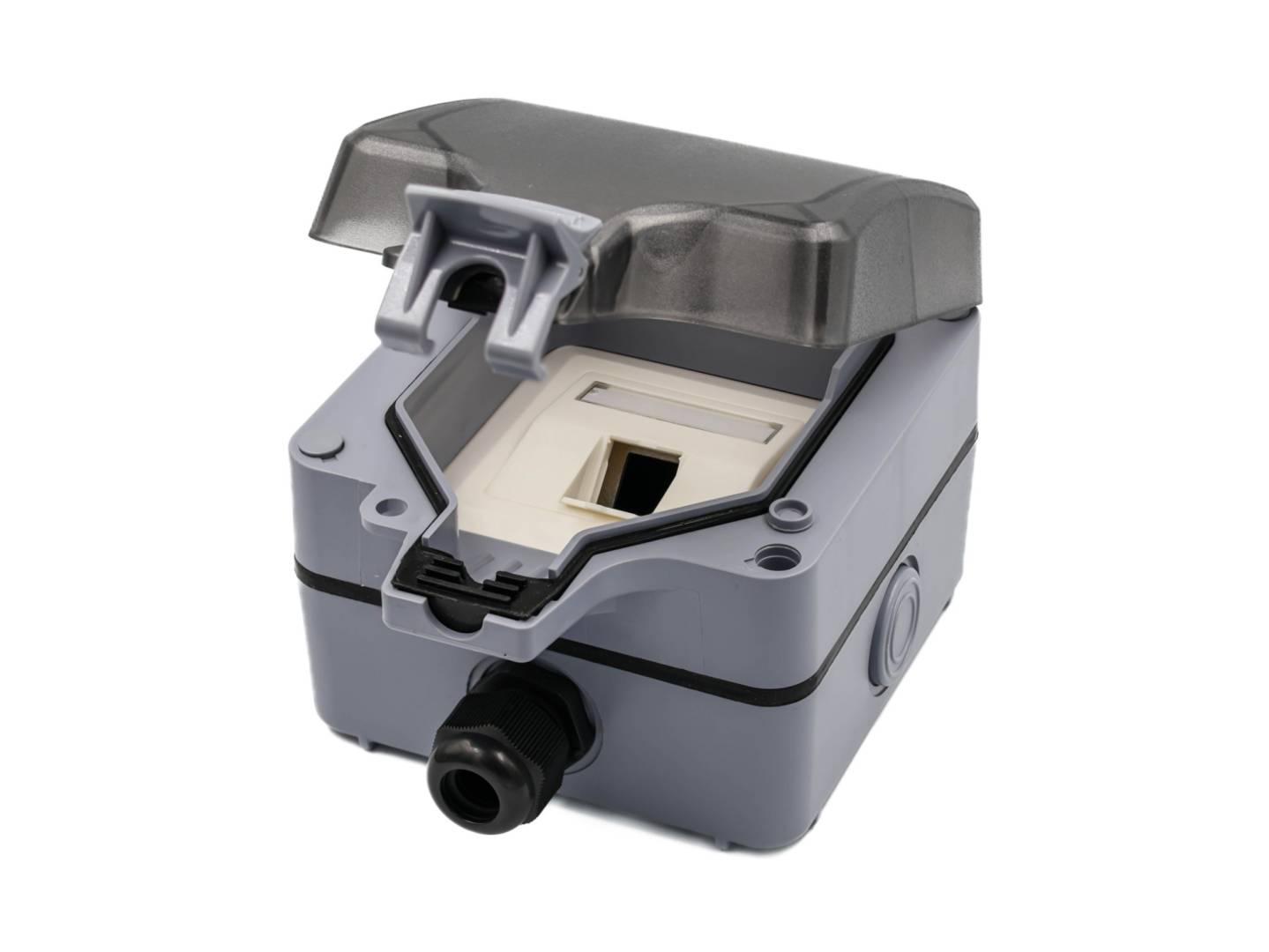

The equip 125452 is a heavy-duty outdoor surface mount box for one keystone module, rated IP66: fully dust-tight and protected against powerful water jets. A rubber gasket seals the enclosure, and the semi-transparent hinged cover closes with a latch, so you can check the port without opening the box. You fit any standard keystone — RJ45 jack, fiber adapter or multimedia connector — and mount the box flush on the surface with its cable entries. In practice it is the network point for exposed locations: an outdoor access point on a facade, an IP camera on a pole or wall, a gate controller or industrial equipment.

Compatibility — check before buying:
Keystone module not included — order the jack or coupler you need separately. The IP66 rating applies when the cover is latched and the cable entries are properly sealed around the cable; a patch cable plugged in with the cover open is not protected. equip does not state the cable diameter range for this box — tell us your cable and we check the fit. For a sheltered spot with two ports, the IP44 box 125451 is the smaller option.

Best For

✓ Exposed outdoor walls and facades
✓ Outdoor Wi-Fi access points
✓ IP cameras on poles and walls
✓ Gates, barriers and controllers
✓ Industrial and workshop areas
✓ Coastal and dusty environments

Key Features


IP66 rated
Dust-tight and protected against powerful water jets — the highest rating in this equip series.

Rubber gasket
Seals the enclosure against rain and dust.

Latching see-through cover
Check the port status without opening the box.

Any keystone module
RJ45, fiber or multimedia keystones fit the standard opening.

Technical Specifications

Identification
Brand equip
Product Outdoor 1-Port Keystone Jack Surface Mount Box, IP66, Grey
Part Number 125452
EAN / GTIN 4015867244197
Ports 1 keystone opening
Colour Grey
Ports
Keystone Openings 1
Compatibility Standard keystone modules: RJ45, fiber, multimedia
Shielded No
Protection
IP Rating IP66
Sealing Rubber gasket
Cover Semi-transparent, hinged, latch closure
Use Indoor and outdoor, flush surface mount with cable entries
Physical
Material Plastic
Colour Grey
Dimensions 110 × 105 × 96 mm (equip spec table)
Weight 0.39 kg
Compliance
Approvals CE, RoHS, IP66
In the Box
Included 1× outdoor 1-port keystone surface mount box, screw kit
Not Included Keystone module, installation cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Is it really waterproof?
It is rated IP66: dust-tight and protected against powerful water jets, with the cover latched. It is not rated for immersion.
Is the keystone jack included?
No. Order the keystone module that matches your cable separately.
Can I see the port without opening it?
Yes. The cover is semi-transparent.
What size is it?
equip’s spec table lists 110 × 105 × 96 mm and 0.39 kg. Allow space for the cable entries.
Singular Expert Insight
We suggest the 125452 wherever the network point faces the weather directly — facades, poles, open car parks, seaside properties. Combine it with outdoor-rated installation cable and a shielded or unshielded keystone to match. Browse our patch panels and keystone parts and network cables. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You need a sealed single network port on an exposed outdoor wall or pole.

Skip it if

You need two ports in a sheltered spot — the IP44 box 125451 fits better.

Also consider

equip 125451 — 2-port outdoor keystone box, IP44.
