Equip LC to LC Fiber Optic Patch Cable, OM5 Multimode Duplex 50/125µm, LSZH, Lime Green, 1m
Brand:
Equip
Equip LC to LC Fiber Optic Patch Cable, OM5 Multimode Duplex 50/125µm, LSZH, Lime Green, 1m
€13.16 inc. VAT
255711
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

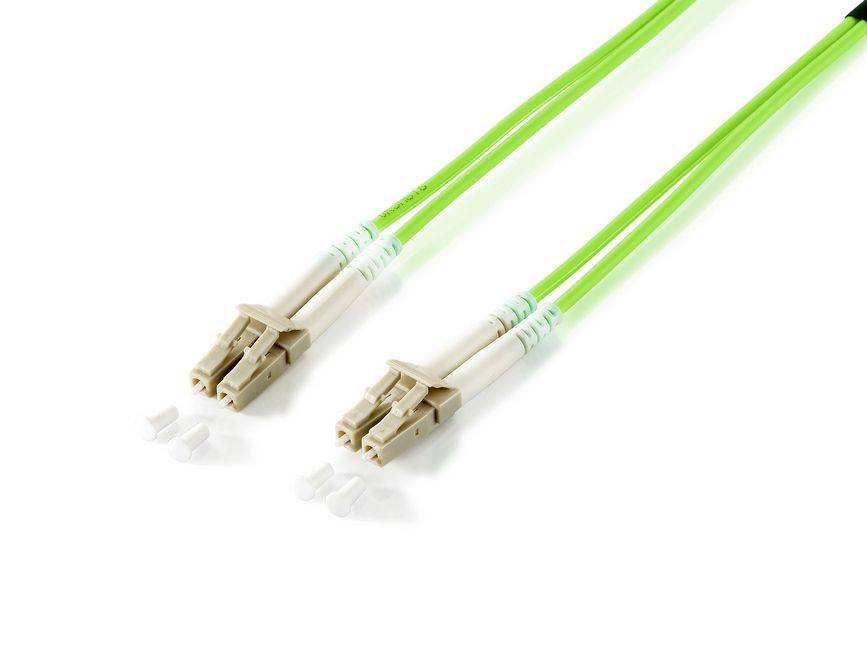

Equip LC to LC OM5 Duplex Fiber Optic Patch Cable — 1 m
OM5 MultimodeLC ↔ LC duplex1 m · LSZHLime Green jacket
The Equip 255711 is a 1 m duplex OM5 multimode fiber optic patch cable with LC connectors on both ends, built on 50/125 µm fiber with ceramic ferrules and an LSZH jacket — for linking SFP/SFP+ transceivers to each other or to an LC patch panel in racks, server rooms and data centres.
OM5 is wideband 50/125 µm multimode fiber (lime green). It works with the same 50 µm optics and patching as OM3/OM4 and is additionally specified for SWDM transceivers that use several wavelengths over one fiber pair. Manufacturer-published performance: 100G Ethernet up to 150 m.
Connectors: LC (small form factor — the connector of SFP/SFP+ and most duplex transceivers).
Before you order: Multimode 50/125 µm only — match the transceiver type (SR / multimode) and the fiber grade already installed. Check that the ports are LC and LC.
What's in the Box
- Equip LC/LC duplex OM5 fiber optic patch cable, 1 m (1 piece)
What It Means in Practice
- Duplex = two fibers in one cable: one transmits, one receives. One cable connects one duplex port to one duplex port.
- 1 m right for patching inside one rack.
- LSZH jacket: low smoke, zero halogen — the usual requirement for cabling in offices, server rooms and public buildings.
What Will Not Work
- Single-mode optics (LR/LX, 1310/1550 nm) or single-mode (yellow) infrastructure — multimode and single-mode fiber cannot be mixed.
- 62.5/125 µm OM1 links — the core sizes differ and the joint causes high loss.
- Copper RJ45 ports — fiber needs an optical transceiver (SFP module) or a fiber port on the device.
- Single-fiber BiDi transceivers or simplex-only ports — this is a duplex (two-fiber) cable.
- SC or ST ports — this cable is LC to LC; check the port at both ends before ordering.
Key Features
50/125 µm OM5
OM5 is wideband 50/125 µm multimode fiber (lime green).
Ceramic ferrules
Ceramic ferrules keep the fiber precisely aligned for consistent, low-loss mating — the standard for quality patch cords.
LSZH jacket
Low smoke, zero halogen sheath for indoor installations where fire-safety rules apply.
Duplex LC/LC
Two fibers in one jacket, LC on one end and LC on the other, for one duplex port-to-port connection.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fiber problems we see are not the cable but a mismatch: single-mode cable on multimode optics, an LC cable where the panel is SC, or OM1 mixed into a 50 µm link. Read the transceiver label (SR = multimode, LR/LX = single-mode) and look at the port shape at both ends before you order. If you are still choosing hardware, see our switches with SFP ports.
✓ Buy it if you need a 1 m OM5 duplex link between LC and LC ports with multimode optics.
✕ Skip it if your transceivers are single-mode (LR/LX), your ports are not LC/LC, or you need a single-fiber BiDi link.
→ Also consider the same cable in another length, or an OS2 single-mode cable for longer runs with LR/LX optics.
Not sure which fiber you have? Send us the model of your switch, transceiver or patch panel and we will check compatibility before you order.
Features - Equip - 255711
Colour
green
Length
1.0m
More Details
Product Code
04:413899
EAN Code
4015867228982
Manufacturer
Equip
