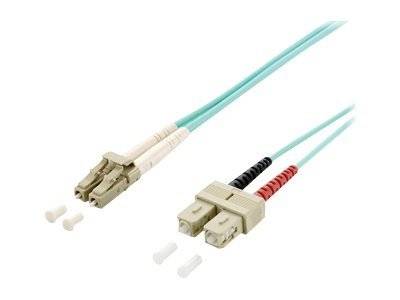

equip LC to SC Fibre Optic Patch Cable, OM3 Multimode 50/125µm, Duplex, LSZH, 2m, Aqua

The equip 255312 is a duplex OM3 multimode fibre optic patch cable (50/125µm) with LC on one end and SC on the other, 2m long with an LSZH jacket. It is made for connecting switches, servers, media converters and fibre patch panels inside racks, server rooms and data centres over short multimode runs.

The jacket follows the standard colour code (aqua for OM3), so the cord is easy to identify in a mixed rack. With LC at one end and SC at the other, it bridges LC equipment to SC ports directly, without an extra coupler in the path.

• 1× equip LC–SC OM3 duplex fibre patch cable, 2m
• Measurement protocol (test report), per manufacturer
• Transceivers, couplers and cleaning tools are not included

• 50/125µm multimode is driven by 850 nm short-reach optics (1000BASE-SX, 10GBASE-SR and similar). OM3 is the bandwidth grade; the reach of your link depends on the transceivers and the whole channel.

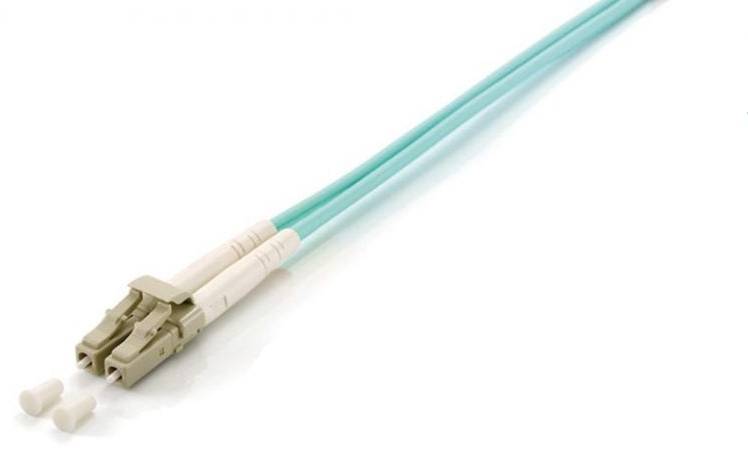

• LC is the small push-latch connector used on SFP/SFP+ optics, on most current switch and server ports and on high-density patch panels.

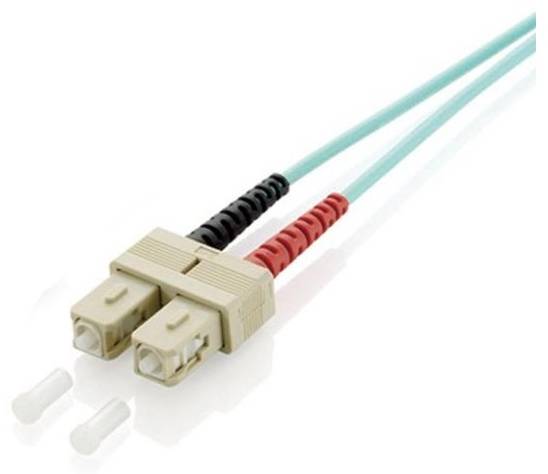

• SC is the larger square push-pull connector common on patch panels, media converters and telecom/FTTH equipment.
• Duplex means two fibres — one transmits, one receives. If a link does not come up, the usual cause is crossed polarity: reverse the two connectors at one end.
• The LSZH (low smoke, zero halogen) jacket is meant for indoor use where fire safety matters: in a fire it gives off less smoke and no corrosive halogen gases.
• At 2m, it suits patching between neighbouring rack units or adjacent racks.

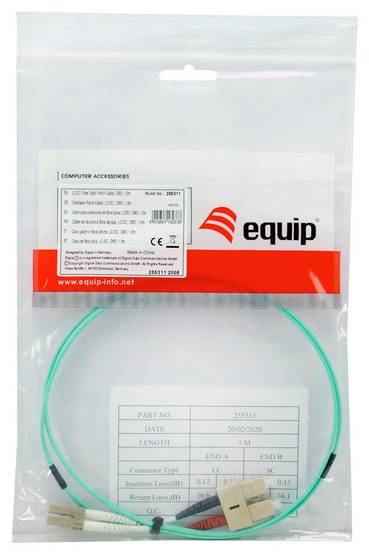

• Each cable is supplied with a measurement protocol, per the manufacturer, so you have the measured values for your documentation.

• Single-mode transceivers or single-mode panels (LX, LR, OS1/OS2) — multimode cable cannot be used on single-mode links.
• Ports with a different connector type — this cord has LC and SC only; for ST ports you need a cable with those connectors.
• Copper RJ45 ports — fibre needs an optical transceiver or media converter at each end.
• Outdoor, underground or direct-burial runs — this is an indoor patch cable.
