equip 606503 Cat 6A S/FTP PiMF Patch Cable 1 m, 500 MHz, 10 Gbps, PoE+, LSZH, AWG 26/7 Copper, RJ45, Red
Brand:
Equip
equip 606503 Cat 6A S/FTP PiMF Patch Cable 1 m, 500 MHz, 10 Gbps, PoE+, LSZH, AWG 26/7 Copper, RJ45, Red
€5 inc. VAT
606503
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

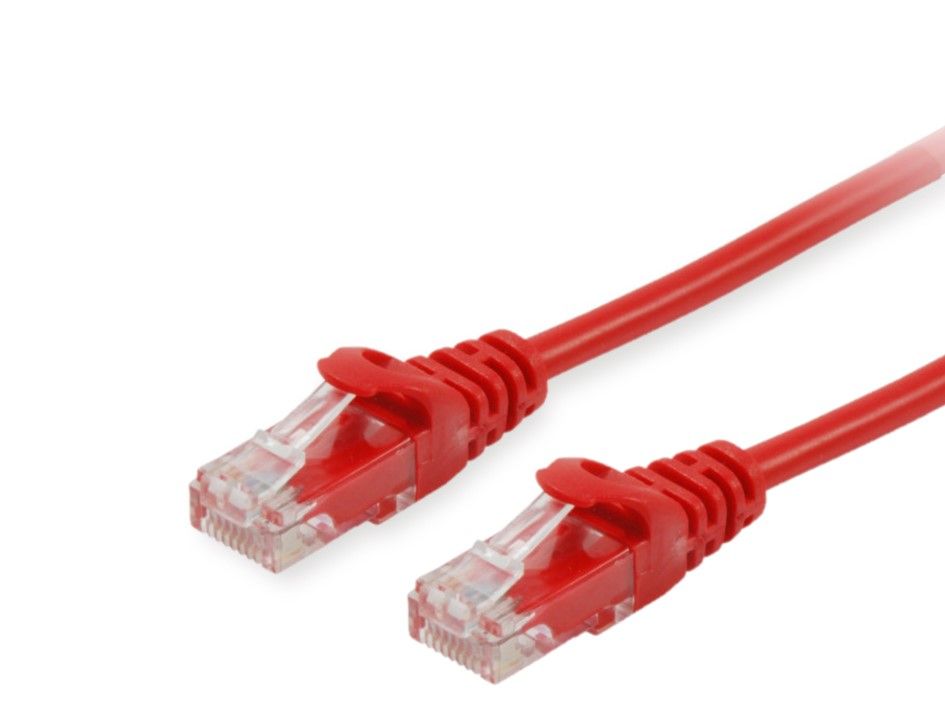

equip 606503 Cat 6A S/FTP Patch Cable 1 m Red
Cat 6A · 10 Gbps500 MHzS/FTP PiMFPoE / PoE+LSZH
The equip 606503 is a 1 m Cat 6A S/FTP patch cable in red, built for 10 Gigabit Ethernet links between switches, patch panels, servers and access points. Part number 606503 uses stranded bare copper (4 × 2 AWG 26/7), foil-screened pairs under an overall braid (PiMF), and a halogen-free LSZH jacket, with RJ45 male plugs on both ends. The red jacket makes it easy to colour-code a rack by VLAN or function. Typically in stock with fast delivery across Cyprus.
Key Features
10 Gigabit Ethernet
Cat 6A rating to 500 MHz supports 10GBASE-T over the full channel, so this lead will not be the bottleneck when you move from 1 GbE to 2.5, 5 or 10 GbE.
Fully shielded S/FTP PiMF
Every pair sits in its own metal foil and the bundle is wrapped in a braid — strong protection against crosstalk and EMI in dense racks next to power cabling.
PoE / PoE+ and LSZH
Carries PoE and PoE+ (802.3af/at) power to cameras, phones and access points, and the low-smoke zero-halogen jacket suits offices, data rooms and public buildings.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The equip 606xxx family is our go-to shielded Cat 6A patch lead: AWG 26/7 copper rather than thinner 28/32 AWG slim cable, a real braid plus pair foils, and LSZH as standard. At 1 m it is the right length for connecting network switches to patch panels in the same cabinet. If rack space is extremely tight, the equip slim 6061xx F/FTP (3.8 mm) is thinner, but the 606503 is the more robust choice.
Buyer's Guide
Buy it if
You need a shielded 10 GbE lead of exactly 1 m, want PoE+ support and require a halogen-free jacket.
Skip it if
Your run needs more than 1 m, or you need ultra-thin 3.8 mm cable for very dense patching.
Also consider
equip 606x04 (2 m) or 606x05 (3 m) in the same colours; equip slim 6061x4 (1 m, 3.8 mm F/FTP).
Features - Equip - 606503
Colour
red
Length
1.0m
Standard
CAT6a
More Details
Product Code
04:272805
EAN Code
4015867204696
Manufacturer
Equip
