equip 769225 24-Port Keystone Unshielded Patch Panel 19 Inch 1U Snap-In with Support Bar Black RAL 9005

Brand:
Equip
equip 769225 24-Port Keystone Unshielded Panel Black
equip 769225 24-Port Keystone Unshielded Patch Panel 19 Inch 1U Snap-In with Support Bar Black RAL 9005
€25.94 inc. VAT
Buy
769225
€21.80
€25.94 inc. VAT
Ships from EU stock: 81 item(s)
+ −
Add to wish list Ask a question
Product Code
04:246533
EAN Code
4015867164877
Manufacturer
Equip

Quick Specs

Ports
24 keystone slots
Rack
19-inch · 1U
Shielding
Unshielded
Modules
Not included — empty frame
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

equip 769225 — 24-Port Keystone Unshielded Patch Panel, 19-inch 1U, Black

24 keystone ports19-inch 1UUnshieldedModules not included

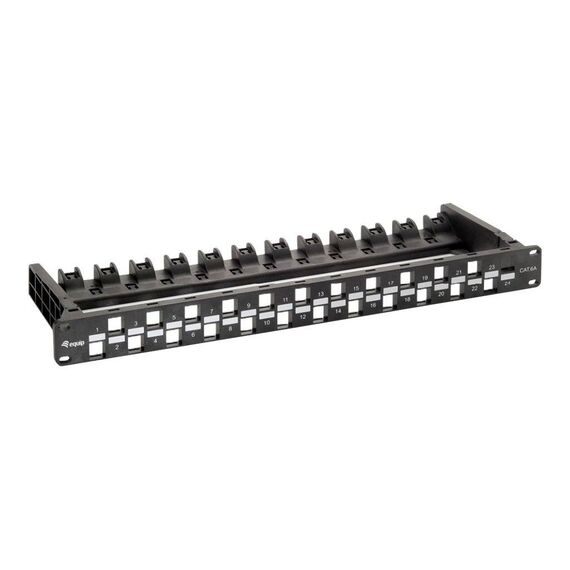

The equip 769225 is a 24-port unshielded keystone patch panel for 19-inch racks: a 1U steel frame in black RAL 9005 with numbered ports and a rear support bar. equip lists it with a Cat.6A port configuration. It arrives empty: you snap in the keystone jacks or couplers you choose, so the same frame can carry Cat 6 or Cat 6A copper and other keystone inserts. In practice it is the end point for 24 unshielded installation cables in a black cabinet — each cable on its own jack, patched to the switch from the front.

Compatibility — check before buying:
No keystone modules are included — order 24 jacks (or fewer, with blanks) separately. It is unshielded: use unshielded (U/UTP) jacks. equip lists this panel as Cat.6A and the 769224 as Cat.6; as both frames ship empty, the rating of each link is set by the jacks and cable you fit. It fits 19-inch racks only, not 10-inch. Not sure which jacks or cabinet you need? Tell us the cable and cabinet model and we check it.

Best For

✓ Standard 19-inch racks and cabinets
✓ Office floor distributors and comms rooms
✓ Keystone installs in Cat 6 or Cat 6A
✓ Re-patching without re-terminating cable
✓ Mixing RJ45 with other keystone couplers
✓ Neat, labelled patch fields

Key Features


Snap-in keystones
Keystone jacks click into the 24 openings without tools and can be changed one at a time.

Rear support bar
The included support bar at the back gives cable routing and strain relief across all 24 connections.

Numbered ports
Each port is individually numbered for quick identification during installation and later changes.

Sturdy steel
A steel frame for one unit of a standard 19-inch rack, for unshielded keystone jacks.

Technical Specifications

Identification
Brand equip
Product 24-Port Keystone Unshielded Patch Panel, 19-inch, 1U, Snap-In, Black
Part Number 769225
EAN / GTIN 4015867164877
Colour Black RAL 9005
Panel
Ports 24 keystone openings, numbered
Port Configuration (equip) Cat.6A RJ45 × 24
Mounting Snap-in, tool-free
Shielding Unshielded
Rack Format 19-inch, 1U
Material Steel
Cable Management Rear support bar
Physical
Weight 0.55 kg
Compliance RoHS
Planning Your Install
What Else You Need Keystone jacks for every port you use (matching the cable category), a punch-down tool or tool-free jacks, and patch cords to the switch
Rack Space One rack unit, plus room behind the panel for the incoming installation cables
Typical Layout Switch directly above or below the panel, linked with short patch cords of 0.25–0.5 m
Labelling Number each port to match the wall outlet it serves, so faults are traced in minutes
Testing Test every link after termination; the rated category is only reached when jacks, cable and cords all match
In the Box
Included The 24-port keystone patch panel
Not Included Keystone jacks, patch cords and tools; equip does not list screws for this version
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term equip does not state a warranty term for this product on its official product page or datasheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Are keystone modules included?
No. The 769225 is an empty frame for 24 keystone modules; equip supplies it without jacks. Order 24 keystone jacks (or fewer, and blank the rest) of the category your cable needs. Tell us the cable and we put the right jacks on the same order.
Which keystone jacks fit?
equip describes snap-in, tool-free mounting of standard keystone jacks but does not publish a list of compatible modules or a maximum module size. Standard-size keystone jacks usually fit; send us the jack you plan to use and we check it.
Does the frame decide Cat 6 or Cat 6A?
No. The frame only holds the modules. The link performance comes from the keystone jacks and the cable you fit, so a Cat 6A installation needs Cat 6A jacks and Cat 6A cable throughout.
769225 or 769224?
Both are black, unshielded 24-port keystone frames with a support bar. equip lists the 769225 under Cat.6A and the 769224 under Cat.6. Both are delivered without jacks, so choose jacks to match your cable; tell us the cable and we match the panel and jacks.
Singular Expert Insight
We suggest the 769225 for black 19-inch cabinets with unshielded cabling. Order the jacks together — Cat.6A jacks with Cat.6A cable — so the whole link is rated the same. Every order comes with Singular’s local support in Cyprus — see our network switches and network cables.

Buyer’s Guide

Buy it if

You need a black 24-port unshielded keystone frame with support bar for a 19-inch rack.

Skip it if

Your cabling is shielded, your cabinet is grey, or you want pre-fitted jacks.

Also consider

equip 769224, the sister panel listed as Cat.6.
