equip 208014 — 12-Port Cat 6 Shielded Patch Panel, 10" 1U, Grey
12 portsCat 6 shielded10" · 1ULSA or 110 tool

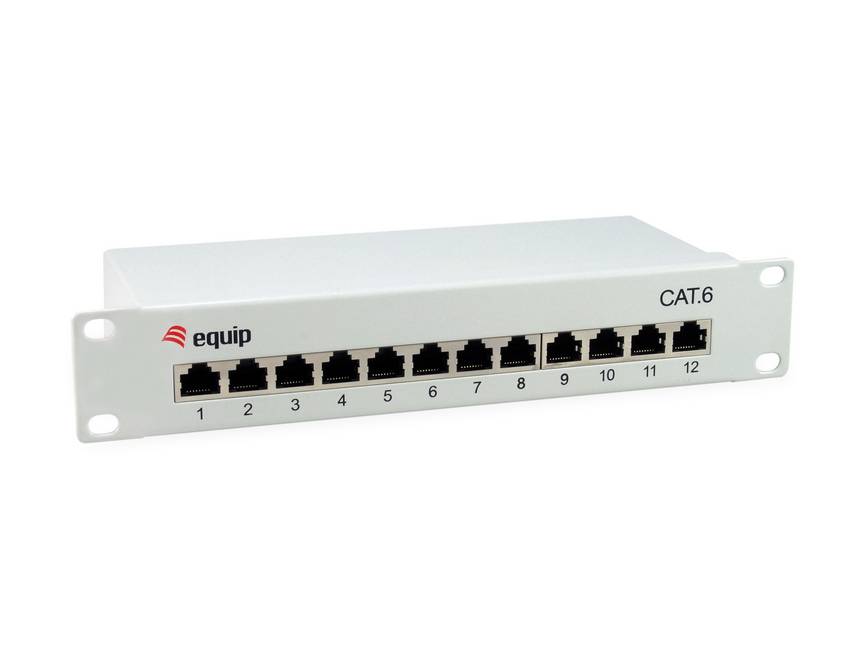

The equip 208014 is a 12-port Cat 6 shielded 10-inch 1U patch panel in light grey (RAL 7035). It mounts in a 10-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with an LSA or 110 punch-down tool, and the 12 RJ45 sockets on the front take ordinary patch cords, rated for Gigabit Ethernet (1000Base-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable.
Compatibility — check before buying:
This panel is 10-inch (254 mm) wide — it is not for 19-inch racks. The ports are fixed and terminated with an LSA or 110 punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; equip does not list an earthing wire. It is 10-inch (254 mm) wide and will not fill a 19-inch rack without a mounting adapter. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.
Best For
✓ Small 10-inch network cabinets
✓ Offices, shops and branch sites
✓ Home networks and studios
✓ Compact cabling next to a small switch
✓ Wall-mounted mini racks
✓ Labelled, tidy outlet termination
Key Features
Dual IDC termination
Dual IDC blocks accept both LSA (Krone) and 110 punch-down tools, colour-coded T568A/B. Once the cable is terminated, every move is made with a patch cord at the front.
Cat 6 performance
Class E, up to 250 MHz, 1GBase-T. The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.
10-inch, 1U
Sized for 10-inch (254 mm) cabinets, the compact rack format for small offices, shops and home networks.
Numbered, colour-coded ports
Each port is numbered and the IDC blocks are colour-coded T568A/B, for quick and accurate wiring.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 208014 for grey 10-inch cabinets on Gigabit networks, with IDC blocks that take either punch-down tool. Leave a few ports free for growth, since most offices add devices faster than they expect. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.
Buyer’s Guide
Buy it if
You need twelve shielded Cat 6 ports in a grey 10-inch cabinet.
Skip it if
You plan 10 Gbit/s links or have a 19-inch rack.
Also consider
DIGITUS DN-91612S-EA-G, a grey 10-inch Cat 6A panel.
Features - Equip - 208014
Colour
grey
More Details
Product Code
04:399888
EAN Code
4015867225950
Manufacturer
Equip
