equip 255420 LC to LC Fiber Optic Patch Cable OM3 Multimode Duplex 50/125 7.5m LSZH 2mm Aqua 10G up to 300m
Brand:
Equip
equip 255420 LC to LC Fiber Optic Patch Cable OM3 Multimode Duplex 50/125 7.5m LSZH 2mm Aqua 10G up to 300m
€16.91 inc. VAT
255420
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
equip 255420 — LC-LC Fiber Patch Cable, OM3 Duplex, 7.5 m
OM3 50/125LC-LC duplex10G up to 300 m7.5 m aqua

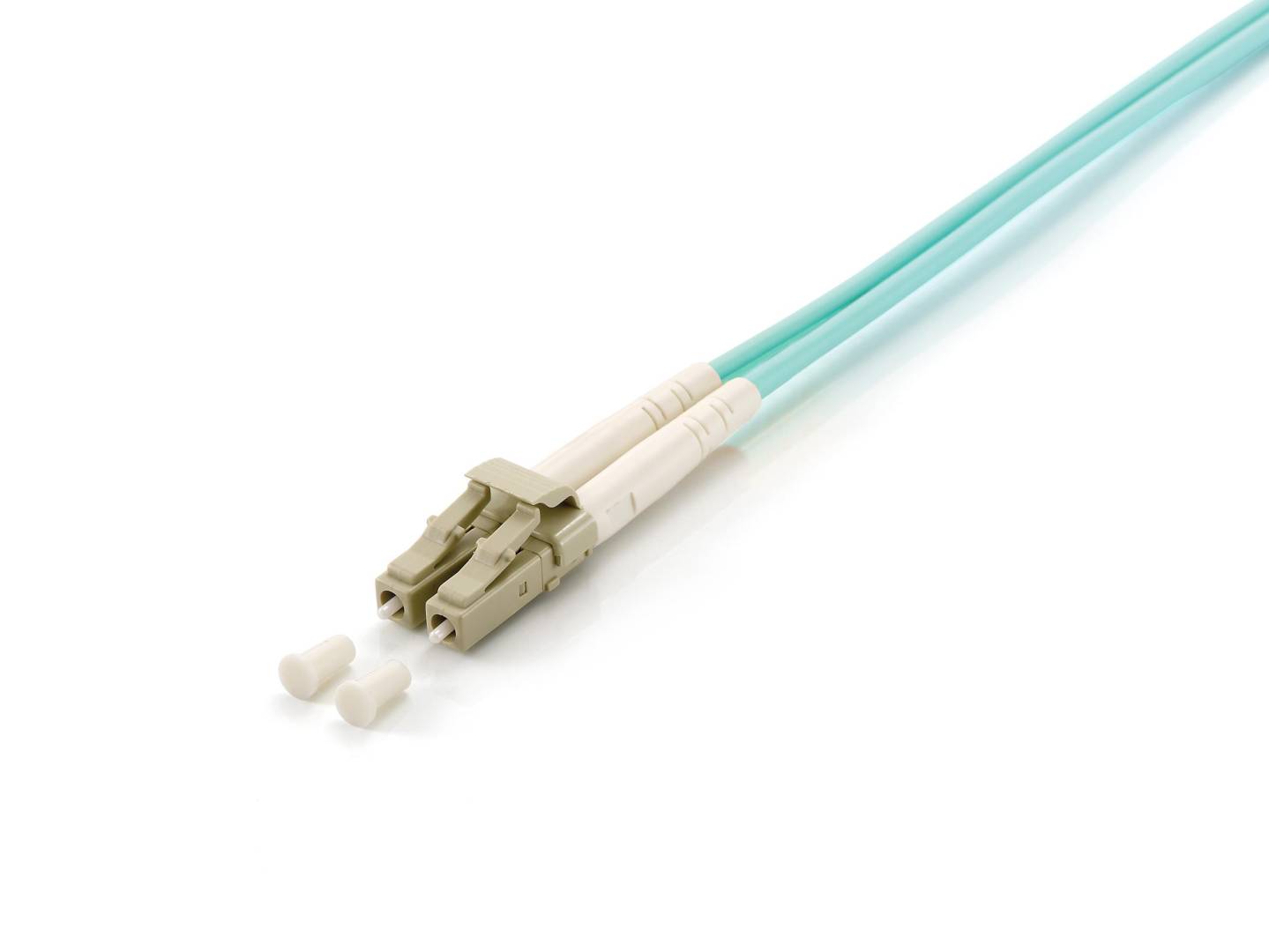

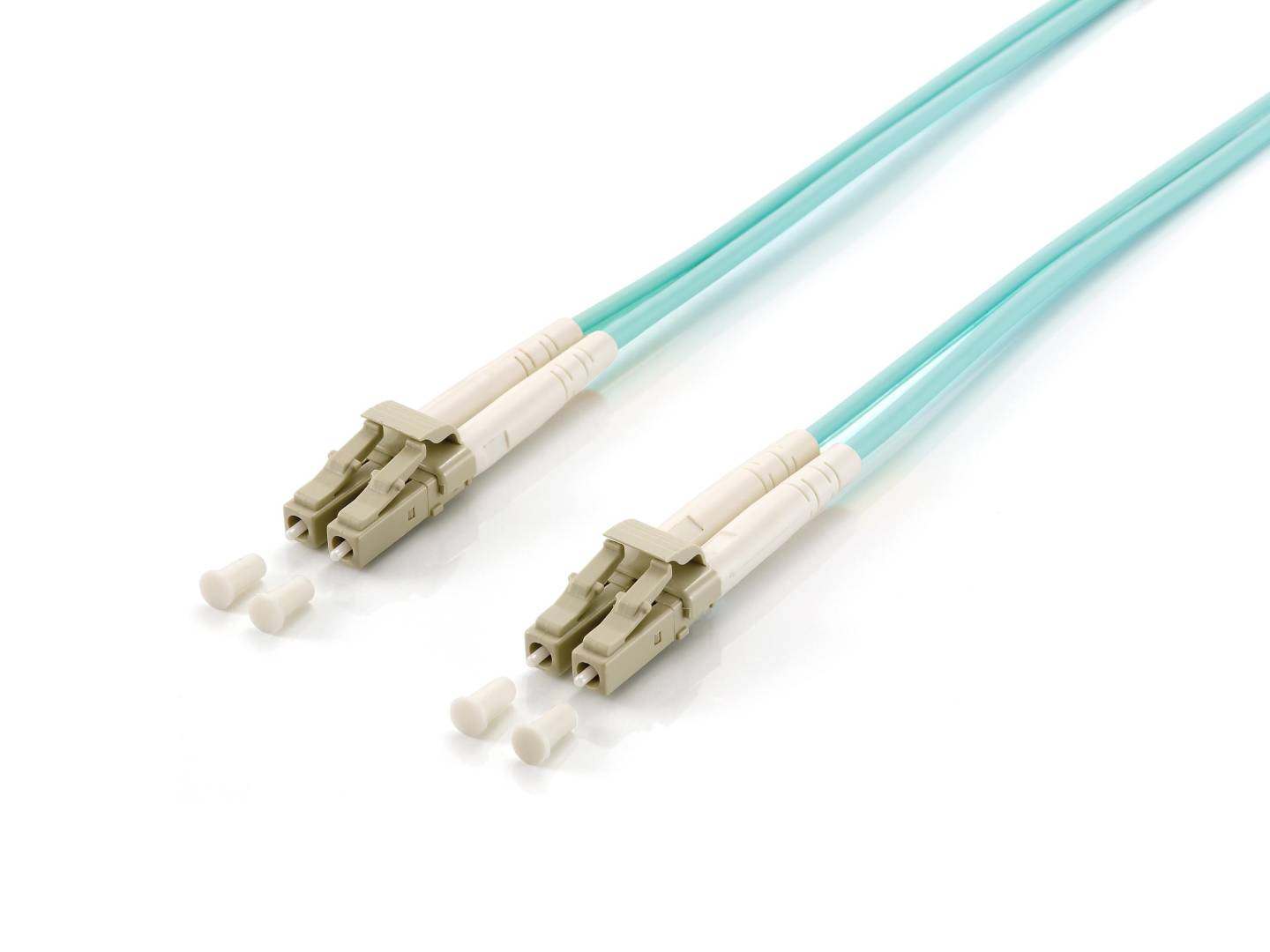

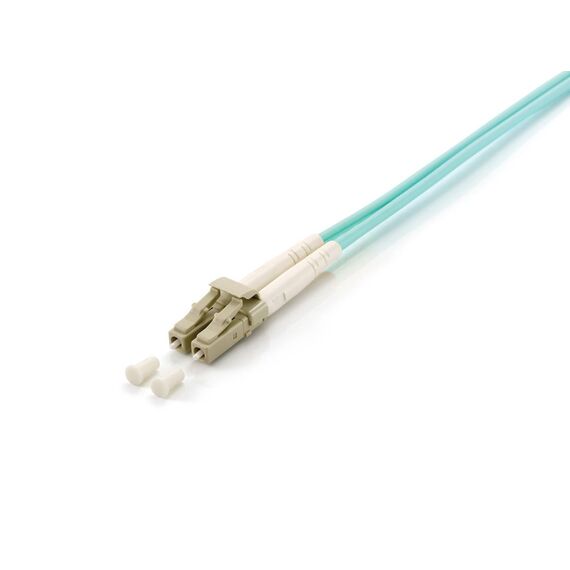

The equip 255420 is a 7.5 m duplex fiber-optic patch cable with LC connectors on both ends and OM3 multimode fiber (50/125 µm). It connects a fiber patch panel to a switch, or links two switches, servers or storage systems through their optical transceivers. equip states support for 10 Gigabit Ethernet over up to 300 m of OM3, which is the typical grade for new multimode links in offices and server rooms. The connectors have ceramic ferrules, the two 2 mm fibers are joined in a duplex construction (I-VH 2×1G), and the jacket is halogen-free, low-smoke LSZH in the aqua colour that marks OM3. At 7.5 m it links neighbouring racks in a server room, or a rack to a device across the room.
Compatibility — check before buying:
Match the fiber type: OM3 (50/125) should not be mixed with OM1 (62.5/125) or singlemode OS2 in the same link — check the label on your patch panel or installation cable. Match the connectors and optics: LC on both ends; your switch or server needs multimode transceivers (typically 850 nm SR modules), not singlemode LR modules. Order the length you need: this is 7.5 m; the same cable exists in 1.5 m, 25 m and 35 m. Send us the transceiver or panel model and we confirm.
Best For
✓ 10G SFP+ SR links
✓ Switch-to-switch uplinks
✓ Fiber patch panel to switch
✓ Servers and storage with LC ports
✓ Server rooms and data racks
✓ Replacing damaged OM3 cords
Key Features
OM3 multimode, 10G
50/125 µm fiber for 10 Gigabit Ethernet up to 300 m.
LC-LC duplex
Two fibers with LC connectors and ceramic ferrules for SFP/SFP+ ports.
LSZH jacket
Low-smoke, zero-halogen jacket for indoor installations and public buildings.
Aqua colour code
The standard OM3 colour makes the cable easy to identify in the rack.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 7.5 m 255420 for rack-to-rack links in the same server room, routed through cable trays. Browse our fiber optic products and network switches. Local support in Cyprus comes with every order.
Buyer’s Guide
Buy it if
You need an OM3 LC-LC duplex cable between neighbouring racks.
Skip it if
Your installation is OM1 or singlemode, or your ports are SC/ST.
Also consider
equip 255410 — the same OM3 cable in 1.5 m.
Features - Equip - 255420
More Details
Product Code
04:588377
EAN Code
4015867244425
Manufacturer
Equip
