Push the screen and it comes to you
43in to 70in displays50 kg capacityPush-in pop-out front accessLandscape or portraitAnti-theft locking holeStainless steel

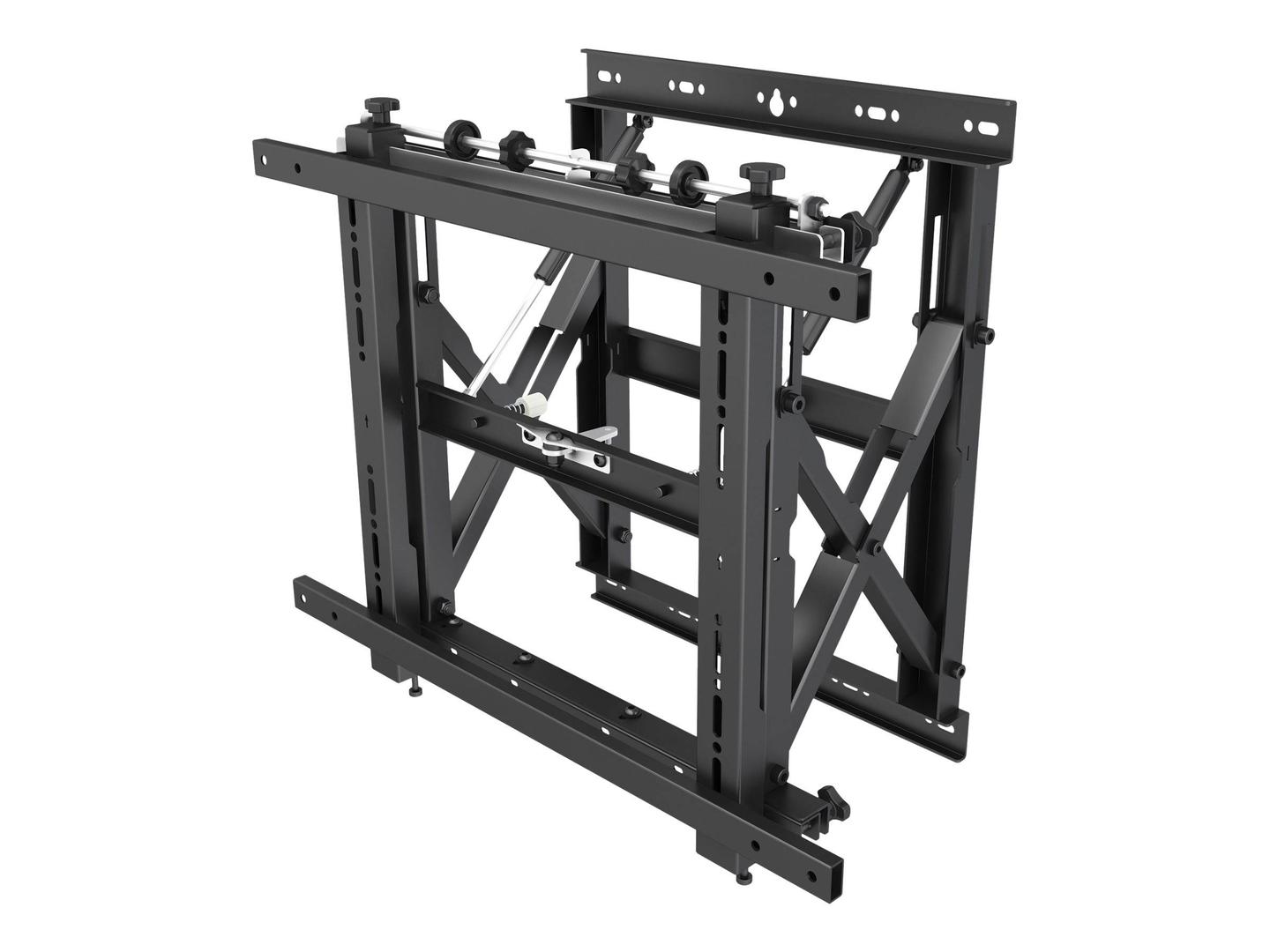

The equip 650325 is a push-in pop-out wall mount, built for video walls and recessed single displays. Press the front of the screen and the mount releases and travels out towards you, so a panel that sits flush in a wall or a joinery recess can be serviced, cabled and aligned from the front without dismantling anything around it. It takes screens from 43 to 70 inches at up to 50 kg, mounts in landscape or portrait, and carries an anti-theft locking hole for public installations.
Compatibility — check before buying:
equip rates this bracket for one screen from 43 to 70 inches at up to 50 kg, on VESA 200x200, 300x200, 300x300, 400x200, 400x400, 400x600 and 600x400. Curved televisions are not supported. Installation is to a solid wall only. Depth from the wall runs from 108 mm pushed in to 292 mm popped out, and tilt is a modest 0 to 10 degrees, which is what you would expect from a flush-mount bracket rather than a full-motion arm. The mounting hole pattern is described as universal.
Best For
✓ Video walls where each panel must be serviceable from the front
✓ Recessed single displays in joinery, alcoves or partition walls
✓ Public spaces where the anti-theft hole is needed
✓ Portrait signage as well as landscape displays
✓ Installations where there is no access behind the screen at all
Key Features
Front service access, which is the whole point
On a video wall or a recessed panel there is no behind. The push-in pop-out mechanism brings the screen forward far enough to reach the connections and the mounting points, and pushes back flush when you are done.
Flush at 108 mm, out to 292 mm
Pushed in, the screen sits 108 mm off the wall, which is close enough to read as recessed. Popped out, it reaches 292 mm, which is the working room you need for cables and alignment.
Modular for multi-screen layouts
equip designs this as a video wall bracket, so several units tile together into a grid. Alignment between adjacent panels is the difficult part of a video wall, and front access is what makes it possible to correct.
Landscape or portrait
The same bracket supports both orientations, so a portrait signage column and a landscape meeting-room screen can use the same part number.
Anti-theft locking hole
equip lists anti-theft as supported on this mount, which is what a public-facing installation needs and is missing from most wall brackets in this class.
Stainless steel
Not painted mild steel. On a bracket that gets pushed and pulled repeatedly through its service life, and that may be in a humid or public environment, the material choice matters.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
This bracket answers one problem, and if you do not have that problem you do not need it. The problem is a screen you cannot get behind: a video wall panel with three neighbours, a display recessed into joinery, a monitor in a partition. Push-in pop-out gives you front access, and nothing else in the ordinary wall bracket range does. Two cautions before ordering. First, check the supplier feed you may have seen: the description circulating for this product says 19 to 55 inches, and equip publishes 43 to 70. Second, this is not a tilting or swivelling bracket in any useful sense — 10 degrees is levelling, not aiming. If the screen needs to angle at an audience, this is the wrong mount.
Buyer’s Guide
Buy it if
equip 650325 push-in pop-out wall mount,Screw kits,Manual
Skip it if
Your screen is smaller than 43 inches or larger than 70 inches,You need the screen to swivel or tilt towards a room,Your television is curved,You are fitting to a stud partition with no solid backing,You want a simple flat wall bracket and do not need front access
Features - Equip - 650325
Colour
black
More Details
Product Code
04:288827
EAN Code
4015867207956
Manufacturer
Equip
