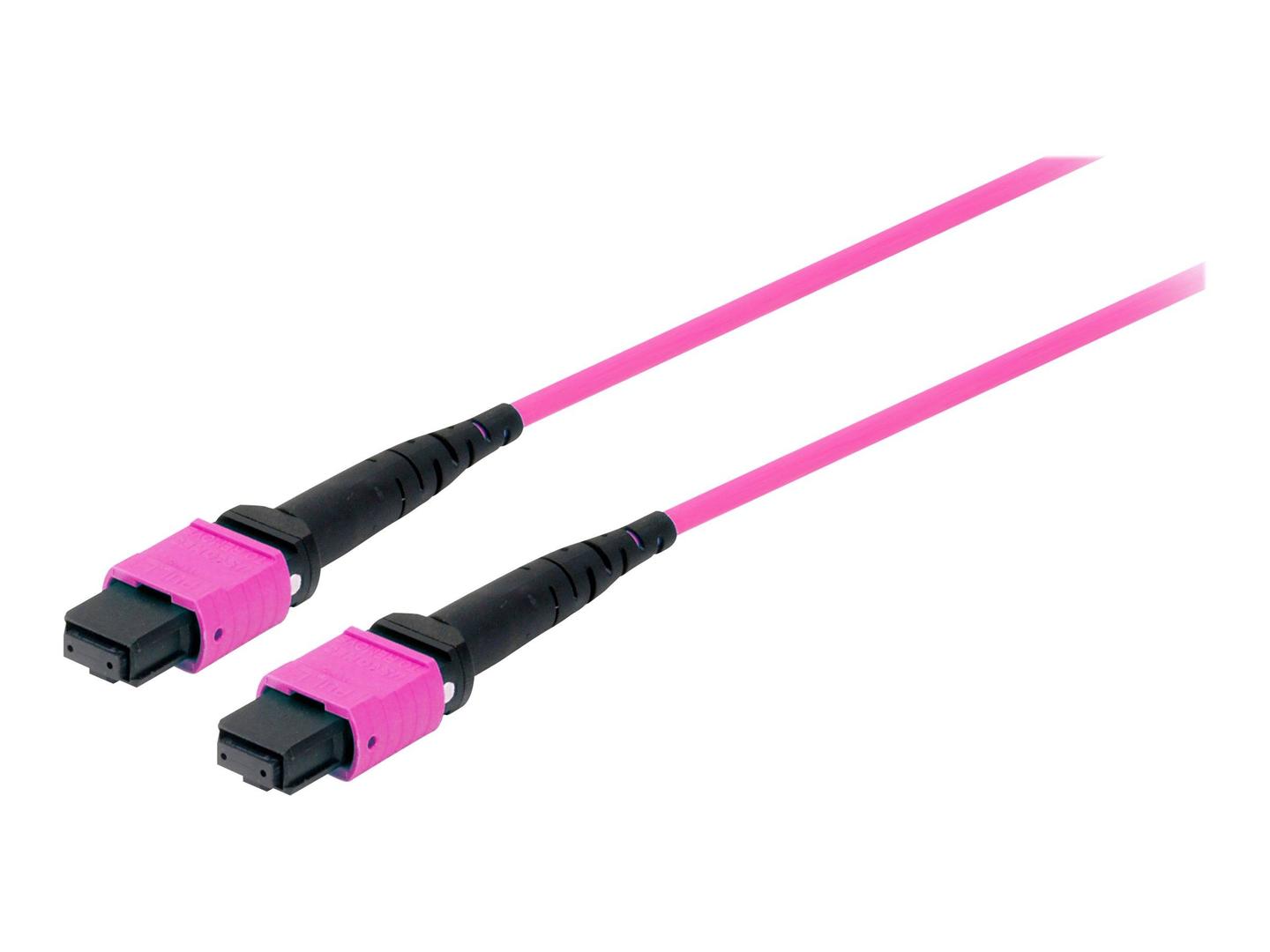

Equip MTP to MTP Trunk Fibre Cable, OM4 Multimode, 12 Fibres, Type A, Female/Female, Violet, 3m
Brand:
Equip
Equip MTP to MTP Trunk Fibre Cable, OM4 Multimode, 12 Fibres, Type A, Female/Female, Violet, 3m
€153.63 inc. VAT
25555317
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip MTP to MTP Trunk Fibre Cable — OM4, 12 Fibres, Type A, 3 m
OM4 · 50/125 µm12 fibres · MTP female ↔ femaleType A polarity3 m · Violet
The Equip MTP/MTP trunk fibre optic patch cable (25555317) is a pre-terminated OM4 multimode cable, 3 m long, with a 12-fibre MTP/UPC connector at each end in Type A (straight-through: fibre 1 to fibre 1) polarity. It carries a full 12-fibre MTP link between panels, cassettes or parallel-optics ports in a data centre or structured-cabling backbone.
Equip’s drawing for this series specifies female (unpinned) MTP connectors on both ends, a 3.0 mm violet LSZH jacket, 5 cm heat-shrink strain relief and an MTP fibre overcut of 1.0–3.0 µm. Type A trunks are normally used in structured cabling with polarity-managing cassettes or a flipped patch cord at one end.
Before you order: both ends are female (no pins), so they must mate with male (pinned) MTP ports — such as most MTP/MPO transceivers and pinned cassettes. Two female cords cannot be joined through an MTP adapter. Polarity is Type A (straight-through: fibre 1 to fibre 1); if you are mixing with an existing system, send us its polarity method and we will check.
What's in the Box
- 1 × MTP/MTP trunk fibre optic patch cable, 3 m, factory-terminated
- MTP adapters, cassettes and cleaning tools are not included
What It Means in Practice
- One cable replaces six duplex patch leads: all 12 fibres travel in one 3.0 mm cable, which keeps high-density racks tidy.
- OM4 50/125 µm is the current high-bandwidth multimode grade for short-reach data-centre links.
- Type A trunks are normally used in structured cabling with polarity-managing cassettes or a flipped patch cord at one end.
- Female connectors on both ends are the common choice for transceiver-to-transceiver and pinned-cassette links.
What Will Not Work
- Single-mode (OS2) MTP ports or cassettes — this is OM4 multimode.
- Female (unpinned) MTP ports: female-to-female will not mate.
- LC or SC equipment directly — use an MTP cassette or an MTP breakout cord.
- A system that needs a different polarity type without a matching cassette or patch cord.
Key Features
12-fibre MTP both ends
MTP/UPC connectors, female (unpinned), for full 12-fibre parallel or backbone links.
Type A polarity
Type A (straight-through: fibre 1 to fibre 1), per Equip’s connection drawing.
OM4 multimode
50/125 µm OM4 fibre, insertion loss < 0.5 dB per Equip’s drawing.
Compact LSZH cable
3.0 mm violet LSZH jacket with 5 cm heat-shrink strain relief at each connector.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
MTP trunks save a lot of rack space, but they only work when gender, polarity and fibre count line up across the whole link. This cable is 12-fibre, female-female, Type A — check those three against your ports, or send us the models and we will do it. For duplex patching, see our fibre and network cables.
✓ Buy it if you need a 12-fibre OM4 MTP-to-MTP Type A trunk of 3 m between pinned ports.
✕ Skip it if your ports are female, single-mode, or need a different polarity.
→ Also consider Equip MTP/MTP OM4 Type B trunks (aqua) or MTP/SC OM4 breakout cords.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 25555317
Colour
violet
Length
3m
More Details
Product Code
04:335815
EAN Code
4015867222881
Manufacturer
Equip
