Equip SC Fiber Optic Connector, Multimode, for 0.9 mm Buffered Fiber, Zirconia Ceramic Ferrule, Beige, Pack of 12

The Equip 156020 is an SC fibre optic connector for multimode fibre with 0.9 mm buffer, sold as a pack of 12 — a termination part for technicians who build their own pigtails, patch cords or panel terminations.

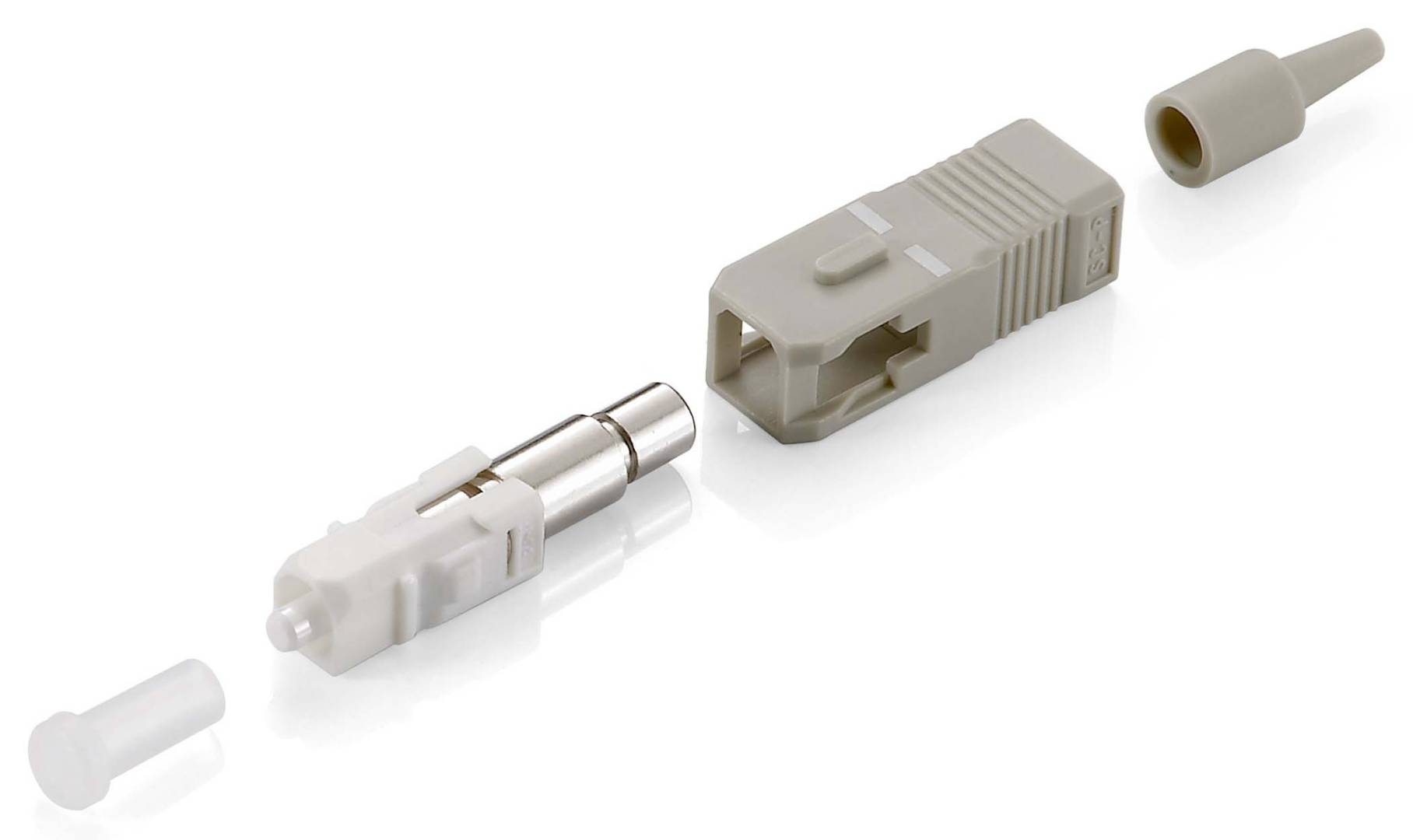

It has a polymer housing with the standard SC push-pull latch and a precision zirconia ceramic ferrule for accurate fibre alignment. Equip lists it as not tool-free: the fibre has to be prepared and terminated with the proper fibre tools.

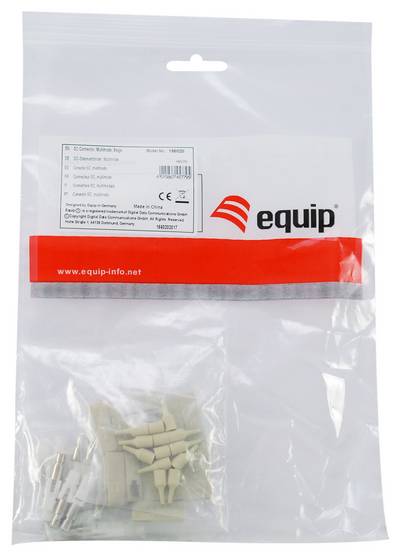

• 12 × SC multimode fibre connectors, beige

• Used by installers to terminate 0.9 mm tight-buffered multimode fibre — for example inside patch panels, splice boxes or when repairing a damaged connector.
• SC is the square push-pull connector found on many patch panels, media converters and older switch modules.
• Beige is the traditional colour for multimode connectors, so the termination is easy to identify in a mixed rack.
• A finished termination should be cleaned and inspected (and ideally measured) before it goes into service.

• Single-mode OS2 fibre — use a single-mode SC connector.
• Fibre with a different buffer or jacket size — this connector is for 0.9 mm buffered fibre (larger 2 mm or 3 mm cords need the matching connector and boot).
• Installation without fibre tools — it is not a tool-free quick connector.
• SFP/SFP+ modules — those use LC, not SC.
