Equip LC Fiber Optic Adapter Coupler, OM3 Multimode, Phosphor Bronze Sleeve, Dust Cover, Beige, Pack of 12
Brand:
Equip
Equip LC Fiber Optic Adapter Coupler, OM3 Multimode, Phosphor Bronze Sleeve, Dust Cover, Beige, Pack of 12
€30.99 inc. VAT
156151007
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip LC Fiber Optic Adapter Coupler, OM3 Multimode — Pack of 12
LC couplerOM3 multimodePhosphor bronze sleeve12 pcs/pack

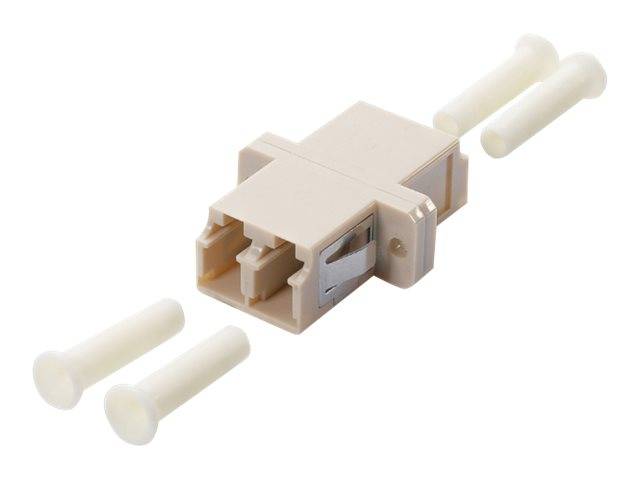

The Equip 156151007 is an LC fibre optic adapter (coupler) for OM3 multimode fibre, sold as a pack of 12, that joins two LC patch cords or mounts in a fibre patch panel or outlet to create an LC connection point.
Each adapter aligns the two connector ferrules with a precision phosphor bronze sleeve and comes with a dust cover to keep the port clean when it is not in use. Equip specifies snap-in or thread-type mounting, so it suits standard LC cut-outs in fibre panels, distribution boxes and wall outlets.
Before you order: The listing does not state whether the adapters are simplex or duplex. If your panel cut-out depends on it, send us the panel model and we will confirm before you order.
What's in the Box
- 12 × LC fibre optic adapters (couplers), OM3 multimode, beige
- Dust covers
What It Means in Practice
- A coupler is a passive female-to-female joint: plug an LC patch cord into each side and the two fibres meet face to face inside the alignment sleeve.
- Typical uses: populating a fibre patch panel, extending a too-short LC cord, or creating a demarcation point between building cabling and equipment cords.
- Phosphor bronze sleeves are the usual choice for multimode, where the 50 µm core is forgiving of tiny alignment differences; single-mode links normally use ceramic (zirconia) sleeves.
- Every joint adds a little insertion loss, so plan short multimode links with as few couplers as possible.
- Pack of 12 — enough to equip a small panel or keep spares in the rack.
What Will Not Work
- Single-mode OS2 links — use a single-mode coupler with a ceramic sleeve; a multimode coupler can add noticeable loss on 9 µm fibre.
- SC, ST or E2000 connectors — this adapter is LC on both sides.
- APC (green, angled) connectors — multimode LC is UPC/PC; never mate UPC with APC.
- It is not a transceiver or media converter: it only joins fibre to fibre, it does not connect fibre to copper RJ45.
Key Features
LC to LC
Female-to-female coupler for two LC connectors.
Phosphor bronze sleeve
Precision sleeve for consistent multimode alignment.
Dust cover
Keeps unused ports clean in panels and outlets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Match three things before ordering couplers: connector (LC), fibre mode (multimode 50/125) and polish (UPC/PC). For panels and shelves that hold them, see our rack accessories. If the link uses OS2 single-mode fibre, choose a single-mode coupler instead.
✓ Buy it if you are building or repairing an LC multimode (OM3/OM4) panel or need to join LC cords.
✕ Skip it if your fibre is single-mode OS2, or your connectors are SC/ST.
→ Also consider a single-mode LC coupler with ceramic sleeve for OS2 links.
Not sure it fits your panel? Send us the panel or outlet model and we will check the cut-out and fibre type before you order.
Features - Equip - 156151007
Colour
Beige
More Details
Product Code
04:375603
EAN Code
4015867226643
Manufacturer
Equip
