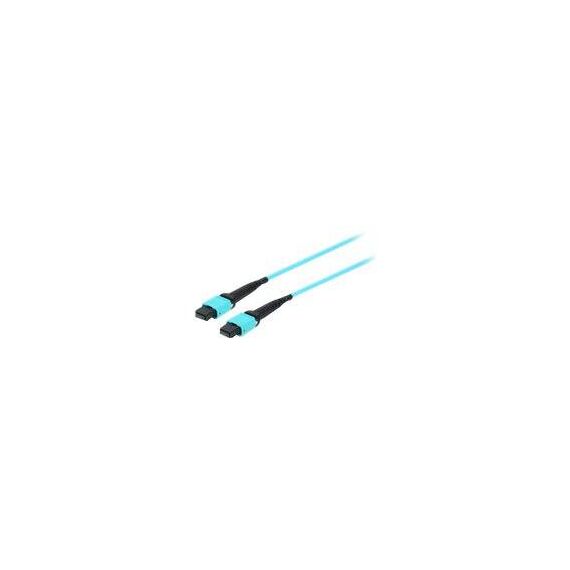

Equip 25555807 MTP-to-MTP Trunk Fibre Optic Cable, OM4 Multimode, Type B, 20 m, Aqua

Brand:
Equip
Equip 25555807 MTP to MTP OM4 Type B Fibre Cable 20 m Aqua
Equip 25555807 MTP-to-MTP Trunk Fibre Optic Cable, OM4 Multimode, Type B, 20 m, Aqua
€317.59 inc. VAT
Buy
25555807
€266.88
€317.59 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:248208
EAN Code
4015867192627
Manufacturer
Equip

Quick Specs

Both ends
MTP to MTP
Fibre
OM4 multimode 50/125µm
Polarity
Type B / crossed
Length / jacket
20 m / LSZH
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Equip MTP-to-MTP OM4 Trunk Cable, 20 m

MTP → MTPOM4Type B20 m

Use a 20 m OM4 trunk where the cabling design requires MTP at both ends and Type B crossed polarity. The preterminated cable suits high-density data-centre backbone and enterprise cabling. Check the complete channel polarity and routed length before selecting this aqua LSZH assembly.

Compatibility — check before buying:
Match MTP pinning, Type B polarity and OM4 multimode fibre to the transceiver or patch-panel design. Do not substitute a Type A route without checking the full channel. The cable alone does not guarantee an Ethernet speed.

Key Features


Type B polarity
The manufacturer identifies a crossed Type B connection, designed for installations with planned polarity management.

MTP at both ends
The trunk links MTP terminations directly. It is not an MTP-to-LC or MTP-to-SC breakout.

Aqua LSZH construction
The 20 m jacket is low-smoke zero-halogen. Equip specifies 5 cm heat-shrink tubing and 1.0–3.0 µm MTP fibre overcut.

Technical Specifications

Identification
Brand / model Equip 25555807
EAN / GTIN 4015867192627
Optical connection
Cable type Preterminated MTP-to-MTP trunk fibre optic patch cable
Fibre type OM4 multimode
Fibre count 12, manufacturer family catalogue reference
Core / cladding diameter 50/125µm
Polarity Type B (crossed)
Connectors MTP at both ends
Intended applications High-density data-centre backbone and enterprise structured cabling
Construction and dimensions
Cable length 20 m
Jacket colour Aqua (turquoise)
Jacket material LSZH
Heat-shrink tubing length 5 cm
MTP fibre overcut 1.0–3.0 µm
Dimensions (W × D × H) 12 × 45 × 20000 mm, manufacturer reference
Product weight 0.125 kg
Compliance RoHS
Package contents 1 MTP-to-MTP trunk fibre optic cable

What's in the Box

Equip MTP-to-MTP fibre optic cable, 20 m

Frequently Asked Questions

Why does Type B matter?
It defines the crossed fibre mapping. Choose the polarity required by the complete optical channel, including modules and patch panels.
Does it end in LC connectors?
No. Both ends are MTP; an LC endpoint needs an appropriate breakout or other planned termination.
How should I choose the 20 m length?
Measure the planned rack or cable-tray route and allow appropriate service slack. Use a different length if 20 m would require stretching the cable or leaving excessive slack.
Singular Expert Insight
Set the channel polarity before choosing a trunk. This model gives a Type B MTP-to-MTP route; confirm pinning and the 20 m cable path with the rest of the optical design. Browse fibre optic cables for other connections and lengths

Buyer’s Guide

Buy it if

The design requires a 20 m Type B OM4 MTP-to-MTP trunk.

Skip it if

You need Type A polarity, single-mode fibre or LC/SC ends.

Also consider

A verified breakout for LC/SC endpoints or another trunk length for the routed distance.
