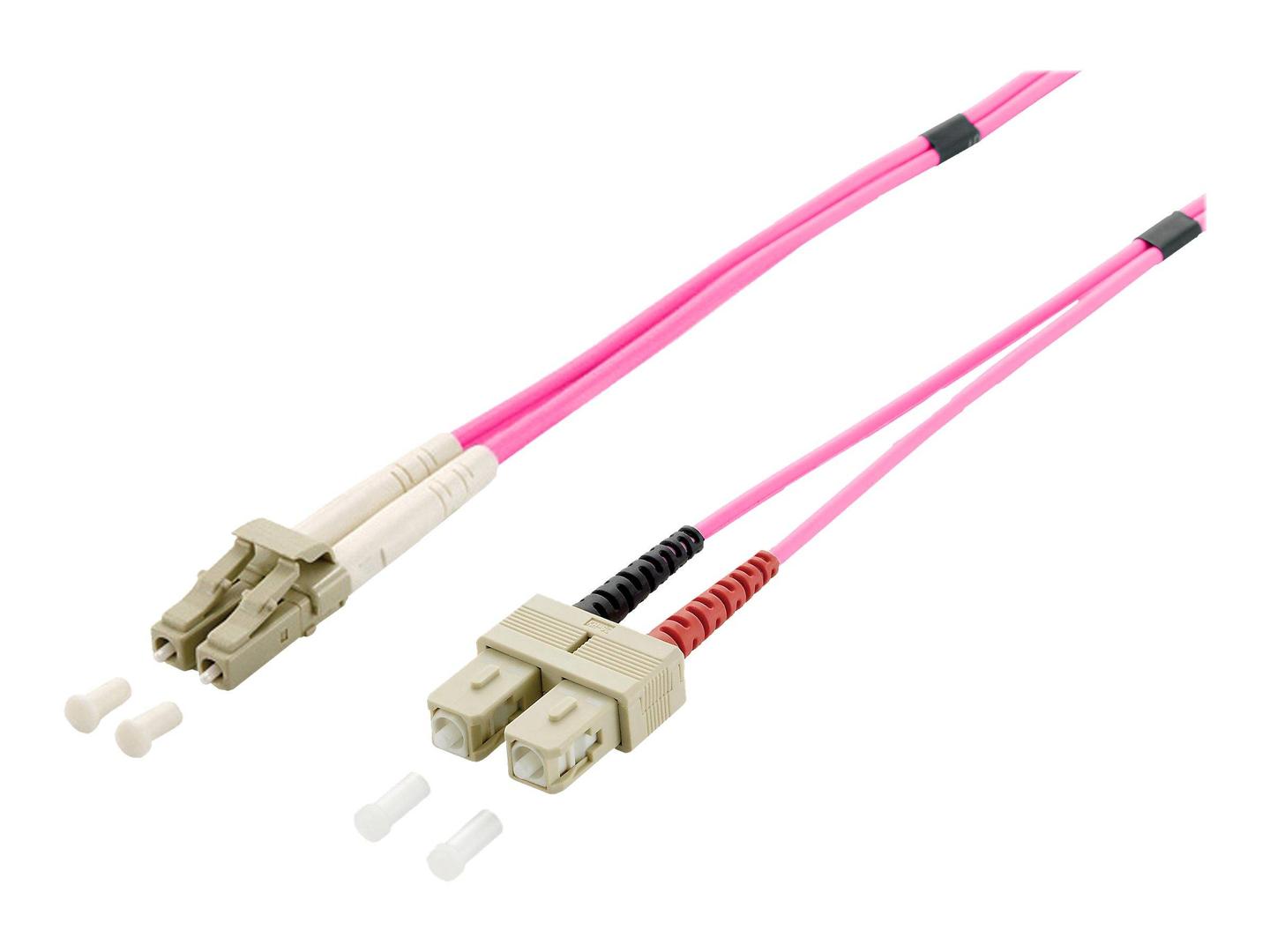

Equip LC to SC Fiber Optic Patch Cable, OM4 Multimode Duplex 50/125µm, LSZH, Violet, 2m

The Equip 255532 is a 2 m duplex OM4 multimode fiber optic patch cable with LC connectors on one end and SC on the other, built on 50/125 µm fiber with ceramic ferrules and an LSZH jacket — for connecting an LC-port transceiver or switch to SC patch panels, wall outlets or media converters.

OM4 is the higher-bandwidth 50/125 µm multimode grade (violet in this colour scheme), used with 850 nm SR optics where links need more reach or speed than OM3 gives.

Connectors: LC (small form factor — the connector of SFP/SFP+ and most duplex transceivers) and SC (square push-pull — common on media converters, older switches and SC panels/outlets).

• Equip LC/SC duplex OM4 fiber optic patch cable, 2 m (1 piece)
• Individual measurement protocol (test report) for the cable

• Duplex = two fibers in one cable: one transmits, one receives. One cable connects one duplex port to one duplex port.
• 2 m fits patching between adjacent rack units or to a nearby switch.
• Hybrid cable: it adapts directly between LC and SC ports, so you do not need extra adapters (each extra mated connection adds loss).
• LSZH jacket: low smoke, zero halogen — the usual requirement for cabling in offices, server rooms and public buildings.
• Each cable ships with its own measurement protocol — useful for documentation and acceptance tests.

• Single-mode optics (LR/LX, 1310/1550 nm) or single-mode (yellow) infrastructure — multimode and single-mode fiber cannot be mixed.
• 62.5/125 µm OM1 links — the core sizes differ and the joint causes high loss.
• Copper RJ45 ports — fiber needs an optical transceiver (SFP module) or a fiber port on the device.
• Single-fiber BiDi transceivers or simplex-only ports — this is a duplex (two-fiber) cable.
• ST ports — this cable is LC to SC; check the port at both ends before ordering.
