Equip MTP to SC Trunk Fibre Patch Cord, OM4 Multimode, 8 Fibres, 50/125 µm, LSZH, Aqua, 15m
Brand:
Equip
Equip MTP to SC Trunk Fibre Patch Cord, OM4 Multimode, 8 Fibres, 50/125 µm, LSZH, Aqua, 15m
€195.68 inc. VAT
25557707
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip MTP to SC Trunk Fibre Patch Cord — OM4 Multimode, 8 Fibres, 15 m
OM4 · 50/125 µm8 fibres · MTP → SC15 mLSZH · aqua

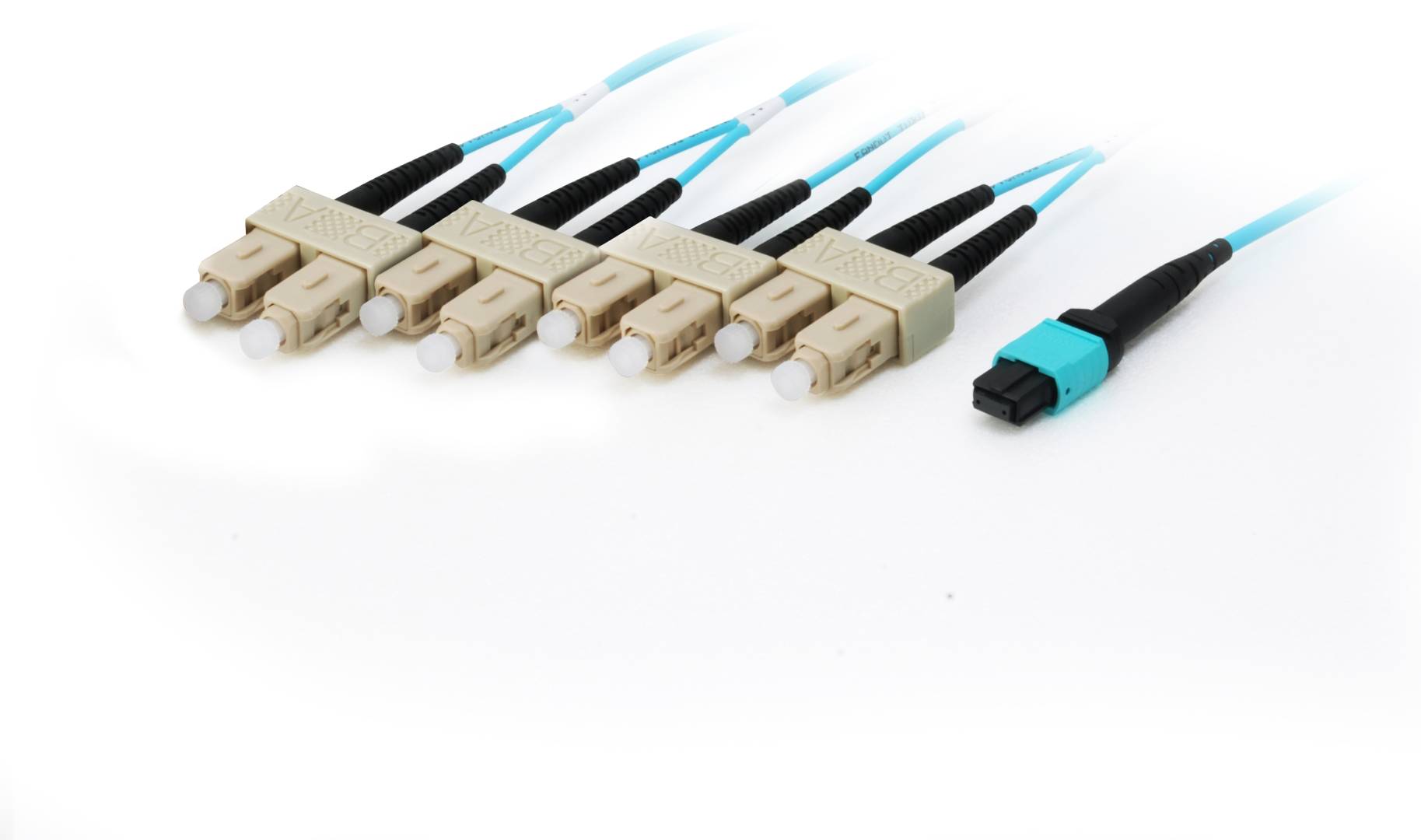

The Equip MTP/SC trunk fibre patch cord (25557707) is a pre-terminated OM4 multimode cable, 15 m long, with one MTP connector at one end and individual SC connectors at the other. It breaks an 8-fibre MTP port out to SC ports — typically between an MTP cassette or parallel-optics port and older SC patch panels or equipment in a data centre or comms room.
Equip builds it from OM4 50/125 µm fibre in an aqua LSZH jacket, with heat-shrink tubing at the connector transition for strain relief and a controlled MTP fibre overcut of 1.0–3.0 µm for consistent optical contact.
Before you order: Equip does not publish the MTP gender (pinned or unpinned) or the polarity method of this cord. MTP connectors only mate male to female, and polarity has to suit your system — send us the MTP port, cassette or module you are connecting to and we will check it before you order.
What's in the Box
- 1 × MTP/SC trunk fibre patch cord, 15 m, factory-terminated
- MTP adapters, cassettes, SC couplers and cleaning tools are not included
What It Means in Practice
- One MTP connector carries all eight fibres, so a single cord replaces four duplex SC patch leads on the MTP side.
- OM4 50/125 µm is the current high-bandwidth multimode grade for short-reach data-centre links.
- SC on the breakout side suits patch panels and devices that use SC rather than LC.
- The aqua LSZH jacket marks it as OM3/OM4 multimode in the rack and is suited to indoor use in occupied buildings.
What Will Not Work
- Single-mode (OS2) panels or optics — this is OM4 multimode.
- LC ports: the breakout side is SC — use SC-to-LC hybrid cords or an MTP-to-LC cord instead.
- An MTP port of the same gender — MTP mates male to female only.
- Outdoor or direct-burial runs: it is an indoor LSZH patch cord.
Key Features
Pre-terminated MTP to SC
Factory-made trunk/breakout cord: plug in at both ends, no splicing or field termination.
OM4 multimode fibre
50/125 µm OM4 fibre, 8 fibres, for high-bandwidth short-reach links.
Strain relief
Heat-shrink tubing reinforces the transition between cable and connectors.
LSZH aqua jacket
Low-smoke, zero-halogen jacket in aqua (turquoise) for quick visual identification.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is a tidy way to bring an 8-fibre MTP port out to SC equipment without a cassette. The one thing to confirm before ordering is MTP gender and polarity against the port you are plugging into — we can do that with you. For standard duplex patching, browse our fibre and network cables.
✓ Buy it if you need an OM4 MTP-to-SC breakout of 15 m for indoor data-centre or rack use.
✕ Skip it if your equipment is single-mode or uses LC connectors throughout.
→ Also consider Equip MTP/MTP OM4 trunk cables (12 fibres) for MTP-to-MTP backbone links.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Equip - 25557707
Colour
Cyan
Length
15m
More Details
Product Code
04:246436
EAN Code
4015867192726
Manufacturer
Equip
