Equip ST to SC Fiber Optic Patch Cable, OS2 Single-Mode Duplex 9/125µm, LSZH, Yellow, 3m

Brand:
Equip
Equip ST-SC Fiber Patch Cable OS2 Duplex 3m Yellow
Equip ST to SC Fiber Optic Patch Cable, OS2 Single-Mode Duplex 9/125µm, LSZH, Yellow, 3m
€13.23 inc. VAT
Buy
252333
€11.12
€13.23 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:246177
EAN Code
4015867176870
Manufacturer
Equip

Quick Specs

Type
OS2 Single-mode duplex patch cable
Connectors
ST to SC
Length
3 m
Jacket
LSZH · Yellow
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Equip ST to SC OS2 Duplex Fiber Optic Patch Cable — 3 m

OS2 Single-ModeST ↔ SC duplex3 m · LSZHYellow jacket

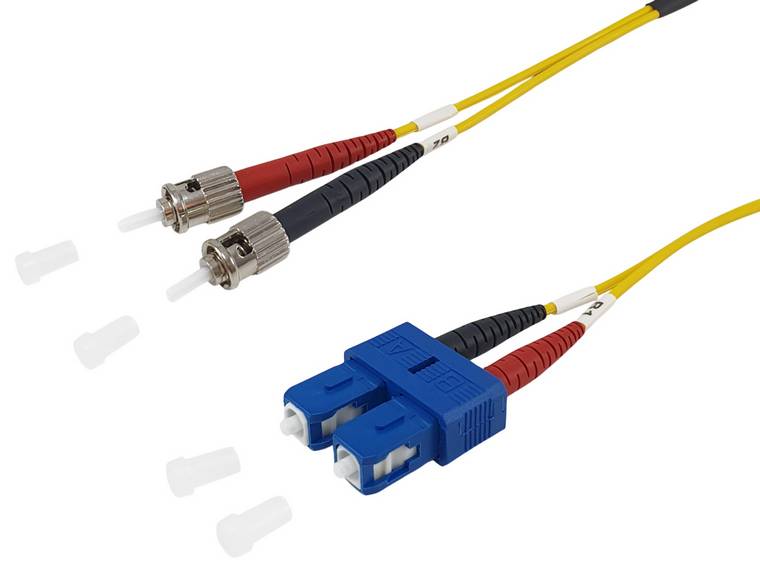

The Equip 252333 is a 3 m duplex OS2 single-mode fiber optic patch cable with ST connectors on one end and SC on the other, built on 9/125 µm fiber with ceramic ferrules and an LSZH jacket — for bridging legacy ST equipment or panels to SC ports.

OS2 is single-mode fiber: a 9 µm core that carries light over long distances, normally with 1310 nm or 1550 nm transceivers (LX/LR-type optics). It works only with single-mode optics and single-mode infrastructure — the yellow jacket is the usual visual cue.

Connectors: ST (round bayonet twist-lock — legacy equipment and older patch panels) and SC (square push-pull — common on media converters, older switches and SC panels/outlets).

Before you order: Single-mode only — the transceivers at both ends and any patch panel in the link must be single-mode (OS1/OS2, 9/125 µm). Check that the ports are ST and SC.

What's in the Box

  • Equip ST/SC duplex OS2 fiber optic patch cable, 3 m (1 piece)
  • Individual measurement protocol (test report) for the cable

What It Means in Practice

  • Duplex = two fibers in one cable: one transmits, one receives. One cable connects one duplex port to one duplex port.
  • 3 m covers patching across a rack or to the next cabinet.
  • Hybrid cable: it adapts directly between ST and SC ports, so you do not need extra adapters (each extra mated connection adds loss).
  • LSZH jacket: low smoke, zero halogen — the usual requirement for cabling in offices, server rooms and public buildings.
  • Each cable ships with its own measurement protocol — useful for documentation and acceptance tests.

What Will Not Work

  • Multimode optics (SR, 850 nm) or multimode panels — single-mode and multimode fiber cannot be mixed in one link.
  • Copper RJ45 ports — fiber needs an optical transceiver (SFP module) or a fiber port on the device.
  • Single-fiber BiDi transceivers or simplex-only ports — this is a duplex (two-fiber) cable.
  • LC ports — this cable is ST to SC; check the port at both ends before ordering.

Key Features


9/125 µm OS2
OS2 is single-mode fiber: a 9 µm core that carries light over long distances, normally with 1310 nm or 1550 nm transceivers (LX/LR-type optics).

Ceramic ferrules
Ceramic ferrules keep the fiber precisely aligned for consistent, low-loss mating — the standard for quality patch cords.

LSZH jacket
Low smoke, zero halogen sheath for indoor installations where fire-safety rules apply.

Tested, with report
Each cable is measured and supplied with its protocol, so you can document the link from day one.

Technical Specifications

Identification
Part Number 252333
EAN / GTIN 4015867176870
Brand Equip
Optical
Fiber mode Single-mode
Fiber class OS2
Core / cladding 9/125 µm
Fibers Duplex (2 fibers)
Cable specification I-VH 2 × 1E
Connectors
Connector side A ST male
Connector side B SC male
Ferrule Ceramic
Physical
Length 3 m
Jacket material LSZH (low smoke, zero halogen)
Jacket colour Yellow
Dimensions (W x D x L) 26 x 56.65 x 3000 mm
Weight 46 g
Performance
Insertion loss Not published by the manufacturer
Test report Measurement protocol supplied with each cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer does not publish a warranty term — claims handled through Singular

Frequently Asked Questions

Can I use it with a multimode (SR) SFP module?
No. The fiber type of the cable must match the transceiver: this single-mode cable needs single-mode optics such as LX or LR.
The link does not come up — what should I check?
First polarity: in a duplex link the transmit fiber at one end must reach the receive port at the other. Then confirm both transceivers are the same type and that the connector end faces are clean — dust is the most common cause of a weak or dead fiber link.
Is 3 m the right length?
Measure the real route including slack for cable management. Too short strains the connectors; extra fiber should be coiled loosely, never kinked or pulled tight. We can source other lengths of the same cable — just ask.
Singular Expert Insight · Buyer's Guide
Most fiber problems we see are not the cable but a mismatch: single-mode cable on multimode optics, an LC cable where the panel is SC, or OM1 mixed into a 50 µm link. Read the transceiver label (SR = multimode, LR/LX = single-mode) and look at the port shape at both ends before you order. If you are still choosing hardware, see our switches with SFP ports.
✓ Buy it if you need a 3 m OS2 duplex link between ST and SC ports with single-mode optics.
✕ Skip it if your transceivers are multimode (SR), your ports are not ST/SC, or you need a single-fiber BiDi link.
→ Also consider the same cable in another length, or a 50/125 µm OM4 multimode cable for short-reach SR links.
Not sure which fiber you have? Send us the model of your switch, transceiver or patch panel and we will check compatibility before you order.
