Equip OS2 Fibre Patch Cable SC/UPC to SC/UPC Duplex 9/125 µm Single-Mode, 1m, LSZH, Yellow
Brand:
Equip
Equip OS2 Fibre Patch Cable SC/UPC to SC/UPC Duplex 9/125 µm Single-Mode, 1m, LSZH, Yellow
€12.13 inc. VAT
253331
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

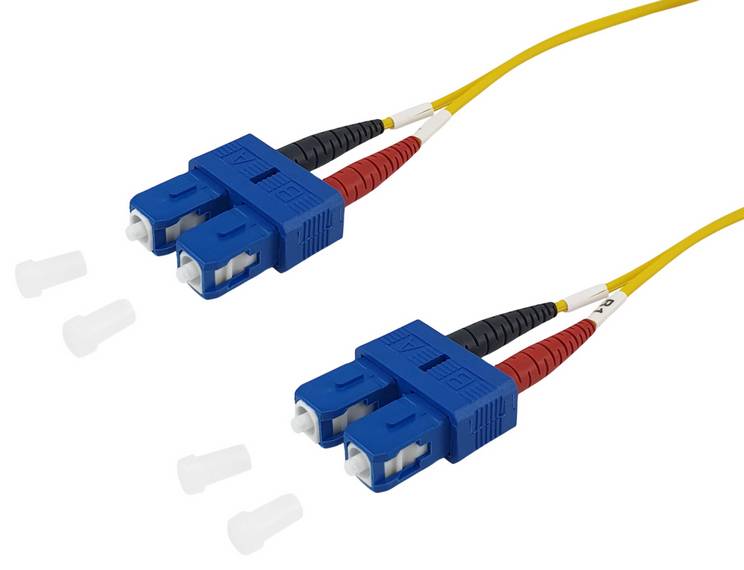

Equip OS2 SC/UPC to SC/UPC Duplex Fibre Patch Cable — 1 m
OS2 9/125 µmSC/UPC ↔ SC/UPCDuplex1 m · LSZH
The Equip 253331 is a 1 m duplex OS2 single-mode fibre optic patch cable (9/125 µm) with SC/UPC on one end and SC/UPC on the other, for single-mode optics such as 1000BASE-LX or 10GBASE-LR SFP/SFP+ transceivers, media converters and single-mode patch panels.
The yellow jacket is LSZH (low smoke, zero halogen). Every cable is tested and shipped with its own measurement report. OS2 is the current single-mode grade (9/125 µm). It is the choice for runs between floors or buildings, carrier and FTTH connections, and any LX/LR/ER-type optics; the reach is set by the transceiver, not by this short patch cord.
Before you order: This is single-mode (OS2) fibre. It works only with single-mode transceivers (LX, LR, ER and similar) — not with multimode SR optics. Check the label on your SFP module before ordering.

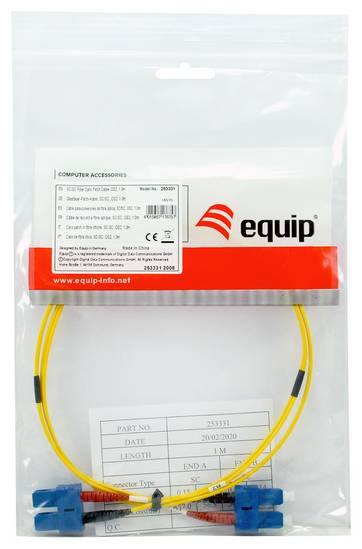

What's in the Box
- 1 × Equip OS2 duplex patch cable, SC/UPC to SC/UPC, 1 m
- Individual test / measurement report
- No couplers, adapters or transceivers are included
What It Means in Practice
- Duplex = two fibres, one to transmit and one to receive. A standard SFP/SFP+ module uses both, so one duplex cable makes one link.
- Same connector on both ends: SC (larger, push-pull) — common on older switches, media converters, fibre wall outlets and FTTH gear.
- Jacket colour follows the usual convention (yellow single-mode, aqua OM3, violet OM4, lime OM5), so the cable is easy to identify later in the rack.
What Will Not Work
- Multimode SR transceivers or multimode (aqua/violet/lime) cabling — mixing single-mode and multimode fails or gives an unstable link.
- APC (green) ports — many FTTH/GPON ONTs and fibre wall outlets use SC/APC.
- Ports other than SC (e.g. LC, ST, MPO/MTP) — use the matching cable or a suitable coupler.
- It is a passive cable: it does not turn an RJ45 copper port into fibre — that needs an SFP module or a media converter.
Key Features
LSZH jacket
Low smoke, zero halogen — suitable for offices, public buildings and server rooms where PVC is not wanted.
SC/UPC / SC/UPC
SC on both ends for straight equipment-to-panel or equipment-to-equipment links.
Tested, with report
Each cable is measured before shipping and the report is in the bag — handy for installation documentation.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For fibre patch cords three things decide the order: fibre type (single-mode OS2), connectors on each end (SC/UPC / SC/UPC) and polish (UPC). Match all three to the ports you already have and the cable simply works. Planning a new fibre uplink? See our switches with SFP ports.
✓ Buy it if you need a 1 m OS2 duplex link between SC/UPC and SC/UPC ports.
✕ Skip it if your optics are SR multimode, or your ports are APC (green).
→ Also consider the same cord in other lengths, or the OM3/OM4 multimode version if your optics differ.
Not sure which fibre or connector you have? Send us the switch or SFP module model and we will check it before you order.
Features - Equip - 253331
Colour
yellow
Length
1.0m
More Details
Product Code
04:246186
EAN Code
4015867176757
Manufacturer
Equip
