equip 326449 Cat 6 Shielded High Density Patch Panel 48-Port 19 Inch 1U Class E Dual IDC LSA and 110 Black RAL 9005
Brand:
Equip
equip 326449 Cat 6 Shielded High Density Patch Panel 48-Port 19 Inch 1U Class E Dual IDC LSA and 110 Black RAL 9005
€135.02 inc. VAT
326449
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

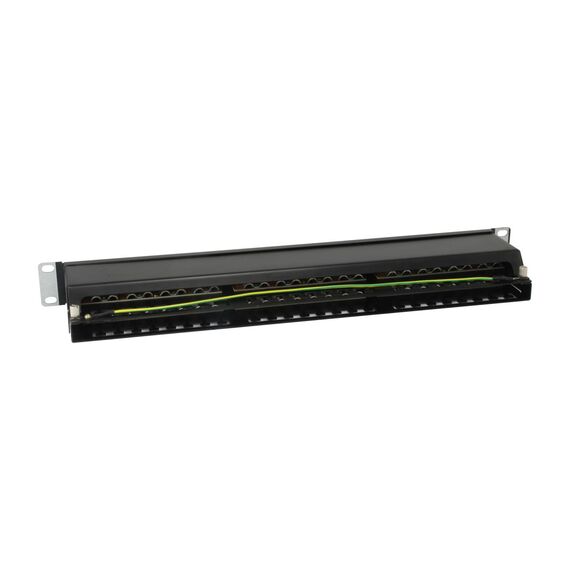

equip 326449 — 48-Port Cat 6 Shielded Patch Panel, 19" 1U, Black
48 ports in 1UCat 6 shielded19" rackLSA or 110 tool

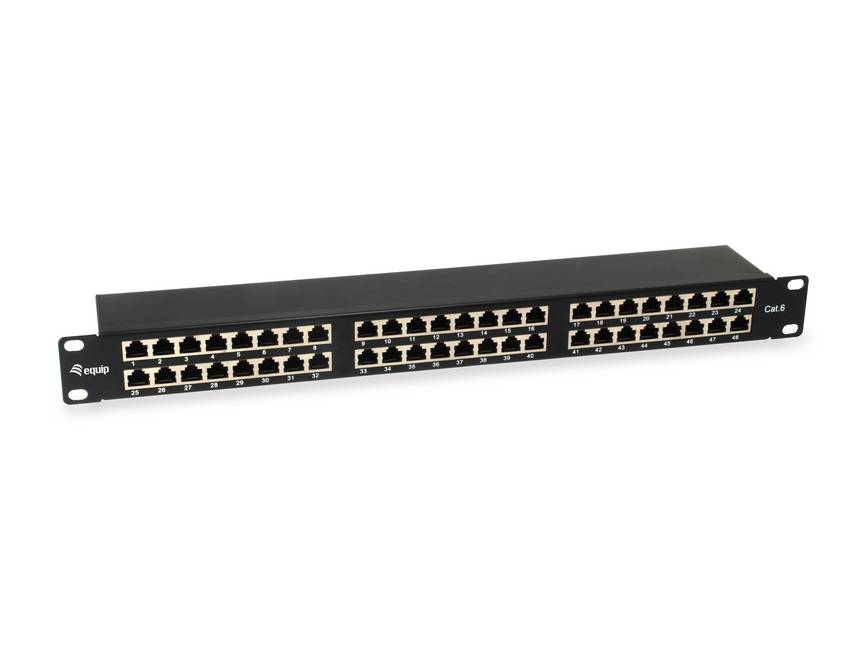

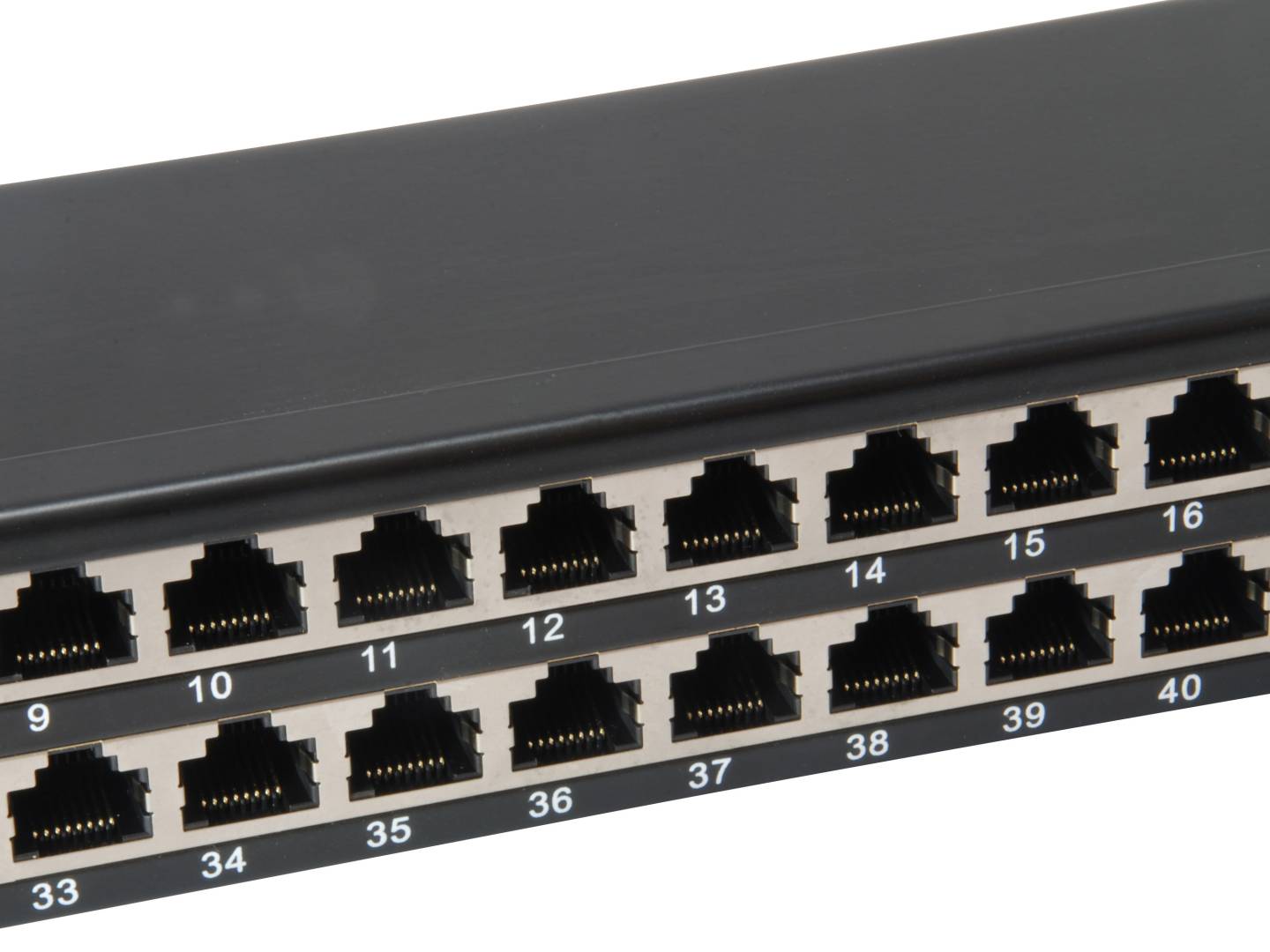

The equip 326449 is a 48-port Cat 6 high-density shielded 19-inch 1U patch panel in black (RAL 9005). It mounts in a 19-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with an LSA or 110 punch-down tool, and the 48 RJ45 sockets on the front take ordinary patch cords, rated for Gigabit Ethernet (1000Base-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable. If you are planning a new rack, send us the number of outlets and the switch you use — we check that panel, cable and patch cords match before you order.
Compatibility — check before buying:

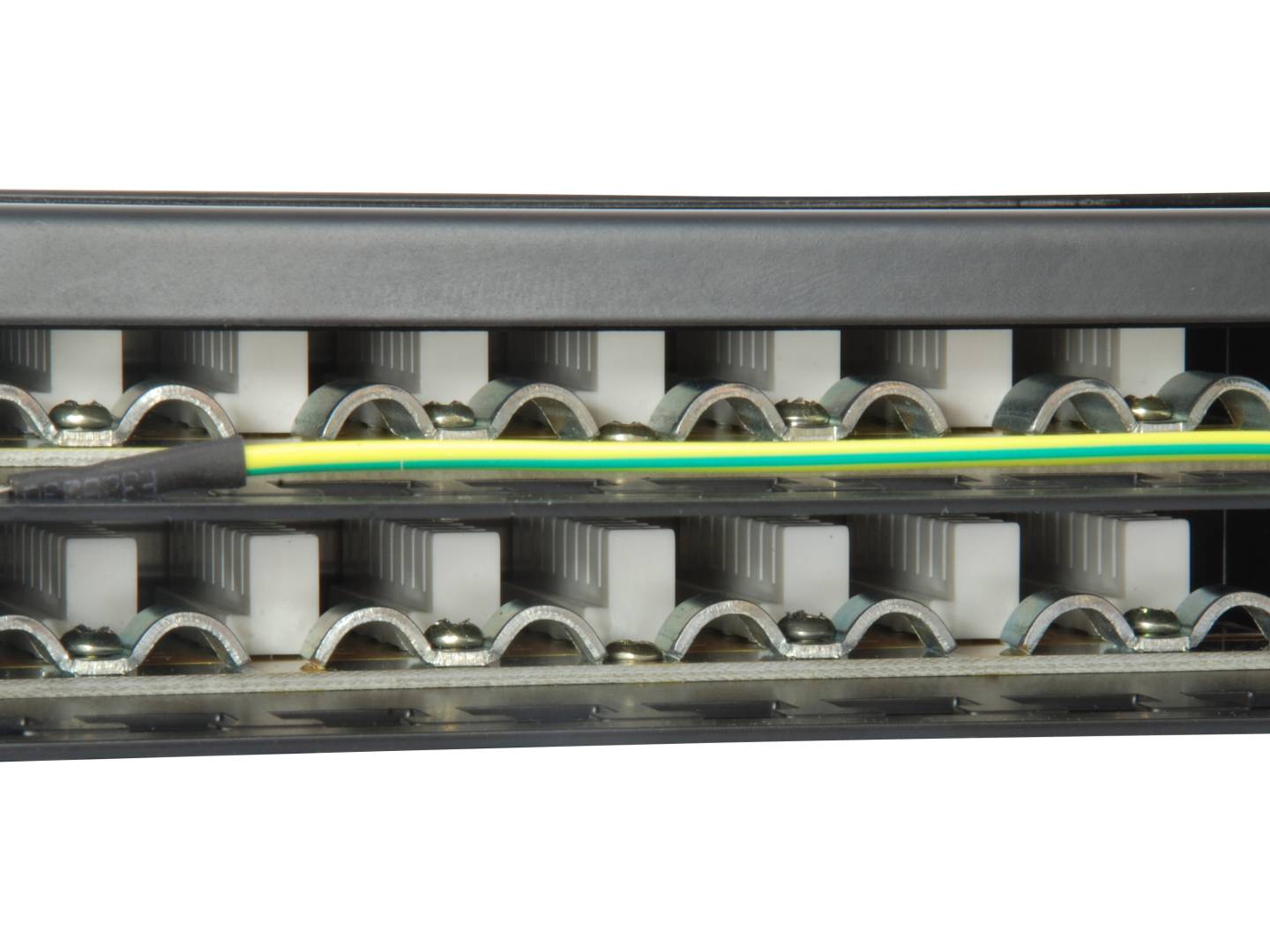

It puts 48 ports in a single 1U — the rows are dense, so plan short, labelled patch cords; the grey version is 326349. The ports are fixed and terminated with an LSA or 110 punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; equip does not list an earthing wire. It needs a standard 19-inch rack or cabinet with 1U free. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.
Best For
✓ 19-inch server and network racks
✓ Office floor distribution
✓ Structured cabling projects
✓ Patching wall outlets to switches
✓ Data centres and comms rooms
✓ Labelled, serviceable terminations
Key Features
Dual IDC termination

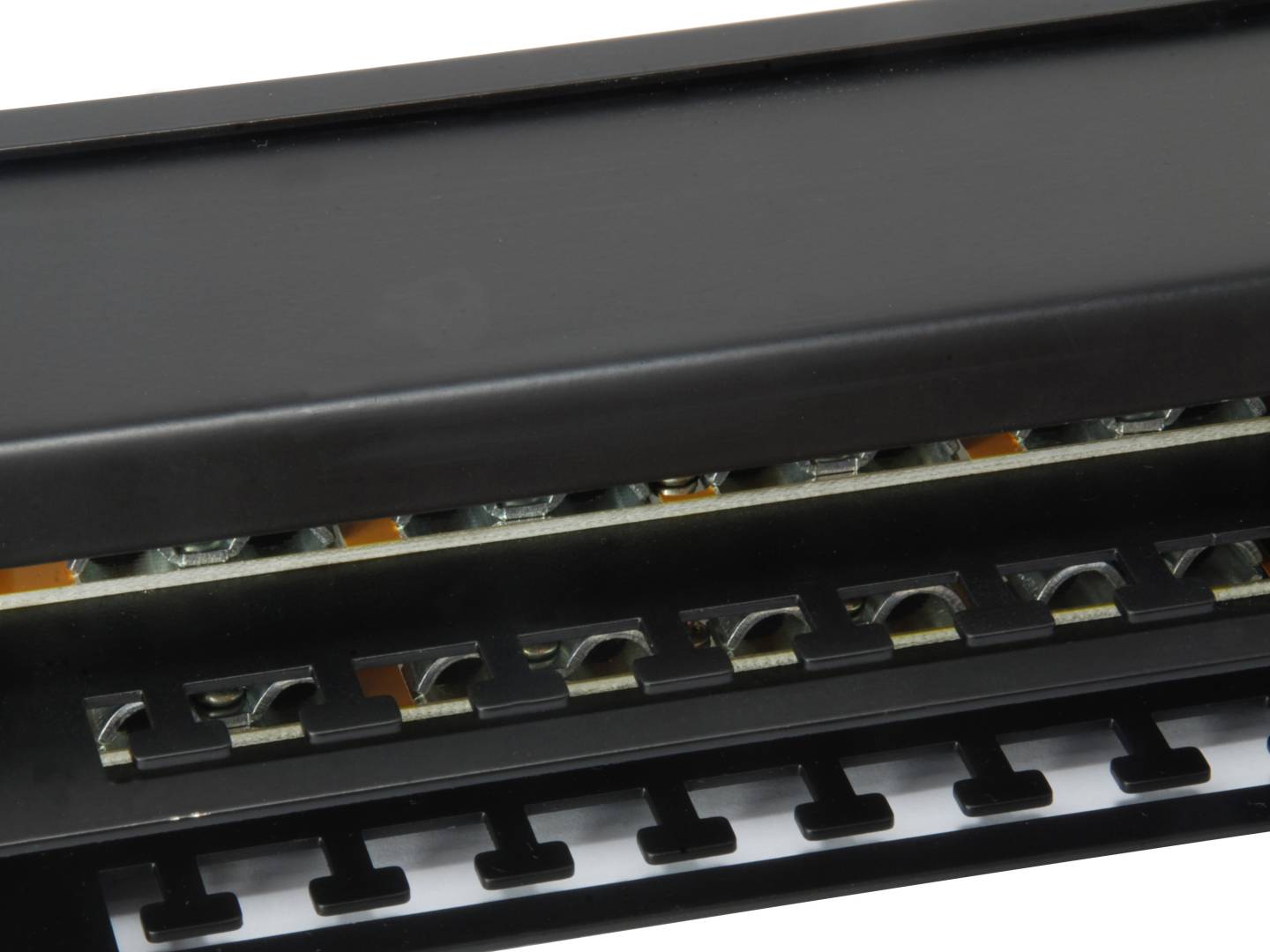

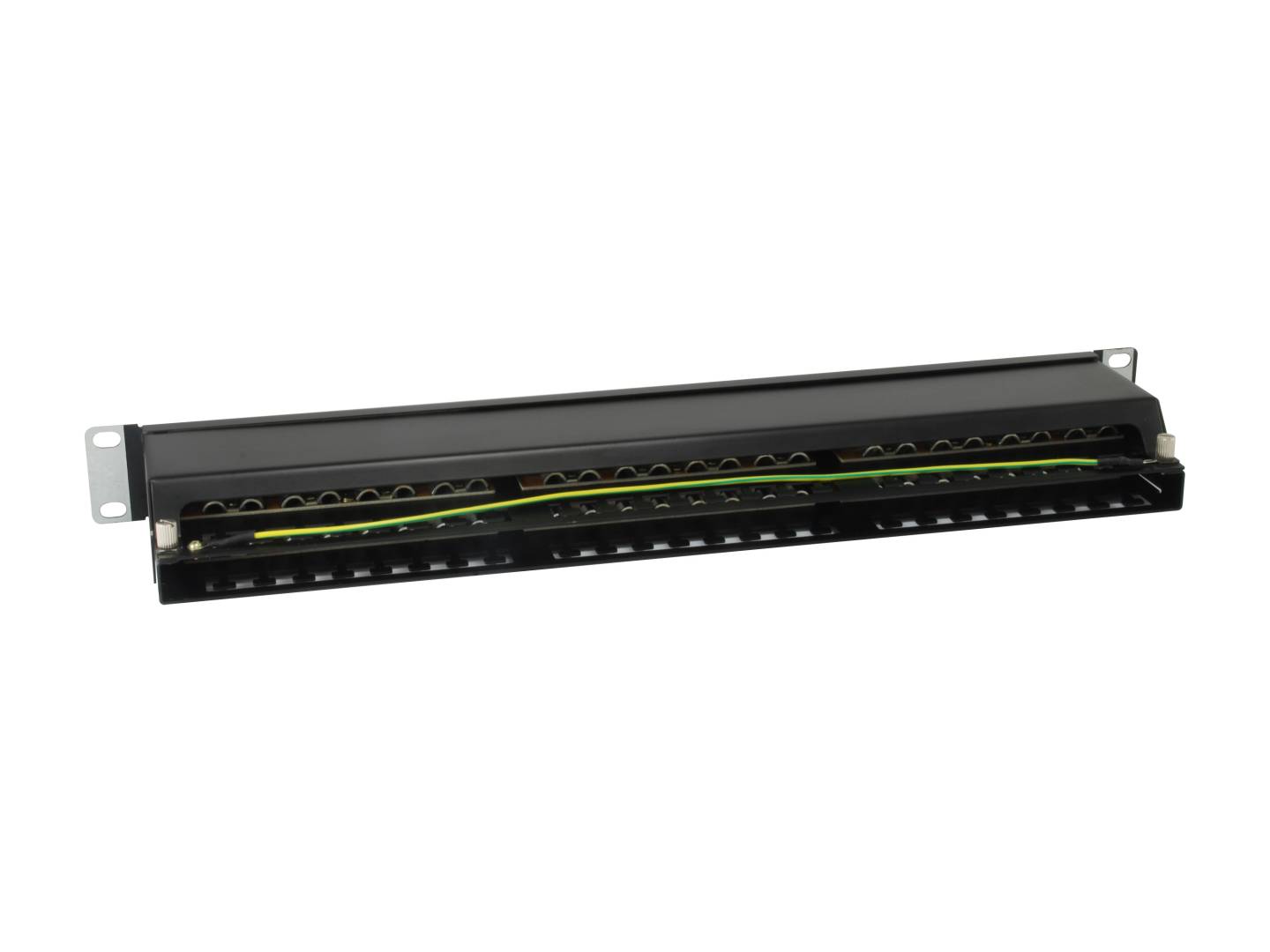

Dual IDC blocks accept both LSA (Krone) and 110 punch-down tools, with numbered ports colour-coded T568A/B. Once the cable is terminated, every move is made with a patch cord at the front.
Cat 6 performance
Class E, up to 250 MHz, 10/100Base-T and 1GBase-T. The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.
19-inch, 1U
Standard 19-inch width at 1U height, for any network rack or cabinet.
48 ports in 1U
A high-density layout fits 48 shielded ports in one rack unit, matching a 48-port switch without spending 2U on the panel.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 326449 for black racks with a 48-port switch where space is short: all 48 shielded ports fit in one unit. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.
Buyer’s Guide
Buy it if
You need 48 shielded Cat 6 ports in only 1U of a black rack.
Skip it if
You prefer roomier 2U spacing, or need Cat 6A.
Also consider
StarTech CPANEL48, a 48-port Cat6 UTP panel in 2U.
Features - Equip - 326449
Colour
black
More Details
Product Code
04:285672
EAN Code
4015867207154
Manufacturer
Equip
