Equip Pro 19-Inch 1U Rack PDU, 8x IEC C13 Outlets, C14 Input, ON/OFF Switch, 10A 2500W, Aluminium, 1.8m Cable, Silver
Brand:
Equip
Equip Pro 19-Inch 1U Rack PDU, 8x IEC C13 Outlets, C14 Input, ON/OFF Switch, 10A 2500W, Aluminium, 1.8m Cable, Silver
€33.65 inc. VAT
333310
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Equip Pro 19" 1U Rack PDU — 8 × C13, Switched
8 × C1319" rack, 1U2500 W / 10 AC14 input

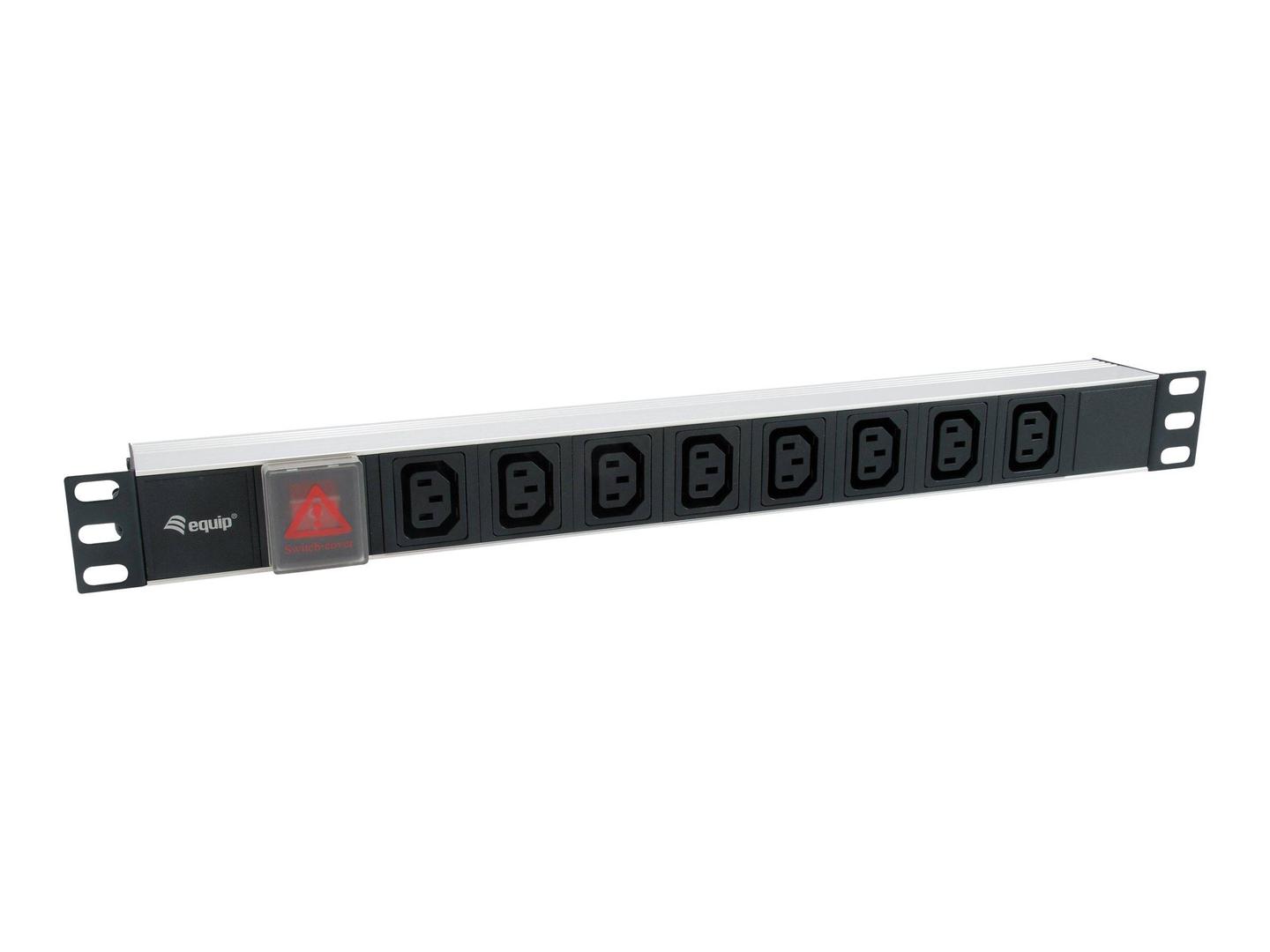

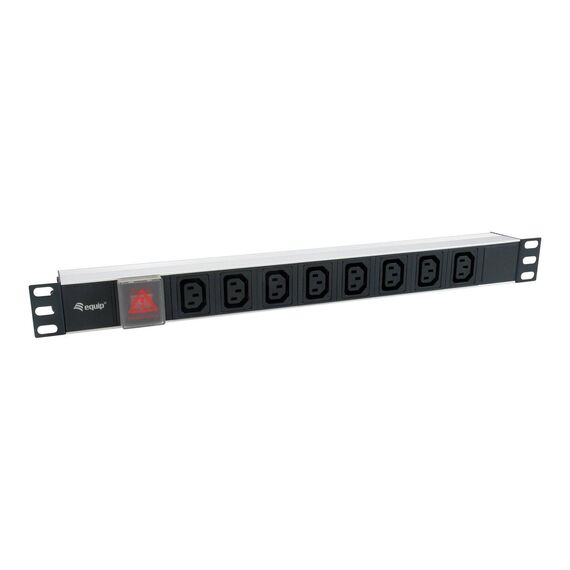

The Equip 8-outlet C13 power distribution unit is a 19-inch 1U aluminium rack PDU with eight IEC C13 outlets and an IEC C14 input, built to power servers, switches, storage and other rack equipment that use standard IEC power cords — typically fed from a rack UPS.
It is rated 10 A / 2,500 W at 250 V, has an ON/OFF switch, a silver aluminium housing and a 1.8 m H05VV-F 3G 1.5 mm² cable with C14 plug. A screw kit and a quick installation guide are included.
Before you order: Both ends are IEC: the C14 plug connects to a C13 outlet on a UPS or another PDU, and devices connect with C14-to-C13 (kettle-type) cords. No household plugs fit — neither UK nor Schuko.
What's in the Box
- 1 × Equip 19" 1U aluminium power distribution unit with fixed 1.8 m H05VV-F 3G1.5 cable and IEC C14 plug.
- 1 × screw kit for rack mounting.
- 1 × quick installation guide.
What It Means in Practice
- Mounts horizontally in one 1U slot of a 19" rack or cabinet, so power sits next to the equipment it feeds instead of on the cabinet floor.
- Servers, switches and storage with C14 inlets connect with short C13-to-C14 cords — no bulky plugs or adapters in the rack.
- Plug the C14 lead into a UPS C13 outlet so all eight outlets are UPS-backed.
- Keep the total under 2,500 W and under the rating of the UPS outlet feeding it.
What Will Not Work
- Plugging into a wall socket — the input is an IEC C14 plug.
- Devices with UK or Schuko plugs — the outlets are IEC C13 only.
- C19/C20 high-current equipment — those need a C19 PDU.
- Loads above 10 A / 2,500 W in total.
Key Features
IEC C13 outlets
The standard connector for servers, switches and storage power supplies.
C14 input
Feeds from a UPS or upstream PDU C13 outlet.
Aluminium housing
Metal body for rack use, finished in silver.
Master switch
ON/OFF switch for all eight outlets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
C13 outlets keep a rack clean: short IEC jumper cords instead of plug blocks and adapters. Pair it with a rack UPS for protected power to every device. Complete the cabinet from our rack accessories.
✓ Buy it if your rack equipment uses IEC C14 inlets and you want eight UPS-fed C13 outlets in 1U.
✕ Skip it if your devices have Schuko or UK plugs, or you need to plug into a wall socket.
→ Also consider the Equip 333286 with Schuko outlets and a C14 input.
Not sure it fits your cabinet or UPS? Send us the rack model and the devices you want to power and we will check before you order.
Features - Equip - 333310
Colour
silver
Length
1.8m
More Details
Product Code
04:335380
EAN Code
4015867223086
Manufacturer
Equip
