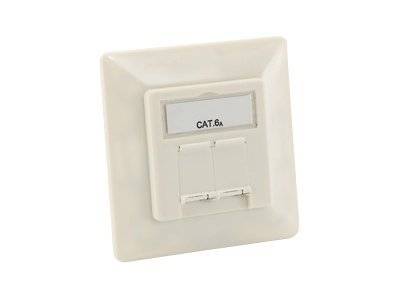

Equip 125772 Cat.6A Shielded Dual RJ45 German Modular Faceplates, LSA-IDC, 45° Angled, White RAL 9010, 5-Pack

Brand:
Equip
Equip 125772 Cat6A Shielded Dual RJ45 Faceplate, Pure White
Equip 125772 Cat.6A Shielded Dual RJ45 German Modular Faceplates, LSA-IDC, 45° Angled, White RAL 9010, 5-Pack
€16.14 inc. VAT
Buy
125772
€13.56
€16.14 inc. VAT
Ships from EU stock: 996 item(s)
+ −
Add to wish list Ask a question
Product Code
04:232307
EAN Code
4015867162200
Manufacturer
Equip

Quick Specs

Connections per faceplate
2 × shielded Cat.6A RJ45
Termination
LSA-IDC / 22–24 AWG
Outlet angle
45° / horizontal cable feed
Pack / finish
5 faceplates / RAL 9010
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Five dual-port outlets for structured cabling

Cat.6A2 × RJ45 eachLSA-IDC5-pack

Equip 125772 supplies five white modular faceplates with two integrated shielded Cat.6A RJ45 ports each. The 45° outlet angle and horizontal cable feed help you plan the connection position, while LSA-IDC terminals accept the specified 22–24 AWG conductors.

Compatibility — check before buying:
Check box depth, frame dimensions and cable approach. These outlets use punch-down termination for solid or stranded 22–24 AWG wire; the compatible Equip 125561 surface-mount back box is a separate accessory.

Key Features


Integrated shielded ports
Each faceplate contains two Cat.6A RJ45 sockets, so separate keystone modules are not required.

Defined termination requirements
LSA-IDC terminals work with compatible Krone punch-down tools and provide T568A/T568B wiring labels.

A multi-outlet pack
Five RAL 9010 faceplates support installations with several connection locations; each plate has two ports.

Technical Specifications

Identification
Model 125772
EAN 4015867162200
Quantity / colour 5 pcs/pack / pure white RAL 9010
Connectivity / installation
Faceplate type German modular faceplate with 2 integrated shielded RJ45 ports
Category / performance Cat.6A; up to 500 MHz; 10GBASE-T
Angle / cable feed 45° angled insert / horizontal feed
Termination LSA-IDC; Krone punch-down tool compatible
Conductor support 22–24 AWG, solid and stranded
Wiring labels T568A and T568B
Compatible back box Equip 125561 (separate accessory)
Standards / compliance ISO/IEC 11801; EN 50173; TIA/EIA 568C.2; RoHS
Mechanical / materials
Faceplate / bracket ABS, UL 94-HB
Jack housing / contact bracket / cover Glass-fibre reinforced PBT, UL 94V-0
Jack shield / main shield Nickel-plated bronze / zinc die-casting
Jack contacts Nickel-plated phosphor bronze; 50 micro-inch gold plating on plug contact area
IDC housing / terminals Glass-fibre reinforced PC, UL 94V-0 / tin-plated phosphor bronze
PCB / label cover FR4, UL 94V-0 / PC, UL 94V-2
Insertion force 30 N maximum (IEC 60603-7-5)
Jack-to-plug retention reference 7.7 kg (manufacturer drawing)
Mating life At least 750 cycles (ISO/IEC 11801; IEC 60603-7-5)
Physical / operating
Overall nominal dimensions (W × D × H) 80 × 38 × 80 mm
Drawing installation dimensions Central plate 50.2 × 50.2 mm; mounting frame 68.8 × 68.8 mm; depth 38.2 mm
Manufacturer product net weight 170 g
Operating temperature -10 – 60 °C

What's in the Box

5 × Equip 125772 dual-port modular faceplates

Frequently Asked Questions

How many ports does the pack provide?
There are five faceplates, each with two integrated RJ45 ports: ten connection positions in total.
Can it terminate stranded conductors?
The exact-model drawing specifies both solid and stranded wire in the 22–24 AWG range. Follow the terminal and punch-down requirements.
Does it include the surface-mount box?
The verified pack contains five faceplates. Equip identifies 125561 as the compatible back box; treat it as a separately required accessory for that mounting method.
Singular Expert Insight
Match the conductor gauge and box clearance before ordering a five-pack. This is a complete twin-port punch-down outlet, so compare it with a keystone faceplate only when you specifically need replaceable, separately selected modules. Compare network outlet accessories

Buyer’s Guide

Buy it if

You need five shielded twin Cat.6A outlets for compatible 22–24 AWG cabling.

Skip it if

You need RJ45 female-to-female couplers or a different conductor range.

Also consider

The compatible 125561 back box for surface mounting, or a modular keystone plate for a different installation approach.
