equip EZP-8080-G — Plinth for 800 × 800 mm 19" Floor Cabinets
800 × 800 mm100 mm highSteel 1.2 mmRAL 7035 grey

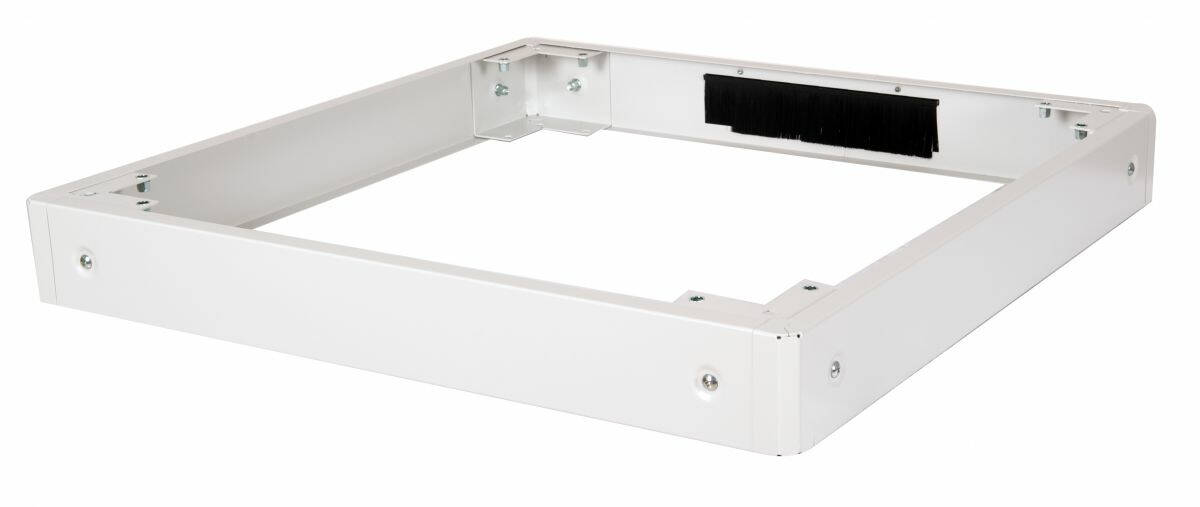

The equip EZP-8080-G is a 100 mm high plinth (base) for 19-inch floor-standing cabinets with an 800 × 800 mm footprint, used to lift the cabinet off the floor in server rooms, network closets and industrial areas. Raising the cabinet makes room for cables entering from below, helps airflow and keeps the cabinet bottom away from dust and moisture on the floor.
It is made of 1.2 mm steel in light grey RAL 7035, the common colour of equip and many other network cabinets.
Before you order: Match the footprint exactly: this plinth is for cabinets that are 800 mm wide and 800 mm deep. A 600 mm wide or 1000 mm deep cabinet needs a different plinth. equip does not publish a load rating, so ask us before placing very heavy, fully loaded cabinets on it.
What's in the Box
- 1 × equip EZP-8080-G plinth 800 × 800 mm
- equip lists no mounting kit or manual in the package
What It Means in Practice
- Adds 100 mm under the cabinet, giving space to route floor cables into the cabinet bottom.
- Keeps the cabinet base clear of cleaning water and dust.
- Grey RAL 7035 matches grey equip cabinets and many other brands.
- Useful in rooms without a raised floor.
What Will Not Work
- It does not fit cabinets with a footprint other than 800 × 800 mm.
- It is not a castor kit — the cabinet stays fixed in place.
- No mounting kit is listed in the package; fixing to the cabinet and floor depends on your cabinet hardware.
Key Features
800 × 800 mm footprint
Sized for 800 mm wide and 800 mm deep floor cabinets.
100 mm height
Lifts the cabinet for cable entry and airflow.
Steel construction
1.2 mm material thickness.
RAL 7035 grey
Matches standard light grey network cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A plinth is a small part that makes floor cabling much tidier, especially in rooms without a raised floor. Order it with the cabinet so footprint and colour match. Browse our rack accessories for shelves, PDUs and cable management.
✓ Buy it if you have an 800 × 800 mm 19" floor cabinet and want to raise it for cable entry and airflow.
✕ Skip it if your cabinet has a different footprint or you need castors to move it.
→ Also consider a castor set if the cabinet must be mobile.
Not sure of your cabinet footprint? Send us the cabinet model and we will confirm the matching plinth before you order.
